Huffy SKM 5200 Owner's Manual page 10

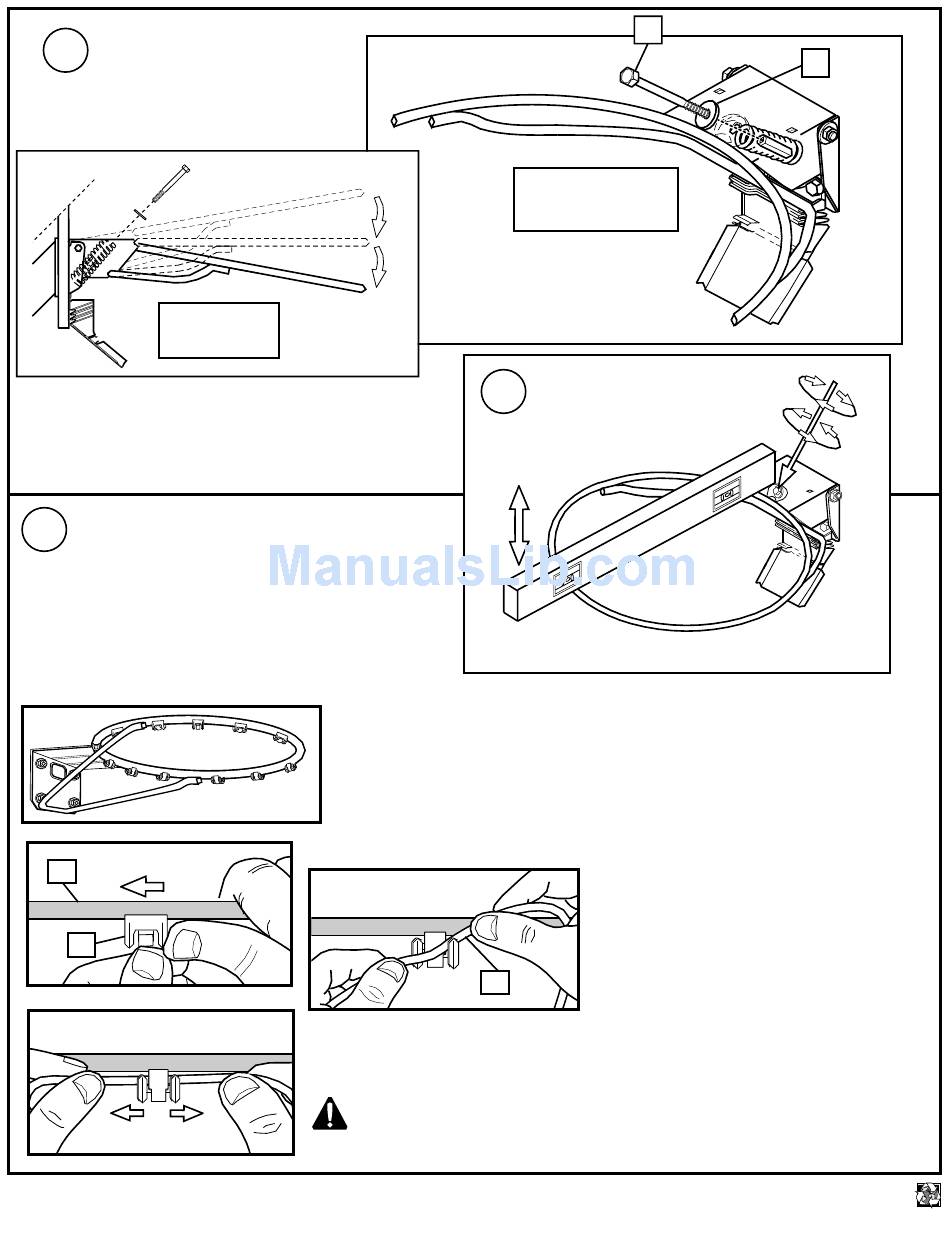

22.
Install bolt (48) and adjust to level
rim.
Push Down
to Start Bolt
24.
Install net clips (49) and net (50).
The Quick Clip™ rapid release net system lets the net pull
away from the rim. This reduces the risk of player injury or
property damage. However, improper installation or a ball
making contact at an odd angle may disen-gage the net clip
from the goal rim. Usually, the clip is reinstalled with little or
no problem. We hope that you agree this inconvenience is
minor when compared to the safety of the players.
Outside View
44
49
P/N 205932 5/99
a. The two outer hooks on the clip must face towards inside of goal rim. Insert the
larger hole in clip onto rim stud, then slide net clip to the left, locking or snapping
securely into position. NOTE: Clips should not slide with ease. It is very
important that the net clips are in the locked position before going on to
next step.
Inside View
NOTE: Stretching net up then pulling side to side will help snap net under
center hook.
WARNING:
Use of this product without proper installation of net clips, or
when all net clips are not present could result in bodily harm. Be sure to follow
directions carefully.
10
48
Use Caution Not To
Cross-Thread Bolt
23.
Adjust bolt (48) to level rim.
b. Install net, as shown.
IMPORTANT! MAKE SURE NET IS HELD
BY ALL THREE HOOKS ON THE NET
CLIP.
50
36
