Generac Portable Products 9 ,000WattGenerator

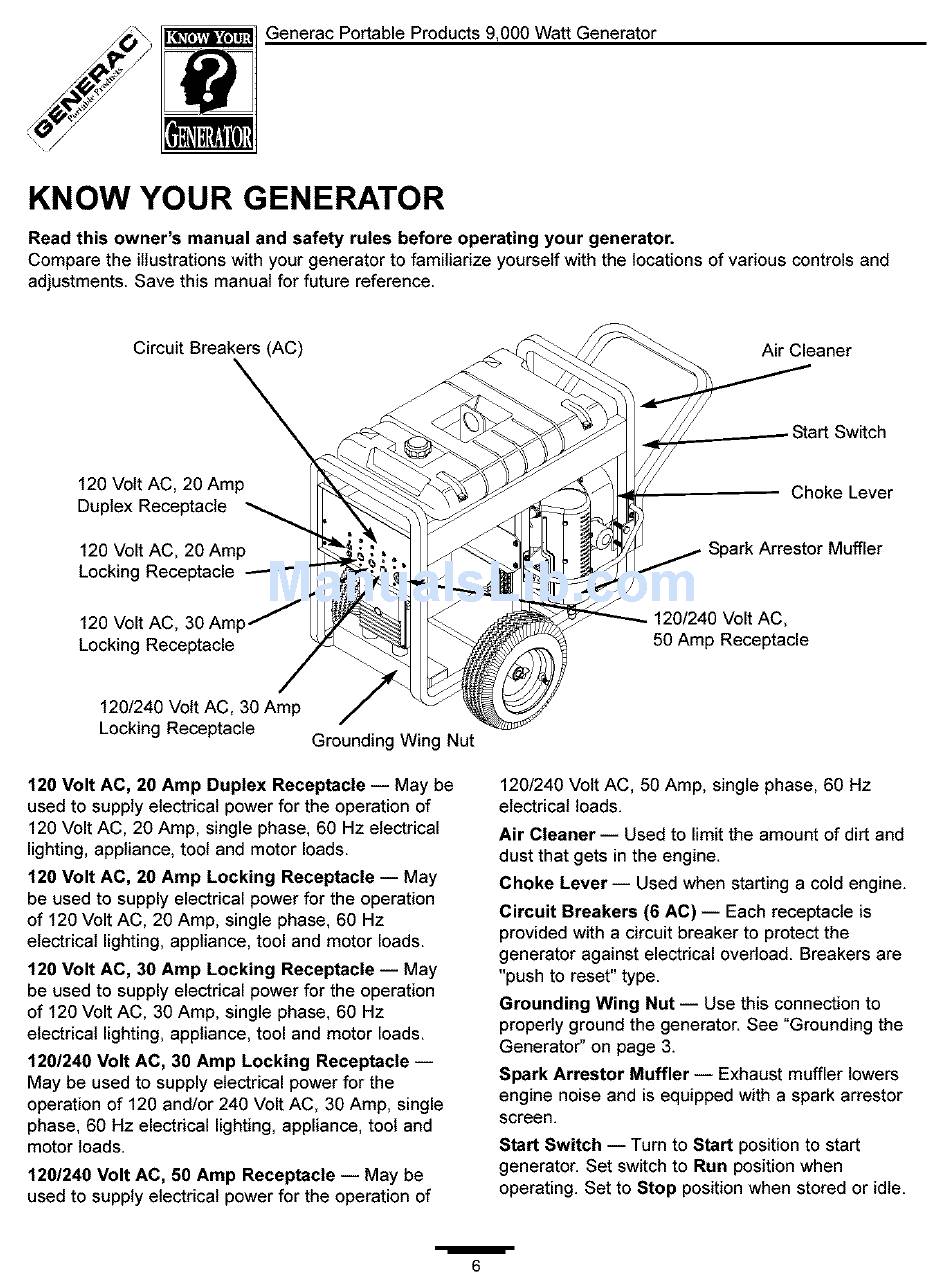

KNOW YOUR GENERATOR
Read this owner's manual and safety rules before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments Save this manual for future reference
Circuit Breakers (AC)
\
120 Volt AC, 20 Amp
Duplex Receptacle
120 Volt AC, 20 Amp
Locking Receptacle
120 Volt AC
Locking Receptacle
Air Cleaner
Switch
Choke Lever
Spark Arrestor Muffler
120/240 Volt AC,
50 Amp Receptacle
120/240 Volt AC, 30 Amp
Locking Receptacle Grounding Wing Nut
120 Volt AC, 20 Amp Duplex Receptacle -- May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
120 Volt AC, 20 Amp Locking Receptacle -- May
be used to supply electrical power for the operation
of 120 Volt AC, 20 Amp, single phase, 60 Hz
electrical lighting, appliance, tool and motor loads.
120 Volt AC, 30 Amp Locking Receptacle -- May
be used to supply electrical power for the operation
of 120 Volt AC, 30 Amp, single phase, 60 Hz
electrical lighting, appliance, tool and motor loads.
120/240 Volt AC, 30 Amp Locking Receptacle --
May be used to supply electrical power for the
operation of 120 and/or 240 Volt AC, 30 Amp, single
phase, 60 Hz electrical lighting, appliance, tool and
motor loads.
120/240 Volt AC, 50 Amp Receptacle -- May be
used to supply electrical power for the operation of
120/240 Volt AC, 50 Amp, single phase, 60 Hz
electrical loads.
Air Cleaner -- Used to limit the amount of dirt and
dust that gets in the engine.
Choke Lever-- Used when starting a cold engine.
Circuit Breakers (6 AC) -- Each receptacle is
provided with a circuit breaker to protect the
generator against electrical overload. Breakers are
"push to reset" type.
Grounding Wing Nut -- Use this connection to
properly ground the generator. See "Grounding the
GeneratoK' on page 3.
Spark Arrestor Muffler -- Exhaust muffler lowers
engine noise and is equipped with a spark arrestor
screen.
Start Switch -- Turn to Start position to start
generator. Set switch to Run position when
operating. Set to Stop position when stored or idle.
/
6
