KNOW YOUR GENERATOR

Read this owner's manual and safety rules before operating your generator.

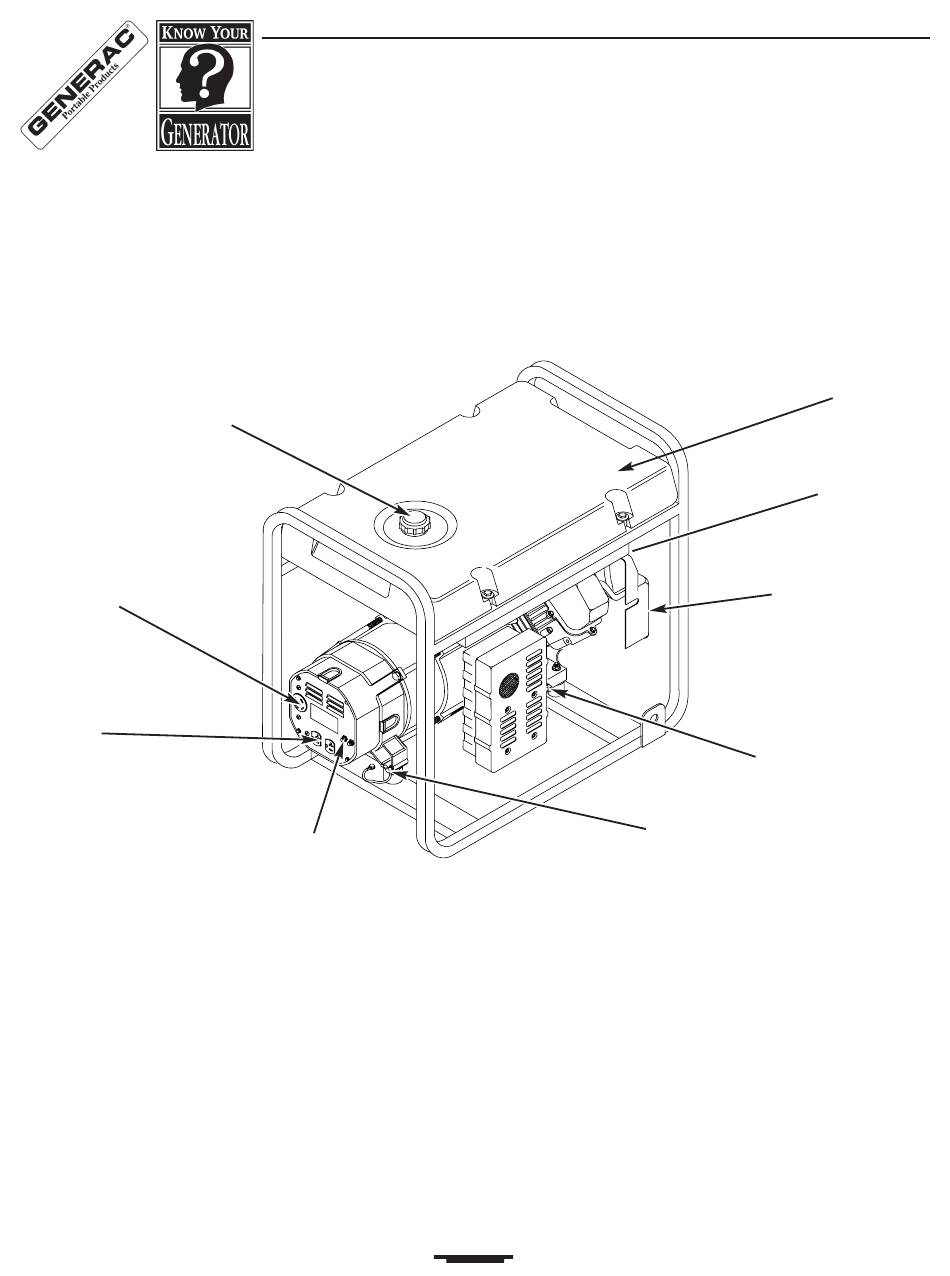

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
120/240 Volt AC,
20 Amp Receptacle
120 Volt AC, 20 Amp
Duplex Receptacle
Circuit Breakers (AC)
120 Volt AC, 20 Amp Duplex Receptacle — May be
used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
120/240 Volt AC, 20 Amp Receptacle — May be used
to supply electrical power for the operation of 120 and/or
240 Volt AC, 20 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
Air Cleaner — Uses a dry type filter element and foam pre-
cleaner to limit the amount of dirt and dust that gets in the
engine.
Generac Portable Products 3,600 Watt Generator
Fuel Cap
Grounding Wing Nut
Circuit Breakers (AC) — Each receptacle is provided
with a push-to-reset circuit breaker to protect the
generator against electrical overload.
Fuel Cap — Fill tank with regular unleaded gasoline here.
Fuel Tank — Capacity of 4 U.S. gallons.
Grounding Wing Nut — Provides a tie-point for
connecting the generator frame to earth ground.
Oil Drain — Drain engine oil here.
Recoil Starter — Use for starting the engine manually.
4
Fuel Tank
Recoil Starter
Air Cleaner
Oil Drain
