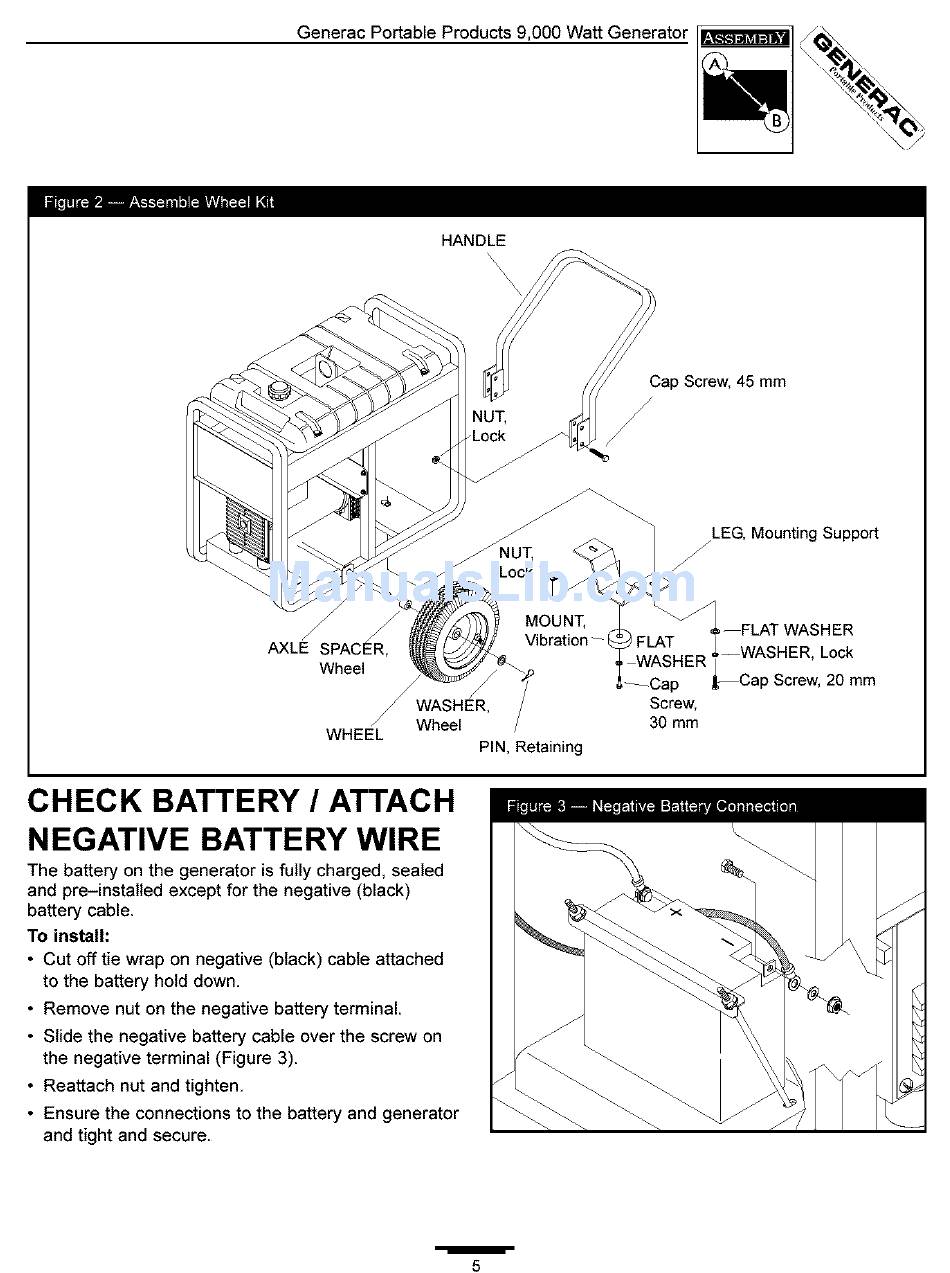

Generac Power Systems 1338-1 Owner's Manual page 5

Generac P ortable Products 9 ,000 WattGenerator
HANDLE
Cap Screw, 45 mm
/
LEG, Mounting Support
/
AXLE
Wheel
WHEEL
MOUNT,
Vibration
;HER,
Wheel
PiN, Retaining
WASHER
Screw,
30 mm
FLAT WASHER
,,--WASHER, Lock
_Cap Screw, 20 mm
CHECK BATTERY / ATTACH
NEGATIVE BATTERY WIRE
The battery on the generator is fully charged, sealed
and pre-instalted except for the negative (black)
battery cable.
To install:
• Cut off tie wrap on negative (black) cable attached
to the battery hold down.
• Remove nut on the negative battery terminal
• Slide the negative battery cable over the screw on
the negative terminal (Figure 3)
• Reattach nut and tighten.
• Ensure the connections to the battery and generator
and tight and secure
/
5
