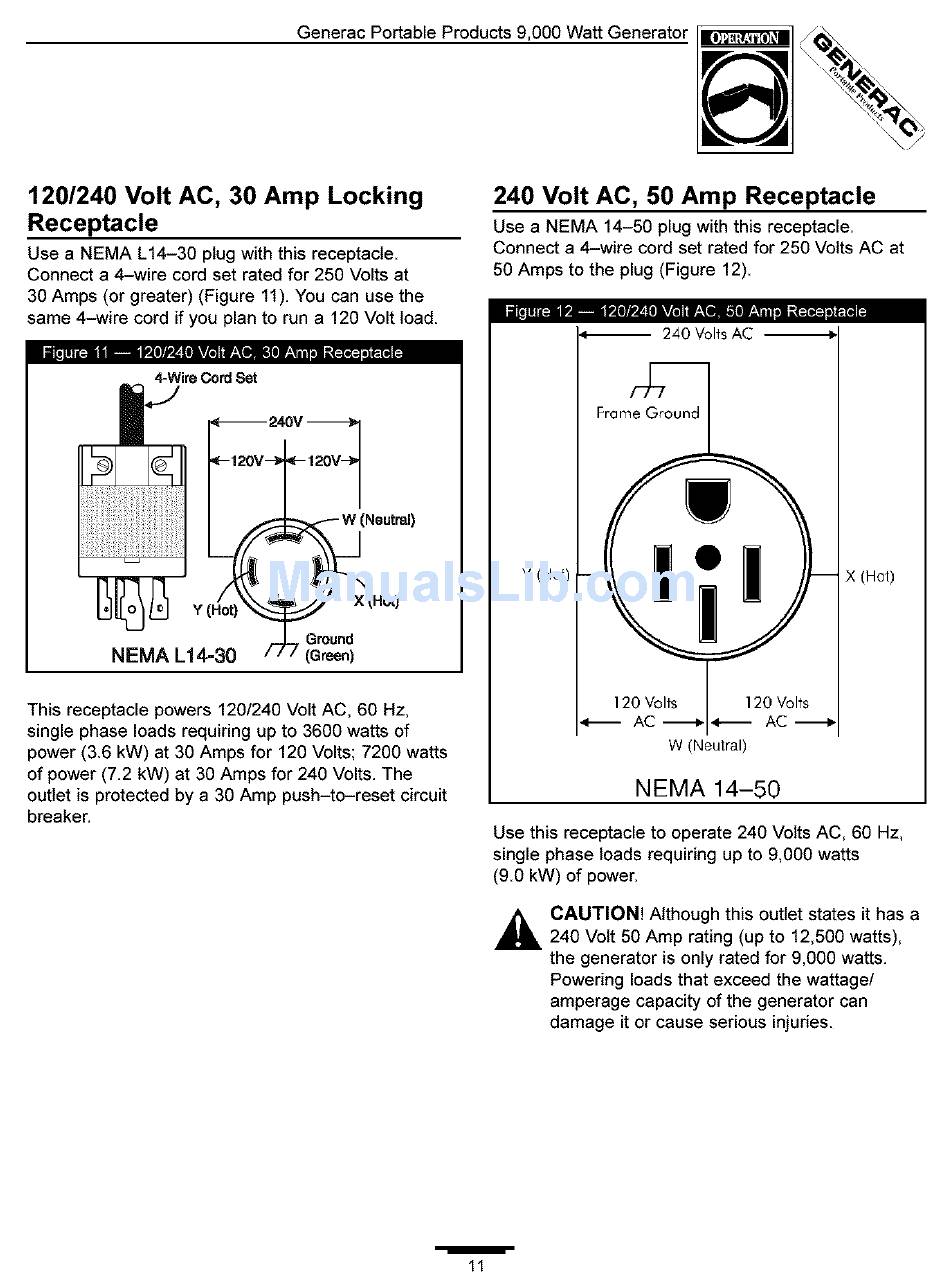

Generac P ortable Products 9 ,000 WattGenerator
120/240 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L14-30 plug with this receptacle.
Connect a 4-wire cord set rated for 250 Volts at
30 Amps (or greater) (Figure 11). You can use the
same 4-wire cord if you plan to run a 120 Volt load.
4-Wire CordSet
This receptacle powers 120/240 Volt AC, 60 Hz,
single phase loads requiring up to 3600 watts of
power (3.6 kW) at 30 Amps for 120 Volts; 7200 watts
of power (7.2 kW) at 30 Amps for 240 Volts. The
outlet is protected by a 30 Amp push-to-reset circuit
breaker.
240 Volt AC, 50 Amp Receptacle
Use a NEMA 14-50 plug with this receptacle.
Connect a 4-wire cord set rated for 250 Volts AC at
50 Amps to the plug (Figure 12)
Y (Hot)
240 Volts AC --
w (Neutral)
X (Hot)
NEMA 14-50
Use this receptacle to operate 240 Volts AC, 60 Hz,
single phase loads requiring up to 9,000 watts
(9.0 kW) of power.
,_ CAUTION! Although this outlet states it has a
240 Volt 50 Amp rating (up to 12,500 watts),
the generator is only rated for 9,000 watts.
Powering loads that exceed the wattage/
amperage capacity of the generator can
damage it or cause serious injuries.
/
