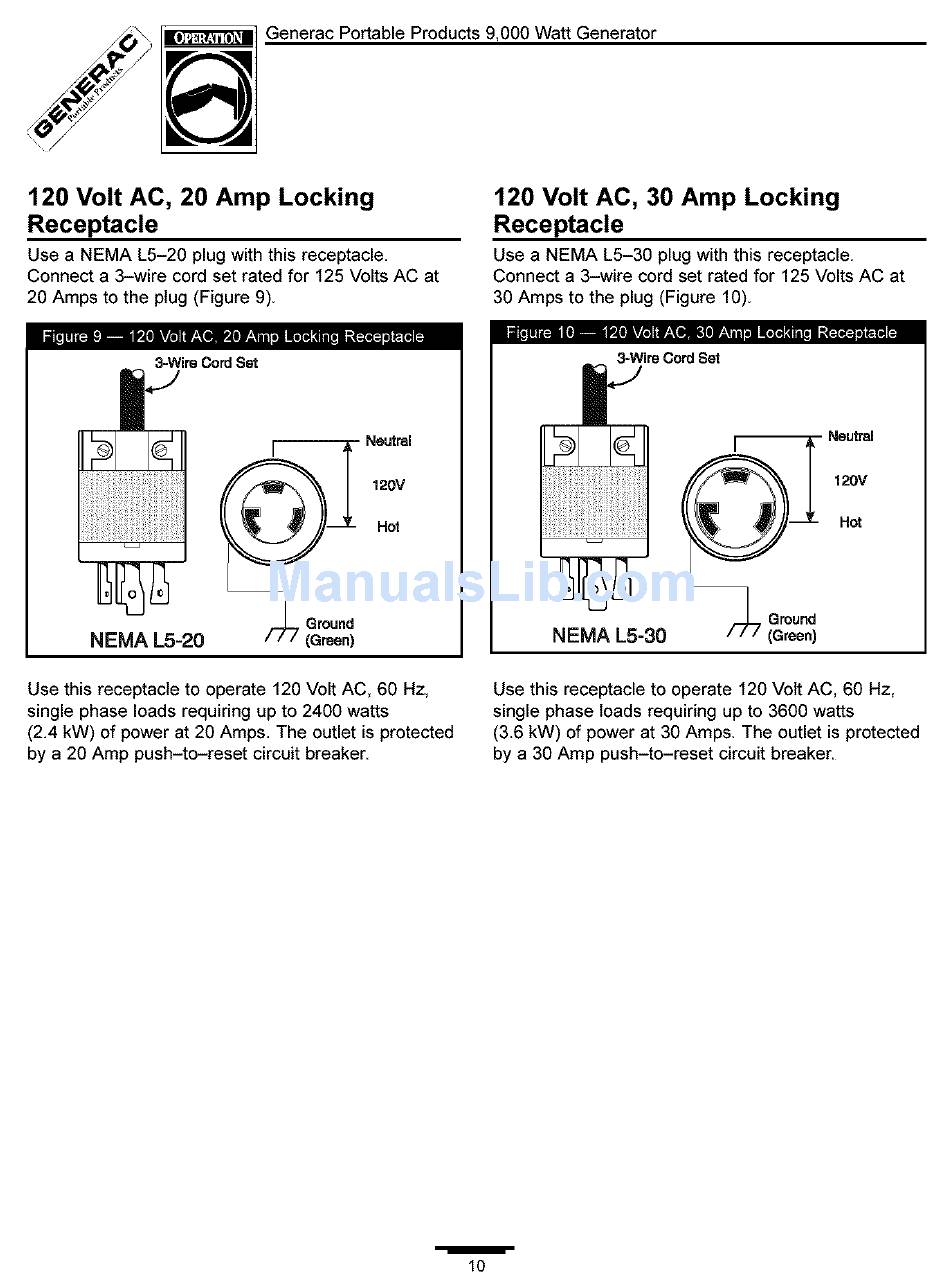

Generac Power Systems 1338-1 Owner's Manual page 10

Generac Portable Products 9 ,000WattGenerator
120 Volt AC, 20 Amp Locking
Receptacle
Use a NEMA L5-20 plug with this receptacle.
Connect a 3-wire cord set rated for 125 Volts AC at
20 Amps to the plug (Figure 9).
3-Wire Cord Set
NEMA L5-20
,_ Greund
(Green)
Neutml
120V
Hot
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L5-30 plug with this receptacle.
Connect a 3-wire cord set rated for 125 Volts AC at
30 Amps to the plug (Figure 10).
m
3-Wire Cord Set
NEMA L5-30
[ _--Neutral
(_l 120V
=_ Hot
/-!-TGreund
(Green)
Use this receptacle to operate 120 Volt AC, 60 Hz,
single phase loads requiring up to 2400 watts
(2.4 kW) of power at 20 Amps. The outlet is protected
by a 20 Amp push-to-reset circuit breaker.
Use this receptacle to operate 120 Volt AC, 60 Hz,
single phase loads requiring up to 3600 watts
(3.6 kW) of power at 30 Amps. The outlet is protected
by a 30 Amp push-to-reset circuit breaker.
/
10
