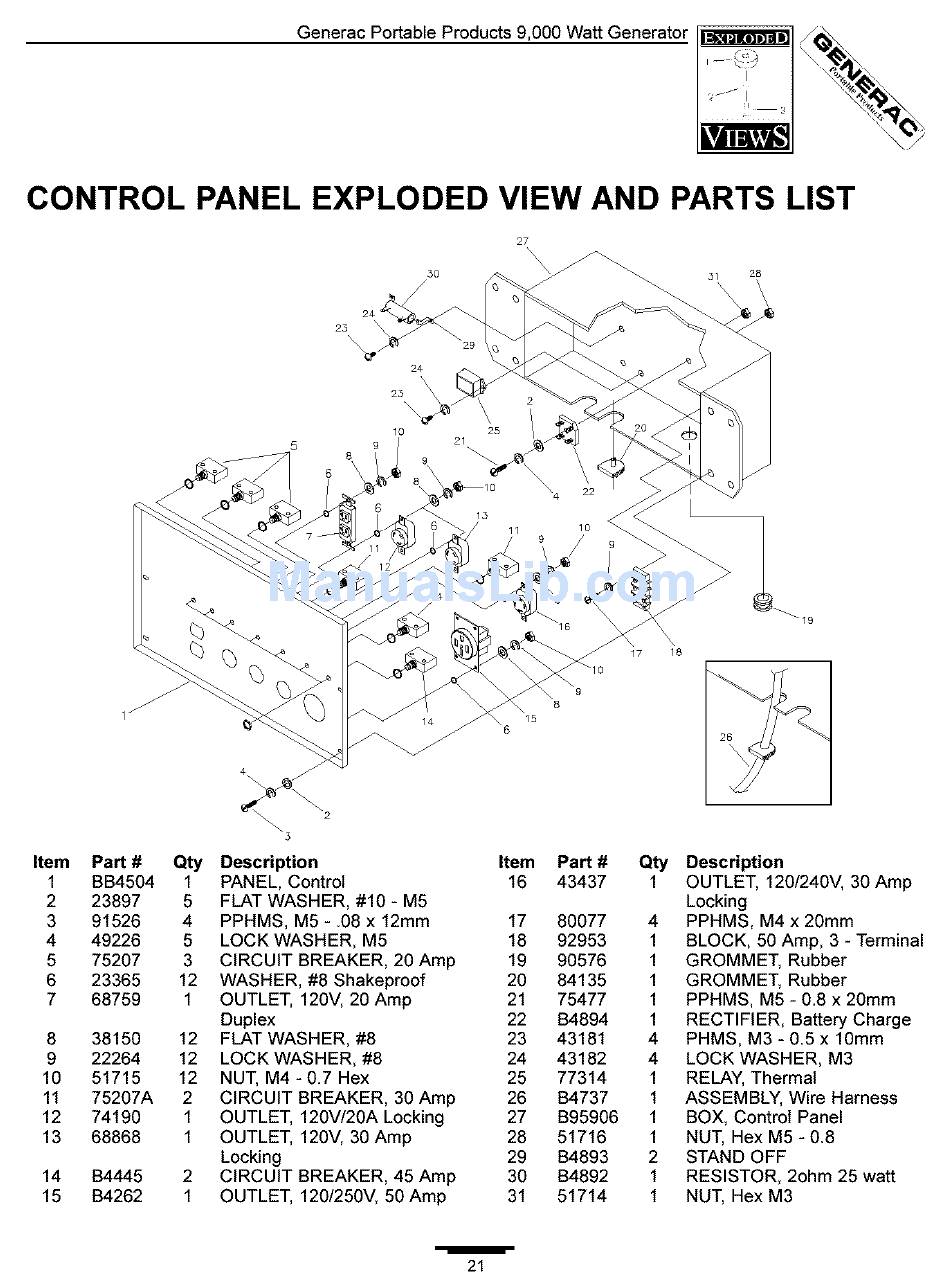

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
23
,
9
8
27
\
3o 28
29
2#
25
\\\\_
I0
25
17 18
Item Part #
1 BB4504
2 23897
3 91526
4 49226
5 75207
6 23365
7 68759
8 38150
9 22264
10 51715
11 75207A
12 74190
13 68868
14 B4445
15 B4262
5
Qty Description Item Part #
1 PANEL, Control 16 43437
5 FLAT WASHER, #10 - M5
4 PPHMS, M5 - .08 x 12mm 17 80077
5 LOCK WASHER, M5 18 92953
3 CIRCUIT BREAKER, 20 Amp 19 90576
12 WASHER, #8 Shakeproof 20 84135
1 OUTLET, 120V, 20 Amp 21 75477
Duplex 22 B4894
12 FLAT WASHER, #8 23 43181
12 LOCK WASHER, #8 24 43182
12 NUT, M4 -0.7 Hex 25 77314
2 CIRCUIT BREAKER, 30 Amp 26 B4737
1 OUTLET, 120V/20A Locking 27 B95906
1 OUTLET, 120V, 30 Amp 28 51716
Locking 29 B4893
2 CIRCUIT BREAKER, 45 Amp 30 B4892
1 OUTLET, 120/250V, 50 Amp 31 51714
Qty Description
1 OUTLET, 120/240'7, 30 Amp
Locking
4 PPHMS, M4 x 20mm
1 BLOCK, 50 Amp, 3 - Terminal
1 GROMMET, Rubber
1 GROMMET, Rubber
1 PPHMS, M5 - 0.8 x 20mm
1 RECTIFIER, Battery Charge
4 PHMS, M3 - 0.5 x 10mm
4 LOCK WASHER, M3
1 RELAY, Thermal
1 ASSEMBLY, Wire Harness
1 BOX, Control Panel
1 NUT, Hex M5 - 0.8
2 STAND OFF
1 RESISTOR, 2ohm 25 watt
1 NUT, Hex M3
/
