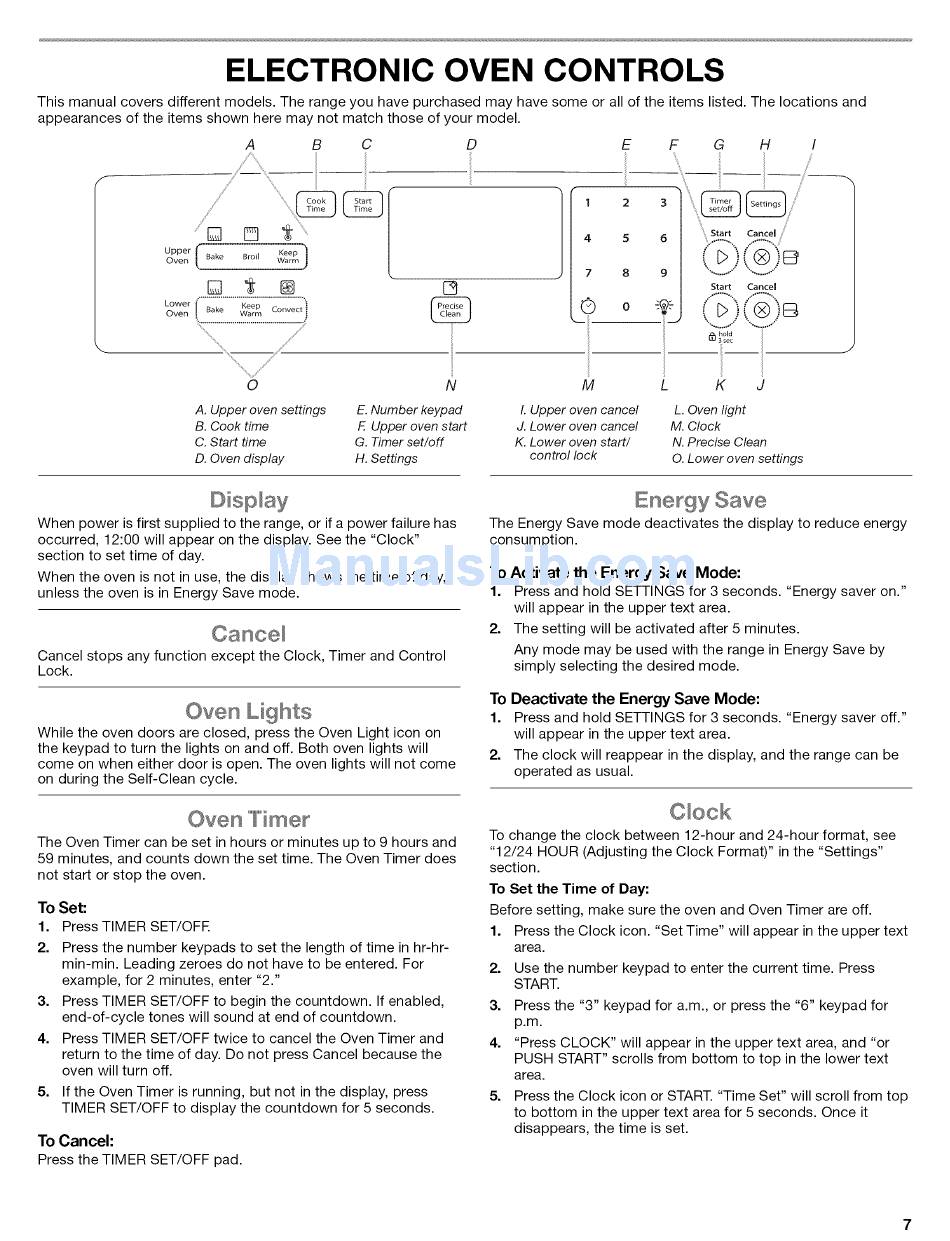

ELECTRONIC
OVEN CONTROLS
This manual covers different models. The range you have purchased may have some or all of the items listed. The locations and
appearances of the items shown here may not match those of your model.
A
/%,,
,//
,/#'
,_
...........
D
D
..........
Upper
(
Keep
1
Oven
Bake
Broil
Warm
Lower
Keep
i
Oven
Bake
Warm
Convect
B
C
D
E
F
G
H
O
N
A. Upper oven settings
E. Number keypad
B. Cook time
F. Upper oven start
C. Start time
G. Timer set/off
D. Oven display
H. Settings
M
L
K
J
I. Upper oven cancel
L Oven light
J. Lower oven cancel
M. Clock
K. Lower oven start/
N. Precise Clean
control lock
O. Lower oven settings
When power is first supplied to the range, or if a power failure has
occurred, 12:00 will appear on the display. See the "Clock"
section to set time of day.
When the oven is not in use, the display shows the time of day,
unless the oven is in Energy Save mode.
Cancel stops any function except the Clock, Timer and Control
Lock.
Oven Lights
While the oven doors are closed, press the Oven Light icon on
the keypad to turn the lights on and off. Both oven lights will
come on when either door is open. The oven lights will not come
on during the Self-Clean cycle.
Energy
Save
The Energy Save mode deactivates the display to reduce energy
consumption.
To Activate the Energy Save Mode:
1. Press and hold SETTINGS for 3 seconds. "Energy saver on."
will appear in the upper text area.
2. The setting will be activated after 5 minutes.
Any mode may be used with the range in Energy Save by
simply selecting the desired mode.
To Deactivate
the Energy Save Mode:
1. Press and hold SETTINGS for 3 seconds. "Energy saver off."
will appear in the upper text area.
2. The clock will reappear in the display, and the range can be
operated as usual.
Oven Timer
The Oven Timer can be set in hours or minutes up to 9 hours and
59 minutes, and counts down the set time. The Oven Timer does
not start or stop the oven.
To Set:
1. Press TIMER SET/OFF.
2. Press the number keypads to set the length of time in hr-hr-
min-min. Leading zeroes do not have to be entered. For
example, for 2 minutes, enter "2."
3. Press TIMER SET/OFF to begin the countdown.
If enabled,
end-of-cycle
tones will sound at end of countdown.
4. Press TIMER SET/OFF twice to cancel the Oven Timer and
return to the time of day. Do not press Cancel because the
oven will turn off.
5. If the Oven Timer is running, but not in the display, press
TIMER SET/OFF to display the countdown
for 5 seconds.
To Cancel:
Press the TIMER SET/OFF pad.
To change the clock between 12-hour and 24-hour format, see
"12/24 HOUR (Adjusting the Clock Format)" in the "Settings"
section.
To Set the Time of Day:
Before setting, make sure the oven and Oven Timer are off.
1. Press the Clock icon. "Set Time" will appear in the upper text
area.
2. Use the number keypad to enter the current time. Press
START.
3. Press the "3" keypad for a.m., or press the "6" keypad for
p.m.
4. "Press CLOCK" will appear in the upper text area, and "or
PUSH START" scrolls from bottom to top in the lower text
area.
5. Press the Clock icon or START. "Time Set" will scroll from top
to bottom in the upper text area for 5 seconds. Once it
disappears, the time is set.
