BIOS Setup

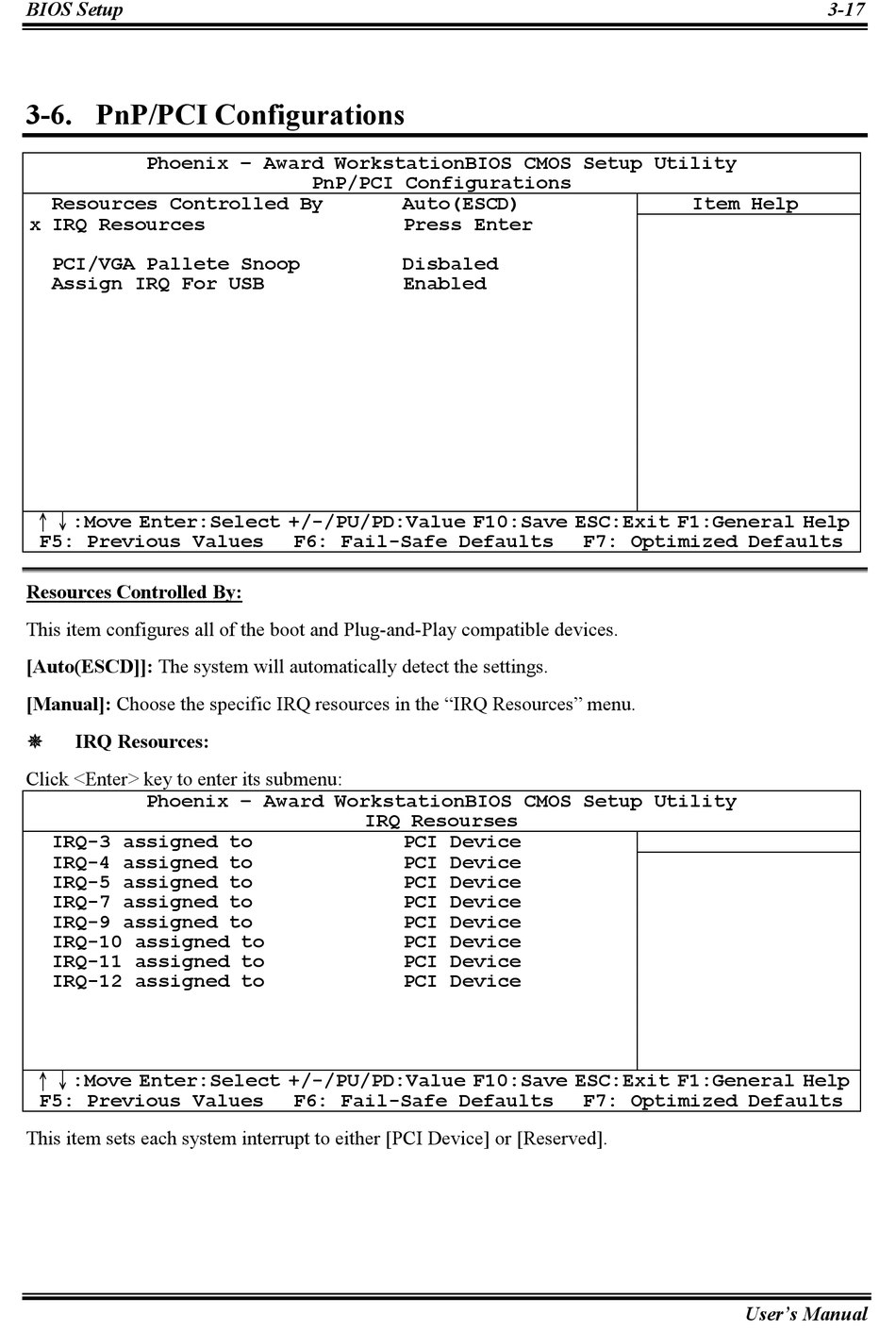

3-6. PnP/PCI Configurations

Phoenix – Award WorkstationBIOS CMOS Setup Utility
Resources Controlled By
x IRQ Resources
PCI/VGA Pallete Snoop
Assign IRQ For USB
↑↓:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
Resources Controlled By:
This item configures all of the boot and Plug-and-Play compatible devices.
[Auto(ESCD]]: The system will automatically detect the settings.
[Manual]: Choose the specific IRQ resources in the "IRQ Resources" menu.
! IRQ Resources:
Click <Enter> key to enter its submenu:
Phoenix – Award WorkstationBIOS CMOS Setup Utility
IRQ-3 assigned to
IRQ-4 assigned to
IRQ-5 assigned to
IRQ-7 assigned to
IRQ-9 assigned to
IRQ-10 assigned to
IRQ-11 assigned to
IRQ-12 assigned to
↑↓:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
This item sets each system interrupt to either [PCI Device] or [Reserved].
PnP/PCI Configurations
Auto(ESCD)
Press Enter
Disbaled
Enabled
F6: Fail-Safe Defaults
IRQ Resourses
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
PCI Device
F6: Fail-Safe Defaults
Item Help
F7: Optimized Defaults
F7: Optimized Defaults
User's Manual
3-17
