Hardware Setup
(5). Additional USB Port Headers

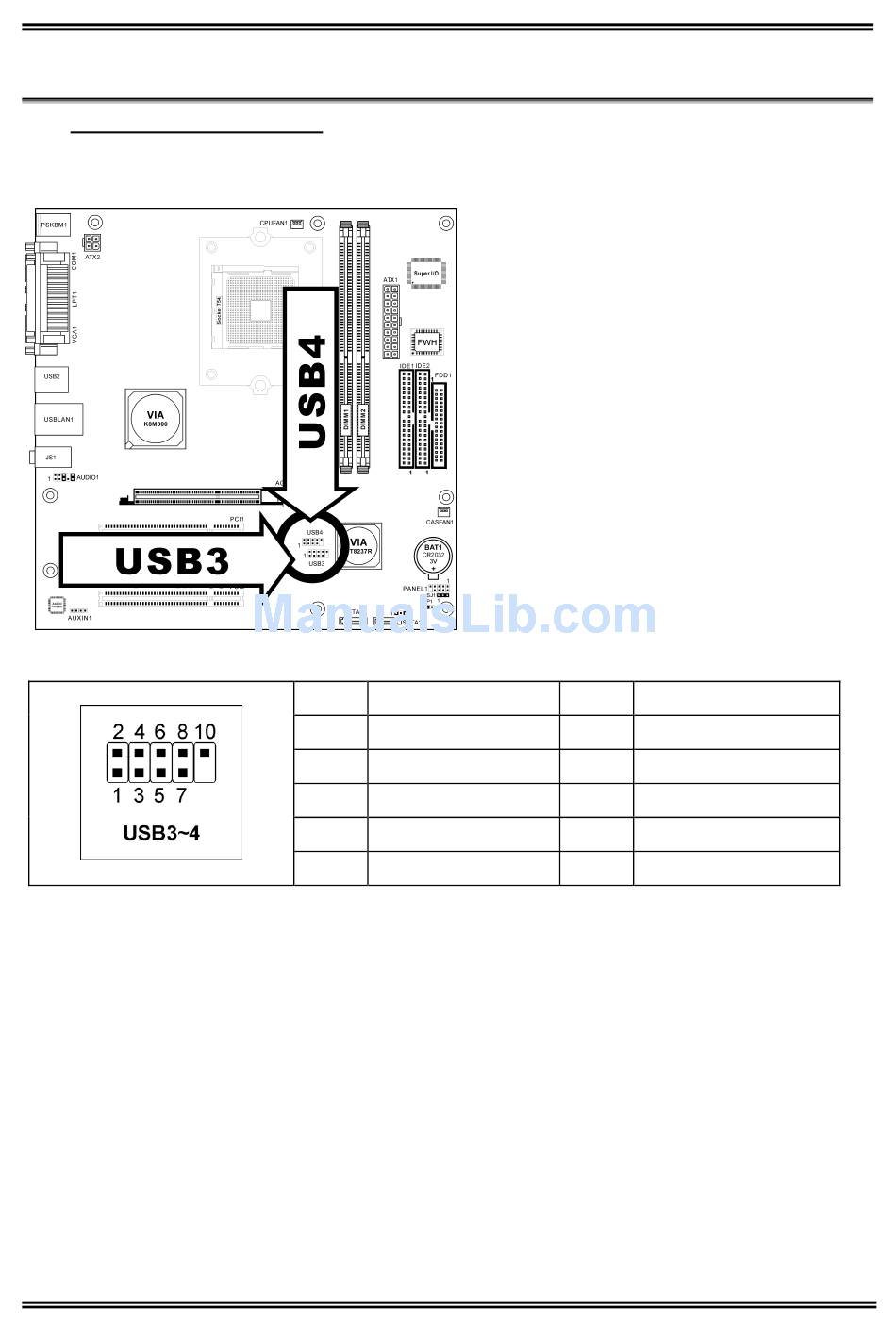

These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
Pin
Pin Assignment
1
VCC
3
Data0 -
5
Data0 +
7
Ground
9
NC
Pin
Pin Assignment
2
VCC
4
Data1 -
6
Data1 +
8
Ground
10
NC
User's Manual
2-9
