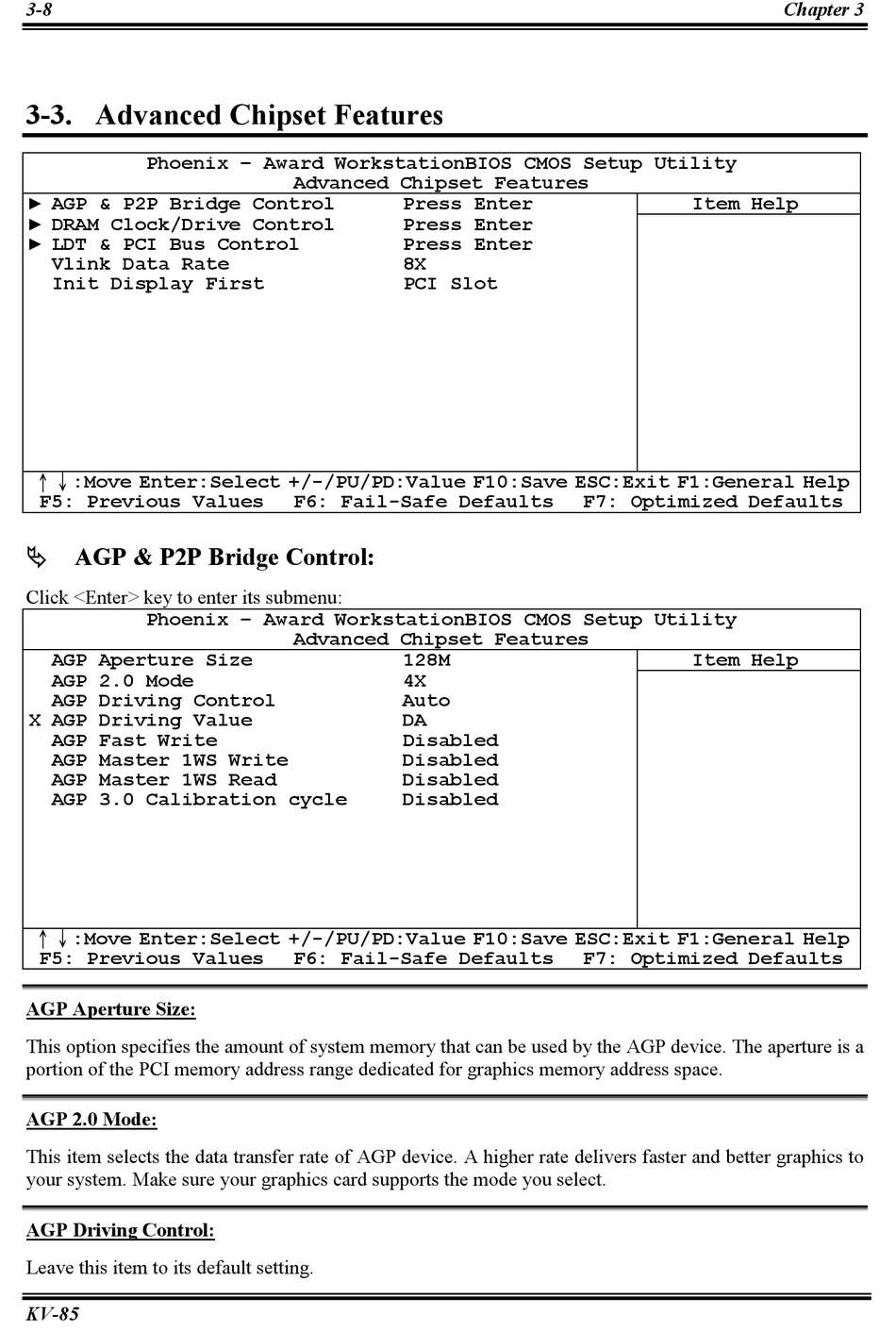

3-3. Advanced Chipset Features

Phoenix – Award WorkstationBIOS CMOS Setup Utility
► AGP & P2P Bridge Control
► DRAM Clock/Drive Control
► LDT & PCI Bus Control
Vlink Data Rate
Init Display First
↑↓:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
# AGP & P2P Bridge Control:
Click <Enter> key to enter its submenu:
Phoenix – Award WorkstationBIOS CMOS Setup Utility
AGP Aperture Size
AGP 2.0 Mode
AGP Driving Control
X AGP Driving Value
AGP Fast Write
AGP Master 1WS Write
AGP Master 1WS Read
AGP 3.0 Calibration cycle
↑↓:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
AGP Aperture Size:
This option specifies the amount of system memory that can be used by the AGP device. The aperture is a
portion of the PCI memory address range dedicated for graphics memory address space.
AGP 2.0 Mode:
This item selects the data transfer rate of AGP device. A higher rate delivers faster and better graphics to
your system. Make sure your graphics card supports the mode you select.
AGP Driving Control:
Leave this item to its default setting.
