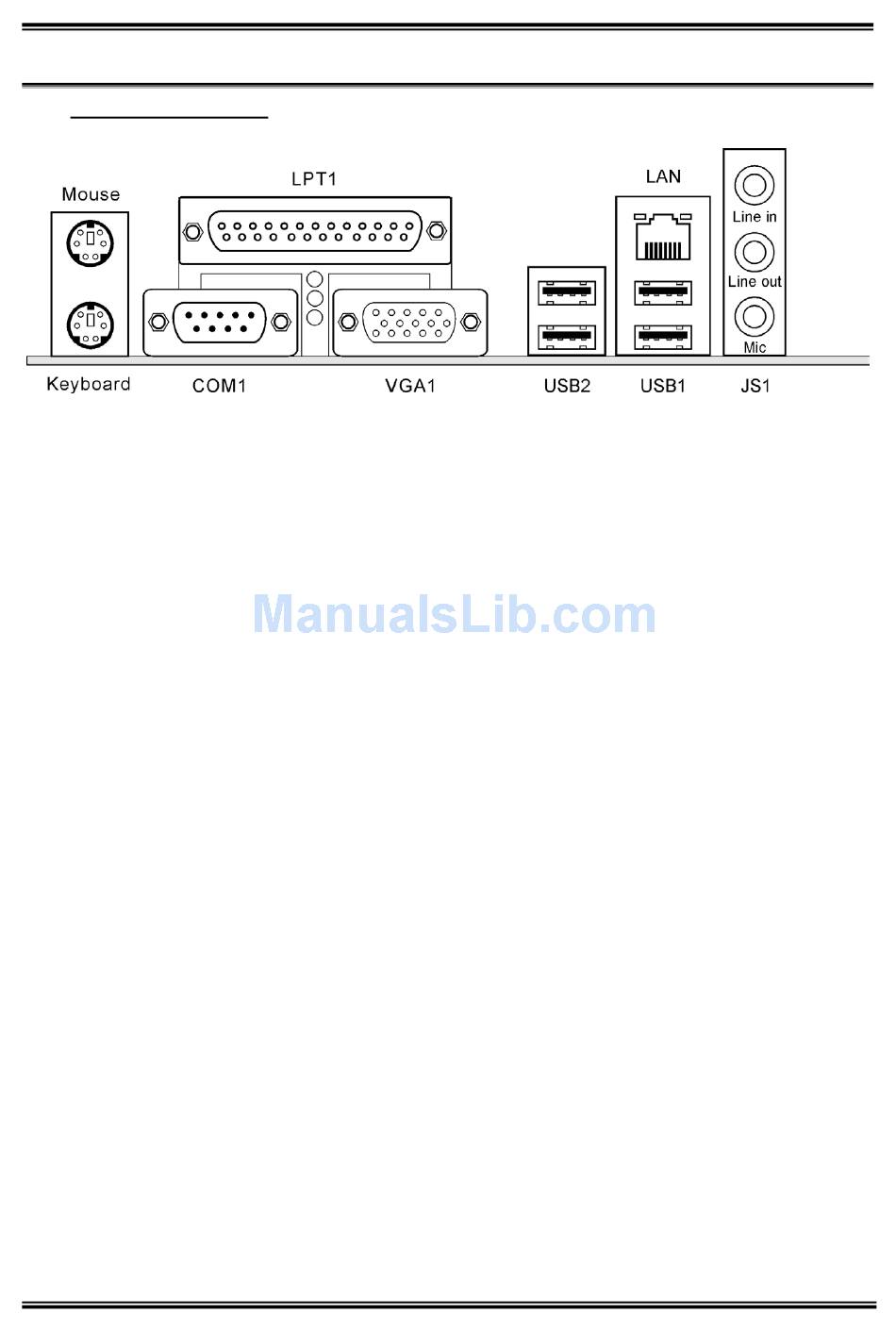

(11). Back Panel Connectors
•
Mouse: Connects to PS/2 mouse.
•
Keyboard: Connects to PS/2 keyboard.
•
LPT1: Connects to printer or other devices that support this communication protocol.
•
COM1: Connects to external modem, mouse or other devices that support this communication
protocol.
•
VGA1: Connects to monitor input.
•
LAN: Connects to Local Area Network.
•
USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
•
JS1:
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel in the 5.1-channel or regular 2-channel
audio system.
Mic-In: Connects to the plug from external microphone.
