DVG-G5402SP User's Manual

3-3-8 CDR

The user can set up a CDR Server to record call details for every phone call with TCP protocol. The
present CDR provides the call event such as HOOK ON, HOOK OFF, DIALED NUMBER,
DATE...recording in a text file and which can be imported to prepare an analysis report.

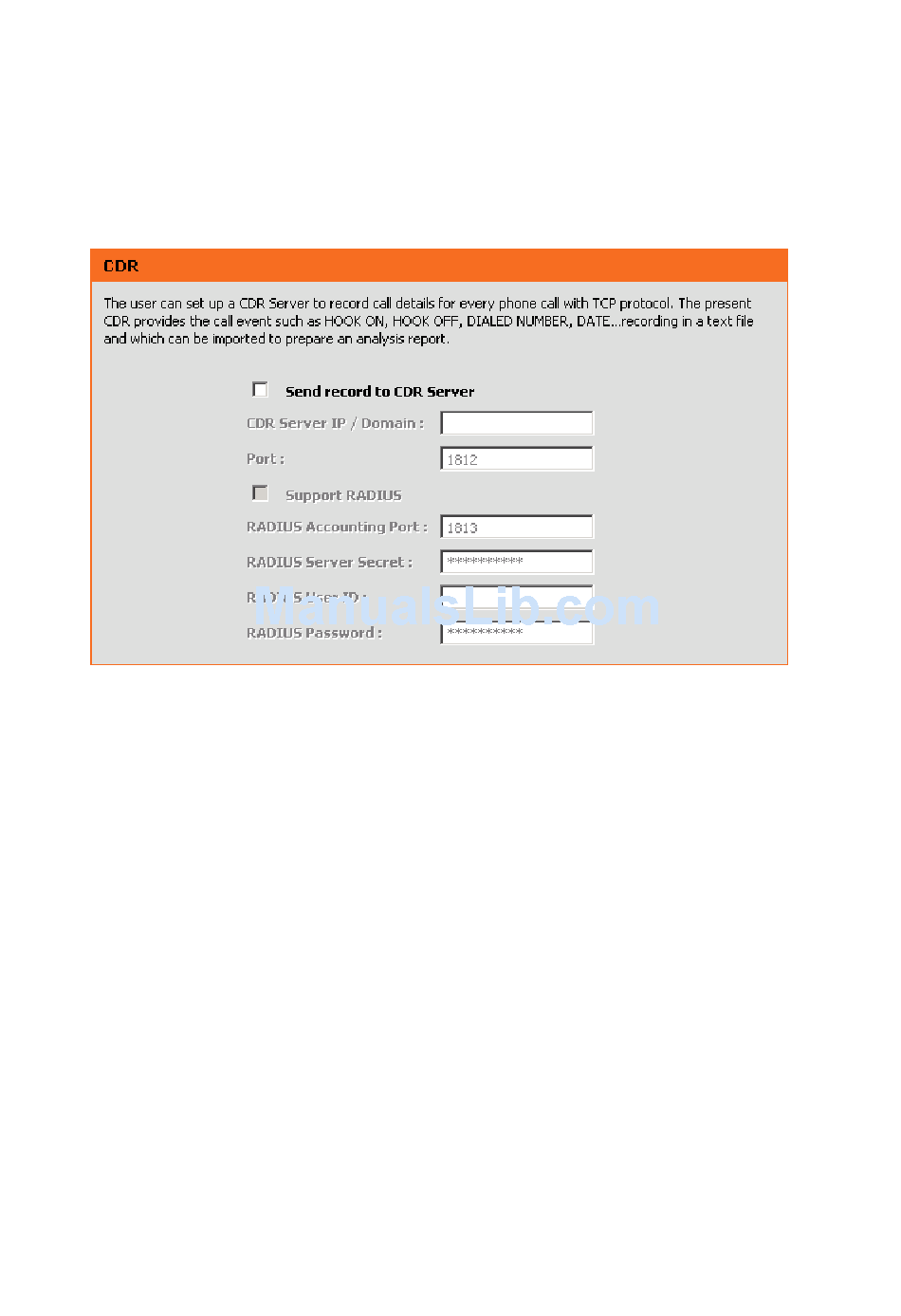

MAINTENANCE → CDR
Send record to CDR Server: Tick the check box to enable the call detail recording.
CDR Server IP / Domain: Enter the IP address of the CDR server.
Port: Enter the listen port of the CDR server.
Support RADIUS: Tick the checkbox to enable RADIUS as database and enter the information of
RADIUS needed. It includes RADIUS Accounting Port, RADIUS Server Secret, RADIUS User ID and
RADIUS Password.
