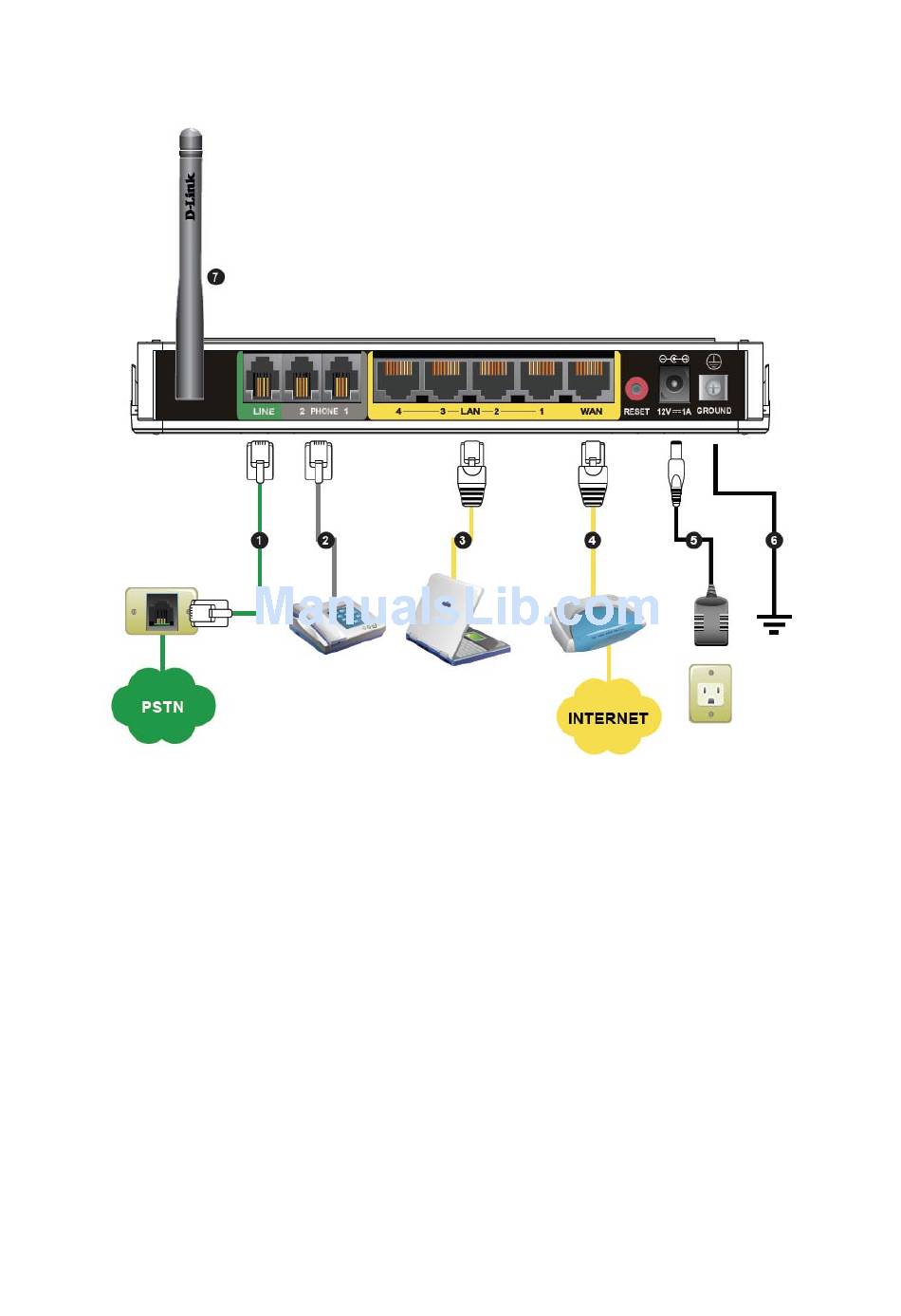

Rear Panel
1. Line: Connect to your original telephone line on the wall jack with RJ-11 cable.
2. Phone Port (1-2): Connect to your phones using standard phone cabling (RJ-11).
3. LAN: Connect to your Ethernet enabled computers using Ethernet cabling.
4. WAN: Connect to your broadband modem using an Ethernet cable.
5. Power Receptor: Receptor for the provided power adapter.
6. Ground: A conducting connection with the earth. Connect with the ground so as to make the earth
a part of an electrical circuit using metal wire.
7. Antenna: Connect to a wireless network.
WARNING: DO NOT
phone port directly to a PSTN line (FXS to PSTN) or to an internal PBX line (FXS to PBX
extension). Doing so may damage your VoIP Router.
Use Reset Button to restore factory default settings:
1. Power on.
2. Press and hold the reset button for 5 seconds.
3. Release the reset button. Factory settings will be restored.
D-Link Systems, Inc.
6
(1) connect the phone ports to each other (FXS to FXS) or (2) connect any
Telephone Interface Description
