DVG-G5402SP User's Manual

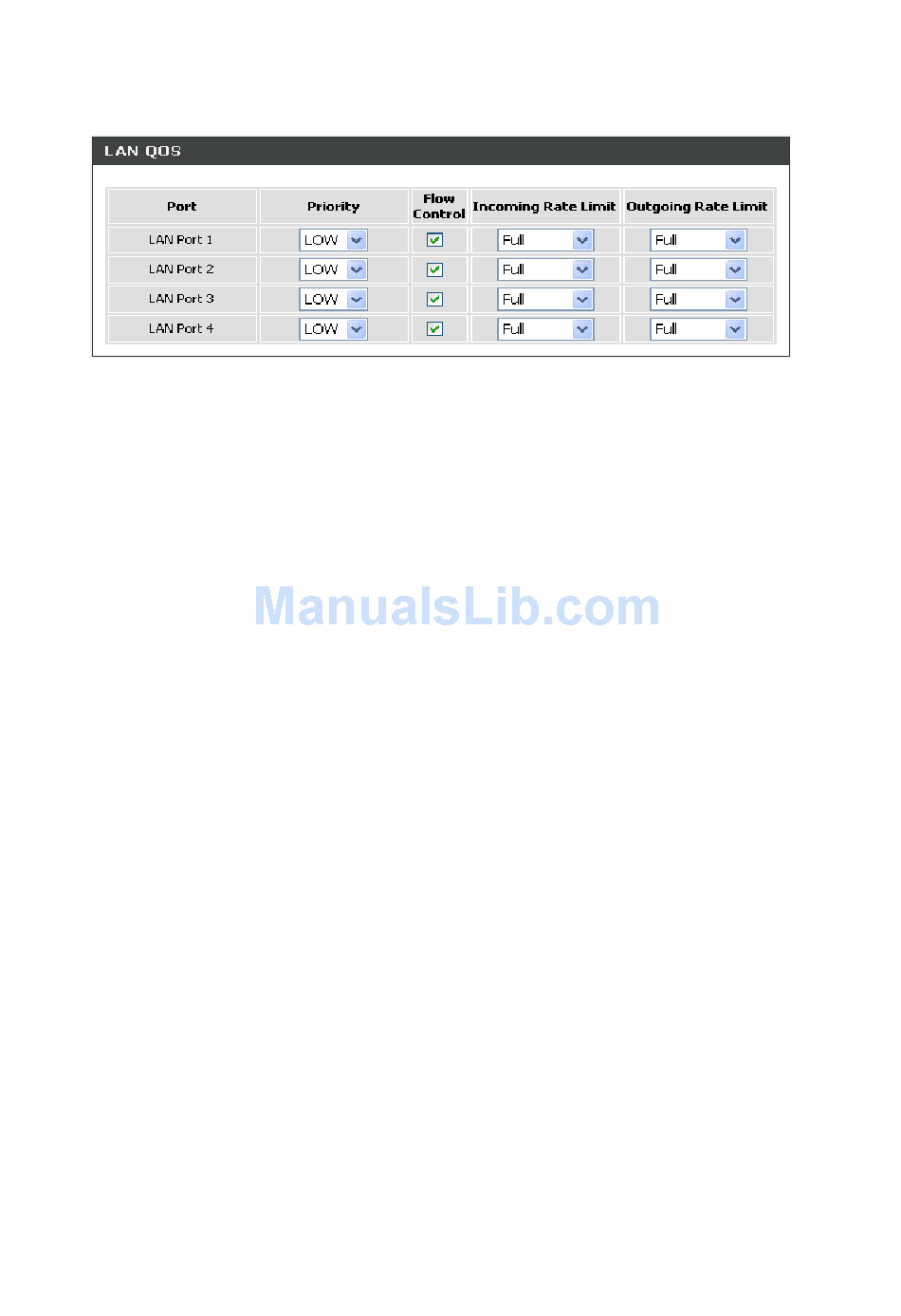

LAN QoS
ADVANCED → Advanced Network → QoS
Enable LAN QoS: Check the box to enable LAN QoS by Hardware.
Priority: Use the drop-down menu to select Low or High for the VoIP Router to deliver the packets
from LAN interface when the packets arrive at the same time.
Flow Control: Check the box to limit incoming and outgoing rate.
Incoming Rate Limit: Use the drop-down menu to select the proper rate limit for the specific LAN port.
The flow is from LAN to WAN, and the rate limit can not exceed the real upstream bandwidth.
Outgoing Rate Limit: Use the drop-down menu to select the proper rate limit for the specific LAN port.
The flow is from WAN to LAN, and the rate limit can not exceed the real downstream bandwidth.
