EDB9302A
Technical Reference Manual

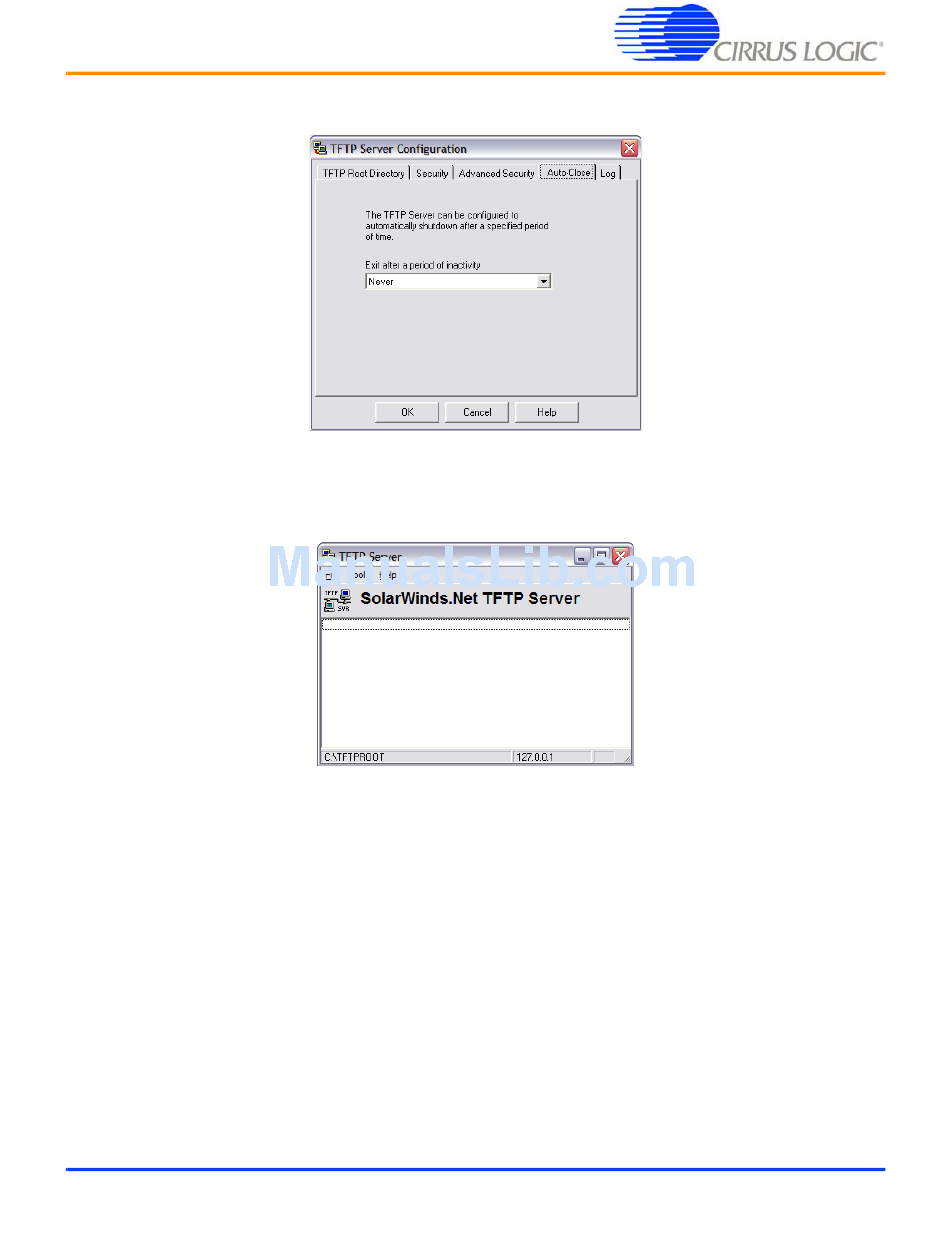

6. Verify that the Auto-Close setting is set to "Never".
7. When complete, click the OK button. You should see a screen like the picture below. Note that
the directory is located in the status bar at the bottom left. Additionally, the IP address the TFTP
Server is "listening" to is located in the lower right.
Note:
Note: You may get an IP address of 127.0.0.1 because the EDB9302A board does not have the boot loader code
programmed yet. This is ok. Simply quit the TFTP server program. Instructions on when to start the program will be given
during the board programming section. If an IP address other then the one above appears, the Ethernet port is connected
to something and should be removed.
32
©
Copyright 2006 Cirrus Logic, Inc.
DS653DB1
