Frymaster Dean FPHD Service & Parts Manual

High efficiency decathlon (hd) series gas fryers
Hide thumbs
Table of Contents

Advertisement

Quick Links

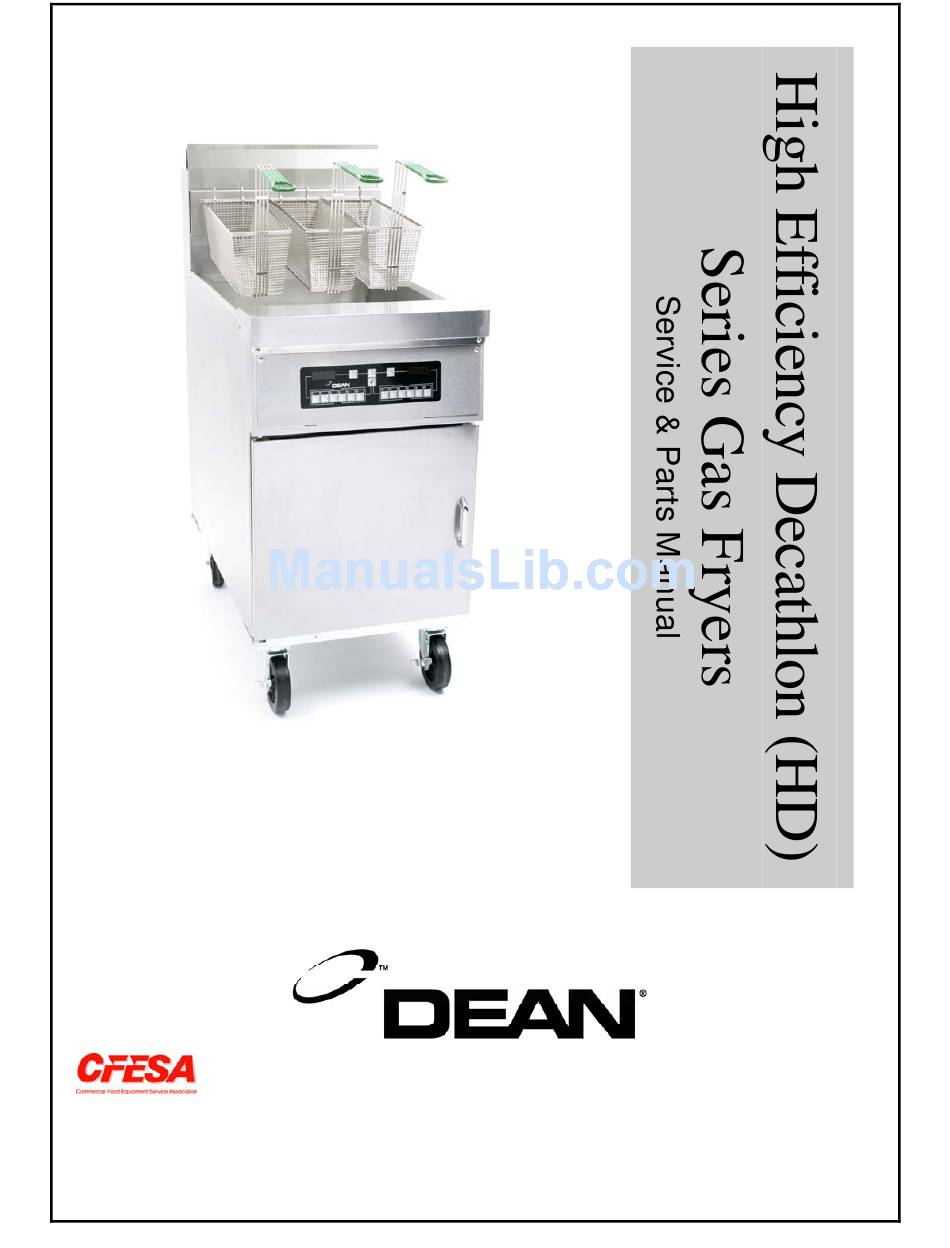

Dean HD & SCFHD,
Frymaster FPHD Models
(Includes HD63/Red Robin and Common Cabinetry)
Dean, a member of the Commercial Food Equipment Service Association, recommends using
CFESA Certified Technicians.
MAY 2007
*8196314*
24-Hour Service Hotline
PRINTED IN THE UNITED STATES
OF AMERICA
1-800-551-8633

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dean FPHD and is the answer not in the manual?

Questions and answers

Related Manuals for Frymaster Dean FPHD

Summary of Contents for Frymaster Dean FPHD

  • Page 1 Dean HD & SCFHD, Frymaster FPHD Models (Includes HD63/Red Robin and Common Cabinetry) Dean, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. MAY 2007 *8196314* 24-Hour Service Hotline PRINTED IN THE UNITED STATES OF AMERICA...
  • Page 2 If, during the warranty period, the customer uses a part for this Enodis equipment other than an unmodified new or recycled part purchased directly from Frymaster and Dean, or any of its authorized service centers, and/or the part being used is modified from its original configuration, this warranty will be void.
  • Page 3 No structural material on the fryer should be altered or removed to accommodate placement of the fryer under a hood. Questions? Call the Frymaster and Dean Service Hotline at 1-800-551- This equipment is to be installed in compliance with the basic plumbing code of The Building Officials and Code Administrators International, Inc.

  • Page 4: Table Of Contents

    Cleaning the Gas Valve Vent Tube (if applicable)...1-9 Adjusting Burner Manifold Gas Pressure...1-9 Adjusting the Pilot Flame...1-10 Calibrating the Thermatron Controller and Backup Thermostat...1-10 Replacing Fryer Components...1-11 Troubleshooting and Problem Isolation...1-28 Troubleshooting Guides...1-36 1.10 Wiring Diagrams...1-38 1.11 Probe Resistance Charts...1-43 PARTS LIST…….…………………………………..………………………………...

  • Page 6: Chapter 1: Service Procedures

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.1 Functional Description High Efficiency Decathlon (HD) Series gas fryers contain a welded stainless steel frypot heated by gas flames diffused evenly through tubes built into the frypot. Flames originate from orifices in a burner manifold positioned beneath stamped-steel burners.
  • Page 7 The pilot flame must be manually lit when the fryer is first placed into operation. A separate 24V circuit, activated by the fryer ON/OFF switch, provides voltage through the Thermatron to the gas valve main coil, which opens the main valve.
  • Page 8 HD Series gas fryers may be equipped with Thermatron controls or Compu-Fry computers. In fryers equipped with Thermatron controls, the fryer is turned on and off by means of a rocker switch and the temperature is set by adjusting a potentiometer. An interface board is located in the component box (shield) behind the control panel (computer-equipped) or a Thermatron board is located in a component box inside the cabinet (Thermatron-equipped).
  • Page 9 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Interface Boards (cont.) 826-2086 (115/230V): These boards are used in HD fryers equipped with Thermatron control systems. THERMATRON BOARD P/N 826-2086 Thermatron systems incorporate a temperature probe, a potentiometer, and a temperature control circuit board.
  • Page 10 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Interface Boards (cont.) 826-2434: These interface boards are used in HD fryers equipped with electronic ignition and constant pilot. INTERFACE BOARD P/N 106-6669 (Kit 826-2434) Used on fryers equipped with electronic ignition and constant pilot.
  • Page 11 Probe Resistance* * Disconnect 15-pin harness from controller before testing probe circuit. ** See Probe Resistance Chart at the end of this chapter. HIGH EFFICIENCY DECATHLON (HD) FRYER Indicates power from 12V transformer. Indicates power from 24V transformer. Indicates output (closed) from latch relay (K4).

  • Page 12: Accessing Fryers For Servicing

    All HD Series gas fryers are equipped with a high-limit thermostat. In the event that the fryer fails to control the oil temperature, the high-limit thermostat prevents the fryer from overheating to flash point.
  • Page 13 When the fryer is leveled in its final position, install the restraints provided with the unit to limit its movement so that it does not depend on or transmit stress to the electrical conduit or connection.

  • Page 14: Cleaning The Gas Valve Vent Tube (If Applicable)

    3. Insert the manometer fitting into the pressure tap hole. 4. Place the gas valve in the ON position then place the fryer power switch in the ON position. When the burner lights and continues to burn, check the gas pressure reading against the table on page 1-1.

  • Page 15: Calibrating The Thermatron

    2. Ensure the fryer ON/OFF switch is in the OFF position and light the pilot. 3. Place the fryer ON/OFF switch in the ON position. Set the potentiometer dial to 325°F (162°C). 4. Allow the oil to equalize at setpoint temperature. This is evident when the burners have cycled on and off several times.

  • Page 16: Replacing Fryer Components

    2. Unscrew the two computer panel screws. The computer panel is hinged at the bottom and will swing open from the top. 3. Unplug the fryer wiring harness and ground wire from the back of the computer. 4. Remove the computer by lifting it from the hinge slots in the fryer control panel frame.
  • Page 17 1. Disconnect the fryer from the electrical supply. 2. Drain cooking oil from the frypot. Allow the frypot to cool completely before proceeding. 3. Remove fryer door for easier access to the temperature probe. First, remove top hinge from bracket. Then, lift door off bottom hinge pin.
  • Page 18 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7.3 Replacing the Temperature Probe; Computer-equipped Fryers 6. Remove the burner shield by loosening the screw on each end. 7. Remove the burner rail by loosening the screw on each end. The burner rail secures the burners in the burner manifold.
  • Page 19 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7.3 Replacing the Temperature Probe; Computer-equipped Fryers 10. Locate the temperature probe inside the frypot. Remove the temperature probe mounting hardware. Retain hardware installation temperature probe. 11. The temperature probe can be removed through the bottom of the frypot as follows: Ensure the two-pin connector has been removed from the probe wiring harness...
  • Page 20 2. Perform steps 1-4 in Section 1.7.1, Replacing the Computer. 3. Remove fryer door for easier access to the temperature probe. First, remove top hinge from bracket. Then, lift door off bottom hinge pin. 4. Remove two screws securing the high-limit mounting-bracket.
  • Page 21 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7.4 Replacing the High-limit Thermostat 6. Locate the high-limit probe inside the frypot. Remove the high-limit probe mounting hardware. Retain mounting hardware for installation of new temperature probe 7. Carefully pull high-limit capillary tube and bulb out of the frypot from the bottom.
  • Page 22 1.7.4 Replacing the High-limit Thermostat 8. Mark and disconnect wires at the high-limit in the component box. 9. Remove high-limit from fryer by pulling the capillary tube and bulb through the component box opening (arrow). This may require removal of the control panel frame.
  • Page 23 1. Disconnect the fryer from the electrical supply. 2. If switches are located in a control box within the fryer, remove the six screws securing the switch panel to the control box. Do not allow the switch panel to hang from the switch wiring harness or other wires.
  • Page 24 1.7.6 Replacing the Gas Valve Drain the frypot or remove the handle from the drain valve before proceeding further. 1. Disconnect fryer from electrical and gas supplies. 2. Disconnect the wires from the gas valve terminal block, marking each wire to facilitate reconnections.
  • Page 25 1.7.8 Replacing the Frypot 1. Open fryer doors and remove filter pan (if applicable). Ensure computer and all power switches are off. Drain and dispose of or store oil from all frypots prior to moving fryer. Hot cooking oil will cause severe burns. Never attempt to move this appliance when filled with hot cooking oil or to transfer hot cooking oil from one container to 2.

  • Page 26: Replacing The Frypot

    1.7.8 Replacing the Frypot 6. Remove the top cap. It is held in place by one screw on each side of the fryer. If the fryer has a controller on the front, the top cap may also be held in place by two screws on the front of each pot.
  • Page 27 (Step 16). Use a screwdriver or similar tool to free flue cap from frypots. Remove flue cap by lifting up and off of fryer. Remove the screws (arrow) securing the flue cap to the frypot on the long edge.
  • Page 28 13. Remove the clevis clip and oil return handle rod from the oil return valve at the rear of the fryer. Slip Section A of the clevis clip off of the oil return handle by pulling up on the rings.
  • Page 29 Set aside for reassembly. 16. Remove the nipple attaching the oil return line to the bottom of the frypot at the rear of the fryer using a wrench. This may require removal of other pieces of the oil return manifold, as needed.
  • Page 30 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7.8 Replacing the Frypot 19. If the fryer is equipped with drain-valve microswitches, mark the wires and microswitch terminals, then disconnect wires from the switch. Secure the wires to prevent damage when frypot is removed.
  • Page 31 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.7.8 Replacing the Frypot 22. Remove the temperature probe from frypot. (See Section 1.7.3, Replacing the Temperature Probe: Computer–equipped Fryers, for specific instructions.) 23. Remove the high-limit from the frypot. 24.
  • Page 32 1.7.8 Replacing the Frypot 26. Ensure wires and tubes will not be caught on the frypot when it is removed. 27. Remove frypot from fryer by lifting up and out. 28. Position the frypot upside down on a suitable work surface.

  • Page 33: Troubleshooting And Problem Isolation

    Ignition failure occurs when the ignition module fails to sense a flame within the 60-second time delay period and locks out. Turn the fryer off, locate and fix the problem, then turn fryer back on to clear the module lock.

  • Page 34: Improper Burner Function

    The Electronic Circuits If gas and electrical power are supplied to the fryer, the next most likely cause of ignition failure is a problem in the 24 VAC circuit of fryers equipped with electronic ignition systems, or in the pilot system for those without electronic ignition.
  • Page 35 If the fryer’s gas and air supplies are okay, the problem most likely is with one of the electrical components. Examine the ignition module for signs of melting, distortion, or discoloration due to excessive heat build-up in the fryer.
  • Page 36 Flames "rolling" out of the fryer are usually an indication of negative pressure in the kitchen and make up air blowing down the flue. Air is being sucked out of the fryer enclosure and the flames are literally following the air. If negative pressure is not the cause, check for high burner-manifold gas pressure in accordance with the procedures in Section 1.4.

  • Page 37: Improper Computer Function

    Common Computer Complaints. Most problems concerning computers have to do with programming them. There are four common complaints. The complaints, their causes, and corrective actions are as follows: 1. Fryer constantly displays " Cause: Setpoint incorrect or missing. Corrective Action: Press then this to lock in the setpoint.

  • Page 38: Improper Filtration Function

    If the pump motor does not start, press the red reset switch located on the rear of the motor. Also, reset the filter circuit breaker located under the fryer control panel. If the pump then starts, something caused the motor to overheat. The pump most likely overheated for one of the following reasons: •...
  • Page 39 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.5 Improper Filtration Function Incorrectly sized or installed paper will allow food particles and sediment to pass through and clog the suction tube on the bottom of the filter carriage. Particles large enough to block the suction tube may indicate that the crumb tray is not being used.
  • Page 40 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.8.7 Improper Basket Lift Function Bell-Crank Basket Lifts Most High Efficiency Decathlon Series gas fryers are equipped with a bell-crank style basket lift. A cam and a bell crank are connected to the basket lift arm by a flat metal link.

  • Page 41: Troubleshooting Guides

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Troubleshooting Guides The following troubleshooting guides are intended to assist service technicians in quickly isolating the probable causes of equipment malfunctions by following a logical, step-by-step process. PROBLEM Burner will not ignite. A.
  • Page 42 "0,” then thermostat has failed. Replace thermostat(s). E. Inspect wiring for breaks or shorts and repair if necessary. A. Inspect gas supply to fryer. Repair and/or replace faulty components (defective supply shut-off valves, incorrect piping size, etc.) B. Allow unit to cycle on and off for approximately 30 minutes to force air from gas manifold and lines.

  • Page 43: Wiring Diagrams

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.10 Wiring Diagrams Note: The diagrams in this section depict wiring as of the date of manual publication. It may not reflect design changes made to the equipment after publication. Refer to the wiring diagram affixed to the unit when actually troubleshooting this equipment.
  • Page 44 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Computer with Constant Pilot 1-39...
  • Page 45 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES CM4-S Wiring 1-40...
  • Page 46 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Dean Oil Return Wiring 1-41...
  • Page 47 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES Dean Oil Return Wiring, with Solenoid 1-42...

  • Page 48: Probe Resistance Charts

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 1: SERVICE PROCEDURES 1.11 Probe Resistance Charts Thermatron Probe Resistance Chart ° Celsius ° Fahrenheit Computer Probe Resistance Chart ° Celsius ° Fahrenheit Ohms (±3%) 108130 84606 66721 53020 42452 34206 27735 22641 18588 15349 12741...

  • Page 49: High Efficiency Decathlon Primary Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.1 High Efficiency Decathlon (HD) Primary Components...

  • Page 50: Decathlon Primary Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS Parts are labeled to indicate the appropriate fryer model (“HD”, “SCFHD”, or “FPHD65”). If a part is not labeled, it can be used on any of these models. Each section is labeled by size (e.g., D50) and parts are not interchangeable between different sized fryers.
  • Page 51 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.1.1 Decathlon HD50 Primary Components ITEM PART # 231-2060 Side Panel, Left Side (SCFHD50 C/C) 232-2060 Side Panel, Right Side (SCFHD50 C/C) 200-1674 Back Panel, Lower 200-3183 Back Panel (2-battery) 200-3567 Back Panel (3-battery) 823-5303 Wireway, Control Panel ►►►...
  • Page 52 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.1.2 Decathlon HD60 Primary Components ITEM PART # 823-4692 Frypot - S/S (SCFHD) 823-5742 Frypot - S/S (Single HD without filtration) 106-7853 Frypot - S/S (SCFHD63) 823-6314 Frypot - S/S (Single HD63 without filtration) 810-2072 Gas Manifold (weld assembly;...
  • Page 53 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.1.2 Decathlon HD60 Primary Components ITEM PART # 211-4570 Side Panel, Left Side (unit exterior) 212-4570 Side Panel, Right Side (unit exterior) 201-4775 Side Panel, Left Side with Hole (unit interior) 202-4775 Side Panel, Right Side with Hole (unit interior) 211-5693 Side Panel, Left Side, Single (unit exterior) 212-5693...
  • Page 54 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.1.2 Decathlon HD60 Primary Components ITEM PART # 810-0180 Handle, Door, Wireform 210-8077 Handle, Door, Common Cabinet 810-1105 Magnet, Door 803-0304 Fry Basket, Twin 803-0149 Grid Assembly, Mesh 810-2235 Grid Assembly, Rack 210-2737SP Basket Hanger, Single, no Splash Guard 823-4999 Basket Hanger, Chili’s Double System, 6”...
  • Page 55 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.1.3 Decathlon FPHD65 Primary Components ITEM PART # 807-3552 Gas Valve, Natural Gas, Electronic Ignition, 24 VAC 807-3628 Gas Valve, LP Gas, Electronic Ignition, 24 VAC 807-3294 Gas Valve, Natural Gas, Constant Pilot, 24 VAC 807-3295 Gas Valve, LP Gas, Constant Pilot, 24 VAC 810-2156...
  • Page 56 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.1.3 Decathlon FPHD65 Primary Components ITEM PART # Flue Cap 230-2473 230-2298 230-2323 230-2344 106-4309 Door Assembly, with Liner (also used for HD63 fryers) 200-8076 Panel, Door, Inner 210-8075 Panel, Door, Outer Door Assembly (C/C) 210-8077 Handle, Door, Chrome Handle, Common Cabinet...

  • Page 57: Orifices

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.2 Orifices ITEM PART # 810-2938 810-3053 810-3054 810-3055 810-3056 810-3057 810-2939 810-3058 810-3059 810-3060 810-3061 810-3062 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Natural Orifices 0-1999 ft. 2000-3999 ft. 4000-5999 ft. 6000-7999 ft. 8000-8999 ft.

  • Page 58: Control Panel, Joiner Strips, And Accessories

    Frame End, Right (FPHD65, HD63) Controller, x3 (HD663 with matching cabinet) Controller, x4 (HD663 with matching cabinet) Joiner Strips HD60, SCFHD60, FPHD65 FPHD565/665 (for use between two fryer banks) FPHD665 (for use within one fryer bank) SCFHD456 SCFHD50 Accessories Crumb Scoop, Split Pot...

  • Page 59: Optional Components And Controllers

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.4 Optional Components and Controllers ITEM PART # 826-2013 Thermostat, Sunne 810-2035 Knob, Thermostat 826-2117 Spark Module, Domestic and CE (Rajah Connector, 807-4375) 106-7535 Ignition Cable (for computer operated fryers) 807-1311 Pilot Assembly, Natural Gas with Electronic Ignition 807-1553 Pilot Assembly, LP Gas with Electronic Ignition 106-1839SP...
  • Page 60 ITEM PART # 106-1238 Pilot Assembly (without computer), Natural 807-1310 Flame Sensor 803-0278 Brush, L-shaped 803-0197 Fryer’s Friend 803-0293 Gloves (pair) KIT00092 Air Shutter Kit ►►► See Control Panel Options, Joiner Strips, and Accessories, Section 2.3 Controllers 106-7324SP Computer, Compu-Fry III.5, Full-vat...
  • Page 61 Relay, 24VAC Coil, Reset 807-3574 Switch, Power (green lens) 807-3580 Switch, Rocker, Manual Filter Power 807-3579 Switch, Six-terminal Boil-out 807-3576 Switch, Fryer Reset (momentary) 210-2786 Switch Guard (for Items 22-25, optional) 807-3578 Switch, 3-position, ON-OFF-ON 807-3592 Fuse, 2A, Slow Blow 807-3577...

  • Page 62: 3" Oil Drain Manifold, Drain Flush, And Drain Valve Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.5 3” Oil Drain Manifold, Drain Flush, and Drain Valve Components 2-14...
  • Page 63 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.5 3” Oil Drain Manifold, Drain Flush, and Drain Valve Components ITEM PART # 823-5880 823-5968 823-5881 812-1802 220-0873 823-4680 823-4844 823-4681 200-9365 823-5188 200-6751 823-4682 809-0969 816-0625 106-2568SP 106-1837SP 813-0699 810-1434 106-1454SP 106-2387 813-0686 813-0165 810-1669...

  • Page 64: Oil Return Manifold Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.6 Oil Return Manifold Components 2-16...
  • Page 65 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.6 Oil Return Manifold Components ITEM PART # 106-4080 106-5616 106-4101 KIT9342 106-6468 106-6469 106-6471 106-6470 106-5499 106-4006SP 106-3997 106-6797 210-9643 210-9915 210-9916 807-2104 809-0045 809-0056 809-0117 809-0237 809-0256 809-0354 809-0942 810-1003 816-0220 106-5229 823-5952 810-1668 810-1067...
  • Page 66 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.6 Oil Return Manifold Components ITEM PART # 813-0298 813-0098 813-0265 813-0093 813-0281 813-0368 813-0698 * Not illustrated. CHAPTER 2: PARTS LIST (cont.) COMPONENT Nipple, " x 2.00" NPT BM ⁄ Nipple, " x 6.50" NPT BM ⁄...

  • Page 67: Oil Return And Oil Flush Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.7 Oil Return and Oil Flush Components 2-19...
  • Page 68 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.7 Oil Return and Oil Flush Components ITEM PART # 106-4006SP 901-2772 900-2935 816-0220 810-0278 826-1366 807-2103 200-6806 106-3962 813-0062 813-0173 813-0654 813-0674 200-1230 106-0774SP 810-0697 826-1392 813-0608 823-3188 106-0858 813-0022 813-0463 813-0003 210-8790 200-8929 200-9850 816-0638...

  • Page 69: Filtration Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.8 Filtration Components 2.8.1 Filtration Components; SCFHD50 Series Fryers ITEM PART # 106-5144SP 823-4841 823-5639 823-3573 823-5191 200-8003 810-2805 809-0823 813-0568 803-0170 * Not illustrated. CHAPTER 2: PARTS LIST DESCRIPTION Filter Pan Assembly (includes Items 1-8) Filter Pan Lid, Filter Pan Ring, Hold Down...
  • Page 70 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.8.2 Filtration Components; SCFHD60 and SCFHD63 Series Fryers ITEM PART # 106-7543 823-6001 106-4725 823-6018 823-3361 200-5726 810-2805 809-0823 813-0568 803-0289 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Filter Pan Assembly (includes Items 1-8) Filter Pan Lid Assembly Crumb Basket...
  • Page 71 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.8.3 Filtration Components; FPHD65 Series Fryers ITEM PART # 106-5081 823-5258 823-5857 823-5851 106-6466 810-2805 809-0070 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Filter Pan Assembly (includes Items 1, 3-6) Filter Pan Lid Assembly Crumb Basket Filter Leaf and Tube Caster, 2”...

  • Page 72: Basket Lift Components

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS CHAPTER 2: PARTS LIST 2.9 Basket Lift Components 2-24...
  • Page 73 HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.9 Basket Lift Components ITEM PART # 106-1870 823-3625 809-0082 200-2735 200-2069 810-2140 813-0035 824-0958 824-0959 200-1376 106-1463 200-1693 807-0107 807-2104 807-3546 810-2144 823-3626 200-2736 200-2739 200-2364 807-0140 823-5904 823-5905 823-3500 * Not illustrated. CHAPTER 2: PARTS LIST (cont.) COMPONENT...

  • Page 74: Trough, Holster, And Cover Components

    CHAPTER 2: PARTS LIST COMPONENT Holster Assembly, Vat Cover Trough, Holster Assembly Cover, Full-vat (HD50) Cover, Full-vat (HD60) Cover, Split-vat (HD60) Cover (FPHD65) Cover (HD56) Handle, Vat Cover (Full- and Split-) Splash Guard L-shaped Brush Fryer’s Friend Crumb Scoop 2-26...

  • Page 75: Fasteners (Screws, Nuts, Bolts)

    HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS 2.11 Fasteners (Screws, Nuts, Bolts) ITEM PART # 809-0842 809-0417 809-0766 826-1366 809-0247 809-0842 809-0863 809-0169 809-0428 826-1389 809-0918 809-0845 809-0846 809-0918 809-0167 809-0434 809-0907 826-1379 809-0962 809-0997 809-0191 * Not illustrated. CHAPTER 2: PARTS LIST COMPONENT Nut, 4-40 Nylock ⁄...

  • Page 76: Service Hotline

    Dean, 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-688-2200 FAX (Tech Support) 1-318-219-7135 SERVICE HOTLINE PRINTED IN THE UNITED STATES 1-800-551-8633 819-6314 MAY 2007...
