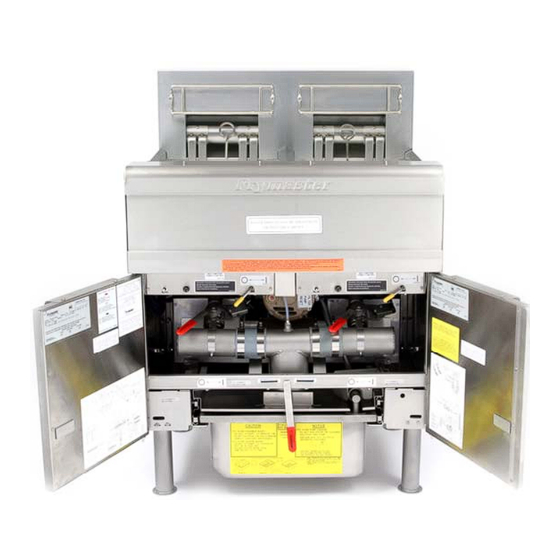

FPRE 17 kW & 22 kW
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
24-Hour Service Hotline 1-800-551-8633
06/2017
*8196202*
www.frymaster.com
Email:
fryservice@welbilt.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPRE117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frymaster FPRE117

Summary of Contents for Frymaster FPRE117

  • Page 1 FPRE 17 kW & 22 kW Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. 24-Hour Service Hotline 1-800-551-8633 06/2017 *8196202* www.frymaster.com Email: fryservice@welbilt.com...
  • Page 2 DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS AUTHORIZED SERVICERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICER.
  • Page 3 Manual of the U.S. Food and Drug Administration. WARNING No structural material on the fryer should be altered or removed to accommodate placement of the fryer under a hood. Questions? Call the Frymaster Dean Service Hotline at 1-800-551-8633. NOTICE TO OWNERS OF UNITS EQUIPPED WITH COMPUTERS U.S.

  • Page 4: Table Of Contents

    RE Series Marine Electric Fryers Installation, Operation, Service and Parts Manual TABLE OF CONTENTS CHAPTER 1: Introduction General ..........................1-1 Safety Information ......................1-1 Controller Information ...................... 1-2 Shipping Damage Claim Procedure .................. 1-2 Service Information ......................1-2 CHAPTER 2: Installation Instructions Introduction ........................
  • Page 5 FPRE217/222 Euro-Look Drain Tube Sections and Parts ......... 8-8 8.3.2 Drain Valve Assembly and Component Parts ............ 8-9 8.3.2.1 FPRE117/122 Single Drain Valve Assembly ........8-9 8.3.2.2 FPRE217/222 Euro-Look Drain Valve Assembly ......8-10 Electronics and Wiring Components ................8-11 8.4.1...
  • Page 6 8.4.6.4 Main Wiring Harness ................ 8-18 8.4.6.5 Component Box Wiring Harness ............8-18 Filtration System Components ..................8-19 8.5.1 FPRE117/122 Single Filtration Components ........... 8-19 8.5.2 FPRE217/222 Filtration Components .............. 8-21 Frypot Assembly and Thermostat ................... 8-23 FPRE217/222 Oil Return System Components .............. 8-23 Oil Disposal Plumbing ....................

  • Page 7: Chapter 1: Introduction

    RE Series Electric Fryer models specifically configured for use aboard surface ships, including FPRE117/122 kW and FPRE217/222 kW models. The fryers in this model family have most parts in common, and when discussed as a group, will be referred to as “RE Series Marine Electric”...

  • Page 8: Controller Information

    For non-routine maintenance or repairs, or for service information, contact your local Frymaster Authorized Servicer (FAS). A list of Frymaster Factory Authorized Servicers (FAS’s) is located on the Frymaster website at www.frymaster.com. Service information may also be obtained by calling...

  • Page 9: Chapter 2: Installation Instructions

    167°F (75°C). NOTICE If the electrical power supply cord is damaged, it must be replaced by a Frymaster Dean Factory Authorized Servicer technician or a similarly qualified person in order to avoid a hazard.

  • Page 10: Power Requirements

    WARNING Do not block the area around the base or under the fryers. All installation and service on FRYMASTER equipment must be performed by qualified, certified, licensed, and/or authorized installation or service personnel. Service may be obtained by contacting a local Frymaster DEAN Factory Authorized Servicer.

  • Page 11: Installation

    Questions? Call the Frymaster Dean Service Department at 1- 800-551-8633 or via e-mail at service@frymaster.com DANGER Hot oil can cause severe burns. Avoid contact. Under all circumstances, oil must be removed from the fryer before attempting to move it to avoid oil spills, falls and severe burns.

  • Page 12: Dimensions And Weights

    Dimensions and Weights Single Fryer (with filter): LWH (inches) 28.33 X 15.58 X 45.5 – 295 lbs. empty. 2-Fryer Battery: LWH (inches) 28.30 X 31.45 X 45.5 – 490 lbs. empty. Single Fryer (with filter) 2.470 26.315 Typical Back of Fryer Unit 7.098 Typical 31.62...

  • Page 13: Chapter 3: Operating Instructions

    RE SERIES MARINE E ELECTRIC FRYERS CHAPTER 3: OPERATING INSTRUCTIONS Equipment Setup and Shutdown Procedures Setup DANGER Never operate the appliance with an empty frypot. The frypot must be filled with water, oil or shortening before energizing the elements. Failure to do so will result in irreparable damage to the elements and may cause a fire.

  • Page 14: Operation Of The Solid-State Digital Controller

    Operation of the Solid-State Digital Controller (operation of other controllers is covered in the Frymaster Controllers Manual PN 819-5616) NOTE: Refer to Chapter 4 of this manual for operating instructions for the built-in filtration system. Fryers configured for marine use are equipped with remotely mounted solid-state digital controllers.

  • Page 15: Introduction

    The fryer has two built-in high-limit protection features. If the temperature in the frypot reaches 411°F (210°C), an alarm will sound. In the event that the temperature continues to rise, there is a second and separate high limit circuit that will shut down the system at 425° (218°C), sound an alarm and display “help”.
  • Page 16 , indicating a heating problem or drain valve problem. Turn the fryer off reset the drain handle and try again. If the error still appears, call the Frymaster hotline. and actual frypot temperature, indicating that the shortening temperature is above 411°F (210°C).
  • Page 17 melt-cycle mode and remains in this mode until the frypot temperature reaches 180°F (82°C) or the melt-cycle is cancelled by the operator. If you are not using solid shortening, you may cancel the melt-cycle. To cancel the melt-cycle on a full-pot unit, press the right melt-cycle cancel switch .

  • Page 18: Preparing The Filter For Use

    The pan cover must not be removed except for cleaning, interior access, or to allow a shortening disposal unit (SDU) to be positioned under the drain. FPRE117 Screen and Filter Pan...
  • Page 19 Inspect the filter pan connection fitting to ensure that both O-rings are in good condition. The O-rings are located on the tube disconnect inside the filter pan Inspect O-Rings as shown on the drawing down and to the right. 3. Place the metal filter screen in the center of the bottom of the pan, then lay a sheet of filter paper on top of the pan, over- lapping on all sides.

  • Page 20: Operation Of The Filter

    DO NOT hammer on the drain valve with the cleanout rod or other objects. Damage to the ball inside will result in leaks and will void the Frymaster warranty. 4. After the oil has drained from the frypot,...
  • Page 21 5. The filter pump draws the oil through the filter medium and circulates it through the frypot during a 5-minute process called polishing. Polishing cleans the oil by trapping solid particles in the filter medium. 6. After 5 minutes, close the drain valve and allow the fryer to refill. Let the filter pump run 10 to 12 seconds after the oil begins to bubble.

  • Page 22: Draining And Disposing Of Waste Oil

    When your oil has reached the end of its usable life, drain the oil into an appropriate container for transport to the disposal container. Frymaster recommends the use of the Frymaster Shortening Disposal Unit (SDU). Refer to the documentation furnished with the disposal unit for specific operating instructions.

  • Page 23: Chapter 5: Preventive Maintenance

    RE SERIES MARINE E ELECTRIC FRYERS CHAPTER 5: PREVENTIVE MAINTENANCE Cleaning the Fryer DANGER The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container at the end of frying operations each day. Some food particles can spontaneously combust if left soaking in certain shortening material.

  • Page 24: Clean The Frypot And Heating Elements (Boil-Out)

    Boiling Out the Frypot using Digital Controllers (For other controllers see the Frymaster Controller Manual PN 819-5916.) Before the fryer is first used, it should be boiled out to ensure that residue from the manufacturing process has been eliminated.

  • Page 25: Clean Detachable Parts And Accessories

    Annual/Periodic System Inspection This appliance should be inspected and adjusted periodically by qualified service personnel as part of the galley material maintenance management (3M) program. Frymaster recommends that a Factory Authorized Servicer inspect this appliance at least annually as follows: Fryer •...
  • Page 26 • Verify that the frypot is in good condition and free of leaks and that the frypot insulation is in serviceable condition. • Verify that all wiring harnesses and wiring connections are tight and in good condition. Built-In Filtration System •...

  • Page 27: Chapter 6: Operator Troubleshooting

    Although the chapter covers the most common problems reported, you may encounter problems that are not covered. In such instances, the Frymaster Technical Services staff will make every effort to help you identify and resolve the problem.

  • Page 28: Troubleshooting

    Troubleshooting 6.2.1 Control and Heating Problems Problem Probable Causes Corrective Action A. Plug power cord in and verify A. Power cord is not plugged in or that circuit breaker is not circuit breaker is tripped. tripped. B. If available, substitute a controller known to be working B.
  • Page 29 Problem Probable Causes Corrective Action This is normal. The standard operational mode for the controller is for the elements to cycle on and off until the temperature in the Fryer repeatedly frypot reaches 180ºF (82°C). The cycles on and off Fryer is in melt-cycle mode.

  • Page 30: Filtration Problems

    6.2.2 Filtration Problems Problem Probable Causes Corrective Action A. Verify that the power cord is A. Power cord is not plugged in or fully plugged in. If so, verify circuit breaker is tripped. that circuit breaker is not tripped. B. If the motor is too hot to touch for more than a few seconds, the B.
  • Page 31 Problem Probable Causes Corrective Action B. In order to properly filter, the oil or shortening should be at or near 350ºF (177°C). At temperatures lower than this, Filter pump runs, the oil becomes too thick to B. Attempting to filter with oil or but oil return is very pass through the filter medium slow and bubbling...

  • Page 32: Chapter 7: Service Procedures

    SERIES MARINE E ELECTRIC FRYERS CHAPTER 7: SERVICE PROCEDURES General Before performing any maintenance on this equipment, disconnect the fryer from the electrical power supply. When electrical wires are disconnected, it is recommended that they be marked in such a way as to facilitate re-assembly.

  • Page 33: Replacing A High-Limit Thermostat

    Remove these three screws at each end. Remove these two screws from the center supports. Removing the Control Panel Frame and Top Cap Assembly 7. Reconnect the wiring disconnected in Step 5, referring to your notes and the wiring diagrams on the fryer door to ensure that the connections are properly made.

  • Page 34: Replacing A Temperature Probe

    7. Insert the leads into the 12-pin connector C-6 (see illustration below). For full-vat units or the left half of a dual-vat unit (as viewed from the rear of the fryer) the leads go into positions 1 and 2 of the connector. For the right half of a dual-vat unit (as viewed from the rear of the fryer), the leads go into positions 7 and 8.

  • Page 35: Replacing A Heating Element

    5. Raise the element and remove the securing probe bracket and metal tie wraps that secure the probe to the element (see illustration below). 6. Gently pull on the temperature probe and grommet. Pulling the wires up the rear of the fryer and through the element tube assembly.
  • Page 36 2. On dual-vat fryers, and on full-vat fryers where the temperature probe is attached to the element being replaced, disconnect the wire harness containing the probe wiring. Using a pin pusher, disconnect the probe wires from the 12-pin connector C-6. 3.

  • Page 37: Replacing Contactor Box Components

    8. Reconnect the element connector it was removed from directly behind the frypot, ensuring that the latches lock. 9. Insert the temperature probe leads into the 12-pin wiring harness connector C-6 (see illustration below). For full-vat units or the right half of a dual-vat unit, the red lead goes into position 3 and the white into position 4.

  • Page 38: Replacing A Frypot

    4. The contactors and relays are held on by threaded pin studs so that only removal of the nut is required to replace the component. 5. After performing necessary service, reverse steps 1-4 to return the fryer to operation. Left and right views of mechanical contactor box components. Replacing a Frypot 1.
  • Page 39 12. Remove the top-connecting strip that covers the joint with the adjacent frypot. 13. Unscrew the Teflon vent/vacuum-breaker tube fitting, unscrew the nut located on the front of each section of drain tube, and remove the tube assembly from the fryer. 14.

  • Page 40: Built In Filtration System Service Procedures

    27. Reinstall the top connecting strips, top cap, control box and panel, tilt housing and back panels. 28. Reinstall controllers in the control panel frame and reconnect the wiring harnesses and ground wires. 29. Reposition the fryer under the exhaust hood and reconnect it to the electrical power supply. Built-in Filtration System Service Procedures 7.9.1 Filtration System Problem Resolution One of the most common causes of filtration problems is placing the filter paper on the bottom of the...

  • Page 41: Replacing The Filter Motor, Filter Pump And Related Components

    A pump seized by debris or hard shortening can usually be freed by manually moving the gears with a screwdriver or other instrument. Disconnect power to the filter system, remove the input plumbing from the pump, and use a screwdriver to manually turn the gears. ●...

  • Page 42: Replacing The Filter Transformer Or Filter Relay

    4. Loosen the nut and bolt that secures the bridge to the oil-return manifold. 5. Remove the cover plate from the front of the motor and disconnect the motor wires. 6. Unplug the pump motor assembly 6-pin connector C-2 and, using a pin pusher, disconnect the vent vacuum-breaker solenoid (pins 2 and 5) that is attached to the oil return manifold.

  • Page 43: Interface Board Diagnostic Chart

    7.10 Interface Board Diagnostic Chart The following diagram and charts provide ten quick system checks that can be performed using only a multimeter. Diagnostic LED Legend CMP indicates power from 12V transformer indicates power from 24V transformer (RH) indicates output (closed) from right latch relay (LH) indicates output (closed) from left latch relay...

  • Page 44: Probe Resistance Chart

    7.11 Probe Resistance Chart Probe Resistance Chart For use with fryers manufactured with Minco Thermistor probes only. OHMS OHMS OHMS OHMS OHMS 1059 1204 1350 1493 1634 1070 1216 1361 1503 1644 1080 1226 1371 1514 1654 1091 1237 1381 1524 1664 1101...

  • Page 45: Wiring Diagram, Simplified Re17/22 Delta

    7.12 Wiring Diagram, Simplified RE17/22 Delta 7-14...

  • Page 46: Wiring Diagram, System

    7.13 Wiring Diagram, System 7-15...

  • Page 47: Wiring Diagram, System Rccl

    7.14 Wiring Diagram, System RCCL 7-16...
  • Page 48 7.15 Wiring Diagram, Contactor Box Wiring WYE Export Full Vat 14kW 7-17...
  • Page 49 7.16 Wiring Diagram, Contactor Box Wiring WYE Export Full Vat 22kW 7-18...

  • Page 50: Wiring Diagram, Wiring Harnesses

    7.17 Wiring Diagram, Wiring Harness 7-19...

  • Page 51: Wiring Diagram, Remote Cable

    7.18 Wiring Diagram, Remote Cable 7-20...

  • Page 52: Wiring Diagram, Basket Lift

    7.19 Wiring Diagram, Basket Lift 208-250V 7-21...

  • Page 53: Chapter 8: Parts List

    RE SERIES MARINE E ELECTRIC FRYERS CHAPTER 8: PARTS LIST Accessories ITEM PART # COMPONENT 809-0989 Thumbscrew, ¼ -20 X 1-inch 810-2793 Hanger, Wireform Basket 809-0921 Spacer, Basket Hanger 803-0278 L-Shaped Brush 803-0197 Cleanout Rod, 27-inch 803-0209 Brush, Frypot 210-9083 Connecting Strip, Frypot 803-0132 Rack, Full-Vat Basket Support...

  • Page 54: Cabinetry

    Cabinetry 8.2.1 Backs, Panels, Doors, Handles, Sides, Tilt Housings & Top Caps...
  • Page 55 210-9215 Liner, Door Universal Single FPRE117/122 809-0500 Screw, #10 – ½ Hex TR HD SS 826-1343 Spring, Door Pin Hinge Single FPRE117/122 and FPRE217/222 (Pkg. of 10) Door, Left or Right 2-Station FPRE217/222 (Left shown – move handle to 106-4769...

  • Page 56: Cabinet Bases, Braces And Associated Parts

    8.2.2 Cabinet Bases, Braces, and Associated Parts 8.2.2.1 FPRE117/122 Single...
  • Page 57 8.2.2.1 FPRE117/122 Single ITEM PART # COMPONENT 106-6452 Cabinet Assembly Single Footprint Marine 106-4947 Upright Assembly, Enclosure Left 106-4946 Upright Assembly, Enclosure Right 106-6457 Support Assembly, Left 106-6458 Support Assembly, Right 230-1502 Brace, Single Rear Horizontal 230-1503 Brace, Single Front Horizontal...
  • Page 58 8.2.2.2 FPRE217/222 Double Station Fryer Cabinet Assembly Base Assembly...

  • Page 59: Fpre217/222 Double

    8.2.2.2 FPRE217/222 Double Station Fryer ITEM PART # COMPONENT 106-4919 Cabinet Assembly, FPRE Electric Double S/S 106-4946 Upright Assembly, Right 106-4947 Upright Assembly, Left 106-4767 Base Assembly, FPRE Double Electric 210-8978 Support, Right Filter Pan 210-8979 Support, Left Filter Pan 210-8984 Support, Cross Cabinet 210-8986...

  • Page 60: Drain System Components

    Drain System Components 8.3.1 FPRE217/222 Euro-Look Drain Tube Sections and Associated Parts See Next Section for Drain Valves EURO-LOOK ITEM COMPONENT PART # Drain Tube, Left/Right End Short 823-5048 Full-Vat 823-5049 Drain Outlet 816-0625 Sleeve 809-0969 Clamp 810-2492 Fitting, Quick-Connect Straight (receives Teflon vent tube) 811-1071 Tube, Teflon Vent (sold by the foot) Not illustrated.

  • Page 61: Drain Valve Assembly And Component Parts

    8.3.2 Drain Valve Assembly and Component Parts 8.3.2.1 FPRE117/122 Single Drain Valve Assembly ITEM PART # COMPONENT 106-4962 Valve Assembly, Full Vat Drain 810-2946 Valve, 1¼-inch Full-Vat Drain Single SS 106-5391 Bracket Assembly, Full-Vat Drain Safety Switch 816-0220 Insulation, Drain Safety Switch...
  • Page 62 8.3.2.2 FPRE217/222 Drain Valve Assembly and Component Parts ITEM PART # COMPONENT 106-4920 Valve Assembly, Full Vat Drain 816-0639 Cap, Red Handle 816-0220 Insulation, Drain Safety Switch 806-8137 Bracket Assembly, Full-Vat Drain Safety Switch 810-2946 Valve, 1.25-inch Full-Vat Drain 809-0540 Nut, ½-13 2-Way Hex Lock 210-9177 Retainer, Full-Vat Drain Valve Nut...

  • Page 63: Electronics And Wiring Components

    Electronics and Wiring Components 8.4.1 Component Boxes ITEM PART # COMPONENT 106-5846 Box Assembly, Component 809-0582 Washer, Locking 230-1057 Bracket, Circuit Breaker 806-9495SP Terminal Block and Wire Assembly 807-0012 Relay, Filter 18 Amp ⅓ HP 24V Coil 826-1337 Terminal, ¼-inch Push-on (Pkg. of 5) 810-0045 Bushing, .875 Dia.

  • Page 64: Contactor Boxes

    8.4.1 Component Boxes cont. ITEM PART# COMPONENT 807-3868 Strain Relief 807-0121 Bushing, Heyco SB-625-500 816-0217 Paper, Insulating Terminal Block CE 106-5750 Harness, Full Vat Assembly 220-0083 Plate, Strain Relief 807-4036 Switch 807-3575 Plug, Carling Switch Hole (used in place of a switch on some models) 230-0834 Guard, RE Box Switch 8.4.2 Contactor Boxes...
  • Page 65 8.4.2 Contactor Boxes cont. ITEM PART # COMPONENT 106-8789 Box Assembly, FPRE Left Contactor 106-8790 Box Assembly, FPRE Right Contactor 106-8982 Box Assembly, Single Foot Print Contactor 807-0331 Transformer, 480V/120V 150VA 807-2284 Contactor, 24V 50 Amp Mechanical 810-1202 Contactor, 24V 40 Amp Mechanical 807-2434 Relay, Shunt 24V Coil 18 Amp 807-1683...

  • Page 66: Terminal Blocks

    8.4.3 Terminal Blocks ITEM PART # COMPONENT 823-5631 Box, LH Rear Terminal Block 823-5632 Box, RH Rear Terminal Block 220-0801 Cover, Rear Terminal Block Box 807-3970 Block, 3 Pole 600V 175A 807-0070 Terminal, Ground Lug 807-0128 Bushing, Insulating Heyco 809-0247 Nut, #8-32 Hex 809-0250 Nut, #6-32 Hex...

  • Page 67: Heating Element Assembly And Associated Parts

    8.4.4 Heating Element Assembly and Associated Parts This manual references only the new “RE” elements. For previous model fryers and related parts prior to May 2006 see manual 819-6118. 8-15...
  • Page 68 8.4.4 Heating Element Assembly and Associated Parts cont. ITEM PART # COMPONENT 106-5554 Element Assembly FV 440V 17kW w/ Lift Handle Single FPRE117 106-5558 Element Assembly FV 480V 17kW w/ Lift Handle FPRE217 108-1715 Element Assembly FV 230/400V 22 kW w/ Lift Handle FPRE122...

  • Page 69: Remote Digital Controller

    8.4.5 Remote Digital Controller Remote Digital Controller P/N 106-6385 (not shown Remote Controller Cable P/N 106-5142) (for other controllers, cables and harnesses see manual 819-6150) 8.4.6 Wiring Assemblies and Harnesses 8.4.6.1 Contactor Box Wiring Assembly – 12-Pin Full-Vat C-1 8.4.6.2 Contactor Box Wiring Assemblies –...

  • Page 70: Contactor Box Wiring Assembly 9-Pin Right Element

    8.4.6.3 Contactor Box Wiring Assemblies – 9-Pin (Right Element) 8.4.6.4 Main Wiring Harness Blue Mate-N-Lock Moisture Seals are sold separately and can be found on page 8-26. 8.4.6.5 Component Box and Filter Pump Wiring Harnesses P/N 807-4077 ITEM PART # COMPONENT 106-5750 Full Vat Control Harness J4 to J2...

  • Page 71: Filtration System Components

    Filtration System Components 8.5.1 FPRE117/122 Single Filtration Components 8-19...
  • Page 72 8.5.1 FPRE117/122 Single Filtration Components cont. ITEM PART # COMPONENT 106-6519 Assembly, Filter Pan Single FPRE117/122 includes pan and lid 106-6516 Lid, Assembly Single FPRE117/122 824-1707 Crumb Tray 823-5774 Hold Down Ring - Paper 220-1316 Sana Grid Filter Screen 823-5879...

  • Page 73: Fpre217/222 Filtration Components

    8.5.2 FPRE217/222 Filtration Components 8-21...
  • Page 74 8.5.2 FPRE217/222 Filtration Components cont. ITEM PART # COMPONENT 826-1979 Filter Pan Roller Kit (four each of Items 7 and 8) 826-1980 Service Filter Pan (Item 5 minus Item 2) 826-1981 Service Filter Pan Assembly (Service Filter Pan above plus Items 3 and 4) 826-1392 O-Ring (Pkg.

  • Page 75: Frypot Assembly And Thermostat

    Frypot Assembly and Thermostat Frypot P/N 823-5746 High Limit Thermostat Assy. P/N 806-7543 Oil Return System Components Typical Rear-Flush Oil Return Plumbing 8-23...
  • Page 76 Oil Return System Components cont. ITEM PART # COMPONENT 106-5848 Handle Assembly, Rear Flush 813-0907 Cap, 15/16-inch Valve Safety 807-2103 Microswitch, Straight Lever 106-5847 Bracket Assembly 210-8998 Bracket, Handle Retainer 816-0220 Insulation, Oil Return Microswitch 826-1366 Nut, 4-40 Keps Hex (Pkg. of 25) 810-3105 Rod, Handle 816-0643...

  • Page 77: Oil Disposal Plumbing

    Oil Disposal Plumbing ITEM PART # COMPONENT 106-5975 Plumbing, Front Oil Disposal (use 106-6472 for Singles) 106-5974 Valve Assembly, Oil Disposal 810-2944 Valve ½-inch Ball SS 807-2103 Microswitch 230-0985 Rod, Oil Disposal 230-0986 Bracket, Oil Disposal Rod 807-2484 Valve, Solenoid ¼-inch NPT 809-0601 Clip, Clevis Right Rod End 810-0487...

  • Page 78: Wiring Connectors, Pin Terminals, Seals And Power Cords

    Wiring Connectors, Pin Terminals, Seals, and Power Cords 8-26...
  • Page 79 Wiring Connectors, Pin Terminals, Seals, and Power Cords cont. ITEM PART # COMPONENT Power Cords 807-3834 Cable, 3-Phase 4-Wire (Fryer Power Cable) 106-6530 Cord, Filter System Power 220V 15A Connectors 807-1068 2-Pin Female 807-3232 4-Pin Female 807-0158 6-Pin Female 807-0156 9-Pin Female 807-0159 12-Pin Female...

  • Page 80: Fasteners

    8.10 Fasteners ITEM PART # COMPONENT 809-0429 Bolt, ¼-inch – 20 x 2.00-inch Hex Head ZP Tap 809-0514 Capscrew, 5/16-inch-18 NC Hex 809-0448 Clip, Tinnerman 826-1366 Nut, 4-40 Keps Hex (Pkg. of 25) (809-0237) 826-1358 Nut, 6-32 Keps Hex (Pkg. of 25) (809-0049) 809-0247 Nut, 8-32 Keps Hex 826-1376...
  • Page 81 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 82 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 (Tech Support) 1-318-219-7135 819-6202 SERVICE HOTLINE 06/2017 Email: fryservice@welbilt.com 1-800-551-8633...
