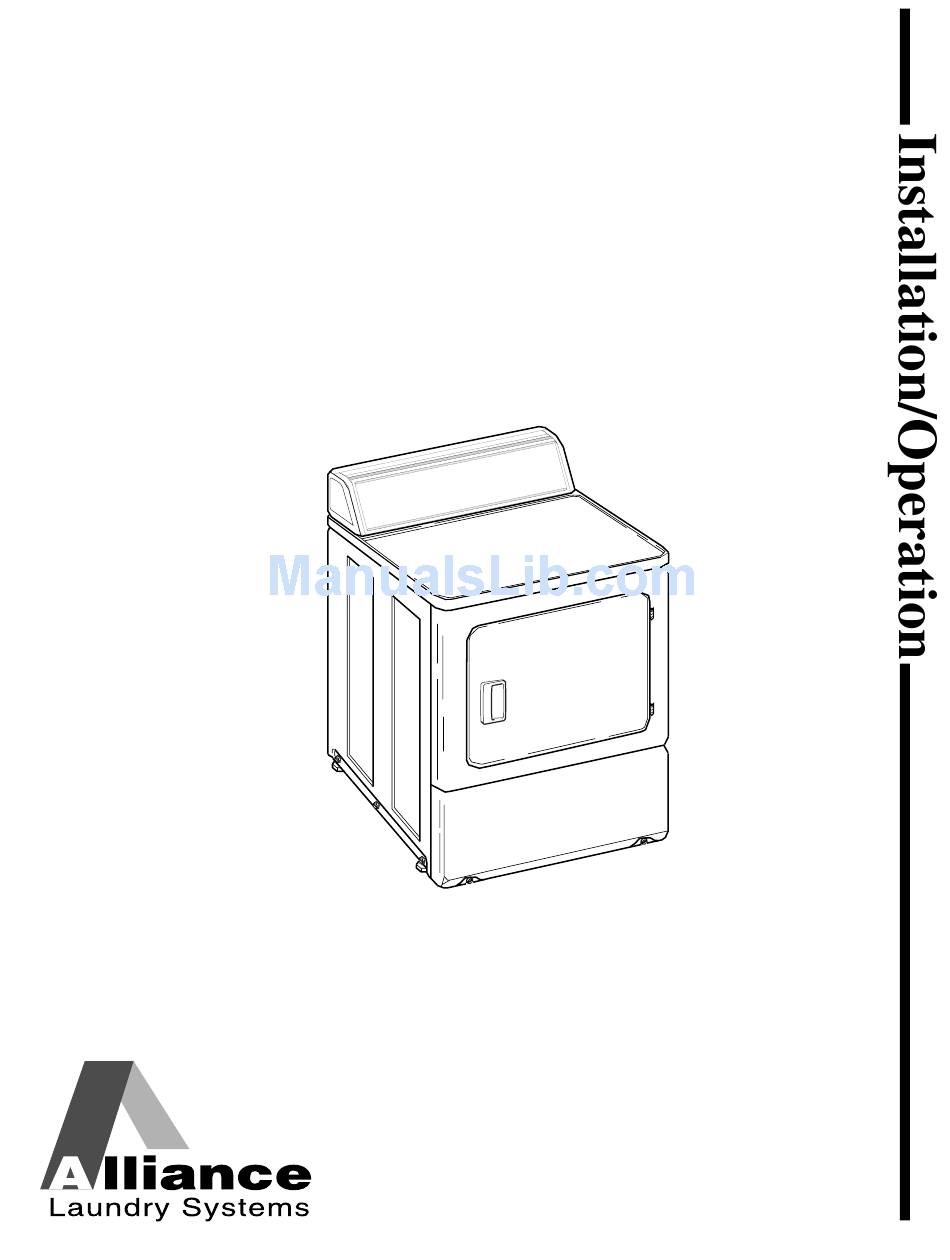

- Page 1 Home Laundry Automatic Clothes Dryers D715I Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 510988R3 www.comlaundry.com January 2009...
- Page 3 Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire. W729R1 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988... - Page 5 Motor Overload Protector..............25 Lint Filter ....................25 Before You Call for Service ..............26 If Service Is Required ................27 Information for Handy Reference............28 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 6: Replacement Parts
Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. Phone: (920) 748-3950 for the name and address of the nearest authorized parts distributor. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988... -
Page 7: Safety Information
11. To reduce the risk of fire, DO NOT DRY plastics or articles containing foam rubber or similarly textured rubberlike materials. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 8 Do not do it yourself unless you know how! 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 9: Installation
1.1 cm 59.7 cm 68.3 cm (0.4 in.) (23.5 in.) (26.9 in.) DRY2262N *10.2 cm 71.1 cm (4.0 in.) (28 in.) *With leveling legs turned into base. DRY2262N 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 10: Tools
D822I D259I D669I Wrench D669I Screwdrivers Dryer Base Level Level Duct Tape Leveling Leg Figure 1 Figure 2 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 11: Step 2: Connect Dryer Exhaust System
W116 NOTE: Failure to exhaust dryer properly will void warranty. NOTE: Venting materials are not supplied with the dryer (obtain locally). DON’T D314I D315I Figure 3 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 12: Step 3: Connect Electrical Cord
(refer to the Operation section). After the dryer has operated for three minutes, the exhaust air or exhaust pipe should be warm. D618I D618I Figure 5 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 13: Reversing Door Procedure
The door on this dryer is completely reversible. To reverse door proceed as follows: D675I D311S D311S D675I D273P D312S D312S D314S D315S D315S D314S D316S D316S D620I D620I D623I D623I 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 14: Electrical Requirements
4.5 m (15 ft.) Table 1 Use U.L. (Underwriters Laboratories) listed wire. Allow sufficient slack in wiring so dryer can be moved from its normal location when necessary. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 15 (see above) and the other end to a known effective ground. W156 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 16: 240 Volt, 60 Hertz, 3-Wire
(Copper Wire Only) (Refer to NOTE above) Pigtail to Dryer (Refer to NOTE above) 30 Ampere Fuses or Circuit Breaker Neutral Neutral Wire Terminal Block in Dryer Figure 8 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 17 4. Tighten all screws and reinstall access cover removed in step 1. D286I “L1” Terminal Neutral Terminal “L2” Terminal Figure 9 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 18: Location Requirements
**NOTE: For new installations, locate top of wall vent 106.7 cm (42 in.) above floor to make venting easier to connect. Closet Door Centered Air Openings Outer Wall of Enclosure (2 Openings Minimum) Figure 10 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 19: Dryer Exhaust Requirements
528P3 DIRECTIONAL EXHAUST KIT accommodate on demand make-up air needs in the home. These devices can be obtained through your D328I building contractor or building material suppliers. Figure 12 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 20: Exhaust System
NOTE: The maximum length of a 10.2 cm (4 in.) diameter flexible metal duct must not exceed 2.4 m (7.87 ft.), as required to meet UL2158, clause 7.3.2A. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 21: Dryer Airflow
PRESSURE IN WATER COLUMN 1.5 cm (0.6 in.) D622I 521P3 FLEXIBLE METAL VENT KIT DR012A-IN D622I MEASURING STATIC PRESSURE Figure 14 D012I Manometer Exhaust Duct Figure 15 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 22: Operation
If loads should be damp for ironing, turn timer ● knob to the ENERGY SAVER setting, marked with a dot (•), in Automatic or Time Dry cycles. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988... -
Page 23: Available Drying Cycles
AUTOMATIC cycles as it does in the TIME DRY cycle. The time it takes for the timer to advance depends on the type and size of the load being dried. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 24: To Dry Clothes
NOTE: To stop dryer at any time, open the door or turn timer knob to an OFF position. To restart dryer, close door, reset timer if necessary, and push in the timer knob. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 25: End Of Cycle Signal
The rack can be used for no-tumble drying of articles, such as tennis shoes, sweaters, stuffed toys or other delicate items. DRY2021N DRY2021N Figure 21 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 26: Maintenance
DO NOT use any chemicals in the NOTE: Verify proper operation after servicing. dryer. IMPORTANT: The use of chlorine bleach for removing any discolorations should be avoided because bleach could damage the finish. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510988... -
Page 27: Motor Overload Protector
Annually remove lint filter and use and call the service person to correct the problem. screw to vacuum the duct under it. D689IE0A D689IE0A Lint Filter Figure 22 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 28: Before You Call For Service
Timed Cycle – Allow more or less time. • Clean the lint filter. • Is the load too small? Small loads may not tumble properly or dry evenly. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 29: If Service Is Required
When calling or writing about your dryer, PLEASE GIVE THE MODEL AND SERIAL NUMBERS located in one of the four corners of the door well as shown in Figure 23. D674I D674I Figure 23 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 30: Information For Handy Reference
Phone Number Service Agency Service Agency Address Phone Number NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate. 510988 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
