Alliance Laundry Systems 25 Pound Capacity Operation & Maintenance Manual

Alliance Laundry Systems 25 Pound Capacity Operation & Maintenance Manual

Drying tumblers 25/30/35/55 pound capacity
Hide thumbs Also See for 25 Pound Capacity:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual, Installation Manual

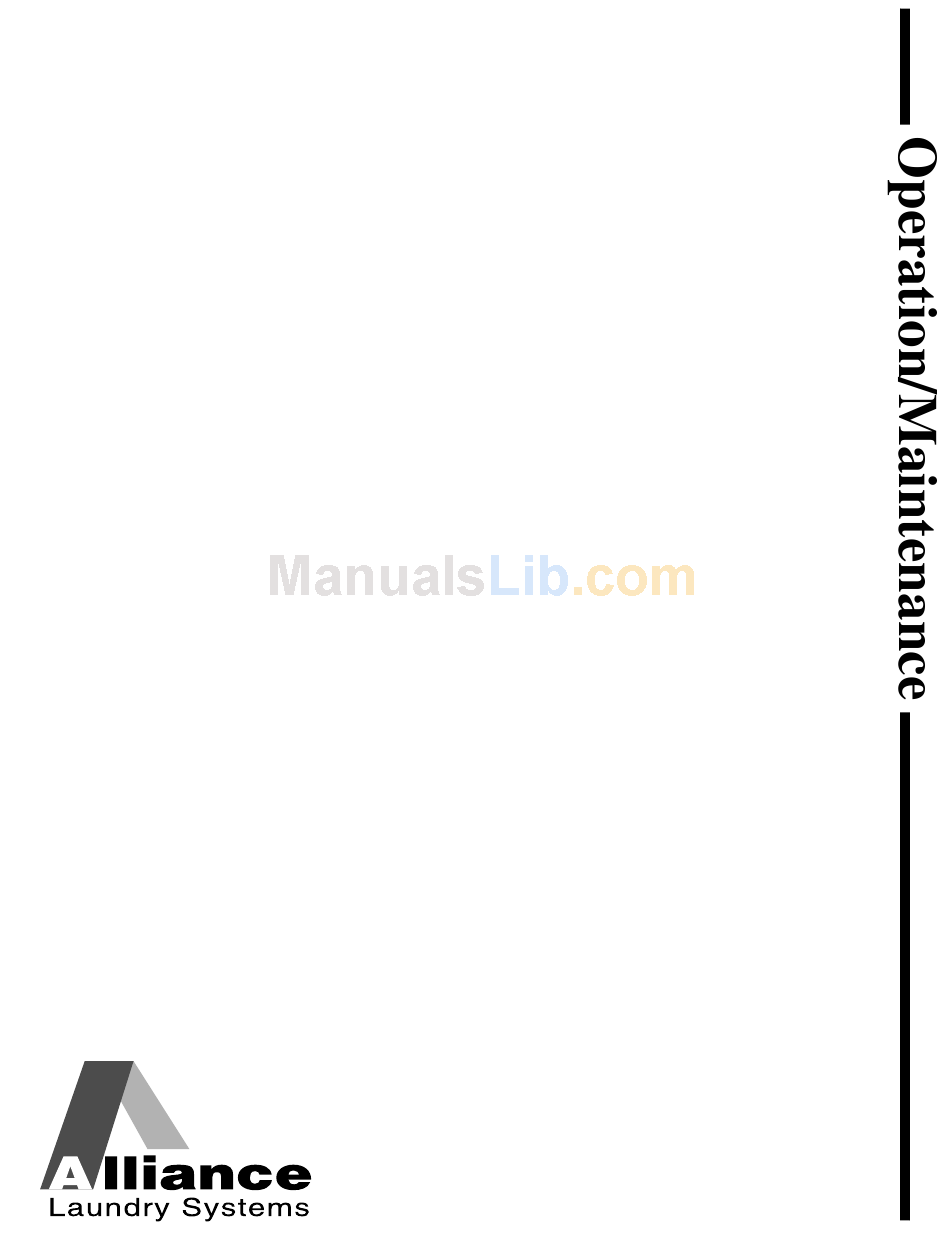

Drying Tumblers
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
25 Pound Capacity
30 Pound Capacity
35 Pound Capacity
55 Pound Capacity
Starting Serial No. 0602004144
Refer to Page 3 for Model Numbers
www.comlaundry.com
Part No. 70400001R4
August 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25 Pound Capacity and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems 25 Pound Capacity

Summary of Contents for Alliance Laundry Systems 25 Pound Capacity

  • Page 1 Drying Tumblers Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) 25 Pound Capacity 30 Pound Capacity 35 Pound Capacity 55 Pound Capacity Starting Serial No. 0602004144 Refer to Page 3 for Model Numbers www.comlaundry.com...
  • Page 3 These instructions must be posted in a prominent location. Step-by-step instructions of the above safety information must be posted in a prominent location near the tumbler for customer use. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT MISE EN GARDE POUR VOTRE SÉCURITÉ, les informations de ce guide doivent être respectées afin de...

  • Page 4: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction...

  • Page 5: Introduction

    CT055L CT055N Includes the following control suffixes: 3O – DX4 OPL 3V – DX4 vended 3X – DX4 prep for coin 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction DR25G2-BA025N CHD25S2-CT025S DR25G2-BT025L CHD25S2-CU025S DR25G2-BT025N...

  • Page 6: Customer Service

    Refer to Figure 1. Serial Plate © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Wiring Diagram The wiring diagram is located inside the junction or contactor box. The wiring diagram part number is in the lower portion of the electrical data on the serial plate.

  • Page 7: Safety Information

    70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information IMPORTANT: Warranty is void unless tumbler is installed according to instructions in the Installation Manual.

  • Page 8: Important Safety Instructions

    12. Always clean the lint filter daily. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 13. Keep area around the exhaust opening and adjacent surrounding area free from the accumulation of lint, dust and dirt.
  • Page 9 27. Never operate the tumbler with any guards and/or panels removed. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 28. DO NOT operate the tumbler if it is smoking, grinding, has missing or broken parts.

  • Page 10: Operating Instructions

    NOTE: Activation of the emergency stop button stops all machine control circuit functions, but DOES NOT remove all electrical power from machine. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING Operating Instructions Step 1: Clean Lint Screen/Compartment Remove any accumulated lint from the lint screen and compartment.

  • Page 11: Control Instructions

    70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Figure 3 IMPORTANT: To stop the tumbler at any time during the cycle, OPEN DOOR. If the loading door or lint panel door is opened during the cycle, the heating system will shut off and the motor will stop.

  • Page 12: Error Codes

    AF - 1 started Airflow switch failed to close after AF - 2 cycle started © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING Definition Check thermistor. Replace if inoperative. ● Check wiring diagram between control and ●...

  • Page 13: Single Drop Control

    18 hours or until door is opened. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Figure 4 Preliminary Control Information Power-Up Mode When power is applied to the tumbler the control will enter Ready Mode, unless a cycle was in process prior to a disruption of power.

  • Page 14: To Program A Short Test Cycle

    Airflow switch opened/closed 5 or AF (flashing) more times in a running cycle. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: To change dipswitch settings refer to Installation Manual. To Program a Short Test Cycle: 1.

  • Page 15: Diagnostic Microprocessor Control

    Monitors the lint door switch operation ● Monitors the thermistor for operation ● 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Dry Time (Min.) Cool Time (Min.) Table 1 The minimum drying time is 0 minutes, and the minimum cooling time is 2 minutes.

  • Page 16: Dmp Coin

    COOLING LED. Illuminated when in the cooling cycle or when the display is currently showing the time for the cooling cycle. START. Starts or resumes the current program or cycle Temperature Select. This button toggles through the three temperature selections. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT MINUTES HIGH MEDIUM TEMP PERM.
  • Page 17 2. An LED will be on to indicate which parameter is flashing on the display. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operating Instructions 3. The hidden front panel increment and decrement keys are used to change the value.

  • Page 18: Dmp Opl Models

    COOLING LED. Illuminated when in the cooling cycle, or when the display is currently showing the time for the cooling cycle. TEMPERATURE LED. Illuminated when the display is showing the temperature setting. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT DRYING COOLING...
  • Page 19 “ON” indicates that the buzzer will sound continuously until the STOP button is pressed or the loading door is opened. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Funtion ON - Coin OFF - OPL...

  • Page 20: Rotation Sensor

    The program will revert back to its original settings. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Rotation Sensor The rotation sensor must “read” the key on the basket shaft or pulley.

  • Page 21: Ignition Control Operation

    If the three attempts at ignition fail, the ignition control will enter Lockout Mode. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operating Instructions Run Mode While in Run Mode the ignition control leaves the gas valve on, monitors the flame signal, and leaves the igniter off.
  • Page 22 Slow Red and Green Flashes Fast Red and Orange Flashes Diagnostic (DGN) LED Figure 8 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Flame Probe Tests Unexpected Presence of Flame The Unexpected Presence of Flame test is performed when no flame is expected.

  • Page 23: Maintenance

    70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Maintenance WARNING c. Be sure the lint screen is not torn. If it is, replace immediately.
  • Page 24 • Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the tumbler is properly grounded. W002 TMB2253N Cabinet High Limit Thermostat Thermistor Figure 9 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 25: Monthly

    4. Check flow of combustion and ventilation air. 5. Check belt tension and condition. Replace worn or cracked belts. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING Bi-Annually 1. Check mounting hardware for any loose nuts, bolts or screws.

  • Page 26: Daily Maintenance

    Lint buildup will act as an insulator, causing machine to overheat. Clean lint and debris buildup from blower to maintain proper airflow, to avoid overheating and prevent possible vibration. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING W002 70400001...

  • Page 27: Quarterly Maintenance

    Remove all front panels and vacuum, including coin drop mechanisms. Check cylinder and front panel seals. Inspect cabinet and inner panels for any damage, replace or repair as needed. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING Maintenance W002...

  • Page 28: Annual Maintenance

    Remove cylinder. Use a vacuum to clean lint from area around rear seal and idler assembly. Check seal idler assembly for wear. Remove burner tubes and clean using water and a brush. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 70400001...

  • Page 29: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit

    For technical assistance, call (920) 748-3121. 70400001 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Possible Reason – Corrective Actions Insert correct coin(s) or valid card if applicable. Close the loading door tightly.
