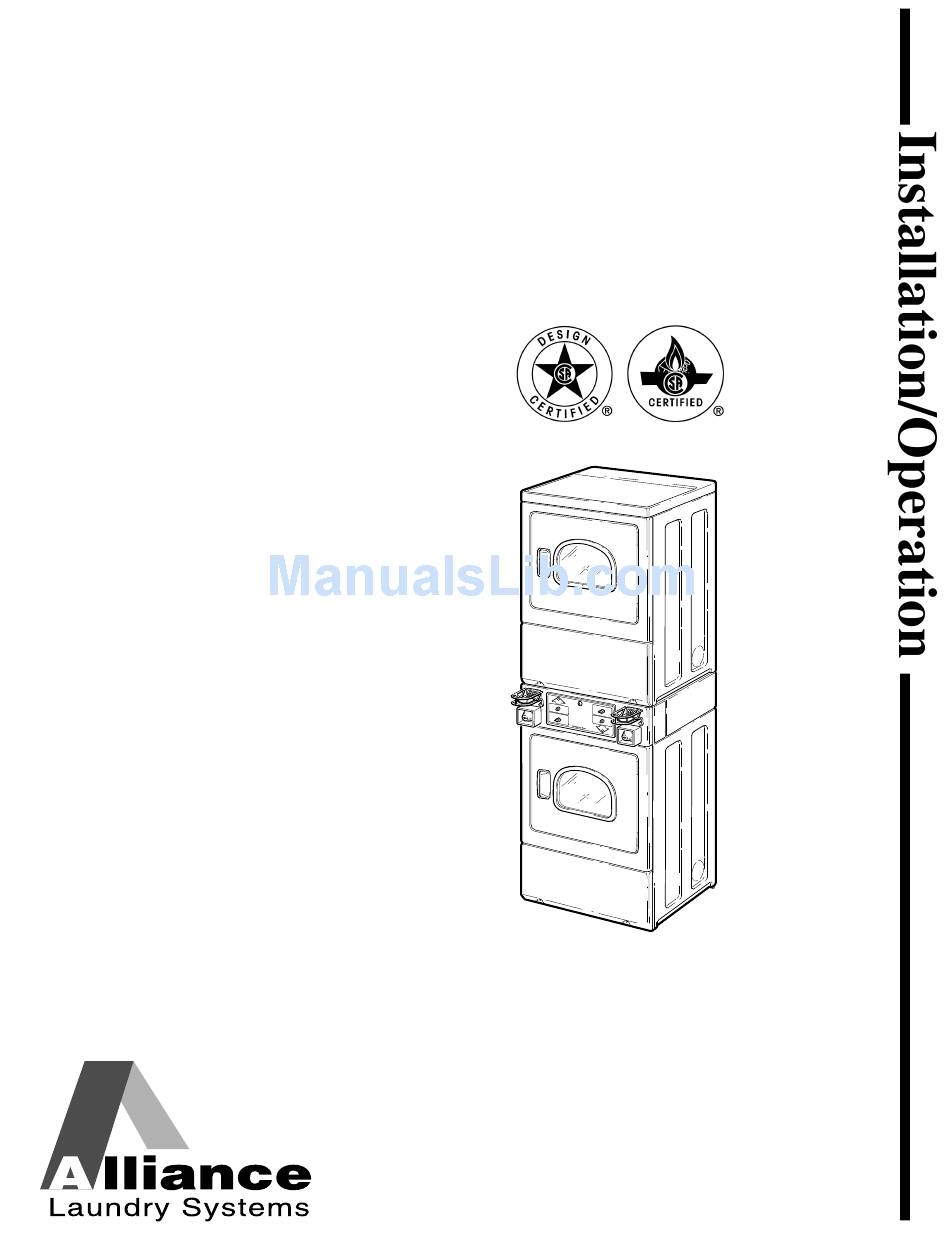

Stacked clothes dryer nonmetered and metered electric and gas models
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Clothes Dryer
Para bajar una copia de estas instrucciones
en español, visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Stacked
Nonmetered and Metered
Electric and Gas Models
www.comlaundry.com
D009C
Part No. 512685R5
September 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 512685R5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems 512685R5

Summary of Contents for Alliance Laundry Systems 512685R5

  • Page 1 Nonmetered and Metered Electric and Gas Models Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. D009C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 512685R5 www.comlaundry.com September 2009...
  • Page 3 • A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bathroom. 512685 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 4: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 5 Control Panel ................... 46 Exhaust System ................46 Lint Filter ....................47 Motor Overload Protector..............47 For Energy Conservation..............47 Troubleshooting .................. 48 Contact Information................49 Installer Checklist..............Back Cover © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 6: Safety Information

    12. ALWAYS clean the lint filter after every load. A layer of lint in the filter reduces drying efficiency and prolongs drying time. 512685 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 7 Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do not understand. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 8: Installation

    *15.44 in. 26.9 in. (39.2 cm) (68.3 cm) 2.8 in. DRY2243N (7.1 cm) GAS MODELS DRY2243N *With leveling legs turned into base. 3/8 in. N.P.T. Gas Connection 512685 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 9: Metered Models

    For housing. maximum drying performance, we recommend that more clearance be allowed around the dryer than the clearances that are listed throughout this manual. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 10: Before You Start

    D818I Wrench Screwdrivers Level Teflon Tape Duct Tape Figure 1 NOTE: An 8 in. (20.32 cm) coin drawer is required for coin operated MDC and NetMaster models. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 11: Installing The Dryer

    (30.5 cm) " " Dryer Rear " (10.2 cm) Dryer Top (Front 4 (1.3 cm) " " Exhaust Duct from Combustible Construction " (5.1 cm) Figure 2 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 12: Step 2: Connect Dryer Unit Exhaust System

    NOT slide the dryer unit across the floor. DO NOT slide the unit once the leveling legs have been extended, as the legs and the base could become damaged. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 13 • Ductwork that runs through unheated areas must be insulated to help reduce condensation and lint build-up on pipe walls. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 14: Exhaust Direction

    NOTE: The maximum length of a 4 in. (10.2 cm) diameter flexible metal duct must not exceed 7.87 ft. (2.4 m), as required to meet UL2158, clause 7.3.2.A. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 15: Multi-Dryer Installation Exhaust Requirements

    58786 Backdraft Damper (Available through Weather Hood or Sweep Elbow your local authorized parts source) (No cap or screen) Clean Out Cover (Must be provided). Inspect monthly. Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 16 2 in. (5 cm) Minimum NOTE: Where the exhaust duct pierces a combustible wall or ceiling, an opening must be sized as shown or per local codes. Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 17: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe

    • Do not use an open flame to check for gas leaks. Use a non-corrosive leak detection fluid. • Any disassembly requiring the use of tools must be performed by a suitably qualified service person. W315 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 18: Step 4: (Electric Dryer Only) Connect Electrical Plug

    For proper operation at altitudes above 3500 feet (1070 m) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 19 (208 or 240 Volt, depending on heating element) listed on the nameplate. Do not connect dryer to 110, 115, or 120 Volt circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 20 Ground to Neutral Wire Neutral Terminal “L2” Terminal Center Wire (Neutral) Strain Relief (Not supplied with dryer) Ground Screw “L1” Terminal Black Wire White Wire (Neutral) Red Wire Figure 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 21 3. Use a strain relief and insert end of power cord through power supply hole. 2. Remove access cover from rear of dryer. D696I D695I Figure 13 Figure 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 22 8. Reinstall access cover and screw. D695I Figure 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 23 10. Reinstall access cover and screw. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 24: Step 5: Reverse Door, If Desired

    3. Pull bottom of door liner out, then pull down, removing door liner from door panel. DRY1918N DRY1918N Figure 25 7. Reinstall nine screws removed in Step 2. DRY1916N DRY1916N Figure 22 DRY1919N DRY1919N Figure 26 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 25: Step 6: Wipe Out Inside Of Dryer

    • Do not use an extension cord. • Do not operate both a washer and gas dryer on D604I the same circuit. Use separately fused 15 Amp D604I circuits. Figure 29 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 26: Step 8: Recheck Steps 1-7

    Do not operate other appliances on the same circuit when this appliance is operating. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 27 NONMETERED MODELS D700I DRY2235N Closed Position 1/8 in. (3.1 mm) Pipe Plug Shut-Off Valve Handle (For checking manifold pressure) Air Shutter Lockscrew Open Position Air Shutter Figure 32 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 28: Vending

    In Start Mode, the vend has been satisfied, but the Start button has not been pressed. The IN USE LED will be lit. The timer will not count down until the Start button is pressed. 512685 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 29: Top-Offs

    Thermistor error. The control will flash the IN USE LED three times separated by a one and a half second pause. This sequence is repeated as long as the Shorted Thermistor error is sensed. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 30: All Models

    ON position. All other dipswitches must be in OFF position. NOTE: The control must be powered down for 10 seconds before the dipswitch can be changed. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 31: Dipswitch Settings

    Vending Dipswitch Settings Heat Switch Number Heat Time Per Coin Pulse (in minutes) Table 5 (continued) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 32: Models Through Serial No. 0908

    Models through Serial No. 0908 Cool Down Switch Number Cool Down Per Cycle (in minutes) 3 (preset at factory) Total Cycle Time = Heat Time + Cool Down Time Table 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 33: Models Starting Serial No. 0909

    Cycle Reset Cool Down Per Cycle Switch Number Switch Number (in minutes) 3 (preset at factory) Total Cycle Time = Heat Time + Cool Down Time Table 6 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 34: Test Setting

    Then set them all to the off position. Refer to Figure 34. 5. Plug in the machine. 1 2 3 4 5 6 7 8 DRY2225P DRY2225P Figure 34 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 35: Slide Extension

    Extension Bracket Extension Lever TLW2089N Star(s) Facing Down TL2089N Figure 36 5. Torque nut between 2 and 2.26 Nm (18 and 20 inch-pounds), or tighten nut firmly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...
  • Page 36 The IN USE light will turn on, or flash if it is already on, to indicate proper operation. NOTE: To avoid long run-down time (45 minutes factory default) when testing operation, refer to Test Setting section. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 37: Operation

    Clean lint filter before each use. Figure 40 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I Figure 39 D688I D688I Figure 41 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 38: Step 4: Determine Proper Dryer

    Starting 20 minutes after a cycle ends, the cylinder will tumble for two minutes every hour without heat, up to 18 hours or until door is opened. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 39: Operation Instructions For Electronic Display Control Dryers

    Clean lint filter before each use. Figure 47 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I Figure 46 D688I D688I Figure 48 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 40: Step 4: Determine Proper Dryer

    Remove knits when slightly damp because overdrying may cause shrinkage. Do not tumble dry knit woolens. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 41: Step 7: Start Dryer

    When the START pad is pressed, the cycle will begin or resume. The PUSH START status word flashes at one-second intervals when activated. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 42: Operation Instructions For Mdc Dryers

    Clean lint filter before each use. Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I Figure 54 D688I D688I Figure 56 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 43: Step 4: Determine Proper Dryer

    Remove knits when slightly damp because overdrying may cause shrinkage. Do not tumble dry knit woolens. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 44: Step 7: Start Dryer

    COOL DOWN is lit whenever the COOL DOWN portion of a heated cycle is active. It is also lit when no DRY1928N heat is programmed for a cycle in operation. DRY1928N Figure 61 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 45: Operation Instructions For Netmaster Dryers

    Clean lint filter before each use. Figure 63 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I Figure 62 D688I D688I Figure 64 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 46: Step 4: Determine Proper Dryer

    Remove knits when slightly damp because overdrying may cause shrinkage. Do not tumble dry knit woolens. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 47: Step 7: Start Dryer

    It will also flash alternately with ADD TIME when a card is inserted while a cycle is running or when a card is left in the reader. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 48: Maintenance

    NOTE: The wiring diagram is located inside the control panel. WARNING Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. W049 512685 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 49: Lint Filter

    PUSH-TO-START button or START pad. If overload protector cycles again, remove the dryer from use and call the service person to correct the problem. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 50: Troubleshooting

    Check room for odors before drying clothes. Any odor (fried foods, paint, Clothes have odor varnish, cleaners, burning wood, etc.) will transfer to clothing as the dryer draws air from the room. Ventilate room before drying clothes. 512685 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 51: Contact Information

    The nameplate will be in the location shown in the illustration below. Please include a copy of your bill of sale and any service receipts you have. D063K Nameplate Figure 71 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 512685...

  • Page 54: Installer Checklist

    • Check for Gas CHECK Leaks. • Check Heat Source. D258I CHECK CHECK ELECTRIC ONLY • Connect Electrical Cord. CHECK W315IE0A D699I • Reverse Door, if Desired. W675I CHECK D675I © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

Table of Contents
