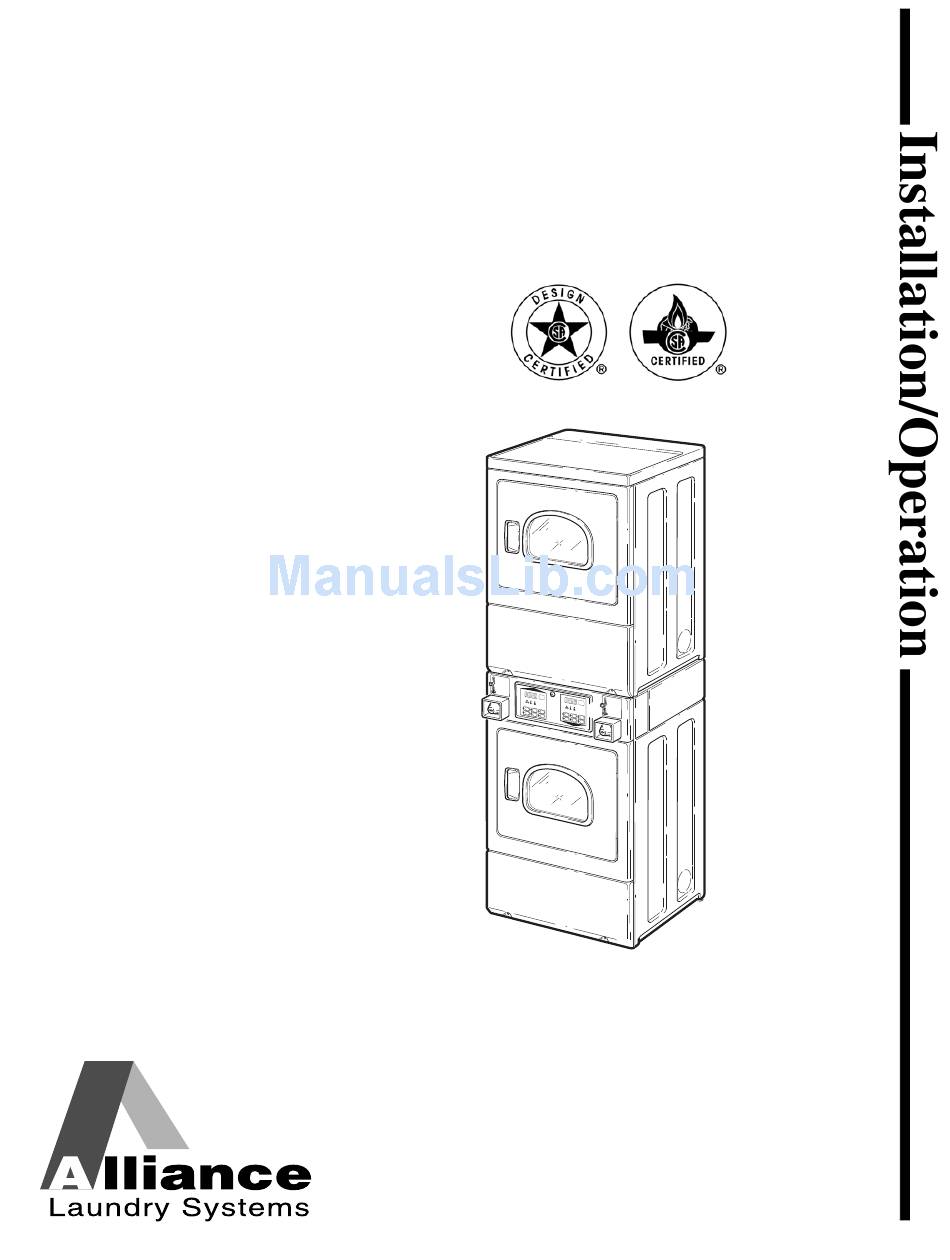

- Page 1 Stacked Clothes Dryer Electric and Gas Models DRY712C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 513006R3 www.comlaundry.com August 2011...
- Page 3 • A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bathroom. 513006 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 5: Safety Information
12. ALWAYS clean the lint filter after every load. A layer of lint in the filter reduces drying efficiency and prolongs drying time. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... - Page 6 Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do not understand. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
-
Page 7: Installation
For housing. maximum drying performance, we recommend that more clearance be allowed around the dryer than the clearances that are listed throughout this manual. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 8: Before You Start
W299 D818I Wrench Screwdrivers Level Teflon Tape Duct Tape Figure 1 NOTE: An 8 in. (20.32 cm) coin drawer is required for coin operated models. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 9: Installing The Dryer
(30.5 cm) " " Dryer Rear (10.2 cm) " Dryer Top (Front 4 (1.3 cm) " " Exhaust Duct from Combustible Construction (5.1 cm) " Figure 2 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 10: Step 2: Connect Dryer Unit Exhaust System
IMPORTANT: Installing in-line filters or lint collectors will cause increased static pressure. Failure to maintain the secondary lint system will decrease dryer efficiency and may void machine warranty. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... - Page 11 • Dryer exhausts 220 cfm (measured at back of dryer). • DO NOT install flexible duct in concealed spaces, such as a wall or ceiling. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
-
Page 12: Exhaust Direction
NOTE: The maximum length of a 4 in. (10.2 cm) diameter flexible metal duct must not exceed 7.87 ft. (2.4 m), as required to meet UL2158, clause 7.3.2A. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 13: Multi-Dryer Installation Exhaust Requirements
58786 Backdraft Damper (Available through Weather Hood or Sweep Elbow your local authorized parts source) (No cap or screen) Clean Out Cover (Must be provided). Inspect monthly. Figure 5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... - Page 14 2 in. (5 cm) Minimum NOTE: Where the exhaust duct pierces a combustible wall or ceiling, an opening must be sized as shown or per local codes. Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
-
Page 15: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe
• Do not use an open flame to check for gas leaks. Use a non-corrosive leak detection fluid. • Any disassembly requiring the use of tools must be performed by a suitably qualified service person. W315 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 16: Step 4: (Electric Dryer Only) Connect Electrical Plug
For proper operation at altitudes above 3500 feet (1070 m) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... - Page 17 (208 or 240 Volt, depending on heating element) listed on the nameplate. Do not connect dryer to 110, 115, or 120 Volt circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
- Page 18 Ground to Neutral Wire Neutral Terminal “L2” Terminal Center Wire (Neutral) Strain Relief (Not supplied with dryer) Ground Screw “L1” Terminal Black Wire White Wire (Neutral) Red Wire Figure 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
- Page 19 3. Use a strain relief and insert end of power cord through power supply hole. 2. Remove access cover from rear of dryer. D696I D695I Figure 13 Figure 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
- Page 20 8. Reinstall access cover and screw. D695I D695I Figure 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
- Page 21 10. Reinstall access cover and screw. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
-
Page 22: Step 5: Reverse Door, If Desired
3. Pull bottom of door liner out, then pull down, removing door liner from door panel. DRY1918N DRY1918N Figure 25 7. Reinstall nine screws removed in Step 2. DRY1916N DRY1916N Figure 22 DRY1919N DRY1919N Figure 26 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 23: Step 6: Wipe Out Inside Of Dryer
• Do not use an extension cord. • Do not operate both a washer and gas dryer on D604I the same circuit. Use separately fused 15 amp D604I circuits. Figure 29 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 24: Step 8: Recheck Steps 1-7
Do not operate other appliances on the same circuit when this appliance is operating. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... - Page 25 DRY2235N DRY2235N Closed Position 1/8 in. (3.1 mm) Pipe Plug Shut-Off Valve Handle (For checking manifold pressure) Air Shutter Lockscrew Open Position Air Shutter Figure 32 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006...
-
Page 26: Operation
D609I Figure 34 Step 3: Close Loading Door Close loading door. Dryer will not operate with the door open. D608I D608I Figure 33 D688I D688I Figure 35 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 27: Step 4: Determine Proper Dryer
Remove knits when slightly damp because overdrying may cause shrinkage. Do not tumble dry knit woolens. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 28: Step 7: Start Dryer
Starting 20 minutes after a cycle ends, the the NO HEAT cycle is in operation. cylinder will tumble for two minutes every hour without heat, up to 18 hours or until door is opened. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 29: Maintenance
NOTE: The wiring diagram is located inside the control panel. WARNING Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. W049 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 30: Lint Filter
START pad. If overload protector cycles again, remove the dryer from use and call the service person to correct the problem. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 31: Troubleshooting
Check room for odors before drying clothes. Any odor (fried foods, paint, Clothes have odor varnish, cleaners, burning wood, etc.) will transfer to clothing as the dryer draws air from the room. Ventilate room before drying clothes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 32: Contact Information
The nameplate will be in the location shown in the illustration below. Please include a copy of your bill of sale and any service receipts you have. D063K Nameplate Figure 42 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 513006... -
Page 34: Installer Checklist
Installer Checklist Fast Track for Installing the Dryer (Refer to the manual for more detailed information) • Position and • Wipe Out Inside Level the Dryer. of Dryer. LEVEL D255I D255I D256I CHECK D610I CHECK D610I D259I • Connect Dryer •...
