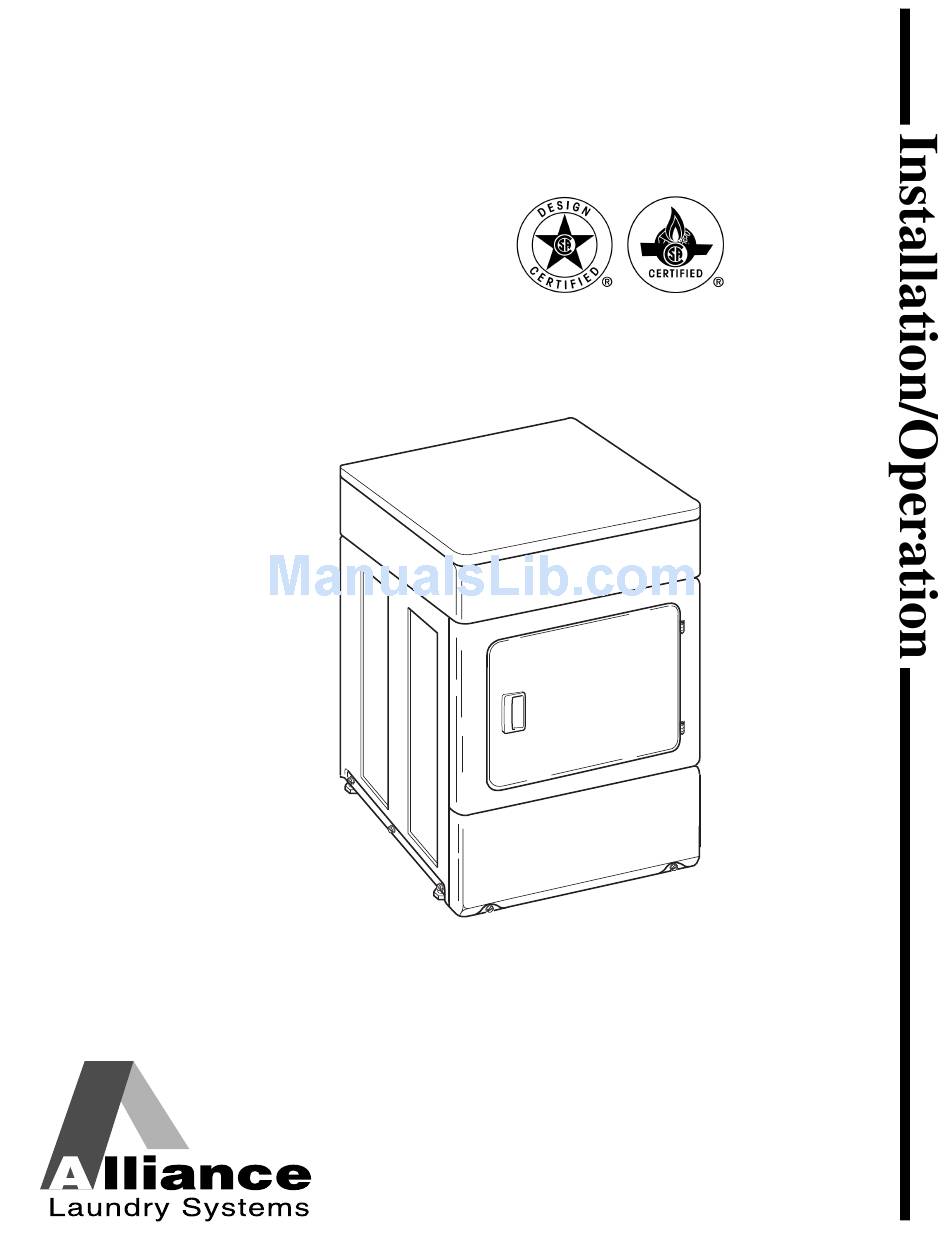

- Page 1 Clothes Dryer Electric and Gas Models DRY684C Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 510977R9 www.comlaundry.com June 2010...
- Page 3 • A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. This appliance must not be installed in a bedroom or bathroom. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 5 Control Panel ................... 38 Exhaust System ................38 Lint Filter ....................38 Motor Overload Protector..............39 For Energy Conservation..............39 Troubleshooting .................. 40 Contact Information................41 Installer Checklist..............Back Cover 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 6: Safety Information
12. ALWAYS clean the lint filter after every load. A layer of lint in the filter reduces drying efficiency and prolongs drying time. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510977... - Page 7 Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do not understand. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 8: Installation
For maximum housing. drying performance, we recommend that more clearance be allowed around the dryer than the clearances that are listed throughout this manual. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510977... -
Page 9: Additional Security
1. Align notch in cam with a tooth on ratchet wheel. 2. Squeeze the ends of the two timing cam prongs together. 3. Carefully lift timing cam off post. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 10: Coin Slide Guards
504210 D789I D789I Coin Slide Guard Sheet Metal Screws Figure 2 NOTE: Coin slides and coin drawers are shown for illustration only. You must obtain them locally. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 11: Before You Start
Select a location with a solid floor. Dryers installed in Home Construction and Safety Standards, Title 24 residential garages must be elevated 18 inches (46 cm) CF4, Part 32-80 or Standard CAN/CSA-Z240 MH. above the floor. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 12 * NOTE: For new installations, locate top of wall vent 42 inches (107 cm) above floor to make venting easier to connect. Outer wall of enclosure Figure 5 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 13: Step 2: Connect Dryer Exhaust System
• Dryer exhausts 220 cfm (measured at back of system to assure safe operation. dryer). W749 • DO NOT install flexible duct in concealed spaces, such as a wall or ceiling. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 14: Exhaust Direction
IMPORTANT: DO NOT block the airflow at the bottom of the dryer’s front panel with laundry, rugs, etc. Blockage will decrease airflow through the dryer, thus reducing the efficiency of the dryer. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 15: Exhaust System
NOTE: The maximum length of a 4 in. (10.2 cm) diameter flexible metal duct must not exceed 7.87 ft. (2.4 m), as required to meet UL2158, clause 7.3.2.A. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 16: Multi-Dryer Installation Exhaust Requirements
58786 Backdraft Damper (Available through Weather Hood or Sweep Elbow your local authorized parts source) (No cap or screen) Clean Out Cover must be provided. Inspect monthly. Figure 7 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 17 2 in. (5 cm) Minimum NOTE: Where the exhaust duct pierces a combustible wall or ceiling, an opening must be sized as shown or per local codes. Figure 9 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 18: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe
• Do not use an open flame to check for gas leaks. Use a non-corrosive leak detection fluid. • Any disassembly requiring the use of tools must be performed by a suitably qualified service person. W316 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 19: Step 4: (Electric Dryer Only) Connect Electrical Plug
For proper operation at altitudes above 3500 feet (1070 m) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 20 (208 or 240 Volt, depending on heating element) listed on the nameplate. Do not connect dryer to 110, 115, or 120 Volt circuit. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 21 Ground to Neutral Wire Neutral Terminal “L2” Terminal Center Wire (Neutral) Strain Relief (Not supplied with dryer) Ground Screw “L1” Terminal Black Wire White Wire (Neutral) Red Wire Figure 12 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 22 3. Use a strain relief and insert end of power cord through power supply hole. 2. Remove access cover from rear of dryer. D696I D695I Figure 15 Figure 14 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 23 Connecting Power Cord with Four-Wire Plug D695I NOTE: Four-wire cord is required for new branch- Figure 18 circuit installations, mobile homes or where codes do not permit grounding through neutral. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
- Page 24 10. Reinstall access cover and screw. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 25: Step 5: Reverse Door, If Desired
3. Pull bottom of door liner out, then pull down, removing door liner from door panel. DRY1918N DRY1918N Figure 27 7. Reinstall nine screws removed in Step 2. DRY1916N DRY1916N Figure 24 DRY1919N DRY1919N Figure 28 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 26: Step 6: Wipe Out Inside Of Dryer
• Do not use an extension cord. • Do not operate both a washer and gas dryer on the same circuit. Use separately fused 15 Amp D621I circuits. D621I Figure 31 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 27: Step 8: Recheck Steps 1-7
Do not operate other appliances on the same circuit when this appliance is operating. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... - Page 28 ELECTROMECHANICAL MODELS D700I DRY2235N Closed Position 1/8 in. (3.1 mm) Pipe Plug Shut-Off Valve Handle (For checking manifold pressure) Air Shutter Lockscrew Open Position Air Shutter Figure 34 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 29: Operation
Du p Dry er - lete rt Dry is Co ht Go ne l T FIL D625I D625I Figure 35 D712I D712I Figure 37 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 30: Step 4: Set Fabric Selector
PUSH-TO-START button. NOTE: Always follow manufacturer’s care label instructions. PERM PRESS DELICATE FLUFF NORMAL (NO HEAT) FABRIC SELECTOR D363I CPD104B Figure 39 CPD104B Figure 38 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 31: Operation Instructions For Electronic Display Control Dryers
- lete rt Dry is Co ht Go ne l R EA R AF T FIL N LIN D627I D794I D627I D794I Figure 40 Figure 42 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 32: Step 4: Set Fabric Selector
START pad. Cycle is completed when time remaining reaches 00 minutes. HIGH START TEMP TEMP TEMP HEAT W387I Figure 44 D451I D451I Figure 46 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 33: Indicator Lights
Should dryer stop before cycle is completed, the motor end of a heated cycle or when the COOL DOWN cycle overload protector may have cycled. Refer to begins. Maintenance section. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 34: Operation Instructions For Mdc Dryers
Of f. rt Dr is Co ht Go g Cy Dr yin ne l FI LT LI NT D796I D796I D793I Figure 47 D793I Figure 49 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 35: Step 4: Set Fabric Selector
To stop dryer at any time, open the door. To restart the dryer, close door and push START pad. Cycle is completed when time remaining reaches 00 minutes. W387I Figure 51 DRY19 DRY1928N Figure 53 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 36: Indicator Lights
COOL DOWN is lit whenever the COOL DOWN portion of a heated cycle is active. It is also lit when no heat is programmed for a cycle in operation. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 37: Operation Instructions For Netmaster Dryers
Of f. rt Dr is Co ht Go g Cy Dr yin ne l FI LT LI NT D796I D796I D793I Figure 54 D793I Figure 56 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 38: Step 4: Set Fabric Selector
To stop dryer at any time, open the door. To restart the dryer, close door and push START pad. Cycle is completed when time remaining reaches 00 minutes. W387I Figure 58 D778I Figure 60 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 39: Indicator Lights
(HIGH TEMP, MED TEMP, or LOW TEMP) is currently in operation. DRYING will turn off at the end of a heated cycle or when the COOL DOWN cycle begins. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 40: Maintenance
WARNING Label all wires prior to disconnection D625I when servicing controls. Wiring errors D625I can cause improper and dangerous Lint Filter operation. W049 Figure 61 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510977... -
Page 41: Motor Overload Protector
• Should you plan to dry several loads, do them one after another, then you do not have to reheat the dryer unit’s interior parts each time. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 42: Troubleshooting
Check room for odors before drying clothes. Any odor (fried foods, paint, Clothes have odor varnish, cleaners, burning wood, etc.) will transfer to clothing as the dryer draws air from the room. Ventilate room before drying clothes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 510977... -
Page 43: Contact Information
The nameplate will be in the location shown in the illustration below. Please include a copy of your bill of sale and any service receipts you have. D063K Nameplate Figure 62 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 46: Installer Checklist
Doo Stop Drye Clos plete Drye e is s Off. H LOA Rest g Cycl l Ligh t Goe Dryin Pane T FILT 5042 D661I CHECK W661I © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
