Quick Links

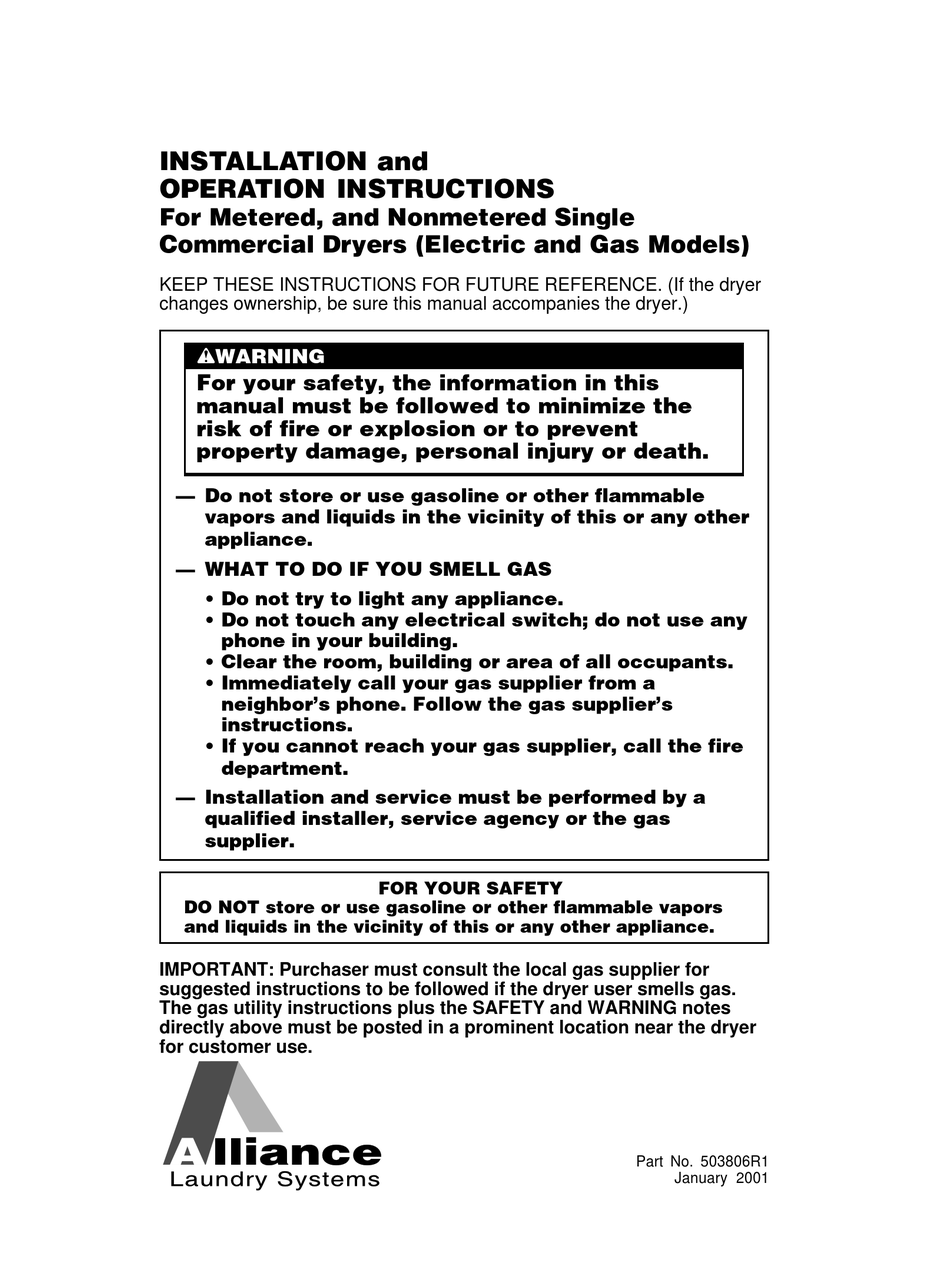

INSTALLATION and
OPERATION INSTRUCTIONS
For Metered, and Nonmetered Single
Commercial Dryers (Electric and Gas Models)
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer
changes ownership, be sure this manual accompanies the dryer.)
aWARNING
For your safety, the information in this
manual must be followed to minimize the
risk of fire or explosion or to prevent
property damage, personal injury or death.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
IMPORTANT: Purchaser must consult the local gas supplier for
suggested instructions to be followed if the dryer user smells gas.
The gas utility instructions plus the SAFETY and WARNING notes
directly above must be posted in a prominent location near the dryer
for customer use.
FOR YOUR SAFETY
Part No. 503806R1
January 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 503806R1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alliance Laundry Systems 503806R1

  • Page 1 The gas utility instructions plus the SAFETY and WARNING notes directly above must be posted in a prominent location near the dryer for customer use. Part No. 503806R1 January 2001...
  • Page 2: Table Of Contents

    Reversing Door Procedure (Optional) .......... 48 Operation Instructions ..............50 Information For Handy Reference ........Back Cover Copyright 2001, Alliance Laundry Systems LLC Copyright 1996, Raytheon Appliances. All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the written permission of the publisher.
  • Page 3: Important Safety Instructions Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS) aWARNING To reduce the risk of fire, electric shock or injury to persons when using the dryer, follow these basic precautions: IMPORTANT: SAFETY INSTRUCTIONS that apply to people using the dryer should be reprinted and posted in the laundry room. Read all instructions before using the dryer.
  • Page 4 11. To reduce the risk of fire, DO NOT DRY plastics or articles containing foam rubber or similarly textured rubberlike materials. 12. ALWAYS clean the lint filter before every load. A layer of lint in the filter reduces drying efficiency and prolongs drying time.
  • Page 5 22. Install this dryer unit according to the INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding, and gas supply must comply with local codes and be made by licensed personnel when required. Do not do it yourself unless you know how! 23.
  • Page 6: Roughing-In Dimensions Metered Models

    Roughing-In Dimensions Metered Models 4.0" 4.0" (10.2 cm) (10.2 cm) 7.7" 15.4" (19.6 cm) 4" (39.1 cm) (1.1 cm) 23.5" 26.9" 28" (59.7 cm) (68.3 cm) (71.1 cm) D183IE2G * WITH LEVELING LEGS TURNED INTO BASE. Electric Dryers 4.0" 2.3" 4.0"...
  • Page 7: Roughing-In Dimensions Nonmetered Models

    Roughing-In Dimensions Nonmetered Models 4.0" 4.0" (10.2 cm) (10.2 cm) 7.7" 15.4" (19.6 cm) 4" (39.1 cm) (1.1 cm) 23.5" 26.9" 28" (59.7 cm) (68.3 cm) (71.1 cm) D184IE2E * WITH LEVELING LEGS TURNED INTO BASE. Electric Dryers 4.0" 2.3" 4.0"...
  • Page 8: Clean The Cylinder

    NOTE: Side, rear and bottom exhaust openings are for four inch (10.2 cm) ducting. Gas models cannot be vented out left side of cabinet because of the burner housing. IMPORTANT: The dryer should have sufficient clearance around it for needed ventilation and for the ease of installation and servicing. For maximum drying performance, we recommend that more clearance be allowed around the dryer than the clearances that are listed throughout this manual.
  • Page 9: Meter Case (Metered Models)

    Meter Case (Metered Models) IMPORTANT: Audit models MUST use vertical coin slide and long coin box (not supplied with dryer). The back panel of the coin box cannot contain ANY holes. The factory mounted coin meter case does not include the service door lock, slide, coin drawer, coin drawer lock or keys.
  • Page 10: Additional Dryer Security

    Additional Dryer Security (Metered Models) aWARNING To reduce the risk of electric shock, fire, explosion, serious injury or death: Disconnect electric power to the dryer before servicing. Close gas shut-off valve to gas dryer before servicing. Never start the dryer with any guards/panels removed. Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure...
  • Page 11 While supporting lower access panel, remove two screws from bottom edge. Gently lower access panel to disengage guide lugs from bottom edge of front panel. Remove two screws holding bottom tabs on front panel to dryer cabinet. Swing bottom of front panel away from dryer far enough to disengage hold-down clips and guide lugs from cabinet top.
  • Page 12: Electrical Requirements

    Electrical Requirements (Electric Dryers) (120/240 Volt, 60 Hertz, 3-Wire Installation) (120/208 Volt, 60 Hertz, 3-Wire Installation) NOTE: The wiring diagram is located inside the control hood. aWARNING To reduce the risk of fire, electric shock or personal injury, all wiring and grounding MUST conform with the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, and such local regulations as might apply.
  • Page 13 The power cord (pigtail) connection between wall receptacle and dryer terminal block IS NOT supplied with dryer. Type of pigtail and gauge of wire must conform to local codes and with instructions mentioned on Pages 16 and 19. The method of wiring the dryer is optional and subject to local code requirements.
  • Page 14: Electrical Connection

    Electrical Connection (Three Wire) aWARNING The dryer is grounded to neutral conductor at the terminal block. If the dryer is installed in a mobile home, or if local codes do not permit grounding through the neutral, proceed as shown on Page 17. To reduce the risk of electric shock, disconnect the electrical service to the dryer before proceeding.
  • Page 15 4. Secure the strain relief to the power cord, or wires, where they enter the dryer cabinet. 5. Check the continuity of the ground connection before plugging the cord into an outlet. Use an acceptable indicating device connected to the center grounding pin of the plug and the green screw on the back of the cabinet.
  • Page 16 Three Wire Connection "L1" TERMINAL GROUND TO NEUTRAL WIRE GROUND NEUTRAL WIRE TERMINAL TERMINAL BRACKET GROUND SCREW TERMINAL BLOCK "L2" TERMINAL SLOTTED HEX HEAD SCREWS (Shipped inside the dryer) NEUTRAL ACCESS (WHITE COVER OR CENTER WIRE) STRAIN RELIEF (NOT SUPPLIED POWER CORD OR DIRECT WITH DRYER)
  • Page 17 Four-Wire Power Cord IMPORTANT: Use only a U.L. listed No. 10 AWG (copper wire only) four conductor power supply cord kit rated 240 Volts (minimum) 30 Amperes and labeled as suitable for use in a clothes dryer. POWER CORD (Four-Wire) STRAIN RELIEF TYPICAL...
  • Page 18 Install four-wire power cord 5. Route the end of the four-wire power cord through the strain relief. DO NOT tighten the strain relief screws at this time. 6. Insert the end of power cord and strain relief through the hole in the rear of the dryer cabinet.
  • Page 19 GROUND WIRE WHITE WIRES NEUTRAL TERMINAL WIRES BLACK WIRE "L1" TERMINAL TERMINAL BRACKET GROUND TERMINAL SCREW BLOCK "L2" GROUND TERMINAL WIRE SLOTTED HEX HEAD SCREWS (Shipped inside the dryer or removed in Step 2) BLACK WIRE WIRE NEUTRAL (WHITE WIRE) STRAIN RELIEF POWER CORD...
  • Page 20: Gas Dryers

    Electrical Requirements (Gas Dryers) (120 Volt, 60 Hertz, With 3-Prong Grounding Plug) NOTE: The wiring diagram is located inside the control hood. aWARNING To reduce the risk of fire, electric shock or personal injury, all wiring and grounding MUST conform with the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, and such local regulations as might apply.
  • Page 21 NEUTRAL STANDARD GROUND 120 VOLT, 60 HERTZ, 3-WIRE EFFECTIVELY GROUNDED CIRCUIT V.A.C. V.A.C. V.A.C. NEUTRAL SIDE D090IE2C NOTE: A qualified electrician should check the polarity of the wall receptacle. If a voltage reading is measured ROUND other than that illustrated, the GROUNDING PRONG qualified electrician should...
  • Page 22: Grounding Instructions

    Grounding Instructions The dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. Each dryer is equipped with a cord having an equipment-grounding conductor and a 3-prong grounding plug.
  • Page 23: Gas Service (Gas Dryers)

    Gas Service (Gas Dryers) NOTE: The gas service to a gas dryer must conform with the local codes and ordinances, or in the absence of local codes and ordinances, with the latest edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54 or the CAN/CGA-B149, National Gas Installation Code.
  • Page 24 For proper operation at altitudes above 2000 ft. (610 m) the natrual gas valve spud orifice size must be reduced to ensure complete combustion. Altitude Orifice Size Part Inches Number 2000 0.0960 2.44 503776 3000 0.0935 2.37 503777 5500 1680 0.0890 2.26 503778...
  • Page 25 5. The gas line to your laundry room should be made of black iron pipe. A 3/8" (9.5mm) pipe with an inside diameter of .46" (11.7 mm) will be adequate if length of supply line is not over 20 feet (6m). If length exceeds this, use 1/2"...
  • Page 26: Dryer Exhaust Requirements

    Dryer Exhaust Requirements The dryer unit MUST be exhausted to the outdoors. aWARNING A clothes dryer produces combustible lint. To reduce the risk of fire and combustion gas accumulation the dryer MUST be exhausted to the outdoors. Gas heated dryers exhaust substances in the fuel or from fuel combustion, which can cause death or serious illness, and which are known to the State of California to cause cancer, birth defects, or other...
  • Page 27: Exhaust Direction

    NOTE 1: Exhaust system materials are not supplied with the dryer. NOTE 2: Kits described above are optional exhaust system materials available at extra cost. NOTE 3: Exhaust duct must be four inches (10.2 cm) in diameter having no obstructions. Rigid metal duct is recommended. Non- combustible semi-rigid flexible metal duct is acceptable.
  • Page 28: Exhaust System

    3. Exhaust System NOTE: Be sure old ducts are cleaned before installing your new dryer. For best drying results, recommended maximum length of exhaust system is shown below. IMPORTANT: Keep exhaust duct as short as possible. Number Weather Hood Type Use only for short Recommended run installations...
  • Page 29: Make-Up Air Requirements

    DO NOT use sheet metal screws on exhaust pipe joints or other fastening means which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. 4. Make-Up Air Requirements A dryer exhausts 214 CFM (measured at back of dryer) and sufficient make-up air must be supplied to replace air exhausted by each dryer.
  • Page 30 FREE STANDING CLOSET / ALCOVE AREA DESCRIPTION INSTALLATION INSTALLATION (See Illustration) (See Illustration) Dryer sides and rear clearance 0" (0 cm) 0" (0 cm) Dryer top clearance 12" (30.48 cm) 12" (30.48 cm) Dryer front clearance Not Applicable 2" (5.08 cm) Exhaust duct clearance to combustible 2"...
  • Page 31: Installation

    5. Installation IMPORTANT: 1. The dryer needs sufficient clearance and an adequate air supply for proper operation and ventilation, and for easier installation and servicing. 2. No other fuel burning appliance should be installed in the same closet with the dryer. aWARNING To reduce the risk of fire and the accumulation of combustions gases, the dryer MUST BE EXHAUSTED TO...
  • Page 32: Dryer Airflow Measurement

    7. Dryer Airflow Measurement Static Pressure Static pressure in the dryer’s exhaust duct should be no greater than that shown in the chart below. (Check with dryer running and no load.) NOTE: This can be measured with a manometer placed on the exhaust duct approximately two feet (61 cm) from the dryer, see illustration below.
  • Page 33: Directional Exhaust

    Directional Exhaust The dryer can be exhausted to the outdoors and can be installed with “0” inch (“0” mm) clearance at sides and rear. Exhausting the dryer through sides or bottom can be accomplished by installing No. 528P3 Exhaust Kit (available as optional equipment at extra cost).
  • Page 34: Inside Exhaust

    Inside Exhaust NOTE: This type of installation is not permitted. aWARNING A clothes dryer produces combustible lint. To reduce the risk of fire, the dryer must be exhausted to the outdoors. Gas heated dryers exhaust substances in the fuel or from fuel combustion, which can cause death or serious illness, and which are known to the State of California to cause cancer, birth defects, or other...
  • Page 35: Multi-Dryer Installation Exhaust Requirements

    Multi-Dryer Installation Exhaust Requirements The illustration below shows a typical example of a multiple dryer installation. Note how each dryer has its own exhaust system vented to the central exhaust duct. Damper, Part No. 58786, should be installed in each dryer’s exhaust system (see below).
  • Page 36 IMPORTANT: If several dryers are exhausted into a main collector duct, it is essential that ductwork be adequate in size and properly constructed for efficient operation. Main collector duct should be sized according to specifications shown below. Minimum Minimum Number Diameter of Diameter of of Dryers...
  • Page 37 Dryer exhaust duct should enter the main duct at an angle of no more than 30 pointing in the direction of the air flow. Ducts entering the main duct from opposite sides should be staggered so as not to oppose each other, see illustration below. Provisions should be made for periodic lint removal and cleaning of the main collector duct.
  • Page 38 Sufficient make-up air must be supplied to replace air exhausted from dryer. WEATHER HOOD 180 SWEEP OR SWEEP ELBOW ELBOW (No cap or screen) (No cap or screen) PARAPET 24" MIN. MAIN COLLECTOR DUCT (60.96 cm) WALL ROOF D039IE2A NOTE: Where the exhaust duct pierces the wall or ceiling, an opening having a diameter of 4 inches (10.2 cm) larger than the diameter of the exhaust duct shall be provided, and the exhaust duct centered within the opening.
  • Page 39: Positioning And Leveling The Dryer

    Positioning and Leveling The Dryer Select a location with a solid and level floor. NOTE: DO NOT install the dryer on a weak floor. Place the dryer in position, and adjust the legs until the dryer is level. Leveling legs can also be adjusted from inside the dryer using a "...
  • Page 40: Heat Check (Electric Dryers)

    Heat Check (Electric Dryers) Metered Models Set the proper FABRIC SELECTOR switch at NORMAL (see Page 51 for illustration of controls). Place coins in the slide and carefully push slide in as far as possible, (IN USE light will come on indicating the dryer is ready to operate).
  • Page 41 After the dryer has operated for approximately five minutes, observe burner flame. Adjust the air shutter to obtain a soft, uniform blue flame. (A lazy, yellow tipped flame indicates lack of air. A harsh, roaring, very blue flame indicates too much air.) Adjust the air shutter as follows: a.
  • Page 42: Lint Filter

    Lint Filter CLEAN THE LINT FILTER BEFORE DRYING EACH LOAD. (Refer to illustration below for lint filter location.) Cleaning the lint filter is important because a layer or pad of lint on the filter will block the flow of air through the dryer, thus reducing the efficiency of the dryer.
  • Page 43: Manufactured (Mobile) Home Installation

    Manufactured (Mobile) Home Installation IMPORTANT: Installation must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 32-80 or Standard CAN/CSA-Z240 MH. The dryer can be installed in a manufactured (mobile) home by following these instructions: IMPORTANT: Gas dryers MUST be permanently attached to the floor at the time of installation.
  • Page 44 When exhausting the dryer to the outdoors, the dryer can be installed with “0” inch clearance at the sides and rear. Clearance of the duct from combustible construction must be a minimum of 2 inches (5.08 cm). Venting materials are not supplied with the dryer (obtain locally). aCAUTION To reduce the risk of fire, the exhaust duct and weather hood MUST be fabricated of a material that will not...
  • Page 45: Motor Overload Protector

    Replacement Parts If replacement parts are required, contact the source where you purchased your dryer, or contact Alliance Laundry Systems, P.O. Box 990, Ripon, Wisconsin 54971-0990, or phone (920) 748-3950 for the name and address of the nearest authorized parts distributor.
  • Page 46: User Maintenance Instructions

    User-Maintenance Instructions Lubrication All moving parts are sealed in a permanent supply of lubricant or are equipped with oilless bearings. Additional lubrication will not be necessary. Care of Your Dryer Clean the lint filter before drying each load. The lint filter may be washed if needed.
  • Page 47: Before You Call For Service

    Before You Call For Service You may save time and money by checking the following: If Your Dryer: Doesn’t Dry Won’t Won’t Possible Reason Clothes Start Do This To Correct Heat Satisfactorily Metered models—Insert coin(s) in slide and push slide in as far as possible. Then pull slide out.
  • Page 48: Reversing Door Procedure (Optional)

    Reversing Door Procedure The door on this dryer is completely reversible. To reverse door proceed as follows: D238PE0A D239PE0A Remove four hinge attaching screws. Remove all ten screws. D240PE0A D241PE0A Pull top of door liner out, then pull up, removing door liner Rotate door panel 180 degrees from door panel.
  • Page 49 D243PE0B D242PE0B Remove door strike from door Insert two round tabs into holes liner and reinstall on opposite in the bottom of door panel, then side. push top of door liner into place. D245PE0B D244PE0B Remove two door plugs (or four Reinstall ten screws removed screws), and reinstall on in step 2.
  • Page 50: Operation Instructions

    Operation Instructions aWARNING To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, Pages 3-5, before operating the dryer. TRANSMIT IN USE SWITCH LIGHT TIMER (AUDIT MODELS KNOB ONLY) FABRIC SELECTOR TEMPERATURE SWITCH COIN SLIDE LOADING...
  • Page 51 1. Open the loading door and clean the lint filter. Place wet laundry in clothes cylinder and close the door securely. DO NOT OVERLOAD THE DRYER. Maximum load: cylinder one-half full of wet clothes. 2. Set FABRIC SELECTOR temperature switch at: NORMAL for cottons;...
  • Page 52: Information For Handy Reference

    Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, Wisconsin 54971-0990 Information For Handy Reference Date Purchased Model No. Serial No. Distributor’s Name NOTE: For your own convenience and protection, record the above information and retain your sales slip for this appliance. The model and serial numbers will be found on the nameplate located on the inside of the dryer door opening.
