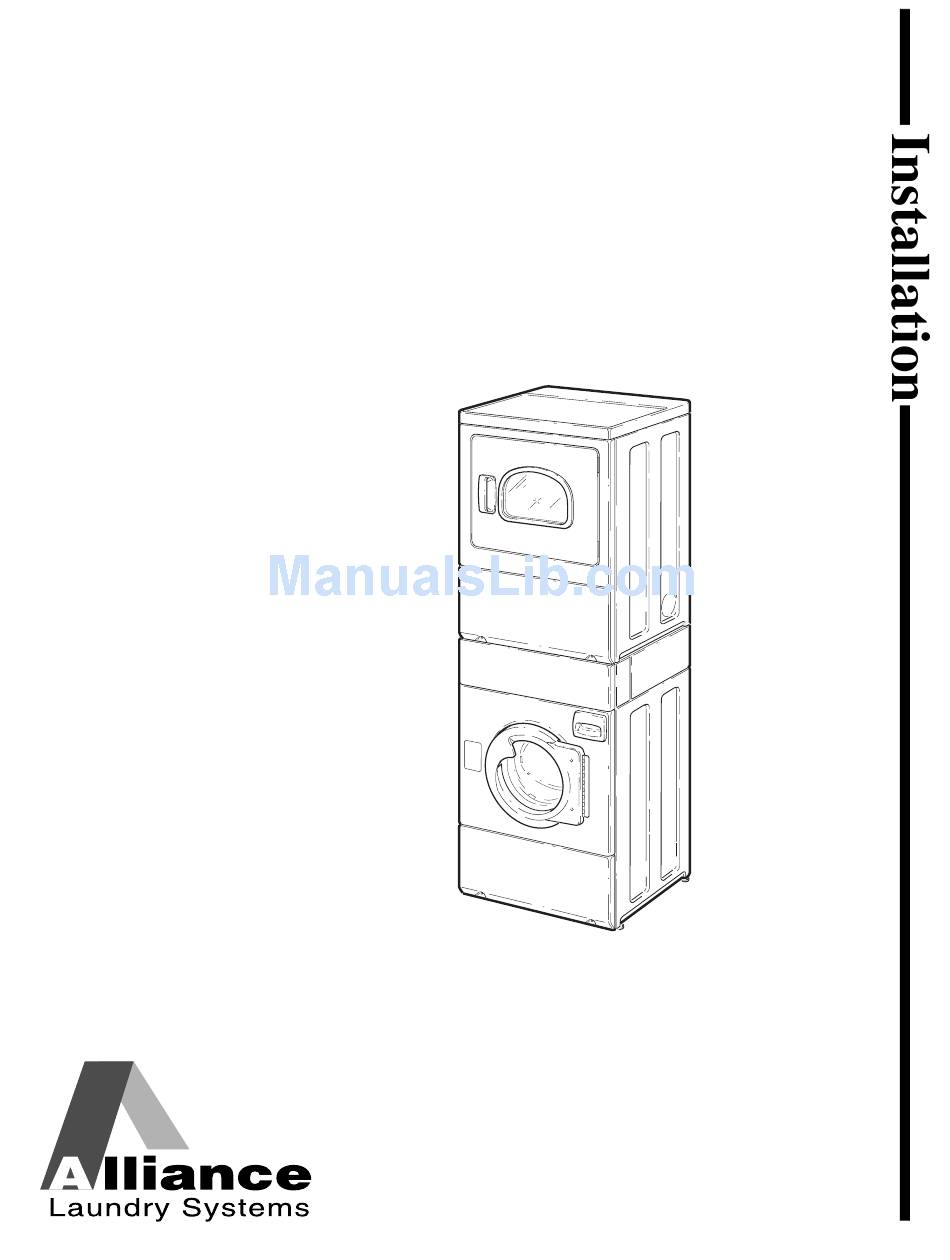

Stacked Washers
and Dryers
Electric and Gas Dryers
NOTA: El manual en
español aparece después
del manual en inglés.
SWD441C
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 801504R1
www.comlaundry.com
October 2003
