Epson Scan Server User Manual page 42

8. Enter the IP address or Host name of the scanner server PC in
the Network Scanner Address box.
9. Specify the Timeout Setting. Valid values range from 30 to 300
seconds.
For screen calibration, refer to the section "Calibrating Your
Screen" described later in this chapter.
10. To test the status of the scanner, click Test.
After the test is complete, information about the scanner's
status is displayed below the heading Scanner Status.
11. After setting this dialog box, click OK.

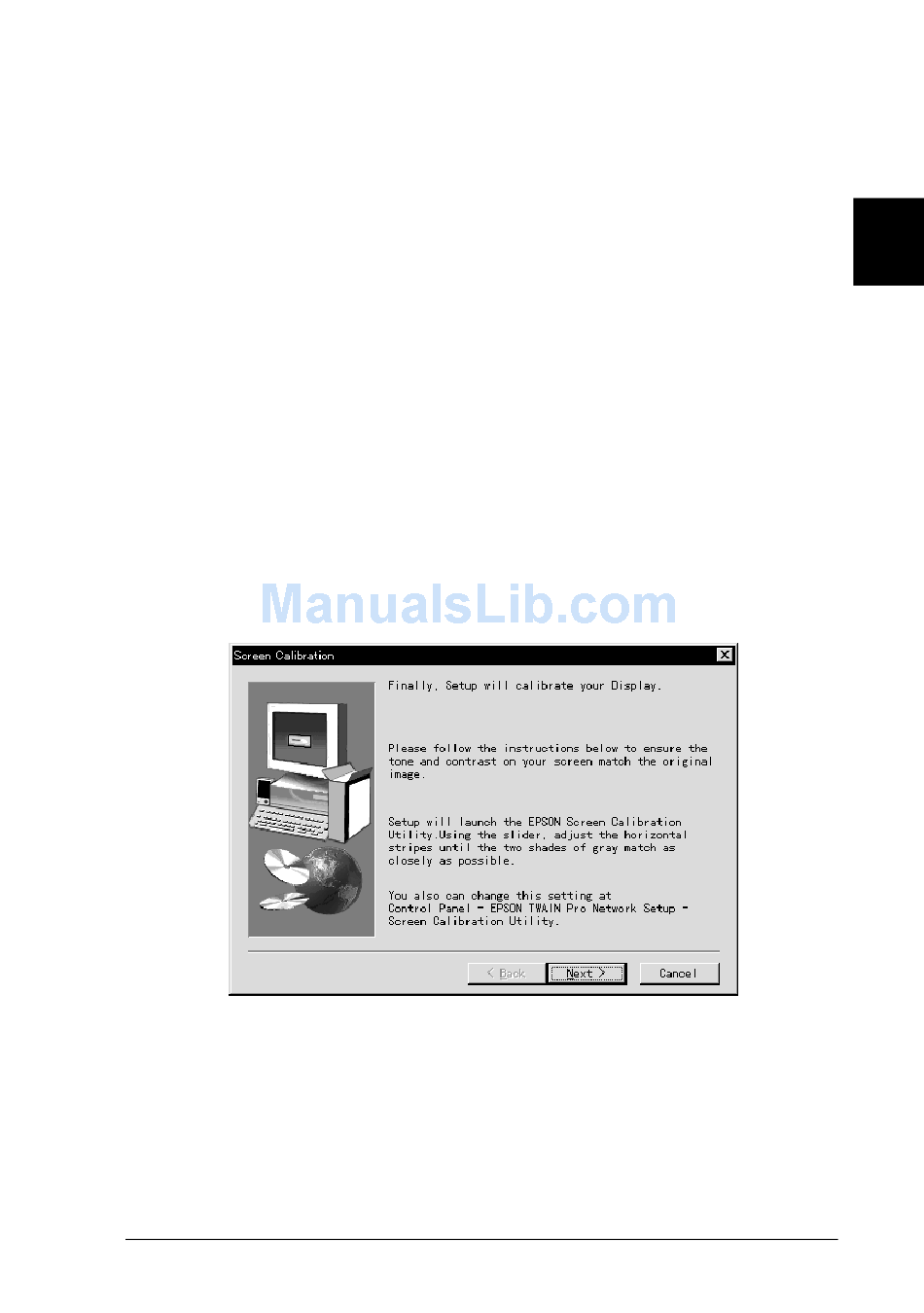

The Screen Calibration dialog box appears.
12. Click Next.
The Screen Calibration dialog box appears.
13. Move the slide bar right or left until the shades of gray of the
two sets of horizontal stripes match and click OK. For details,
refer to the next section "Calibrating Your Screen."
Installing the Software
2
2-13
