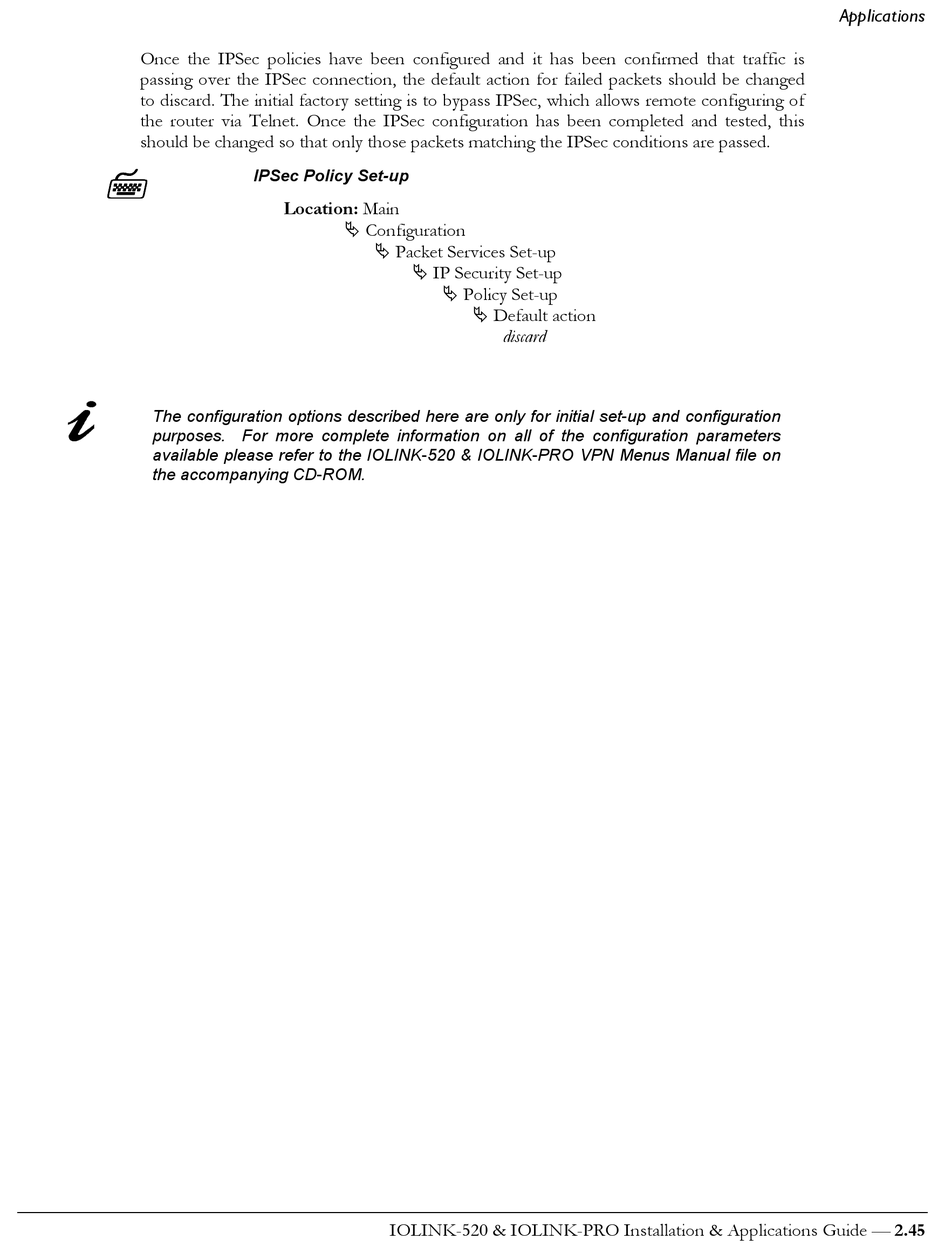

Perle IOLINK-520 User And System Administration Manual page 65

Once the IPSec policies have been configured and it has been confirmed that traffic is
passing over the IPSec connection, the default action for failed packets should be changed
to discard. The initial factory setting is to bypass IPSec, which allows remote configuring of
the router via Telnet. Once the IPSec configuration has been completed and tested, this
should be changed so that only those packets matching the IPSec conditions are passed.
" "
" "
IPSec Policy Set-up
The configuration options described here are only for initial set-up and configuration
purposes. For more complete information on all of the configuration parameters
available please refer to the IOLINK-520 & IOLINK-PRO VPN Menus Manual file on
the accompanying CD-ROM.
Location: Main
! Configuration
! Packet Services Set-up
! IP Security Set-up
! Policy Set-up
IOLINK-520 & IOLINK-PRO Installation & Applications Guide — 2.45
! Default action
discard
Applications
