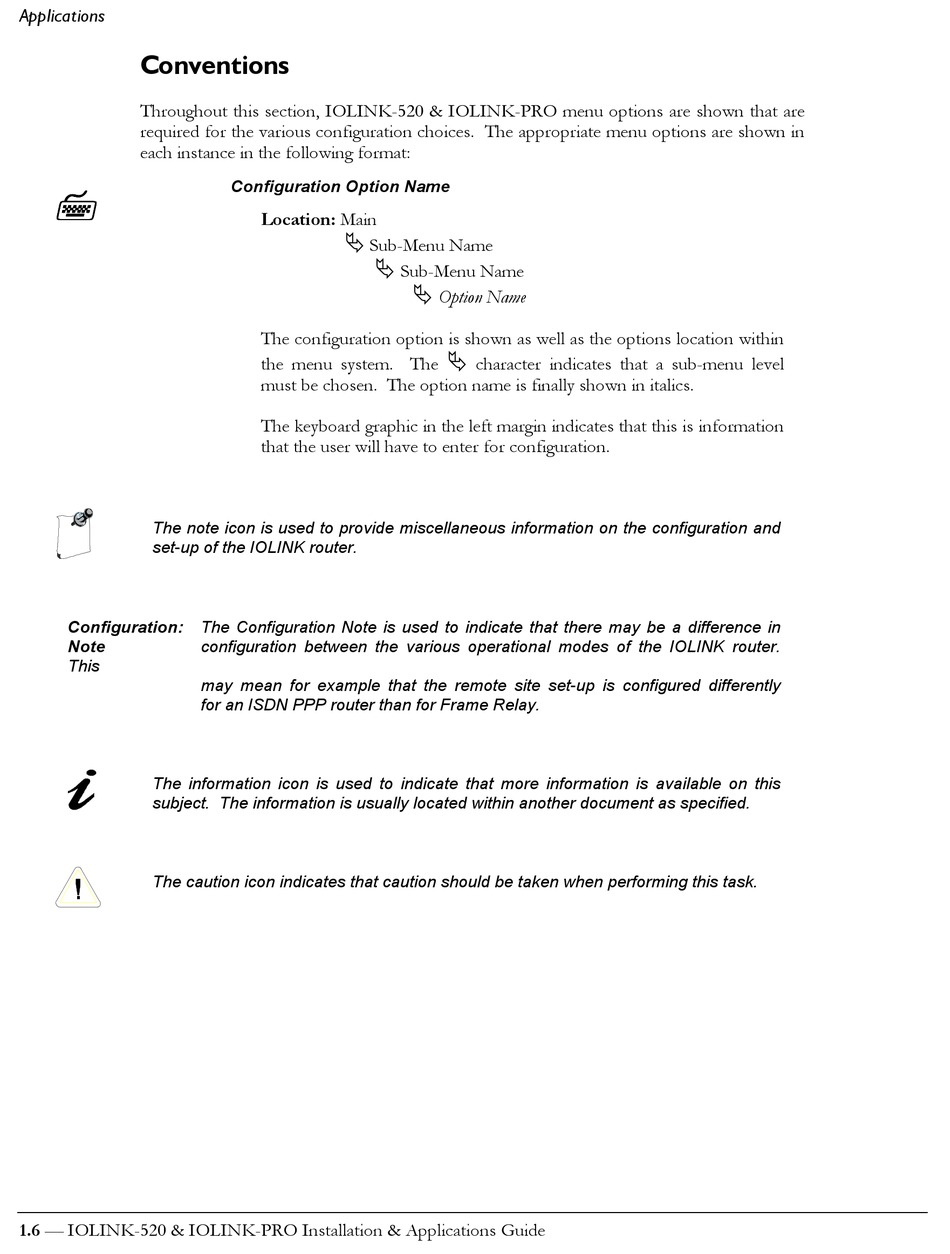

Conventions

Throughout this section, IOLINK-520 & IOLINK-PRO menu options are shown that are
required for the various configuration choices. The appropriate menu options are shown in
each instance in the following format:
" " " "
The note icon is used to provide miscellaneous information on the configuration and
set-up of the IOLINK router.
Configuration: The Configuration Note is used to indicate that there may be a difference in
Note
This
The information icon is used to indicate that more information is available on this
subject. The information is usually located within another document as specified.
The caution icon indicates that caution should be taken when performing this task.
1.6 — IOLINK-520 & IOLINK-PRO Installation & Applications Guide
Configuration Option Name
Location: Main
!
Sub-Menu Name
!
The configuration option is shown as well as the options location within
the menu system. The
must be chosen. The option name is finally shown in italics.
The keyboard graphic in the left margin indicates that this is information
that the user will have to enter for configuration.
configuration between the various operational modes of the IOLINK router.
may mean for example that the remote site set-up is configured differently
for an ISDN PPP router than for Frame Relay.
Sub-Menu Name
!
Option Name
!
character indicates that a sub-menu level
