This guide covers basic installation and configuration, and its
intention is for first-time setup or product evaluation.
You can find complete details in the following guides at
www.perle.com/downloads.
IRG5541+ FN Router Hardware Installation Guide
•
IRG5000 Series Routers User's Guide
•
IRG5000 Series Routers Command Line Reference
•
Guide.
What's in the box?

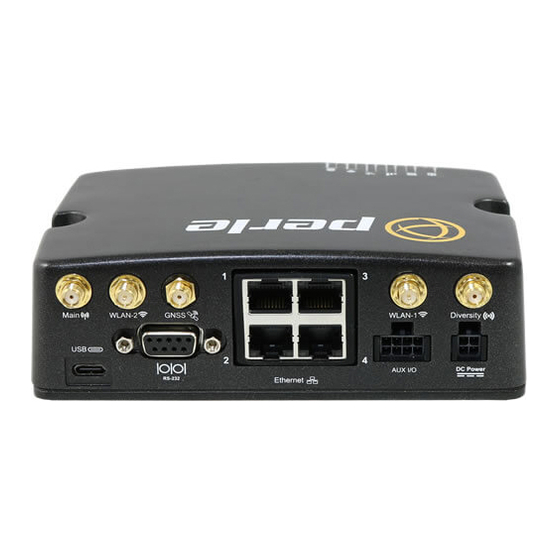

IRG5541+ FN Router
•
IRG5541+ Router Quick Start Guide (this guide)
•
2 LTE SMA antenna pack (#08000140)
•
2 Wifi antenna (#08000140)
•
GPIO Cable with 4 pin plug (#2500468)
•
GPIO Cable with 8 pin plug (#2500476)
•
12VDC/2A 4 pin (NA#08000150, EU #08000160, UK
•
#08000170, AUS#08000180)
Optional – GNSS PAV RP Antenna SMA/CA
•
(#08000130) passive or active antenna (08000130)
Optional – DIN Rail mounting kit (orderable from Perle)
•
Note: These components may be included with your product.
Components may vary depending on each model. See the
Perle website for updates
IRG5541+ FN Router Quick Start Guide 5500478-10 (Rev A)
Version #A05.03.2021
IRG5541+ FN Router
Quick Start Guide
