Page 2 This document contains proprietary information that is protected by copyright. All rights reserved. No part of this document may be photocopied, reproduced, or translated into another language without express prior written consent of Raritan, Inc. © Copyright 2008 Raritan, Inc., CommandCenter®, Dominion®, Paragon® and the Raritan company logo are trademarks or registered trademarks of Raritan, Inc. All rights reserved. Java® is a registered trademark of Sun Microsystems, Inc. Internet Explorer® is a registered trademark of Microsoft Corporation. Netscape® and Netscape Navigator® are registered trademarks of Netscape Communication Corporation. All other trademarks or registered trademarks are the property of their respective holders. FCC Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential environment may cause harmful interference. VCCI Information (Japan) Raritan is not responsible for damage to this product resulting from accident, disaster, misuse, abuse, non‐Raritan modification of the product, or other events outside of Raritanʹs reasonable control or not arising under normal operating conditions. 1F61 I.T.E. LI STED ...
Page 3 Power Safety Guidelines To avoid potentially fatal shock hazard and possible damage to Raritan equipment: • Do not use a 2‐wire power cord in any product configuration. • Test AC outlets at your computer and monitor for proper polarity and grounding. • Use only with grounded outlets at both the computer and monitor. When using a backup UPS, power the computer, monitor and appliance off the supply. Rack Mount Safety Guidelines In Raritan products which require Rack Mounting, please follow these precautions: • Operation temperature in a closed rack environment may be greater than room temperature. Do not exceed the rated maximum ambient temperature of the appliances. • Ensure sufficient airflow through the rack environment. • Mount equipment in the rack carefully to avoid uneven mechanical loading. • Connect equipment to the supply circuit carefully to avoid overloading circuits. • Ground all equipment properly, especially supply connections, such as power strips (other than direct connections), to the branch circuit. ...
Page 4: Table Of Contents
Contents What's New in the Paragon II User Guide How-To: Paragon Essentials Case 1. Setting the Network Configuration ................... x Case 2. Multiple Write Access to the Same Server................xi Case 3. Controlling a Deviceʹs Power ....................xi Case 4. Local Video Redirection (Forced Video).................xii Case 5. Using Multiple Video Ports .....................xiii Case 6. Restoring Settings to Factory Defaults ...................xiv Case 7. Using the Integrated Card Reader ...................xv Case 8. Creating Multiple Paths to the Same Server(s) ..............xvi Case 9. Upgrading the Firmware of Paragon Switches..............xviii Case 10. Upgrading the Firmware of User Stations................xix Chapter 1 Introduction Paragon II Overview ..........................1 Product Photos............................6 Product Features............................8 Package Contents ............................
Page 5 Contents Installing the Paragon P2‐UMT1664S Stacking Unit............... 35 Important Note about Powering Off the Stacking Unit............36 Installing a HubPac ..........................37 Installing a HubPac........................37 Chapter 3 Operation - User Functions Login ................................. 42 Video Gain and Skew Compensation....................44 Video Gain Adjustment and Skew Compensation in P2‐EUST..........45 Video Gain Adjustment in P2‐UST.................... 46 Selecting a Server............................. 47 Manually Selecting the Access Path ..................52 Path Overlapping Constraint ..................... 54 Switching between Previous and Next Channels ................58 Definition of the Previous and Next Channels ................ 59 Performing the Up/Down Channel Function................59 User Profile Customization........................
Page 6 Network Settings ........................... 108 Autoscan and Autoskip........................110 Power Management ..........................110 Configuring and Naming the Power Strip ................111 Associating a Device with a Power Outlet ................111 Controlling Power to an Outlet....................113 Paragon II Network Port ........................115 Chapter 5 Paragon II and P2ZCIMs/Z-CIMs Introduction............................116 P2ZCIMs............................117 Z‐CIMs (UKVMSPD and UKVMSC)..................117 Paragon II and P2ZCIMs ........................118 Connecting P2ZCIMs as Tiers ....................118 P2ZCIM LED Status........................123 Paragon II and Z‐CIMs ......................... 123 Connecting Z‐CIMs as Tiers .....................
Page 7 Tiering Matrix ............................180 Compatibility Matrix ..........................182 Double Diamond Configuration ......................184 Appendix D Paragon II Rack Mount Forward Mount............................185 Rear Mount............................. 186 Appendix E Connecting Serial Devices to Paragon II System Introduction to Serial CIMs........................188 Installing a Serial CIM .......................... 189 Installing P2CIM‐SER or P2CIM‐SER‐EU................189 Installing AUATC ........................189 Operating a Serial CIM ......................... 191 P2CIM‐SER or P2CIM‐SER‐EU ....................
Page 8 Switching between 101 and 102 keys (P2CIM‐APS2)............205 Kensington Mouse Type Settings......................206 Macintosh Key Mapping ........................208 Appendix G Recommendation for Better Video Quality Deployment Recommendations ......................209 Supported Resolutions on P2‐EUST and P2‐EUST/C............... 210 Appendix H Other Components Working with Paragon II Paragon Manager Overview ........................ 211 Installing Paragon Manager...................... 211 PCCI Integration............................ 212 Appendix I Troubleshooting Symptoms and Probable Causes ......................213 Powering‐On Sequence of Multi‐Tier Configuration ...............
Page 9 What's New in the Paragon II User Guide The following sections have changed or information has been added to the Paragon II User Guide based on enhancements and changes to the equipment and/or user documentation. • Paragon II Overview (on page 1) • Product Features (on page 8) • Basic Installation (on page 12) • Installing a Paragon System with a Single Matrix Switch (on page 24) • Installing a HubPac (on page 37) • Messages on the ACTIVATOR User Station (on page 72) • Installing the P2CIM‐AUSB‐C Driver in Windows (on page 74) • P2‐HubPac Configuration and Multiple Video (on page 149) • P2‐HubPac Upgrade Operation (on page 163) • Specifications of Paragon II Components (on page 172) Please see the Release Notes for a more detailed explanation of the changes applied to this version of Paragon II. ...
Page 10: How-To: Paragon Essentials
How-To: Paragon Essentials This chapter includes 10 of the most common use cases to help familiarize users quickly with practical utilization of the Paragon system. Please note that this section provides common examples, which could vary according to your actual configuration and operations. Case 1. Setting the Network Configuration Purpose: To set the network configuration of the Paragon switch, such as an IP address, so it can be accessed or upgraded through the network. 1. Log into the system with the administrator user name and password. The password is case‐sensitive. default name: admin default password: raritan 2. Press F5 select Network Setting. 3. Configure the Current IP field. For example, if you want to assign 90.180.52.157 as the IP address, you do this: a. Highlight the first number in the IP field. b. Press Enter to turn the highlight color to green. Type 090 and press Enter. (Note that Paragon does not support the use of the keypad.) d. Repeat similar steps to modify remaining numbers in this field. 4. Configure remaining fields respectively, including Net Mask, Gateway IP and Port No. 5. (Optional) By default, Encryption is set to “Off.” To change this setting: ...
Page 11: Case 2. Multiple Write Access To The Same Server
How-To: Paragon Essentials Case 2. Multiple Write Access to the Same Server Purpose: To enable various users to view the same server simultaneously and to grant them equal opportunity to compete for the control/operation of the server when the keyboard/mouse activity in the server has become inactive for a preset period of time (1 second by default unless it is customized). Only one person is allowed to control/operate the server at one time. 1. Log into the system with the administrator user name and password. The password is case‐sensitive. default name: admin default password: raritan 2. Press F5 select System Configuration. 3. Press the arrow keys ( , , , ) to highlight the Operation Mode field. 4. Press Enter to turn the highlight color to green. 5. Press the arrow keys ( , , , ) to select the option ʺPC Shareʺ and press Enter. ...
Page 12: Case 4. Local Video Redirection (Forced Video)
Case 4. Local Video Redirection (Forced Video) a. Press F5 select Channel Configuration. b. Highlight the channel of the power strip. For example, highlight the channel No. 25 if the power strip is connected to that channel. Press G to enter the Outlet Configuration screen of the power strip. d. Change the type of outlet No. 1: press Enter press the arrow key to select “CPU” press Enter. Associate the outlet No. 1 with the router: press the right arrow key to move the highlight press Enter highlight the router name “Router‐Win” press Enter. See Associating a Device with a Power Outlet (on page 111) for details. Press S to save the power association. 3. Now you can control the power supply to “Router‐Win” by doing this: a. Press F2 to return to the Selection Menu screen. b. Highlight the channel associated with the power strip. For example, highlight the channel No. 33 if the router “Router‐Win” is connected to that channel. Press F3 to view the associated power outlet screen. d. Highlight one or more power outlets, and choose the action you want to carry out: ...
Page 13: Case 5. Using Multiple Video Ports
How-To: Paragon Essentials default name: admin default password: raritan 2. Press arrow keys ( , ) to highlight the channel of the server whose data you want to direct. 3. Press Tab and the message ʺForce switch to user portʺ appears on the message bar. 4. Type the port number of the desired user station. For example, if you want to direct the data to the user station connected to the user port No. 3, type 3 and press Enter. See Video Redirection (Forced Video) (on page 91) for details. Case 5. Using Multiple Video Ports Purpose: To have the access to a specific video port automatically trigger the video outputs of the other video ports on the same server (Paragon is designed to output a maximum of four video ports of a server). 1. Connect the four video ports of the server respectively to four channels of the same Paragon switch via four CIMs. Three of the CIMs must be P2CIM‐AUSB and one could be either P2CIM‐AUSB or P2CIM‐APS2. For example, you may connect them to channel port No. 1, 2, 3 and 26. See Connecting CIMs to a Multi‐Channel Video Server (on page 70) for details. 2. The Paragon administrator sets up the channel association group using Paragon Manager. Do this: a. Launch Paragon Manager. ...
Page 14: Case 6. Restoring Settings To Factory Defaults
6. When user02 disconnects the channel number 3 or even logs out of the system, the three subsequent user stations are also logged off. See Concurrent Multiple Video Outputs (on page 69) for details. Case 6. Restoring Settings to Factory Defaults Purpose: To reset the Paragon switch to its factory default settings when you want to clear customized settings, such as the device name, system settings, and so on. 1. Log into the system with the administrator user name and password. The password is case‐sensitive. default name: admin default password: raritan 2. Press F5 select System Reset Settings. 3. Highlight the field(s) that you want to reset, and change the setting to Yes by doing this: press Enter press any arrow key press Enter. The affected scope of different fields are described below: Field Settings returning to factory defaults Device Name The Device ID field in the System Configuration submenu Network All settings in the Network Setting submenu ...
Page 15: Case 7. Using The Integrated Card Reader
How-To: Paragon Essentials Field Settings returning to factory defaults User Profiles All settings of the following submenus or settings: User Configuration User Station Profile User Profile settings that are displayed when pressing F4 System All settings in the System Configuration submenu Configuration except for the Device ID field Channel All settings or records of the active and inactive Configuration channels in the Channel Configuration submenu are cleared, but the data of active channels is rebuilt automatically after the reset 4. Now reset the selected items. Press O (alphabetical character) type yes press Enter. 5. The system will log out all of logged‐in users and return the selected settings to factory defaults. See System Reset (on page 107) for details. Case 7. Using the Integrated Card Reader Purpose: To pass the login authentication configured in specific servers ...
Page 16: Case 8. Creating Multiple Paths To The Same Server(S)
Case 8. Creating Multiple Paths to the Same Server(s) 6. When you complete your work, press the hot key (default: Scroll Lock) twice quickly to trigger the On‐Screen User Interface (OSUI). See Using the OSUI for Initial Configuration (on page 22) for details. 7. Press Shift +F9 to disconnect the server, and then remove the card. See Using the Card Reader (on page 81) for details. The cardʹs authentication data is not stored in the Paragon system so you must repeat Steps 3 to 5 if you want to access the same server again. Case 8. Creating Multiple Paths to the Same Server(s) Purpose: To ensure that there is redundant access to specific servers. In this example, we will create four available paths for access to specific servers using the structure of multiple Base Units. Note: A Base Unit is a “first‐tier” Paragon switch. 1. Prepare six Paragon switches, such as P2‐UMT1664M and/or P2‐UMT832M. 2. Choose three of them as Base Units, two as the 2 tier, and one as the tier. If these switches do not share the same firmware version, make sure the versions of lower tiers are later than those of upper tiers. For example, Base Unit is with firmware version 4.2 and 2 Tier ...
Page 17 How-To: Paragon Essentials 2(A) ~ 2(B) Second‐tier Paragon switches 3(A) Third‐tier Paragon switch See Tiered Configurations (on page 136) for details. 4. Connect servers to the “3rd Tier” Paragon switch with the Cat 5 UTP cables. The connection configuration looks like this: S(1) ~ S(X) Servers 1(A) ~ 1(C) Base Units 2(A) ~ 2(B) Second‐tier Paragon switches 3(A) Third‐tier Paragon switch 5. Connect user stations to Base Units 1(A), 1(B) and 1(C) with the Cat 5 UTP cables. 6. Connect the keyboard, mouse and monitor to each user station. See Basic Installation (on page 12) section for details. xvii...
Page 18: Case 9. Upgrading The Firmware Of Paragon Switches
Case 9. Upgrading the Firmware of Paragon Switches 7. Now four different paths (blue solid lines as illustrated below) are available for users to access any servers connected to the “3 Tier.” See Configurations (on page 135) for more details. Case 9. Upgrading the Firmware of Paragon Switches Purpose: To upgrade Paragon II switches and benefit from recent enhancements to the Paragon product line. (Please note the description herein refers to regular firmware upgrade and does not apply to “special” firmware upgrade which involves the boot loader or failsafe feature.) 1. Verify that the Main Switching Unit (Main Unit) is connected to the network and relevant network settings, such as the IP address, are configured properly. See Case 1. Setting the Network Configuration (on page x) for details. 2. (Optional) If there has been any Stacking Unit connected to the Main Unit, keep them attached and powered on. For example, you may upgrade one P2‐UMT832M (Main Unit) and three P2‐UMT832S (Stacking Units) which are connected to it altogether. Also verify the following Stacking‐related settings: The “Stacking Support” setting in the Main Unit is appropriate. The value of the “Set Stack ID” setting in every connected Stacking Unit is unique. xviii...
Page 19: Case 10. Upgrading The Firmware Of User Stations
How-To: Paragon Essentials See General Update Procedure (on page 153) for details. 3. Download the firmware from the Firmware Upgrades webpage (http://www.raritan.com/support/firmwareupgrades) on the Raritan website. 4. Unzip the downloaded file. Among the unzipped files, there are a file named ParagonUpdate_xxx.exe and a firmware file named P2‐xxx.hex (xxx represents the version). For example, the firmware file for version 4.2 is named P2‐3E5.hex. 5. Double click “ParagonUpdate_xxx.exe” to execute the program. 6. Enter the information of the Main Unit in the Paragon Update utility. For example: In the Name column, type Paragon832M In the IP address/Serial column, type 90.180.52.157 In the Port column, type 3000 If you have assigned the Encryption keys in the Paragon system, remember to type the same encryption data in the Encryption Key column See Paragon Manager User Guide on the manual CD for details. 7. Ensure the checkbox before the Main Unit is selected ( ). 8. Click Load Hex File to select the firmware file “P2‐xxx.hex”. For example, choose the file “P2‐3E5.hex”to upgrade to firmware version 4.2. 9. Click Send To Paragon Yes. Then the utility starts to upgrade the Main Unit and every connected Stacking Unit (if any). 10. Once all of the upgrade is completed, a message appears. Case 10. Upgrading the Firmware of User Stations Purpose: To upgrade the user stations and benefit from recent ...
Page 20 Case 10. Upgrading the Firmware of User Stations 3. Unzip the downloaded file. There are a file named ParagonUpdate_xxx.exe (xxx represents the version) and a firmware file for the user station. If using the P2‐EUST, the firmware file is named EUST‐xxx.hex. If using the P2‐UST, the firmware file is named V5‐xxx.hex (xxx represents the version). 4. Double click “ParagonUpdate_xxx.exe” to execute the program. 5. Enter the information about the user station in the Paragon Update utility. For example: In the Name column, type P2-EUST-1 In the IP address/Serial column, select <Default Serial> In the Port column, type 2. This represents the serial port—COM2 6. Ensure the checkbox before the user station is selected ( ). 7. Click Load Hex File to select the firmware file. 8. To start the upgrade, click Send To Paragon Yes. 9. Once the upgrade is completed, a message appears. See General Update Procedure (on page 153) and Paragon Manager User Guide on the manual CD for details. ...
Page 21: Chapter 1 Introduction
Chapter 1 Introduction Thank you for purchasing Raritanʹs Paragon II. The Paragon family is about breaking away from the traditional, expensive model of server management—one server, one dedicated monitor, one dedicated keyboard. Paragon enables one or more workstations to access multiple servers—even servers of different platforms. No matter how large or small your setup, no matter how simple or how complex, Raritan is confident that there is a Paragon system just right for you. In This Chapter Paragon II Overview ..................1 Product Photos ....................6 Product Features ....................8 Package Contents.....................11 Paragon II Overview The Paragon II is designed to perform heavy‐duty multiple‐user‐to‐many‐server keyboard/video/mouse (KVM) matrix switching without burdening you with big, confusing hydra‐headed cables. Instead, the Paragon II uses standard Category 5 (Cat 5) unshielded twisted‐pair (UTP) cabling, like the type that is already installed at many sites. It can connect users with servers across as much as 1000 feet (304 m) of such cabling. A Paragon II system consists of several components: • Main Switching Units serve as Base Units and matrix switches, securely connecting users to servers. Note: For documentation purpose, Main Switching Units are hereafter called Main Units in this manual. ...
Page 22 Paragon II Overview • Stacking Units connect to Main Units and enable you to expand your system in a space‐saving manner without sacrificing channels. • Computer‐Interface Modules (CIMs) are connected to each server. • User Stations connect your keyboard, monitor, and mouse to the Main Unit and provide an intuitive On‐Screen User Interface (OSUI) for accessing attached servers. Different models of user stations are explained below: Standard User Station (P2‐UST) provides basic user station functions as described above. Enhanced User Station (P2‐EUST) provides the P2‐UST features, plus superior video quality with automatic skew compensation. Enhanced User Station with an integrated card reader (P2‐EUST/C) functions similar to a P2‐EUST, and enables card authentication. IP‐Enabled User Stations, including P2‐USTIP1 and P2‐USTIP2, one‐ and two‐worker user stations, have integrated IP access and provide KVM over IP capability for anytime, anywhere access and control of servers. Key features include a slim design and GUI for point‐and‐click remote access. The P2‐USTIP series supports IP access, enabling one or two remote users to access Paragon II‐connected servers from anywhere via a Web browser. P2‐USTIP2 also supports 128‐bit SSL encryption and local authentication through Paragon II, or centralized authentication when used with Raritanʹs CommandCenter Secure Gateway. Main Units There are a number of Main Units that support a wide range of configurations: • P2‐UMT242 supports 2 users and 42 servers • P2‐UMT442 supports 4 users and 42 servers • P2‐UMT832M supports 8 users and 32 servers ...
Page 23 Chapter 1: Introduction Works with P2‐HubPac in PC, MAC, and Sun USB configurations. • ZCIM‐PS2 supports servers with IBM PS/2 type keyboard and mouse ports, and has an extra RJ45 port to support a “local server” installed between a user station and a Base Unit, as well as chaining of Z‐CIMs for clustered access. • P2CIM‐ASUN: Supports servers with Sun type keyboard and mouse ports. It comes with automatic skew compensation (when used with P2‐EUST or P2‐EUST/C). Works with P2‐HubPac in PC, MAC, and Sun USB configurations. • P2CIM‐AUSB: Supports servers with USB keyboard and mouse ports. It comes with automatic skew compensation (when used with P2‐EUST or P2‐EUST/C). Works with P2‐HubPac in PC, MAC, and Sun USB configurations. • P2CIM‐AUSB‐C provides all of the functions of P2CIM‐AUSB, and enables smart card access when used with P2‐EUST/C. • P2CIM‐SER, P2CIM‐SER‐EU and AUATC support servers or ASCII serial devices connected to the Paragon II system through their RS‐232 serial ports. • P2CIM‐APS2DUAL supports servers with IBM PS/2 keyboard and mouse. This CIM doubles the number of users that have access to a particular server and provides automatic skew compensation (when used with P2‐EUST or P2 EUST/C). • P2CIM‐AUSBDUAL supports servers with USB or Sun USB keyboard and mouse. This CIM doubles the number of users that have access to a particular server and provides automatic skew compensation (when used with P2‐EUST or P2 EUST/C). ...
Page 24 Paragon II Overview User Stations One universal user station supports PS/2, Sun, or USB keyboards and mice. If you want to connect one user station to one server across a long stretch of Cat 5 or higher cable, you can run such a cable between a “direct mode” user station and a P2CIM‐APS2. Please see User Station Direct Mode (on page 178) for additional information. Note: We recommend using a Sun keyboard if there are any Sun servers in your system; if you must use a PS/2 keyboard to control Sun servers, please see Extra Keyboard/Mouse Information and Settings (on page 200) for additional information. Raritanʹs enhanced user station, P2‐EUST, is a user station that functions just like Raritanʹs P2‐UST user station. However, the P2‐EUST provides enhanced control over video quality by either automatically adjusting the skew delay of each color, or allowing the user to manually adjust the video gain and skew delay on the screen, and store these preferences in the Paragon switchʹs database. Another enhanced user station with an integrated card reader, P2‐EUST/C, functions like P2‐EUST. However, it supports USB keyboards and mice only, and provides the card reader function for smart card authentication. ...
Page 25 Chapter 1: Introduction 1 128 servers Single base plus stacking unit 2 A: Paragon II Stacking cable(s) B: Standard Cat 5 UTP cable C: Computer Interface Module (CIM) 3 IP‐enabled user station 4 Remote user 5 15 user stations ...
Page 26: Product Photos

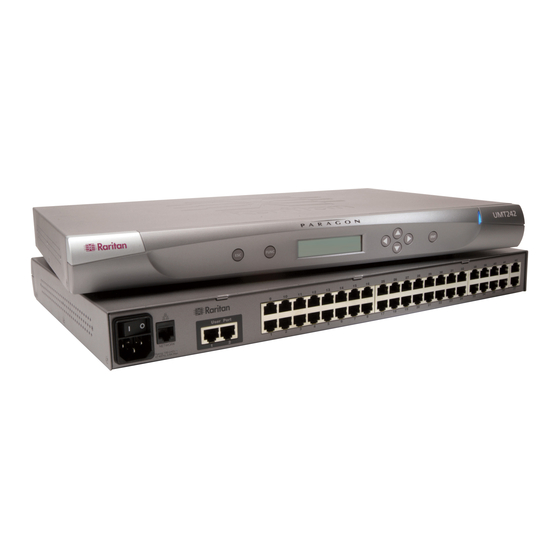

Product Photos Product Photos Paragon II Main Units: P2-UMT242, P2-UMT442, P2-UMT832M and P2-UMT1664M Paragon II Main Unit, User Station and CIM 1 P2‐UMT832M 2 P2‐EUST 3 P2CIM‐APS2 ...
Page 27 Chapter 1: Introduction P2-EUST/C (Front and Rear Sides) ...
Page 28: Product Features
Product Features Product Features • 2U design supports 16 users, 64 servers (model: P2‐UMT1664M) 1U design supports 8 users, 32 servers (model: P2‐UMT832M) 1U design supports 4 users, 42 servers (model: P2‐UMT442) 1U design supports 2 users, 42 servers (model: P2‐UMT242) • Expands the number of users with Raritanʹs P2CIM‐APS2DUAL, P2CIM‐AUSBDUAL, or P2‐HubPac • Locates users and servers up to 1000 feet (304 m) apart • Supports high‐resolution video—up to 1600 x 1200 • Supports up to 512 customized user profiles (with optional Memory Card) • Adds remote access over IP or modem with Raritanʹs IP‐Reach and UST‐IP models • Expands to 10,000 servers via multi‐dimensional expansion (with optional Memory Card) • Stacking switches provide 100% non‐blocked expansion with a single cable • Enclosed 19” rack mounts with included brackets • Simple plug‐and‐play auto‐configure installation • Hot‐swappable components with no impact on server operation • Platform‐specific CIMs for PS/2, Sun, USB, Sun USB, ASCII/serial devices • Powerful, intuitive onscreen user interface for simple operation •...
Page 29 Chapter 1: Introduction • Network admin port • Set power control permissions on a per‐outlet basis • Supports the use of Pinnacle FastAction keyboard (when used with P2CIM‐APS2 or P2CIM‐APS2DUAL) • Supports 10‐BaseT, half duplex network speed (not configurable) • OSUI (On‐Screen User Interface) support for IBM BladeCenter® servers. The following BladeCenter systems are supported: BladeCenter E (also referred to as model 8677) With MM model 48P7055 With AMM model 25R5778 BladeCenter H (also referred to as model 8852) With AMM model 25R5778 Note: IBM has updated the BladeCenter frequently since its original release. For best results, please use P2CIM‐AUSB‐B firmware level 0A6 or later. • Supports the use of a 121‐key Cortron rugged keyboard at the local site when used with the following Paragon II user station: P2‐EUST or P2‐EUST/C with firmware version 3E46 or later P2‐USTIP with firmware 4.5.0.5.12 or later (local PS/2 port only) Both PS/2 (part number 536‐0062) and USB keyboards (part number 524‐0079) are supported. Those with built‐in Sun keys are also supported, and the Sun power key may be used to power off the server, but not power it on. • Supports the use of a Kensington Expert Mouse® and Turbo Mouse trackball (Model #: 64210) at the local site when used with the following Paragon II components: User station: P2‐UST, P2‐EUST or P2‐EUST/C CIM: P2CIM‐AUSB or P2CIM‐AUSB‐C with the latest CIM firmware • Supports Multiple Video, also known as “Port‐Following Switch.” ...
Page 30 Product Features Remote control by the administrator and authorized users through Paragon Manager • Supports authentication with an appropriate smart card when using the following Paragon II components: P2‐EUST/C P2CIM‐AUSB‐C Special Notes: P2‐EUST/C has been tested to support Windows and Linux operating systems. Support for Mac and Sun servers is planned for an upcoming release. Releases 4.2 and 4.3 are not compatible with the Paragon II System Controller (P2SC). They are considered “standalone” releases and are not supported for installation in a Raritan PCCI environment. As of release 4.3.1, Paragon II returned to compatibility with P2SC. Existing Paragon II System Controller customers may upgrade their Paragon II components to 4.3.1 or higher to benefit from recently added features and maintenance fixes. Please see the Paragon II 4.3.1 release notes for minimum firmware levels. For information about the supported features in PCCI, download the document titled “Supported Paragon II Features in PCCI” from Raritan’s Product Documentation webpage (http://www.raritan.com/support/productdocumentation/paragon‐II/). ...
Page 31: Package Contents
Chapter 1: Introduction Package Contents Each Paragon Main Unit (P2‐UMT242, P2‐UMT442, P2‐UMT832M, or P2‐UMT1664M) ships with: • One Main Unit • Two 20‐ft. (6.1‐m) Cat 5 test cables • One Pair of Rackmount brackets and associated screws • One 6‐ft. (1.8‐m) AC power cord • RUMT‐1U‐LM304 Rackmount kit • Cat 5 admin cable • Raritanʹs User Manuals & Quick Setup Guides CD • Quick Setup and Installation Guide The Paragon Stacking Unit ships with: • One Stacking Switch • One RUMT‐1U‐LM304 Rackmount kit • One 6” Stacking Cable (for use with P2‐UMT832M) or two 6” Stacking Cables (for use with P2‐UMT1664M) • One AC Power Cord The Paragon user station (P2‐UST, P2‐EUST or P2‐EUST/C) ships with: • One user‐station Module • One 6‐ft. (1.8‐m) AC power cord ...
Page 32: Chapter 2 Installation
Chapter 2 Installation The Paragon and all devices you want to attach to it must be unplugged and powered OFF prior to installation. In This Chapter Basic Installation ....................12 Paragon II Front Panel Display and Controls ..........16 Initial Configuration..................21 Installing a Cascaded Paragon System ............29 Installing a HubPac ..................37 Basic Installation A Stacking Unit (optional) B Main Unit C User Station D Computer Interface Module (CIM) ...
Page 33 Chapter 2: Installation Note: The above images are for illustration only and may not be the exact representation of the Paragon components you purchased. The steps below correspond to the numbers in the above diagram. 1. Connect the power cord to the Main Unit. 2. (Optional) Connect a Stacking Unit if it is needed. a. Connect the power cord to the Stacking Unit. b. Connect one end of a stacking cable to the ʺExpansion Port Outʺ on the back of the Stacking Unit. Connect the other end of the cable to the ʺExpansion Portʺ on the Main Unit. Note: For P2‐UMT1664M and P2‐UMT1664S, you must use two stacking cables. For detailed instructions, see Installing the Paragon P2‐UMT1664S Stacking Unit (on page 35). Power on all switching units. d. On the front panel of the Main Unit: Press the FUNC button and then use the and buttons to select ʺStacking Support.ʺ Press the ENT button to confirm the selection. Use the and buttons to set the total number of Stacking Units desired (3 maximum for P2‐UMT832M or 1 maximum for P2‐UMT1664M). Press the ENT button to save the setting. On the front panel of the Stacking Unit: Press the FUNC button and then use the and buttons to select ʺSet Stack ID.ʺ Press the ENT button to confirm the selection. Use the and buttons to assign the Stacking Unit ID. (Each Stacking Unit for P2‐UMT832M MUST HAVE A UNIQUE ID ...
Page 34: Initial Administrative Verification
6. Connect a PS/2 or USB keyboard, mouse, and a VGA monitor to the user station. Power on the monitor. Warning! The user station does not support the use of a VGA to DVI converter. Do NOT connect the monitor to the user station through a DVI connector. 7. Connect one end of a Cat 5 UTP cable to Channel Port #1 on the back of the Main Unit (or Stacking Unit, if attached). Connect the other end of the cable to the RJ45 port on a Computer Interface Module (P2CIM). 8. Connect P2CIM to a serverʹs keyboard, video, and mouse ports. Tip: If the server provides a DVI‐D connector instead of a VGA port, Raritan recommends the use of a Smart View DVI (female) to VGA (female) converter (DV‐101) for connecting the P2CIM and the server. Note that currently only the Smart View DVI to VGA converter has been tested and is officially supported by Raritan for use with Paragon II. 9. Power on the server. 10. Repeat steps 4 through 9 for all other servers and user stations you want to attach. Note: Although users and servers can be located up to 1000 feet (304 m) apart, for optimal video quality, limit the cable length between the Main Unit and CIM to less than 100 feet (30.5 m). For good video quality, limit the cable length to less than 500 feet (152 m). Initial Administrative Verification To verify that an attached server can be viewed and controlled through the Paragon system: 1. When you first power on the Paragon Main Unit, an attached user station, and the user stationʹs attached monitor; the Login screen appears. Type admin in the User Name field and press Enter. Type raritan (all lowercase) in the Password field and press Enter. ...
Page 35 Chapter 2: Installation Note: The factory‐default user names for regular users are user01 through up to user15 (depending on the model of your Main Unit), and for the administrator is admin. User names are not case‐sensitive. By default, a password is required only for the admin user, and that password is raritan. Note that passwords are case‐sensitive. 2. The Selection Menu of On‐Screen User Interface (OSUI) appears. The channel ports of connected servers appear in green. At the start, there are no default names for any servers and the Name fields are blank, except for IBM BladeCenter chassis (if any), which has a default name shown as “IBM‐Blade.” 3. Press the and keys on the user station keyboard to move the highlight to one of the green server ports and press Enter. 4. Normal server access and operation indicates a successful connection. 5. Press the Scroll Lock key twice QUICKLY to activate the OSUI, and either press F9 to log out or choose another green channel (if any) to access. ...
Page 36: Paragon Ii Front Panel Display And Controls
Paragon II Front Panel Display and Controls Paragon II Front Panel Display and Controls The control buttons and LCD display on the Paragon switch provide system management and technical support functions. For most situations, there is no need to use the front panel beyond viewing status. Front Panel Components and Functions: 1. The ESC button is used for canceling displayed function and returning system to normal state. 2. The FUNC button is used to select various functions. 3. The LCD displays system status and indicates functions that can be selected by pressing front panel control buttons. 4. The , , , and buttons are used for selecting or setting various options, depending on the function being performed. 5. The ENT button is used for confirming and executing selected function. Start-Up Display When a Paragon switch is powered ON, it performs a start‐up test at the ...
Page 37: Power Up Option
Chapter 2: Installation • Line 2: User port status message: ʺA/N User (1, 2, 3 ...) ‐> Noneʺ User port status displays a scrolling status of all user ports, one user port per second. The Userʹs active channel, 1 through 128, is displayed after the user port number. A=Active User # 1‐8 —OR— N=Non‐Active User # 1‐8 Power Up Option If you hold down the FUNC button on the front panel of the Paragon switch during Power Up, the Paragon switch will clear its database and reset to factory defaults. Confirm functions by pressing the ENT button on the front panel. When ʺClear Database Hit Ent/ESC?ʺ appears on the LCD, press the ESC button if you want to exit the screen without clearing the database. To clear the database, press the ENT button; ʺClear All?ʺ appears on the LCD. If you press the ESC button once more, the channel configuration will be cleared and will be rebuilt later by the Paragon switch. This is called a Partial Reset. However, if you press the ENT button, both the channel configuration and the user profile and system settings will be cleared. Function Selection Screen Several administrative functions can be performed on the Function Menu on the Paragon switchʹs front panel LCD. Display Ver./SN Test User UST1 Test Chan. UKVM Test Stack Unit ...
Page 38: Selecting A Function
Paragon II Front Panel Display and Controls Stacking Support Set LCD Contrast Re‐Configure Set IP Address Reset Unit Selecting a Function Press the FUNC button on the front panel of the Paragon switch to enter the Function Menu mode and use the and buttons to scroll through the Function List. Press the ENT button on the front panel to select one displayed function and use the instructions below for each specified function. Press the ESC button on the front panel at any time to return to Normal Display. Display Ver./SN (Firmware Version and Serial Number): Displays current version of firmware, the firmware loader, the unitʹs serial number, and the field programmable gate array (FPGA). Test User UST1 (User Station): Used by an administrator to check if user stations (UST1s) are functioning ...
Page 39 Chapter 2: Installation Test Chan. UKVM (CIM UKVM): Used by an administrator to check if a CIM is functioning properly. Press the or button to change channel number. Display will read ʺOKʺ, ʺNoneʺ, or ʺFailed.ʺ Press ESC to return to normal display. If a ʺFailedʺ condition is detected, make sure the Cat 5 UTP cable is installed properly and secured, or try using another CIM to see if the CIM under test has become defective. Test Stack Unit: Press the or button to select the corresponding Stacking Unit ID for any connected units. If there are no Stacking Units connected, the LCD will display ʺNone.ʺ If there are Stacking Units connected, the LCD should read ʺOKʺ for each unit. Press ESC to return to normal display. Stacking Support: Press the or button to set the Stacking Unit ID number (0~3 for a P2‐UMT832M or 0~1 for a P2‐UMT1664M). The default is set to ʺ0ʺ (no Stacking Units connected). If you wish to add Stacking Units, this number must be equal to the number of Stacking Units connected. Press ENT to save the value or ESC to cancel and return to normal display. Set LCD Contrast: Modifies contrast level of front panel LCD Display. Press the or button to increase or decrease contrast, and press the ESC button to ...
Page 40 Paragon II Front Panel Display and Controls Note: LCD contrast can also be adjusted by holding the button and pressing the or button at any time. Re-Configure: Paragon II will automatically configure the system as computers or devices are added or removed. However, the system administrator can use this function to scan and re‐configure the system manually. When complete, it will return to normal display. Set IP Address: As an administrator, you may change Paragon IIʹs IP address directly from the front panel of the device. The Paragon IIʹs current IP address will be displayed, along with a cursor. Use the and keys to move the cursor over digit‐by‐digit, and use the or keys to change the value of that digit. Press the ENT button when the new IP address has been set. Press the ENT button again to save changes and reboot the unit when asked to ʺSave Changes?ʺ The unit will restart with the new network address. Note: Stacking units do not have their own databases and configuration settings, and likewise, do not have their own network addresses. You cannot configure one using the front panel controls on the units. Reset Unit (Paragon switch): Enables restart of Paragon switch as if the switchʹs power is physically ...
Page 41: Initial Configuration
Chapter 2: Installation When ʺClear Database Hit Ent/ESC?ʺ appears on the LCD, press the ESC button if you want to exit the screen without clearing the database. To clear the database, press the ENT button; ʺClear All?ʺ appears on the LCD. If you press the ESC button once more, the channel configuration will be cleared and will be rebuilt later by the Paragon switch. This is called a Partial Reset. However, if you press the ENT button, both the channel configuration and the user profile and system settings will be cleared. Note: Performing a reset or partial reset in a cascaded Paragon system must start from the third tier (if any) to the second tier, and finally move to the base unit (first tier). After resetting the device, a progress indicator appears on the message bar of the OSUI to indicate the current update percentage. During the database updating, users are unable to operate the OSUI functions. Initial Configuration This section includes full instructions for how to install single matrix switches, cascades of multiple matrix switches, or stacking switches. Follow the simplified procedure previously outlined in Basic Installation (on page 12) to install a simple Paragon system with a single switch. See User Station Direct Mode (on page 178), to install a “direct mode” User Station‐to‐CIM system with no Paragon switches. See Paragon II and P2ZCIMs/Z‐CIMs (on page 116) to install a Z‐CIM and a local PC in your system. ...
Page 42: Using The Osui For Initial Configuration
Initial Configuration Using the OSUI for Initial Configuration You will use the Paragon II On‐Screen User Interface (OSUI) after you install the Paragon system, so here are some basics of OSUI to familiarize yourself before starting your installation. Once the user station and the attached equipment are in place and powered on, activate the OSUI by QUICKLY pressing the default hot key (Scroll Lock) twice on an attached keyboard. Each OSUI menu contains the following sections: a menu‐title line, a menu/screen body (for text and fields), a prompt/message bar, and a status line that consists of: • The current OSUI hotkey • Scan/Skip function status • NCS (Num Lock, Caps Lock, and Scroll Lock) status indicator • A communication‐speed indicator (“L” for low or “H” for high, which will depend on your Paragon components) showing the communication speed between the user station and Base Station. 1 Menu name 2 OSUI main screen (showing menu options and fields) 3 Message bar ...
Page 43 Chapter 2: Installation 4 Status line, displays: a. the current OSUI hot key activator (in the illustration, the Scroll Lock key) b. Scan/Skip function status (if yellow, the function is ON; if white, the function is OFF) (N) Num Lock, (C) Caps Lock, (S) Scroll Lock, followed by Paragon II Communication Speed Indicator: (L) Low or (H) High. The speed depends on your component versions. Use function keys F1, F2, F3, F4, F8, and F12 to toggle between first‐level menus. Pressing F1 while the OSUI is onscreen can activate the Help Menu, a list of available help options. While the OSUI is onscreen, the user‐station keyboardʹs Scroll Lock LED indicator blinks. Below is an abbreviated table of the function keys you will use when working with the OSUI: Action F1 View the Help Menu F2 Go to the Selection Menu for accessing channel ports F3 View the Power Control Menu for associated Channel F4 Go to the User Profile Menu for users to customize their settings F5 Administrator only: Go to the Administration Menu for the administrator to manage the system settings F6 Administrator only: Toggle the autoscan function on or off F7 Administrator only: Toggle the autoskip function on or off F8 ...
Page 44: Installing A Paragon System With A Single Matrix Switch
Initial Configuration Action F11 View the Unit Status Menu for connected Raritan Remote Power Control unit (available only from Power Control Menu) F12 Toggle the Selection Menuʹs sorting way: numerically by port number or alphabetically by name Esc Exit the current OSUI (On‐Screen User Interface) screen Installing a Paragon System with a Single Matrix Switch If installing a single Paragon switch, keep in mind the maximum numbers of user stations and servers you can connect: • 2 user stations and 42 servers to a P2‐UMT242 • 4 user stations and 42 servers to a P2‐UMT442 • 8 user stations and 32 servers to a P2‐UMT832M • 16 user stations and 64 servers to a P2‐UMT1664M Important: All Paragon components, servers, and monitors must be turned OFF and unplugged before installation. 1. Initialize the Paragon switch. a. Connect the switchʹs included power cord from the IEC 320 inlet on its rear panel to an appropriate AC outlet. b. Power on the switch. ...
Page 45 Chapter 2: Installation 3. Perform initial configuration of the user station. a. The Login screen should appear on the user station’s attached monitor. If the Scroll Lock LED on the user station’s attached keyboard is blinking, the Paragon is ready to accept function key commands, which allow users to login, select servers, or administer the system. If the monitor instead displays a “..No connection to Paragon..” message, the user station is not properly connected to the Paragon switch. Check for loose connections and make sure you are using good, intact Cat 5 cables. b. Type admin in the User Name field and press Enter. In the Password field, type the default password raritan (all lowercase) and press Enter. The OSUI’s Selection Menu appears, indicating that the user station is correctly installed. 4. Repeat steps 2 and 3 for each user station you want to connect to the Paragon switch. 5. Connect a CIM and the desired server. a. Connect the cable strands of an appropriate CIM to the appropriate ports on a server: ...
Page 46 Initial Configuration P2CIM‐APS2 (IBM PS/2 compatible servers) or P2CIM‐APS2‐B (IBM BladeCenter Management Module with PS/2 ports): Plug the HD15 strand into the server’s HD15 VGA video port. Plug the purple 6‐pin mini‐DIN keyboard strand into the server’s 6‐pin mini‐DIN keyboard port. Plug the light green 6‐pin mini‐DIN strand into the server’s 6‐pin mini‐DIN mouse port. P2CIM‐ASUN (Sun compatible servers): Plug the HD15 strand into the server’s HD15 VGA video port. Plug the 8‐pin mini‐DIN strand into the server’s 8‐pin mini‐DIN keyboard/mouse port. P2CIM‐AUSB, P2CIM‐AUSB‐C, or P2CIM‐AUSB‐B (IBM BladeCenter Management Module with USB ports): Plug the HD15 strand into the server’s HD15 VGA video port. Plug the USB Type A strand into one of the server’s USB Type A ports. P2CIM‐APS2DUAL (IBM PS/2 compatible servers): Connect keyboard, monitor, and mouse cables attached to the CIM to the appropriate 15‐pin female video port and 6‐pin mini‐DIN mouse and keyboard ports on the server. P2CIM‐SER, P2CIM‐SER‐EU and AUATC (serial servers, routers, and so on): Please see Connecting Serial Devices to Paragon II System (on page 188) for installation instructions. P2ZCIM and Z‐CIM (local single‐user IBM PS/2 compatible servers): Please see Paragon II and P2ZCIMs/Z‐CIMs (on page 116) for installation instructions. b. Plug in and power on the server. If the CIM is installed and operating properly, the CIM’s green LED will start blinking: once per second while the CIM is idle, more quickly while data is transmitted in either direction. Connect one end of a Cat 5 UTP cable to channel port #1 on the back of the Paragon switch. Connect the other end of the cable to the RJ45 port on the CIM. 6.
Page 47 Chapter 2: Installation a. The monitor attached to the user station will display the Selection Menu; with the server you just connected displayed in green. Use the and keys to move the highlight to that entry and press Enter. If you can access and operate the server normally, the CIM is connected successfully. Raritan recommends you give the server a meaningful system name at this time, as described in the next steps. Note: If your video image is fuzzy (especially if you are using an LCD flat‐panel monitor), you can adjust the video gain to focus the video image. If the OSUI is not displayed, activate it by pressing the Scroll Lock key twice QUICKLY, then use the + and – (plus and minus) keys on the numeric keypad to adjust the video image until it appears to be in focus. The P2‐EUST and P2 EUST/C provide automatic and manual skew compensation, which will also help improve video quality. Please see Video Gain Adjustment and Skew Compensation in P2‐EUST (on page 45) for additional information. b. Press F5 to activate the Administration Menu. Use the and keys to move the highlight to the Channel Configuration entry and press Enter. ...
Page 48 Initial Configuration 7. The Channel Configuration submenu appears. Use the and keys or Tab to move the yellow highlight to the Name field for the channel port number where you installed the server and press Enter. The highlight turns light blue. a. Edit the name (the highlight turns green when you start typing). Press Enter when finished, and press S to save the new name. b. Press F2 to return to the Selection Menu. Verify that the new name appears in the Selection Menu. 8. Repeat Steps 5 and 6 for each CIM and server you want to connect to the Paragon switch’s channel ports. ...
Page 49: Installing A Cascaded Paragon System
Chapter 2: Installation Installing a Cascaded Paragon System Paragon IIʹs channel port capacity can be expanded by installing a cascade of Paragon matrix switches (Main Units). In a ʺtwo‐tieredʺ cascaded system, one or more subsidiary Paragon switches are connected to the channel ports of a Base Unit (ʺfirst‐tierʺ Paragon switch). If you fully populate a second tier, you can add a third tier by connecting additional subsidiary Paragon switches to the channel ports of Paragon switches in the second tier. Three tiers is the maximum depth of a cascaded system; only CIMs may be attached to the channel ports of Paragon switches in the third tier. A Servers B Paragon switches C User stations with the monitor, keyboard, and mouse attached 1. Connect one end of a Cat 5 UTP cable to user port #1 on the back of the Base Unit. (Do not attach anything to the switchʹs channel ports and do not plug it in or turn it on yet.) 2. Connect the other end of the cable to the RJ45 port on the back of the user station. 3. Connect a keyboard, mouse, and monitor to the user station. (Do not plug in or turn on the user stations or monitors yet.) ...
Page 50 Installing a Cascaded Paragon System 4. For each subsidiary Paragon switch you want to attach directly to the Base Unit, connect Cat 5 UTP cables from consecutive channel ports on the Base Unit to the subsidiary Paragon switchʹs user ports. 5. If you are installing a third tier, connect Cat 5 UTP cables from consecutive channel ports on a second‐tier Paragon switch to the user ports on a third‐tier Paragon switch. Repeat for all other subsidiary switches in the third tier. 6. Attach CIMs and servers to the free channel ports on the third‐tier Paragon switches, on the second‐tier Paragon switches, and on your Base Unit. (Follow step 5 of Installing a Paragon System with a Single Matrix Switch (on page 24).) 7. Plug in and power on any THIRD‐TIER Paragon switches, then the SECOND‐TIER Paragon switches, and finally your Base Unit. (Follow step 1 of Installing a Paragon System with a Single Matrix Switch (on page 24).) 8. Plug in and power on your user stations and monitors. (Follow steps 2B, 2C, and 2E of Installing a Paragon System with a Single Matrix Switch (on page 24).) The Base Unit should automatically recognize the connected subsidiary Paragon switches and update its configuration. All monitors should display the Login screen. If any monitors instead display a ʺ..No connection to Paragon..ʺ message, the user station which they are attached to is not properly connected to the Base Unit. Check for loose connections and make sure you are using good, intact Cat 5 cables. (See Specifications (on page 172) for UTP‐cabling information.) Note: If your video image is fuzzy (especially if you are using an LCD flat‐panel monitor), you can adjust the video gain to focus the video image. If the OSUI is not displayed at a given monitor, activate it by pressing the Scroll Lock key twice QUICKLY, then use + and ‐ (plus and minus) keys on the numeric keypad to adjust the video image ...
Page 51 Chapter 2: Installation a. At the Login screen, type admin in the User Name field and press the Enter key. In the Password field, type the default password raritan (all lowercase) and press the Enter key. b. The monitor will display the Selection Menu, indicating that the user station is correctly installed. Press F5 to activate the Administration Menu. Use the and keys to move the highlight to the Channel Configuration entry and press Enter to select it. ...
Page 52 Installing a Cascaded Paragon System d. The Channel Configuration menu appears. Use the and keys and Page Up and Page Down keys to approach channel ports to which subsidiary Paragon switches are connected. The port default device names appear in the Name column and the device type in the Device column. (ʺP242ʺ for a 2 x 42 switch [P2‐UMT242], ʺP442ʺ for a 4 x 42 switch [P2‐UMT442], ʺP832ʺ for an 8 x 32 switch [P2‐UMT832M], or ʺP1664ʺ for a 16 x 64 switch [P2‐UMT1664M]. Continue using the and keys and Page Up and Page Down keys to move the yellow highlight to the Name field for the channel port number where a subsidiary Paragon switch is installed and press Enter. The highlight should turn light blue. ...
Page 53 Chapter 2: Installation Type the name you want to assign to the subsidiary Paragon switch on this channel port (the highlight should turn green when you start typing). Press Enter when finished and then press S to save the new name. All other paths (channel ports) by which that subsidiary Paragon switch is attached to the Paragon switch above it will be given the same name automatically. g. Press F2 to reopen the Selection Menu; make sure that the channel port(s) of the second‐tier Paragon switch are properly established. All paths to that Paragon switch should be displayed in purple. h. Press F5 to return to the Administration Menu. Select Channel Configuration again. Select a channel port that has been configured for the subsidiary Paragon switch you just set up. Press G to activate a dedicated Channel Configuration menu for the subsidiary Paragon switch. Edit the names of all servers attached to this subsidiary Paragon switch. Each highlight should turn green as you start typing. Press Enter when finished with each name. Press S to save all of the new names. Press F2 to access the dedicated Selection Menu for that subsidiary Paragon switch. Verify that new names appear in green in the Selection Menu. k. If you are configuring a second‐tier subsidiary Paragon switch, and there are any third‐tier Paragon switches attached to it, repeat steps C through J for a third‐tier path configuration. Press S to save the configuration. Press F2 to activate the Selection menu and verify that the third‐tier Paragon switch is properly configured: select a channel port for the second‐tier path and press Enter, then a channel port for the third‐tier path and press Enter, and then a channel port for a server attached to the third‐tier Paragon switch and press Enter. If you can properly access and operate the chosen server, the third‐tier Paragon switch is properly installed. Note: Repeat step K for all remaining third‐tier Paragon switches (if any) attached to this second‐tier Paragon switch. ...
Page 54: Rules Of Powering On A Cascaded System
Installing a Cascaded Paragon System Press S to save the configuration. Press F2 to activate the Selection menu and verify that the second‐tier Paragon switch is properly configured: Select a channel port for the second‐tier path and press Enter, then a channel port for a server attached to the second‐tier Paragon switch and press Enter. If you can properly access and operate the chosen server, the second‐tier Paragon switch is properly installed. m. Repeat steps C through L for all remaining (if any) second‐tier Paragon switches attached to the Base Unit. n. Edit the names of any servers directly attached to the Base Unit and verify the Base Unitʹs configuration as described in steps 6B through 6E of the section Installing a Paragon System with a Single Matrix Switch (on page 24). Important: If you rearrange a cascaded system or dismantle one and rebuild it differently later, you must recycle power to each switch in the new cascade. A soft reset allows each switch to retain all user and system profiles, and to auto‐detect the current status of its channel ports and user ports. Follow the installation steps in this section to install the new cascade, but when you power on each switch (which must be done in proper tier order, from upper tier to base tier), press FUNC on the unitʹs front panel until ʺClear Database Hit Ent/ESC?ʺ appears on the LCD panel. Press the ENT and the ESC buttons sequentially to execute a partial reset on the database. Please see the ʺReset Unitʺ section in Paragon II Front Panel Display and Controls (on page 16) for additional information. Rules of Powering On a Cascaded System When powering on existing stable configurations (that is, if you are NOT replacing or adding switches and NOT swapping the order of switches) ...
Page 55: Installing The Paragon P2-Umt832S Stacking Unit
Chapter 2: Installation 3. Finally power on the Paragon II base tier. 4. Perform a partial reset of the database on the impacted switches. For example, if you swap the switches connected to the base tier, perform the partial reset on the base tier. If you swap the switches connected to the second tier, perform the partial reset from the second tier to the base tier. Installing the Paragon P2-UMT832S Stacking Unit 1. Make sure all Paragon switches are powered OFF. 2. Connect a power cord to a Stacking Unit. 3. Connect one end of a stacking cable to ʺExpansion Port Outʺ on the back of the Stacking Unit. Connect the other end of the cable to ʺExpansion Portʺ on the Main Unit. 4. Power ON all Paragon switches. 5. On the front panel of the Main Unit: a. Press the FUNC button and use the and buttons to select ʺStacking Support.ʺ Press the ENT button to confirm the selection. b. Select the total number of Stacking Units (3 units maximum) and press the ENT button. 6. On the front panel of the Stacking Unit: a.
Page 56: Important Note About Powering Off The Stacking Unit
Installing a Cascaded Paragon System a. Connect one end of a stacking cable to ʺExpansion Port Out Aʺ on the back of the Stacking Unit. Connect the other end of the cable to the lower ʺExpansion Port Inʺ on the Main Unit. b. Connect one end of the other stacking cable to “Expansion Port Out B” on the back of the other Stacking Unit. Connect the other end of the cable to the upper “Expansion Port In” on the Main Unit. 4. Power ON all Paragon switches. 5. On the front panel of the Main Unit: a. Press the FUNC button and use the and buttons to select ʺStacking Support.ʺ Press the ENT button to confirm the selection. b. Set the total number of Stacking Units (1 unit maximum) and press the ENT button to save the setting. 6. On the front panel of the Stacking Unit: a. Press the FUNC button and use the and buttons to select ʺSet Stack ID.ʺ Press the ENT button to confirm the selection. b. Assign the Stacking Unit ID using the and buttons. 7. Press the ENT button to save the setting. 8.
Page 57: Installing A Hubpac
Chapter 2: Installation Installing a HubPac P2‐HubPac is available for use with Paragon II. HubPac units allow users of different Paragon switches to access the same server(s). Each five‐port cluster on a HubPac is capable of connecting a server to up to four Paragon switches. CIM models capable of connecting to a P2‐HubPac include: • P2CIM‐APS2 • P2CIM‐AUSB • P2CIM‐ASUN • UKVMC Installing a HubPac Please use the basic installation instructions below to create the HubPac configuration that gives users of up to 4 Paragon switches the capability to access the same server(s). Note: P2‐HubPac does not support the card reader functionality at this time. Therefore, make sure the servers that require the card reader authentication are not connected to the P2‐HubPac. ...
Page 58 Installing a HubPac 1 HubPac 2 Server 3 CIM 4 Cat 5 cable 5 Paragon switch (the model illustrated is P2‐UMT1664M) 6 User station 7 Monitor, keyboard and mouse connected to the user station 1. Power OFF each Paragon switch. Note: Prior to installation all Paragon switches and HubPac units must be powered OFF. Servers and user stations to be connected can be in a powered ON state. 2. Attach a server, via CIM, to the HubPac: Note: Up to 8 servers can be connected to one HubPac. Each 5‐port cluster on the HubPac represents one server connection, with four associated HubPac switch ports. Each HubPac switch port in a cluster can be attached to a separate Paragon switch, enabling users of these attached Paragon switches to access the same server. ...
Page 59 Chapter 2: Installation a. Connect a CIM to a server—see Specifications (on page 172) for specific instructions on connecting different CIM types to a server. b. Connect one end of a Cat 5 UTP cable to the RJ45 port on a CIM. Connect the other end of cable to the RJ45 1‐IN port on the back of HubPac. d. Power ON the server. Repeat the above steps to connect the remaining servers, connecting the Cat 5 UTP cable to the HubPac at the RJ45 2‐IN, 3‐IN, 4‐IN, 5‐IN, 6‐IN, 7‐IN, and 8‐IN port for each consecutive server (2 through 8) added. 3. Connect the HubPac to each Paragon switch by repeating all of the following steps for each 5‐port cluster on the HubPac: Note: There are 8 five‐port clusters on the HubPac. For each cluster the number in front of the RJ45 IN port represents the cluster number. For example, cluster 1’s first RJ45 port is 1 IN, cluster 2’s is 2 IN, and so on. In the instructions below, “X” represents the cluster number (1 through 8). a. Connect one end of a Cat 5 UTP cable to the RJ45 X‐1 port on the back of the HubPac. b. Connect the other end of the cable to channel port # N on the back of one of the desired Paragon switches. Connect one end of a Cat 5 UTP cable to the RJ45 X‐2 port on the back of the HubPac. d. Connect the other end of the cable to channel port # N on the back of the second desired Paragon switch. Connect one end of a Cat 5 UTP cable to the RJ45 X‐3 port on the back of the HubPac. Connect the other end of the cable to channel port # N on the back of the third desired Paragon switch. g.
Page 60 Installing a HubPac A HubPac can connect to 8 servers, and allows each server to be connected to 4 different Paragon switches at once. Follow the above steps for each additional HubPac to be added. Channel Configuration Paragon recognizes a HubPac as an extension of a CIM, rather than as a device. As a result, each server connected to the HubPac is configured as a directly connected server would be. 1. On the Selection Menu (by channel number) each green line indicates an active channel (CIM/server). Highlight the CIM/server to be selected by using the , , or Page Up, Page Down keys. Press Enter. 2. Normal server access indicates successful connection. If necessary, manually adjust the video skew by pressing the + or ‐ keys on the numeric keypad. 3. Enter a meaningful name for each server (channel). a. Press F5 for Administration Menu. b. Select Channel Configuration with or keys and press Enter. Press or to highlight (in yellow) the Name field for channel ID where CIM/server was just installed. Press Enter. The highlight turns light blue. d. Edit the name (turns green when typing begins). Press Enter when completed. Press S to save the new name. Press F2 to return to Selection Menu (by channel number). Verify that new name appears on the Selection Menu in green. ...
Page 61: Chapter 3 Operation - User Functions
Chapter 3 Operation - User Functions User functions for configuration and operation of your Paragon II system are processed through the On‐Screen User Interface (OSUI). To activate the OSUI at any time, press the hot key (default: Scroll Lock) twice in QUICK succession. In This Chapter Login........................42 Video Gain and Skew Compensation ............44 Selecting a Server .....................47 Switching between Previous and Next Channels ........58 User Profile Customization ................62 Help Menu......................66 Keyboard‐Controlled OSUI Functions............66 Information Menu....................68 Concurrent Multiple Video Outputs.............69 Authentication with a Smart Card ..............74 ...
Page 62: Login
Login Login Log in to Paragon II so you can access servers and other devices connected to the Paragon II system. The Login screen is automatically displayed on every user‐station monitor after the single Paragon switch or Base Unit is powered on. To activate the Login screen on a user‐station monitor at any other time, press the systemʹs hot key (factory default: Scroll Lock) twice in QUICK succession to activate the OSUI, and then press F9. Note: If a user‐station monitor displays the message “...No Connection to Paragon...” instead of the Login screen, either the user station is not connected properly to the Paragon switch, the switch is powered OFF, or the switch is malfunctioning. Make sure that the cabling between the user station and the switch is intact and is securely connected at both ends. Make sure that when you turn the Paragon switch off and back on, the LEDs run through the sequence described in step 1B of Installing a Paragon System with a Single Matrix Switch (on page 24). The Device ID field in the login screen will initially contain the single Paragon switch or Base Unitʹs default device name: “Paragon II” followed by “2x42” for a P2‐UMT242, “4x42” for a P2‐UMT442, “8x32” for a P2‐UMT832M, or “16x64” for a P2‐UMT1664M. (The administrator can assign a different name.) The User Port is the number of the user port on the Paragon switch—from 1 to 16 depending on the model—to which this user station is attached. Paragonʹs Login screen is designed to move from corner to corner of the monitor, acting as a screen saver. “Saver” mode is configurable in the System Configuration menu, under Login Sleep. Please see System Configuration (on page 86) for additional information. ...
Page 63 To log in at the Login screen and start operating the system 1. Type the user name assigned to you by the system administrator. (If user names have not been assigned, use default names: user01 through user15, depending on the model, for regular users and admin for the administrator. User names are not case‐sensitive.) When finished, press Enter. 2. Paragon II will prompt you if a password is necessary. If so, type your password and press Enter. The default password for the admin user is raritan (all lowercase; passwords are case‐sensitive). We recommend changing this password right away; please see the section User Profile Customization (on page 62) for additional information. 3. The Selection Menu appears. To view other menus, use the function keys as described in this section later. Note: To log out of the Paragon II system, press F9 while the OSUI is onscreen. Below are the function keys used when working with the...
Page 64: Video Gain And Skew Compensation
F5 Administrator only: Go to the Administration Menu for the administrator to manage the system settings F6 Administrator only: Toggle the autoscan function on or off F7 Administrator only: Toggle the autoskip function on or off F8 View the Information Menu F9 Log out of the system Shift + F9 Disconnect from the currently accessed channel without logging out of the system F10 Toggle the display of all channel ports (including inaccessible ones) on or off F11 View the Unit Status Menu for connected Raritan Remote Power Control unit (available only from Power Control Menu) F12 Toggle the Selection Menuʹs sorting way: numerically by port number or alphabetically by name Esc Exit the current OSUI (On‐Screen User Interface) screen Video Gain and Skew Compensation When traveling the distance from the target server to the monitor connected to a user station over different cables, Red, Green, and Blue (RGB) color signals may arrive at different times, causing color separation on your monitor; what should appear as a solid white line may instead be separated into three different colored lines: a Red, a Green, and a Blue. Video Gain and Skew Compensation allow you to resynchronize the arrival of RGB signals by adding a time delay on any color signal (R, G, or B) that arrives at your user station sooner. After successful skew ...
Page 65: Video Gain Adjustment And Skew Compensation In P2-Eust
Chapter 3: Operation - User Functions Video Gain Adjustment and Skew Compensation in P2-EUST Note that “Automatic” skew compensation is only available when you use P2‐EUST (or P2‐EUST/C) and one of these CIMs: P2CIM‐APS2, P2CIM‐AUSB, P2CIM‐ASUN, P2CIM‐APS2DUAL, P2CIM‐AUSBDUAL, P2CIM‐APS2‐B, P2CIM‐AUSB‐B or P2CIM‐AUSB‐C. However, “Manual” skew compensation is always available with a P2‐EUST (or P2‐EUST/C) regardless of the CIM type. Automatic skew compensation adjusts the video quality automatically based on varying cable distances and cable types. If this video quality adjustment on an active CIM using the P2‐EUST (or P2‐EUST/C) is unsatisfactory, you can manually adjust the video gain setting and skew delay of each color via the OSUI. Once adjusted, the gain setting and skew delay values are stored in the database of the Paragon switch that the P2‐EUST (or P2‐EUST/C) connects to. To adjust video quality on any channel, connect to the channel you wish to adjust. Press the Hot Key (default: Scroll Lock) twice QUICKLY to activate the Selection Menu and press the * or / keys on your numeric keypad to select one of four options: AGC, skew delay of Red, skew delay of Green, and skew delay of Blue. Press the + or ‐ keys on your numeric keypad to increase or decrease the skew delay. Skew compensation range is 0 to 31. The video gain changed adjustment value appears in the Message Bar; press the + and/or ‐ keys to adjust video gain from ‐15 to +15 (for P2‐UST) or from 0 to +6 (for P2‐EUST and P2‐EUST/C) until you are satisfied with the video quality. Please note that you must connect to each channel individually to adjust that channelʹs video gain and skew delay. Please see Video Display Adjustment for P2‐EUST (on page 99) for additional information. ...
Page 66: Video Gain Adjustment In P2-Ust
Video Gain and Skew Compensation Video Gain Adjustment in P2-UST A video‐gain adjustment is available to focus the video image, which can be especially useful if you are using an LCD flat‐panel monitor. To make this adjustment, activate the OSUI by pressing the hot key (default: Scroll Lock) twice QUICKLY, if you have not done so already. Use the + and ‐ (plus‐ and minus‐sign) keys on the keyboardʹs numeric keypad to adjust the video image until it appears to be in focus. ...
Page 67: Selecting A Server
Chapter 3: Operation - User Functions Selecting a Server Immediately following user login, the Selection Menu appears. Users who are already switched to a server can activate the Selection Menu by pressing the hot key (default: Scroll Lock) twice QUICKLY. The Selection Menu lists devices sorted either by channel number (“Ch”) or alphabetically by the name of the server or other device on that channel port (“Name”). You can toggle between these two ways of sorting by pressing F12. Default sorting is by channel number, but unless the system is re‐initialized, the last selected sort order will be shown the next time that the Selection Menu is activated. Other columns in the channel number view include “No,” row number, and “Scn,” the individual scan‐delay time in seconds (unless the channel port has a subsidiary Paragon switch or tiered device attached to it, in which case the Scn column will show “‐‐”). Selection Menu Sorted by Channel Number ...
Page 68 Selecting a Server Selection Menu Sorted by Channel Name The Selection Menu displays up to eight channel ports per page; total number of pages appears in the upper right‐hand corner, for example “Page 2/5” indicates that you are on the second of five pages. Use the Page Up and Page Down keys on your keyboard to move between the pages. Once you have selected a server as described on the following pages, Paragon II will switch to that channel port. If “ID Display” is enabled in the User Profile configuration, a display will appear at the top of your screen to identify the chosen channel port for the number of seconds set. To choose a server from the Selection Menu 1. If you are not in the Selection Menu, press F2. 2. Press F12 to toggle the menu to sort‐order view of your choice (by channel number or alphabetically by channel name). The entry for the channel port you currently have selected (if any) will be highlighted and will have a small red arrow ( ) to the left of its channel port name. Note: In the channel number view, the Selection Menu can display either all channel ports or only those channel ports that the current user is allowed to select (the default view). If the system administrator has set the “Display All Computers” option in the System Configuration menu to “Yes” (see System Configuration (on ...
Page 69 Chapter 3: Operation - User Functions 3. Use the and keys (and, for switching between pages, the Page Up and Page Down keys) to move the highlight bar to the channel port you want to select, and then press Enter. Note that although the highlight will move, the small red arrow ( ) to the left of the channel port name will remain stationary, indicating the userʹs currently‐selected channel port, until a new selection is made. a. In the channel number view, once all channel ports page are assigned, you can press the desired channel portʹs key number (1 through 8) to move the highlight to that channel port instantly. b. In the channel name view, you can type the first few characters of the desired channel portʹs name to move the highlight to the first channel port whose name begins with that character sequence. 4. Press Enter. If it is a server attached to the chosen channel port and you are permitted to access it, Paragon II automatically switches you to that channel port for normal server operation, and the OSUI disappears. If it is a cascaded tiered device attached to that channel port, an OSUI Selection Menu specific to that tiered device will appear; keep moving through the Selection Menu layers until you reach the server you want. Note: To return to the main Selection Menu from any second‐ or third‐tier device‐specific Selection Menu, press the Home key on your keyboard once, or press the Esc key once or twice depending on which tier you are currently on. Once you switch to a different channel port, you can continue switching by pressing the hot key (default: Scroll Lock) twice QUICKLY to activate the Selection Menu. If you want to return to your previously selected channel port without using any OSUI menus, press the “previous channel port” command key (default: Num Lock) twice QUICKLY. ...
Page 70 Selecting a Server Yellow Channel port is unavailable for control (being controlled by another user), but video can be viewed. (This happens only when the Paragon system is in Public View Mode. See the paragraphs below for information about other OSUI displays that appear when the system is in Public View Mode.) Purple A second‐ or third‐tier cascaded switch is connected to this channel port See Installing a Cascaded Paragon System (on page 29). White Channel portʹs current status is unknown. This should not happen if the Paragon II is operating normally. Light Blue Channel port is connected to a device and active, but is unavailable to access due to lack of tier path. It operates in Private mode only as ʹBlocked Channels Identificationʹ. Another possibility is the path you manually choose overlaps with another userʹs path partially or completely and limit your accessibility to any servers other than the server accessed by another user accordingly. ...
Page 71 Chapter 3: Operation - User Functions For additional information about Private Mode, Public View Mode, and PC Share Mode, see the bulleted item Operation Mode under System Configuration (on page 86). When the system is set to Public View (P‐View) mode, if one user has already selected a server, another user can also select it, but the second user can only view video output, not control it or input any data with the keyboard and mouse. In this mode, other OSUI graphic elements will appear on the screen when you select various servers: • When you select a server that someone else is already controlling, a message showing the name of the server being viewed will appear on your monitor. It cannot be removed, but will disappear after three seconds. Press Esc to return to the main Selection Menu. • If another user chooses to view the video of a server you have already selected, you will see a message bearing that userʹs name for three seconds, twice—first when the second user begins viewing and then when the second user stops viewing. When the system is set to Private mode, “Blocked Channels Identification” is activated automatically. • When a blocked channel is detected, it will be displayed in light blue on the Selection Menu (whether in order of channel number or name) to distinguish from a channel that is active and available to access (in green). • When a blocked switch is detected, it will be displayed in red on the Selection Menu (in order of channel number only) to distinguish from a switch that has available path reach (in purple). • The ʹBlocked Channel/switch Identificationʹ is user station dependent. User login on different user stations may see different blocked channels. Blocked Channels/Switch Identification Definition of a blocked channel: ...
Page 72: Manually Selecting The Access Path
Selecting a Server The identification of blocked channels is fully supported whether in a single‐base or multiple‐base regular Paragon configuration with some limitations as below. • Blocked channel/switch identification only functions within a regular Paragon configuration (no diamond connection and triangle connection inside). There is no guarantee that it will function correctly in the diamond or triangle configuration (For additional information about these two configurations, see Non‐Standard Tiered Configurations (on page 143)). However, from userʹs perspective, the user behavior on the light blue channel (the blocked one) is the same as that on the green channel (the active and unoccupied one). • Blocked channel/switch identification are only activated in the Private mode. This feature will be disabled when in PC Share or P‐View modes. Manually Selecting the Access Path When all tiered devices in the Paragon II system are implemented with firmware version later than 3E3, you can manually choose a path to access a target server in the channel number view. For older Paragon I or Paragon II products to support this feature, see the note in the end of this section for more information. 1. Make sure you are in the channel number view in the Selection Menu. If not, press F12 to toggle the view. 2. Press the and keys to highlight one of the channels in purple (available paths) or yellow (in PC share mode) which are connected to a tiered device (a tiered device is indicated with the symbol “‐ ‐” displayed in the Scn field). ...
Page 73 Chapter 3: Operation - User Functions 3. Press Enter. Both of the chosen path information and the channel list of the selected tiered device are displayed on the screen. The path information includes “name of the base/tiered device,” “number of the selected user port” and “number of the selected channel port.” If this symbol “‐ ‐” is displayed, it indicates the port number is currently unknown, and this port number will be displayed only when you access to the next channel. 1 Device name of the base unit 2 Selected user portʹs number 3 Selected channel portʹs number 4 The arrow indicates the current tier which you are on 5 Device name of the currently selected tiered device 6 The user portʹs number is currently unknown 4. Repeat steps 2 to 3 if you want to access the third‐tier device. 5. Choose the channel port of the desired server in the specific tiered deviceʹs Selection Menu. ...
Page 74: Path Overlapping Constraint
Selecting a Server Note: Manual Path Selection is automatically disabled and replaced by Automatic Path Selection when one of the following occurs: The desired server is accessed while the Selection Menu is sorted by channel name instead of the channel number. The path passes through Paragon II products with the firmware version older than 3E3. You must upgrade their firmware to support this function. See Firmware Upgrade (on page 153) for more information. The path passes through Paragon I products. If the Paragon I hardware version is older than HW3, it is impossible to support the Manual Path Selection function. But if the hardware version is HW3 (the HW3 unit has only one stacking port), you can upgrade its firmware to support this function. See Firmware Upgrade (on page 153) for more information. Path Overlapping Constraint The path you manually choose may completely or partially overlap a path having been selected by another user in the PC Share or Public View mode. In this case, Paragon either limits your server accessibility to the one accessed by the user with whom you share the path or disallows any server accessibility. To access a different server, you must choose a path not overlapping with anyoneʹs path. Detailed path overlapping instances are illustrated below: Background: The “A” user manually chooses a path for accessing Server 3‐2. Later on the “B” user attempts to access a server and overlaps his path partially or completely with the “A” userʹs path. ...
Page 75 Chapter 3: Operation - User Functions Blue solid line: indicates the “A” userʹs path Black dotted line: indicates the “B” userʹs path Instance 1: “B” user overlaps the path with “A” userʹs in the segment between UMT‐1 and UMT‐2; therefore, all servers connected to UMT‐2 become inaccessible to the “B” user. ...
Page 76 Selecting a Server Instance 2: “B” user overlaps the path with “A” userʹs in the segment between UMT‐1 and UMT‐2; therefore, all servers connected to UMT‐3 become inaccessible to the “B” user. ...
Page 77 Chapter 3: Operation - User Functions Instance 3: “B” user overlaps the path with “A” userʹs in the segment between UMT‐2 and UMT‐3; therefore, only the server 3‐2 connected to UMT‐3 is accessible to the “B” user. ...
Page 78: Switching Between Previous And Next Channels
Switching between Previous and Next Channels Instance 4: “B” user completely overlaps the path with “A” userʹs; therefore, only the server 3‐2 connected to UMT‐3 is accessible to the “B” user. Switching between Previous and Next Channels There are two ways for you to switch between active channels: one is through the OSUI operation, and the other is through the “Up/Down Channel” hot key combination, which enables quick access by bypassing the OSUI. The availability of the “Up/Down Channel” function depends on two requirements as described below. • The user station you operate must be “P2‐EUST” or “P2‐EUST/C” with the following firmware version. P2‐EUST: firmware version 3EB or later P2‐EUST/C: firmware version 4EB or later A P2‐UST does not support this feature. ...
Page 79: Definition Of The Previous And Next Channels
Chapter 3: Operation - User Functions • The Paragon switch to which your user station connects must be with the firmware version 3EB or later. Note: If your Paragon switch or P2‐EUST (or P2‐EUST/C) is implemented with old firmware, you can upgrade the firmware to benefit from the feature. See Firmware Upgrade (on page 153) for more information. Definition of the Previous and Next Channels Please note that the Up/Down Channel function is performed basing on the alphanumerical sequence, that is, the sequence of channel names instead of channel numbers. After pressing the Up/Down Channel key combination, the channel you will be switched to is the one with all of the following characteristics: • It is the next or previous channel in the alphanumerical order • It is active • It is available. For example, it is not being accessed by any user in the Private mode • It is one of the channels that you have permission to access Performing the Up/Down Channel Function In order to use the hot key combination, follow two major steps below: STEP 1: Set up the Up/Down Channel key STEP 2: Change channels with the key combination ...
Page 80 Switching between Previous and Next Channels 2. Press F4 to access the User Profile menu. 3. Press Tab until the UpDnChnl field is highlighted. 4. Press Enter and the highlight turns green. 5. Press the arrow keys ( , , , ) to switch between available options, which include LftAlt (Left ALT), LShift (Left SHIFT), CapLck (Caps Lock), NumLck (Num Lock), ScrLck (Scroll Lock), and None (function disabled). Note that those options that have been selected by the HotKey and Previous Channel Key fields are not available. 6. Press Enter to select the desired option and the highlight turns back to yellow. 7. Press S to save the changes. STEP 2: Change Channels with the Key Combination When you want to view the previous channel, use the following key combination: Press the <Up/Down Channel key> twice quickly, and then press ...
Page 81 Chapter 3: Operation - User Functions For example, if you have assigned the LEFT Shift key as the Up/Down Channel key in the User Profile menu, press the LEFT Shift key twice and then press or . The video of the previous or next channel is immediately displayed on the screen. Each time the use of the Up/Down Channel key changes the Selection Menu from sorting by channel number to sorting by name on the background. Therefore, when activating the OSUI after performing the Up/Down Channel function, you see the “Selection Menu by Name” screen (see below). To return to the sorting by channel number, press F12. Constraint: If you access a channel in the Public View mode, and do not gain the keyboard and mouse control, your Up/Down Channel hot key will NOT function. When this occurs, the only way to access the previous or next channel is to activate the OSUI by pressing the Enter key and then select the desired channel. ...
Page 82: User Profile Customization
User Profile Customization User Profile Customization Users can change their own profiles and administrators can set blank user profiles or change an individual user profile on the User Profile screen. To access this menu, press F4 when the OSUI is onscreen. This menu displays Paragon IIʹs configuration and allows you to set preferred operating parameters for individual user accounts or for a group of accounts, as the administrator, or change your profile as a logged‐in user. To view or change your user profile 1. If the OSUI is not onscreen, activate it by pressing the hot key (default: Scroll Lock) twice in quick succession. 2. Press F4 to access the User Profile menu. The topmost fields are identifiers that cannot be changed by the user: a. The Connected field displays the name and channel port ID of the currently selected device, if you are currently connected to a channel port. b. The User field displays the user name you entered at login. The User Port field shows which user port on the Paragon switch your user station is attached to. d. The Admin field shows whether or not you have administrator privileges. The Group field displays the userʹs group ID(s) (see Group Settings (Access Rights) (on page 102)). ...
Page 83: User Profile Parameters And How To Change Settings
Chapter 3: Operation - User Functions 3. To change any of the other fields, use your keyboard keys to select the field you want to edit: Press Tab to move forward through the editable fields, Shift+Tab to move backward, the and keys to move up and down, and the and keys to move left and right. Press Enter to begin editing; the highlighted area will turn green, and the message text changes to the following: See the next section for interpreting specific User Profile entries. When finished, press Enter to retain the changes (the highlighted area will turn yellow) or press the Esc key to cancel the changes. When you are going to leave the menu, (for example, if you press a function key) the prompt in the message bar will change to “Save the changes (Y/N/ESC)” Press S to save the changes to long‐term memory, Esc to discard your changes, or N to discard your changes and exit the menu. Note: When you type new numeric values, always use the number keys at the top of your keyboard, not the number keys on your keypad. Paragon does not support the keypad number keys. User Profile Parameters and How to Change Settings • Scan Mode: Indicates how Paragon II determines the length of time to pause at each channel port during autoscanning. Default setting is “Global.” Use any of the arrow keys to toggle between these values. ...
Page 84 User Profile Customization • Global Scan Rate: If Scan Mode is set to “Global,” this parameter determines the length of time that the system pauses at each channel port while scanning. Using leading zeroes if necessary, type in a two‐digit number of seconds from 01 to 24, or use the and keys to increase and decrease the current value by 1 respectively. The default setting is 03. • ID Display: The ID Display is a small window that can appear onscreen to display the name and ID of each channel port as you switch between them or scan them. Edit the two fields to determine how the system will show you this window: Possible values in the first field are “On” (ID Display is shown, the default value) and “Off” (ID Display isn’t shown). Use any of the arrow keys to toggle between these values. If the ID Display is set to “On,” the number in the second field, Seconds, indicates how many seconds it will remain onscreen. Using leading zeroes if necessary, type a two‐digit number of seconds from 01 to 24, or use the and keys to increase and decrease the current value by 1 respectively. If you type a number greater than 24, the second field will be filled with a “‐ ‐”, indicating that the ID Display will be shown at all times. The default setting is 03. If the ID Display is set to “Off,” the number in this field will have no effect. • Sleep Mode: A power‐saving mode that is activated once a user logs in. Sleep mode acts as a screensaver if the user station is idle (no keyboard or mouse activity) for a specified amount of time. Sleep mode is user‐specific; whatever mode a user sets applies to only that user once logged in. Edit this field and the Minutes field that follows to determine how the system handles sleep mode. Possible values are Saver, Green, and Off. Use the and keys to toggle between these values. ...
Page 85 Chapter 3: Operation - User Functions • Hotkey: The keyboard key that, when pressed twice quickly, activates the OSUI. The alternatives are Scroll Lock (the default), Caps Lock, Num Lock, the LEFT ALT key, and the LEFT SHIFT key. Use any of the arrow keys to switch between the choices. You cannot select the key currently being used as the Previous Channel Key (see below). • Display Position: This position indicates where the OSUI menus and ID Display appear on your monitor. Move the highlight to “Menu” (for the OSUI) or “ID” (for the ID Display) and press Enter to highlight it, then use the , , , and keys to move the chosen window as desired. When finished, press Enter to save the change. • Previous Channel Key: The keyboard key that, when pressed twice quickly, causes Paragon II to return to the previously selected channel port (provided that that channel port is still available) without going through the OSUI. The alternatives are the LEFT ALT key, the LEFT SHIFT key, Caps Lock, Num Lock (the default), Scroll Lock, and None (no Previous Channel Key; function disabled). Use any of the arrow keys to switch between the choices, but you cannot select the key currently being used as the Hotkey (see above). • UpDnChnl: The keyboard key that, when pressed twice quickly and followed by the or key within one second, causes Paragon II to switch to the previous or next channel port (provided that that channel port is still available) without going through the OSUI. The alternatives are the LEFT ALT key, the LEFT SHIFT key, Caps Lock, Num Lock, Scroll Lock, and None (function disabled; the default). ...
Page 86: Help Menu
Help Menu To change or delete your password You can delete a password (if ʺRequire Password” is set to “No”), or change it while the User Profile Menu is onscreen by pressing P. Type your old password at the first prompt. Type a new password up to eight characters at the next prompt, and press Enter. To delete your password, press Enter without typing anything in the field. Confirm the new password by typing it again at the third prompt; then either press Enter to save the new password or Esc to abort the change and continue using the old password. Note: Be careful when you change your password. If you forget or lose it, the administrator has no way of recovering or erasing it; your account will have to be deleted and recreated. Help Menu When the OSUI is open, activate the Help Menu by pressing F1. This menu displays a list of function keys and their functions. Keyboard-Controlled OSUI Functions Use the following function keys to access Paragonʹs OSUI functions: Press... When you want to… F1 View the Help Menu F2 Access the Selection Menu in order to view or select channel ports, or view group IDs or scan rates ...
Page 87 F5 Administrator only: View the Administration Menu F6 Administrator only: Toggle autoscan on or off F7 Administrator only: Toggle autoskip on or off F8 View the Information Menu to see the version numbers of the Paragon IIʹs firmware and hardware, the number of accessible Paragon switches, the total number of accessible servers, and so on. F9 Log out of the Paragon system (logs user out and invokes the login screen) Shift + F9 If any OSUI screen is displayed; disconnect yourself from the active channel port without logging out F10 If the administrator has set “Display All Computers” to “Yes” and the Selection Menu is sorted by channel port ID, toggle the display of all channel ports (including inaccessible ones) on or off F11 Unit Status Menu for connected Raritan Remote Power Control unit (available only from Power Control Menu) F12 If you are at the Selection Menu: Toggle the Selection Menu between sorting the channel port entries by name or by channel port ID Esc Exit the current OSUI screen (returns user to the Selection Menu, or to the login screen when no channel port is selected) Notes: If a user is not the administrator (the Admin account) but has administrator privileges, functions F6 and F7 are displayed in red in the Help Menu, indicating that these functions are not available to them. If a system administrator has set Display All Computers to “No,” then F10 is displayed in red in the Help Menu for all users, indicating that this function is not available (even for administrators). We recommend that you use a Sun keyboard if there are any Sun servers in your system. (If you want to control Sun servers with a PS/2 keyboard, see Extra Keyboard/Mouse Information and Settings (on page 200)). ...
Page 88: Information Menu
Information Menu Information Menu When the OSUI is onscreen, activate the Information Menu by pressing F8. This menu displays the “vital statistics” of the user station that you are using, including its firmware, hardware, and FPGA revisions, serial number, which console port (user port) and port number on the Paragon switch attached to it, and the number of KVM switches and PCs (servers) that can be accessed through it. ...
Page 89: Concurrent Multiple Video Outputs
Chapter 3: Operation - User Functions Concurrent Multiple Video Outputs You can access one single channel and thus activate the video outputs of another or several channels at the same time. That is, when a channel is selected in the Selection Menu, the other pre‐configured channel(s) automatically output video data to subsequent user stations. This function is called “Multiple Video” or “Port‐Following Switch.” It is especially useful if you have a multi‐channel video server, or intend to set up a TV wall in the Paragon II system. Performing this function requires the channel association to be configured in Paragon Manager. Only the administrator is allowed to set up the channel association. If the desired association has not been configured, contact your Paragon II system administrator. Illustration Example Four channels (numbers 2, 4, 6 and 7) of Paragon II system are connected to the same server which has four video ports. The Paragon administrator has configured these four channels as an association group in Paragon Manager, and Channel 4 is set as the “first” channel in the association setting. In this example, you use the user station attached to the user port #2 to access the “first” channel—Channel 4. When you do this, channels 2, 6 and 7 will automatically output their video data to user stations subsequent to your user station, which are 3, 4 and 5. The user station you operate to activate the Multiple Video function ...
Page 90: Naming Convention For Multiple Video
Concurrent Multiple Video Outputs The user stations that receive the Multiple Video outputs Note: Depending on your purpose, the associated channels can also be connected to different servers and output the video data accordingly. Naming Convention for Multiple Video For documentation purpose, the following name conventions will be used to describe the Multiple Video function: Name Meaning ACTIVATOR channel The “first” channel in the channel association setting. Access to this channel causes the other channels of this association group to output their data. FOLLOWER channel The channel(s) other than the ACTIVATOR channel in the association setting. These channels automatically output their data once the ACTIVATOR channel is accessed. ACTIVATOR user station (or The user station (or user port) that you use to access an user port) ACTIVATOR channel of an association group. FOLLOWER user station (or The user station (or user port) that receives the data outputs of the user port) FOLLOWER channels after the Multiple Video function is activated. FOLLOWER user stations (or user ports) are subsequent to the ACTIVATOR user station (or user port). Connecting CIMs to a Multi-Channel Video Server A multi‐channel video server is a server with multiple video ports. When ...
Page 91: Operation Rules
This section describes the general concept for operating the Multiple Video function, including the activation and termination of the Multiple Video mode. Activation of the Multiple Video Mode • Only access to the ACTIVATOR channel can trigger the function. • The sequence of the ACTIVATOR and FOLLOWER user ports is consecutive. For example, with the precondition of four associated channels, if the ACTIVATOR user port is No. 3, the FOLLOWER user ports start from the next number, which are 4, 5, and 6. • The function is forced regardless of the login status or the permissions of the logged‐in users on the FOLLOWER user stations. • This function can be remotely triggered through Raritanʹs IP‐Reach (if any). Note: Accessing the ACTIVATOR channel with the Forced Video command CANNOT trigger the Multiple Video function. The associated channels will not output their data automatically. Termination of the Multiple Video Mode The hot key for triggering the OSUI is disabled on the FOLLOWER user stations. Therefore, choose one method below to make the user station(s) exit the Multiple Video mode. • On the ACTIVATOR user station, press the hot key (default: Scroll Lock) twice quickly to trigger the OSUI, and do one of the following. Both of the ACTIVATOR and FOLLOWER user stations will then exit the mode. Press Shift+F9 to disconnect the ACTIVATOR channel ...
Page 92: Messages On The Activator User Station
Concurrent Multiple Video Outputs • Directly power cycle the desired user station(s), be it an ACTIVATOR or FOLLOWER user station. Note: If the user station is P2‐USTIP, it automatically enters the remote mode when quitting the Multiple Video mode. Press Ctrl+Alt+Delete on the P2‐USTIP if you want to return to the local mode. Limitation The function is not applicable to those channels which share only one path via the tiered device, such as P2ZCIM, P2CIM‐APS2‐B or P2CIM‐AUSB‐B (for IBM BladeCenter servers). Messages on the ACTIVATOR User Station The success and/or failure of data outputs of the FOLLOWER channel(s) will be displayed on the screen of the ACTIVATOR user station (see the example images below). 1 The 1st FOLLOWER channel successfully outputs its data 2 The 2nd FOLLOWER channel successfully outputs its data 3 The 3rd FOLLOWER channel CANNOT successfully output its data 4 Every FOLLOWER channel successfully outputs its data ...
Page 93: Messages On The Follower User Stations
Chapter 3: Operation - User Functions The failure of data output can be caused by one of the following reasons: • Blockage to the FOLLOWER channel port(s). For example, other user(s) may be accessing one or more of the FOLLOWER channels in Private mode and thus block the access. • Mouse/keyboard activity is detected on the FOLLOWER user station(s) when the Multiple Video command is issued. Paragon will NOT execute Multiple Video in order to protect that serverʹs operation. • The FOLLOWER user station is P2‐USTIP which enters the remote mode (no OSUI displayed). This message will be displayed on the screen. • The FOLLOWER user station is set to Local PC mode. • The FOLLOWER user station is P2‐EUST/C which detects the insertion of the smart card. This message will be displayed on the screen. • There are not enough FOLLOWER user stations subsequent to the ACTIVATOR user station. This message will be displayed on the screen. Messages on the FOLLOWER User Stations When the Multiple Video command is issued, a message similar to the following will be displayed on the FOLLOWER user stations. Any ...
Page 94: Using P2-Ustip For Multiple Video Outputs
Authentication with a Smart Card Using P2-USTIP for Multiple Video Outputs P2‐USTIP has two operation modes: remote and local modes. Only local mode supports the Multiple Video function. In the remote mode (no OSUI displayed): P2‐USTIP CANNOT function as either the ACTIVATOR or FOLLOWER user station in this mode. If a remote user accesses an ACTIVATOR channel via P2‐USTIP, the Multiple Video function is NOT triggered at all. In the local mode (OSUI displayed): This is the only mode in which Multiple Video functions. Enter the local mode by pressing Ctrl+Alt+Delete. Then P2‐USTIP can act as either the ACTIVATOR or FOLLOWER user station. Authentication with a Smart Card With the use of the P2‐EUST/C user station and the P2CIM‐AUSB‐C computer interface module, Paragon II enables you to control access to servers that require user authentication with an appropriate smart card. ...
Page 95 Chapter 3: Operation - User Functions d. Right‐click Smart card readers on the right pane, and then choose Scan for hardware changes from the shortcut menu. 3. Select ʺYes, this time onlyʺ and click Next. 4. Select “Install the software automatically (Recommended)” and click Next. ...
Page 96 Authentication with a Smart Card 5. (Optional) If this dialog appears, select ʺYes, connect and search for the software on the Internetʺ and click Next. 6. Click Finish when the installation is complete. ...
Page 97 Chapter 3: Operation - User Functions Note: If one of the following scenarios occurs, you can obtain the Windows driver by downloading the P2‐EUST/C update from Raritanʹs Firmware Upgrades webpage (http://www.raritan.com/support/firmwareupgrades/paragonii): If your target server cannot be connected to the Internet, connect a PC to the Internet to download the driver, and then install the driver on the target server. If the driver cannot be found or does not install properly with the Found New Hardware Wizard, download the driver and assign the driverʹs location during the installation. Contact Raritan Technical Support for assistance when necessary. ...
Page 98: Requisites For Card Reader Functionality
Authentication with a Smart Card Requisites for Card Reader Functionality In order to enable the card reader functionality, the following Paragon II components must be included in the path you choose to access a specific server. • Reader‐enabled user station: P2‐EUST/C • Reader‐enabled CIM: P2CIM‐AUSB‐C • Reader‐enabled firmware: Paragon II switch (including the Main Unit and, if any, the Stacking Unit) with firmware version 4.3 or later To utilize the integrated card reader, client authentication software must have been installed and configured properly in the target servers. The Paragon II card reader supports the PC/SC specification, enabling communication between cards and authentication middleware. It also conforms to the ISO7816 standard for the card‐to‐reader interface. Specifically, the reader supports ISO7816 Class A and AB smart cards. Note: Raritan does not provide the client authentication software. If you encounter any problems regarding the authentication messages, please consult the user documentation shipped with the authentication software or contact your system administrator. The connection pattern in the chosen path will look like the figure below. 1 Server 2 P2CIM‐AUSB‐C 3 Cat 5 cable ...
Page 99 Chapter 3: Operation - User Functions 4 Paragon II switch (firmware version 4.3 or later) 5 P2‐EUST/C Warning!! The maximum cable length between the reader‐enabled CIM and the Paragon switch to which it is directly connected CANNOT exceed 500 feet (152 m). A cable longer than 500 feet may result in the cardʹs data loss during the transmission. If the path runs through the second‐ or even third‐tier Paragon switches, the firmware version of these upper tiers must also be 4.3 or later. Otherwise, the card reader function in the path will not be enabled. For information on connecting user stations, CIMs, servers and Paragon switches, see Basic Installation (on page 12). Notes: A Paragon Main Unit is not used when in Direct Mode. In Direct Mode, only P2‐EUST/C and P2CIM‐AUSB‐C are required to activate the card reader functionality. See User Station Direct Mode (on page 178) for more details. P2‐HubPac does not support the card reader functionality at this time. Therefore, make sure the servers that require the card reader authentication are not connected to the Paragon switch via P2‐HubPac. Features of P2-EUST/C This device is an enhanced user station with a built‐in card reader. Its functions are similar to those of P2‐EUST and can work with Paragon II that has been upgraded to version 4.3 or later. The internal card reader allows users to insert their smart cards when prompted by the authentication software installed in the servers, and deliver the necessary authentication data to the server. The P2‐EUST/C is compatible with all CIMs that are compatible with the standard P2‐EUST. This allows for use of the P2‐EUST/C in environments that also include servers that do not require the card authentication. Comparison between P2-EUST/C and P2-EUST Components / Functions P2-EUST/C P2-EUST USB Keyboard/Mouse Support ...
Page 100 Authentication with a Smart Card Components / Functions P2-EUST/C P2-EUST Internal Card Reader LED 1 Card reader slot 2 LED Status LED Color Status Blue (Solid) The user station is powered on without any card inserted Blue (Blink) Only keyboard/mouse signals are being transmitted to the Paragon switch or when the keyboard/mouse activity is detected Green (Solid) A card is inserted into the card reader slot when the user station is powered on Green (Blink) Only the cardʹs data is being transmitted to the Paragon switch Green and Blue (Blink Both of the cardʹs data and keyboard/mouse signals are being alternatively) transmitted to the Paragon switch ...
Page 101: Using The Card Reader
Chapter 3: Operation - User Functions Note: An external USB card reader is not supported at this time. Features of P2CIM-AUSB-C This device is a USB CIM and is required when using a smart card. Its functions are similar to those of P2CIM‐AUSB and can work with Paragon II that has been upgraded to version 4.3 or later. Paragon II 4.3 or Later Firmware Version As long as the card reader function is intended in the Paragon II system, you must ensure the firmware version of the Paragon switch (or switches) in the chosen path is 4.3 or later. Otherwise, the card reader function is not available even though both of the reader‐enabled user station and CIM are present in the path. To upgrade the firmware version of existing Paragon switches to 4.3 or later, including Paragon I HW3 and Paragon II, see Firmware Upgrade (on page 153) for additional information. Using the Card Reader Once all required reader‐enabled components are installed in the Paragon system, and the proper driver and authentication software have been configured in the servers, the card reader authentication is ready for use. Note that when you connect the P2‐EUST/C user station to the Paragon Base Unit with 4.3 or later firmware version, the whole system comprising the Base Unit and its tiers enters the Private Mode regardless of the original Operation Mode setting. This is to ensure that only the user that has validated his or her credentials may view the serverʹs video ...
Page 102 Authentication with a Smart Card 3. After logging into the system, the Selection Menu appears on the screen. 4. Press , , or to move the highlight to the desired server which is connected to the reader‐enabled CIM (P2CIM‐AUSB‐C). 5. Press Enter to access the server. See Selecting a Server (on page 47) for more details. 6. If the client authentication software has been configured properly, either a blank screen or a message prompting you to insert the card appears. The message varies depending on the configuration of your authentication software. 7. Insert your card into the card reader slot on the user station. The LED of the user station turns green. Note: The Paragon II integrated smart card reader may not recognize the insertion of a smart card when there is conflict with an external card reader, including keyboards that consist of a built‐in smart card reader. When there is conflict with an external reader, the LED on the user station (which normally turns from blue to green when a card is inserted) will not react to the insertion of the card. 8. The card reader reads the data of the card and transmits the data to the server. Follow the serverʹs onscreen instructions, if any, to complete the login authentication process. For more information on completing the authentication process, see the user documentation provided with your systemʹs authentication software or contact your system administrator. IMPORTANT: Whenever the card reader is reading and transmitting the data (indicated by the green blinking LED), do ...
Page 103 Chapter 3: Operation - User Functions 10. When finishing your server task, press the hot key (default: Scroll Lock) twice quickly to trigger the OSUI. 11. Depending on what you want to do next, either keep the card inserted or remove it. Desired action Do this To access another server which is attached Keep the card inserted and press F2 to choose with the reader‐enabled CIM and requires the another server use of the smart card as well To log out of the system Remove the card and press F9 To access another server which is attached Remove the card and press F2 to choose with a NON‐reader‐enabled CIM another server Note: Paragon does not automatically disconnect you from the server upon the removal of the card, but the server may respond to this based on the configuration of the authentication software and thus deny your access and management of the server. The design of the reader‐enabled user station allows you to insert the card even before the server is accessed or before the user station is powered on. The user station is always capable of informing the accessed server of the cardʹs existence as long as it is physically inserted in the card reader. ...
Page 104: Chapter 4 Operation - Administrator Functions
Channel Configuration ...................97 User Station Profile..................100 Group Settings (Access Rights)..............102 Recommendations ..................105 System Reboot and System Reset ..............105 Network Settings ...................108 Autoscan and Autoskip ................110 Power Management..................110 Paragon II Network Port................115 The Administration Menu Administrators can use the Administration Menu to set security classes, maintain user names and privileges, and manage the system configuration, including controlling user access to Paragon II and all connected devices. Note: Administrative user IDs assigned to group 00 have complete access to all of the Administration Menuʹs submenus. Other administrative users have limited access and cannot select the System Configuration, User Configuration and Network Setting submenus. To reach any of the Administration Menu's submenus: 1. Log in using the admin user name (or your own user name if you have administrator privileges). The default password for the admin account is raritan, all lowercase, but we recommend this password be changed as soon as Paragon II is initially installed (see User Profile Parameters and How to Change Settings (on page 63) for additional information). After login, the Selection Menu appears. ...
Page 105: Guidelines For System Configuration
Chapter 4: Operation - Administrator Functions 2. Press F5. The Administration Menu appears. 3. Press any keyboard number from 1 through 7, or use the and keys to move the highlight to your desired option (submenu), and press Enter. Guidelines for System Configuration • Only one user should attempt to modify/update the systemʹs Administration Menu at one time (especially the User Configuration and Channel Configuration submenus). • Z‐CIMs should be added one at a time to a Z‐CIM chain. The administrator should read from message bar that the database has been completely updated before adding a new Z‐CIM. • If updating the system is necessary at Installation, make certain all users have logged out. • When naming or renaming a CIM, switch to that CIM to activate it and to ensure the new name is stored or updated in the Paragon switchʹs database. • When powering on existing stable configurations (that is, if you are NOT replacing or adding switches and NOT swapping the order of switches) or when you are Power Cycling a cascaded configuration, follow the sequence below: 1. First power on the third‐tier switches (if a third tier exists). 2.
Page 106: System Configuration
System Configuration For configurations where switches are added, replaced, or swapped (in order), follow the sequence below: 1. First power on the third‐tier switches (if a third tier exists). 2. Then power on the second‐tier switches. 3. Finally power on the Paragon II base tier. 4. Perform a partial reset of the database on the impacted switches. For example, if you swap the switches connected to the base tier, perform the partial reset on the base tier. If you swap the switches connected to the second tier, perform the partial reset from the second tier to the base tier. System Configuration To set certain global parameters, select option 1, System Configuration, from the Administration Menu and press Enter. 1. Press the or Tab key to move the highlight forward, or the or Shift + Tab to move the highlight backward to a desired field. Press Enter to edit the field. The highlighted area will turn green. Some fields have character or numeric values you can type; others have values you can toggle between with the arrow keys. When editing is complete, either press Enter followed by S to save your changes, or press Esc to abort the changes and continue using the previous settings. ...
Page 107 Chapter 4: Operation - Administrator Functions Device ID: Type the desired name for the single Paragon switch or Base Unit. It is important for Paragon switches in a “cascaded system with multiple matrix switches” to have distinctive names, so that users can tell them apart. (The system will assign each switch the default name “Paragon <user ports><channel ports>”: each P2‐UMT242 will be named “Paragon 242, each P2‐UMT442 “Paragon 442,” and so on.) Display All Computers: This option can be “Yes” or “No” to respectively allow or disallow users from viewing channel port listings for all connected devices through the OSUI, even if the user doesn’t have the security privileges to access them. The factory‐default setting is No. Logoff Timeout: If enabled, after the amount of time in minutes that a user station can remain inactive (no keyboard or mouse activity), the logged‐in user at that station is logged out of the Paragon II system. Possible values in the first field are “On” (Logoff Timeout is enabled) and “Off” (Logoff Timeout is disabled – the default value). Use the and keys to toggle between these values. If Logoff Timeout is set to “On,” the number in the second field is the number of minutes of inactivity that must elapse before the timeout is triggered and the user is logged out. Using leading zeroes if necessary, type a two‐digit number of minutes from 01 to 99, or use the and keys to increase and decrease the current value by 1 respectively. The default setting is 05. If Logoff Timeout is set to “Off,” the number in this field will have no effect. Operation Mode: Any of the three ways in which the Paragon system handles requests from multiple users for access to the same channel port. Use the and keys to switch between the choices: ...
Page 108 System Configuration Public View (P‐View): While one user is accessing a server or other device on a specific channel port, other users can select that channel port and view the video output from that device, but only the first user will have keyboard and mouse control. When the first user disconnects or selects a different channel port, the waiting user who is first to type or move his/her mouse is given keyboard and mouse control. Status messages showing users’ identities appear on video‐sharing users’ monitors when Public View mode is in effect. PC Share: A server or other device on a specific channel port can be selected and controlled by more than one user, but only one user has keyboard and mouse control at any one time. If the PC share timeout is enabled and the user in control is idle (no keyboard or mouse activity) for the duration of the timeout, the waiting user who is first to type or move his/her mouse is given keyboard and mouse control of the PC. Hide Admin From Users: When Operation Mode is set to “Public View,” the user in control of a server is normally notified when other users start and stop viewing the channel port’s video. However, when Hide Admin From Users is set to “Yes,” administrators can view other users’ video without activating this viewing‐notification message. Use and to toggle between “Yes” and “No.” The default setting is No. PC Share Timeout: If Operation Mode is set to “PC Share” and more than one user has selected a server, the first user to type or use his/her mouse will have control of the server. However, another user can gain control of the server if the first user’s keyboard and mouse remain idle for the length of this timeout. Using leading zeroes if necessary, type a two‐digit number of seconds from 01 to 99, or use the and keys to increase and decrease the current value by 1 respectively. The default setting is 01. ...
Page 109 Chapter 4: Operation - Administrator Functions Ghosting Mode: In a Paragon system, when a CIM (attached to a server) or tiered device is removed from the system or powered off (manually or accidentally), a record of the CIM or CIMs connected to that device is reserved in the Paragon system. The target (or port) name continues to appear in black text on the OSUI of local user ports, and also appears with inactive status in other Raritan clients that operate with Paragon II, such as Paragon Manager, RRC/MPC, P2SC, and CC. If Ghosting is set to Enable, when an active CIM is removed from one channel port and connected to another channel port (‘hot‐swapped’), you will see two identical CIM entries on the OSUI of Paragon Clients: one in green text (active) and another in black text (inactive). The inactive CIM is known as a ‘ghost’ CIM. To remove records of the inactive CIMs after they are hot‐plugged into a different port, select Disable. The default Ghosting Mode setting is Enable. Login Sleep: This is a power‐saving mode that is activated when the Login screen is onscreen. Login Sleep acts as a screen saver if the user station is idle (no keyboard or mouse activity) for a specified amount of time. When an administrator sets this mode, it applies to a Paragon switch and its attached configuration; individual users can change this mode in the Login Sleep field of their User Profile screens. Edit this field and the Minutes field that follows to determine how the system handles sleep mode. Possible values are Saver, Green, and Off. Use the and keys to toggle between these values. Saver: The login screen or the OSUI are “floaters” and appear regularly in random locations on the screen. Green: The monitor goes blank. Off: Login Sleep is disabled and the screen displays normal video indefinitely. If Login Sleep is set to Saver or Green, in the Minutes field, type the number of minutes of inactivity before Login Sleep is ...
Page 110 System Configuration Require Password: Determines whether a user can specify a blank password, that is, delete any existing password and have no password at all. Use the and keys to toggle between “No” (users may delete their existing passwords) and “Yes” (the default setting; starting with the first time they change their password, users must always specify a password). Newly created users always start with no password, and must assign one to themselves during initial setup. Default Login Name Blank: Determines whether the User Name field in the Login screen will be blank, or if the field will contain the default user name (the first available “userxy” name, where “xy” is a two‐digit number with leading zeroes—“user01,” “user02,” and so on). Use the and keys to toggle between “Yes” (the field is blank – the default value) and “No” (field contains the user name). 2. When you are finished, either press Enter followed by the letter S to save your changes, or press Esc to abort the changes and continue using the previous settings. ...
Page 111: Video Redirection (Forced Video)
Chapter 4: Operation - Administrator Functions Video Redirection (Forced Video) You can have any server send its video/keyboard/mouse data to any user station other than yours. This function is called “Forced Video” and it can be performed using either OSUI or Paragon Manager. As an administrator, you can authorize specific normal users to perform this function. Both of the authorization and operation of these users can only be done through Paragon Manager. In addition, with Paragon Manager, you can remotely perform the Forced Video function. See Paragon Manager User Guide for additional information. This user guide is available on the “User Manuals & Quick Setup Guides” CD and on Raritanʹs Product Documentation webpage (http://www.raritan.com/support/productdocumentation). Those who have the permission to perform Forced Video include: • Administrator—the Admin account (by default) • Users with administrator privileges (by default) • Users who are authorized to perform the Forced Video function; however, these users must operate the function through Paragon Manager only instead of OSUI Illustration Example You are operating on the user station “A” as shown in the diagram below. Now you can issue the Forced Video command to direct one server to output its data to one of the user stations connected to the same Paragon II switch as your user station. It is impossible to direct the server to output its data to user stations connected to a Paragon switch other than the Base Unit—UMT‐1, such as user station “E” or “F.” The permitted data direction is shown below: •...
Page 112: Operating Forced Video Using Osui
Video Redirection (Forced Video) • Data transmitted from one of the upper‐tier servers (from 2‐1 to 2‐3) TO one of the user stations connected to UMT‐1 (B to D) The user station you operate to issue the Forced Video command Operating Forced Video Using OSUI 1. At the Selection Menu, press the and keys to highlight the channel number of the server whose video/keyboard/mouse data output you want to redirect. 2. Press Tab, and the OSUI message bar displays a switch message. ...
Page 113: Operating Forced Video Using Paragon Manager
4. Press Enter to have the data output to the assigned user port or press Esc to cancel. The Forced Video function is always performed regardless of the login status or the permissions of that logged‐in user on the assigned user station. If it is performed successfully, the following message appears on the screen of the administrator. Possible Failure Causes Several scenarios will lead to the failure of the function: • There is blockage to the selected channel because it has been accessed by another user. • Mouse/keyboard activity is detected on the assigned user station when the Forced Video command is issued. Paragon will NOT execute Forced Video in order to protect the server operation. • Multiple Video (Port‐Following Switch) function is being applied to the assigned user station. • The user station is set to Local PC mode. • No available path between the server and the user station. • The assigned user port is not attached to any user station. When the failure occurs, a failure message appears on the screen of the administrator. Operating Forced Video Using Paragon Manager You can also use Paragon Manager in a remote PC to redirect the video/keyboard/mouse output. For more information, see Paragon Manager User Guide. This user guide is available on the “User Manuals & Quick Setup Guides” CD and on Raritan’s Product Documentation webpage (http://www.raritan.com/support/productdocumentation). ...
Page 114: User Station Receiving Forced Video
To exit the Forced Video mode: 1. Press the hot key (default: Scroll Lock) twice quickly, this message appears. 2. Press F9 to log out of the system. Note: Pressing Esc will return you to the current forced video mode. Channel Association for Multiple Video “Multiple Video” (or called Port‐Following Switch) enables up to four user stations to simultaneously receive the video output of a server that has multiple video ports. In order to perform this function, the administrator must configure channel port association in Paragon Manager. See Paragon Manager User Guide for more information. This user guide is available on the “User Manuals & Quick Setup Guides” CD, or on Raritanʹs Product Documentation webpage (http://www.raritan.com/support/productdocumentation). Note: Depending on your purpose, the associated channels can also be connected to different servers and output the video data accordingly. The association setup can only be done by those listed below, but any normal user can perform the Multiple Video function once the association setup is finished. • Administrator (the Admin account) • Users with administrative privileges For more information on this operation, see Concurrent Multiple Video Outputs (on page 69). ...
Page 115: Channel Association Guidelines
Chapter 4: Operation - Administrator Functions Channel Association Guidelines This section describes the general concept for associating channels. • This function applies to both Paragon II Main and Stacking Units. • Channel ports of the same association group are all on the same Paragon II Main Unit (either with or without any Stacking Units connected). • Set the channel intended to activate other channels as the “first” channel in the association setting. • Association of two or four channel ports is permitted for most Paragon II models except P2‐UMT242, which comes with two user ports only. • The sequence of associated channels can be random. • Each channel port belongs to one association group only. • Only channel ports connected to servers are available for association. • Up to 256 association groups are allowed per Paragon II system. Limitations: The Multiple Video function is not applicable to those channels which share only one path via the tiered device, such as P2ZCIM, P2CIM‐APS2‐B or P2CIM‐AUSB‐B (for IBM BladeCenter servers). User Configuration To view the current connection status for each user and to add, delete, and edit user names and security rights, select option 2, User Configuration, from the Administration menu. ...
Page 116 User Configuration This menu displays one userʹs information in each row. There are two panels of this menu—left and right panels, as indicated by the right‐pointing arrow ( ) at the top of the menu. The fields and columns in the left panel of this menu include: • User: Your user name. This field cannot be edited. • Name: The user names assigned to all user accounts. Except for the special user name “admin,” these user names can be edited: You can type new names up to eight alphanumeric characters long (not case‐sensitive). • Group: The ID numbers of the security groups to which users are assigned. • Adm: Indicates whether any given user has administrator privileges. You can use the and keys to toggle between “Yes” and “No” (the default setting). Use the arrow keys, Tab, Shift + Tab, Page Up, and Page Down to move within this menu and its submenus. Press Enter to edit a highlighted field; it will turn green. When you finish editing a field, press Enter to save the changes or press Esc to abort changes. Press Tab or the key to move through the fields to the right panel of the menu and display usersʹ connection information. The Connection column displays which channel port (if any) each active user is currently connected to. ...
Page 117: Channel Configuration
Chapter 4: Operation - Administrator Functions You can also perform three other functions at this menu: • Add a new user by pressing the Insert key. A new default user name will be added in the end of the existing list (for example, if users “user01” through “user25” already exist and a new one is added, its default name will be “user26”); you can edit the name as desired. The maximum number of users is 127 (512 with an added memory card). • Delete a user by moving the highlight to a user name and pressing Delete. Paragon II will ask for confirmation; if you respond by pressing Y, that user account will be deleted from the system. • A user with administrator privileges can log out another connected user by highlighting a user name and pressing L. That user name will then be disconnected from the Paragon system. Channel Configuration To edit or initialize a P2CIM, change the device name, individual scan rate, device type, and group IDs associated with each server or device, select option 3, Channel Configuration, from the Administration Menu. When you save Channel Configuration changes, Paragon II will update each affected P2CIM as necessary. ...
Page 118 Channel Configuration This menu displays one channel portʹs information in each row. If the Paragon system detects a powered device on that channel port, it will display the text in that row in green; otherwise, it will display it in black. Again, there are two panels in this menu—left and right panels, indicated by the right‐pointing arrow ( ) at the top of the menu. The fields and columns on the left panel of this menu: • ChID: The channel portʹs number. • Name: The name of the device attached to that channel port. Device names are case‐sensitive and may be up to twelve alphanumeric characters long. As shown with channel port #1 in and elsewhere, you may leave a device name blank if you wish, but we do not recommend this. • Scn: Displays the deviceʹs individual scan rate (the length of time that the system pauses while scanning that channel port for those users who set their Scan Mode to “Individual” rather than “Global”). Using leading zeroes if necessary, type a two‐digit number of seconds from 01 to 24, or use the and keys to increase and decrease the current value by 1 respectively. The default setting is 03. Use the arrow keys, Tab, Shift + Tab, Page Up, and Page Down to move within this menu and its submenus. Press Enter to edit a highlighted field; it will turn green. When you finish editing a field, press Enter followed by S to save the changes, or press Esc to abort them. While the cursor is in the Device column, press Tab or key to move to the right panel of this menu and display device group information: The Group columns display which groups (if any) the device has been assigned to. ...
Page 119: Video Display Adjustment For P2-Eust
Chapter 4: Operation - Administrator Functions Video Display Adjustment for P2-EUST The P2‐EUST and P2‐EUST/C have additional capabilities for allowing adjustment of your video display. Specify skew levels for Automatic Gain Control (AGC), Red (R), Green (G), and Blue (B) to improve video quality. After switching to a channel from P2‐EUST or P2‐EUST/C, press the hot key twice quickly to activate the OSUI. The Selection menu will be displayed with a RED arrow ( ) on the left side of the name of the server you are accessing. Press the * (asterisk) key to view the skew delay settings, which appear in the bar at the base of the menu. See Video Gain Adjustment and Skew Compensation in P2‐EUST (on page 45) for additional information. Use the numeric keypad for the following operations: To select the value to change (when selected, the value appears in red): •...
Page 120: User Station Profile
User Station Profile User Station Profile To activate the User Station Profile and set the global keyboard type and video delay, select option 4, User Station Profile, from the Administration Menu. Keyboard Type The OSUI supports three types of keyboard mappings: Select either “English”—the default is U.S. English—“French,” or “German.” If you are using a non‐English keyboard, you must temporarily attach an English‐language keyboard to change the keyboard type. To set the keyboard type, use arrow keys to move the highlight to the Keyboard Type Setting field, press Enter to turn the highlight green, use any of the arrow keys to toggle the field to the correct keyboard type, and press Enter again to select it. Press S to save your changes, or press Esc and then N to exit without saving changes. You can now attach the keyboard type you selected. ...
Page 121: Video Delay
Chapter 4: Operation - Administrator Functions Video Delay If channel switching or autoscanning takes too long to sync up on Paragon II, especially when your servers are set with different resolutions, it may create a displaying issue with your monitor. At this time, set a video delay for channel port switching at your user station. If you set the video delay to any number of seconds greater than zero, Paragon II will wait until a video signal is constant for that number of seconds before passing it through to the monitor. To set video delay, use any of the arrow keys to move the highlight to the Video delay‐‐switching field, press Enter to turn the highlight green, type the desired two‐digit delay from 00 to 30 seconds (or use the and keys to increase or decrease the value by 1), and press Enter again to select it. Press S to save the changes, or press Esc and then N to exit without saving changes. The changes are applied only to your user station (the station at which the change was made). ...
Page 122: User Port Timeout
Group Settings (Access Rights) User Port Timeout Similar to the Logoff Timeout field in the System Configuration submenu (see System Configuration (on page 86) for more details), this field also sets up the amount of time in minutes the user station can remain inactive (no keyboard and mouse activity) before the logged‐in user at this user station is logged out of the Paragon II system. The difference between these two is the Logoff Timeout field controls all user stations of the system, and the User Port Timeout field controls only the one you are operating. To turn on the function, use any arrow key to move the highlight to the User Port Timeout field, press Enter to turn the highlight green, use any arrow key to toggle the field to “On,” and press Enter again to select it. To specify the amount of inactive time preferred, press to highlight the next field, press Enter to turn the highlight green, type the desired two‐digit number from 01 to 99 minutes (or use the and keys to increase or decrease the value by 1), and press Enter again to select it. Press S to save the changes, or press Esc and then N to exit without saving changes. The changes are applied only to the user port at which the changes were made. Note that the timeout setting is not assigned to the user station. The setting is assigned to the user port. Any user station can be connected to the port and will be “timed out” based on the setting. Note: If you turn on both of the Logoff Timeout and User Port Timeout functions at the same time, only the User Port Timeout function is applied to the user station(s) where the User Port Timeout is enabled. However, the Logoff Timeout setting is applied back once you turn off the User Port Timeout function at the user station(s). Group Settings (Access Rights) To assign access rights to users and security levels to servers in a Paragon system, assign users to user groups with defined rights and servers to ...
Page 123 Chapter 4: Operation - Administrator Functions User Computer groups: groups: Available Group IDs for Assignment 00 ‐‐ 99 00 ‐‐ 99 Maximum Number of Group IDs available 5 8 Users and computers communicate according to the following Group ID access rules: Group ID for users: Can access computers with group IDs: 00 00 through 99 (all computers) For IDs 01 through 09: 0x through 0x 00, 0x; and x0, x1, x2, x3, x4, x5, x6, x7, x8, and x9 For example: ...
Page 124 Group Settings (Access Rights) These user groups..can access these channel port groups: 00 00 through 99 (all servers) 0x (01 through 09) 00, 0x, and x0 through x9 For example: 01 can access 00, 01, and 10 through 19 02 can access 00, 02, and 20 through 29 ...
Page 125: Recommendations
Chapter 4: Operation - Administrator Functions Recommendations Systems Requiring High Security: We recommend assigning IDs of 10 through 99 to computers requiring high protection. This will make them less accessible than computers with IDs of 00 or 01 through 09. Main System Administrator and Assistant Administrators: Although any user may be assigned administrator privileges, we recommend the user ID “00” for the Main System Administrator, and user IDs 01 through 09 for Assistant Administrators. These IDs provide a broader scope of access. Correspondingly, we recommend that those servers that all users will need to access, such as application or document servers, be assigned to channel port group 00, and that servers needing the most security protection be assigned to channel port groups from 10 to 99. System Reboot and System Reset System Reboot and System Reset commands affect your entire Paragon configuration, that is, if you perform a System Reset on your Base Unit, the 3rd‐tier switch (or switches) will reset, then the 2nd‐tier switch (or switches) will reset, and finally the Base Unit will reset. Each switch sends a Ready‐to‐Reset report to Paragon clients (P2SC, Paragon Manager, UST‐IP, and so on) as an event log. ...
Page 126: System Reboot
System Reboot and System Reset System Reboot To reboot your Paragon II from the OSUI, select option 5, System Reboot, from the Administration Menu, and press Enter. A message in the message bar asks you to confirm the System Reboot command. You must type Y-E-S, the complete word ʹYes,ʹ and press Enter to confirm, or press Esc to cancel. A “Reset” message screen appears and remains onscreen while your system reboots. If you have multiple tiers, the reboot will take slightly longer than if you are rebooting only a single Paragon switch. ...
Page 127: System Reset
Chapter 4: Operation - Administrator Functions System Reset To reset the Device Name, Network Settings, User Profiles, System Configuration, and Channel Configuration, returning them to the original factory default values, without having to physically go to each switch to reset it, select option 6, System Reset Settings, from the Administration Menu. You can reset one, several, or all system settings in any combination. 1. On the System/Device Reset menu, press , , or Tab to move to the field you want to reset. 2. Press Enter, and then press the arrow keys to toggle between Yes and No. When finished, press Enter. 3. When finished, press the letter O on your keyboard. 4. A message in the message bar asks you to confirm the System Reset command. You must type Y-E-S, the complete word ʹYes,ʹ and press Enter to confirm, or press Esc to cancel. 5. The Paragon switch logs out all local users, disconnects all connections, and then sends a Ready‐to‐Reset report to all Paragon clients. A progress indicator appears on the message bar to indicate the current update percentage. During the database update, users are unable to operate the OSUI functions. After the reset is complete, the Paragon clients can log in again. ...
Page 128: Network Settings
Network Settings Network Settings To configure Paragon IIʹs network settings from the OSUI, select option 7, Network Settings, from the Administration Menu. • Current IP: This field allows administrators to configure the Paragon IIʹs address on the network. Use the arrow keys to scroll over to each byte and change the IP as needed. The default IP address is 192.168.0.192. • Net Mask: The net mask for the Paragon switch is set at a default value of 255.255.255.0. Reset this as necessary. • Gateway IP: This default is set to 192.168.0.1. Reconfigure as needed. • Port No: Default is 3000. • Encryption: If you enable Encryption for the network port, communications between the Paragon switch and Paragon Manager clients run from a PC are encrypted with a 128‐bit key. Default setting is Off. Note: The Ethernet port on the Paragon II is hard coded (not configurable) and supports only 10‐BaseT/Half duplex. ...
Page 129 Chapter 4: Operation - Administrator Functions • Keys (16‐field encryption key): These fields are designed to contain the hexadecimal encryption key used in encrypting network traffic. Only a valid hexadecimal number will be accepted in these fields. Default value of each field is set to 00. After saving the changes, the Paragon II will automatically reboot with the new network settings. When building a tiered system of Paragon switches, each Paragon II switch should be connected to the network with a unique IP address. In such a system, changing the network settings through a user station will change the network settings of the Paragon II switch that user station is physically connected to. For example, a P2‐UST connected to the base tier of a system will change the IP address only of that Base Unit, while a P2‐UST connected to a third tier Paragon II will change the IP address of that particular third‐tier unit. It is essential to put all matrix switches in a Paragon II system on the network, as firmware upgrades are pushed across the system through TCP/IP. ...
Page 130: Autoscan And Autoskip
Autoscan and Autoskip As an administrator, you can press F6 to turn autoscanning on and off. When autoscanning is turned on and you press Esc to leave the OSUI screen, Paragon sequentially and automatically switches from one channel port to the next, displaying each channel portʹs video for the duration of the userʹs global scan rate or the channel portʹs individual scan rate (see User Profile Customization (on page 62)), starting over at port 1 when it reaches the last channel port. In a cascaded system, when the scan reaches a channel port to which a subsidiary Paragon switch is attached, it “drops down” to the subsidiaryʹs channel ports and scans them before resuming with the higher‐level channel ports. To stay on a given channel port while Paragon is switching between channels one by one due to autocanning, you must turn off autoscanning. Press the hot key (default: Scroll Lock) twice quickly to trigger the OSUI when the desired channel is displayed and press F6 to turn off the function. The word “Scan” at the bottom of the OSUI will appear in black when autoscan is off or yellow when autoscan is on. In Paragon IIʹs default setting, autoscanning will display all channel ports (including vacant ones, which are not connected to any devices), except those occupied by servers that the user has no rights to access, that is, the servers that are not in one of the userʹs permitted groups—see the section Group Settings (Access Rights) (on page 102). To allow a user to see servers that he or she cannot otherwise access, an administrator must set “Display All Computers” to “Yes” (see the section System Configuration (on page 86)). To force the system to skip over vacant channel ports, an administrator must turn on autoskipping. After logging into Paragon II, administrators can press F7 to turn autoskipping on and off. When autoskipping is on, Paragon will automatically skip vacant channel ports during autoscanning or when a user tries to switch to such a port manually. The word “Skip” at the bottom of the OSUI will appear in black when autoskip is off or yellow when autoskip is on. Power Management An administrator can control power to connected devices directly via the Paragon II OSUI. To use the power management features of Paragon II, you will need Raritanʹs Remote Power Control Unit in one of the four models, depending on your needs: ...
Page 131: Configuring And Naming The Power Strip
PCR8 PCS12/12A series 12 0U vertical mount PCS12 PCS20/20A series 20 0U vertical mount PCS20 PCR20/20A series* 20 2U rack mount PCS20 * The corresponding device type for model PCR20/20A series in the Paragon OSUI is the “PCS20” option. A special Raritan Power CIM (P2CIM‐PWR) is available for use with this kind of power strip. Attach this CIM to the RJ45 port on the Power Strip, and then connect the power strip into an AC source. Connect the CIM to one of the channel ports on a Paragon switch. Configuring and Naming the Power Strip Activate the Paragon II OSUI by logging into the system or pressing the hot key (default: Scroll Lock) twice quickly. The new Power Strip should appear in the appropriate channel port with the name PCR8, PCS12, or PCS20, depending on the model type. The Power Strip will be treated exactly like a tiered device. 1. Press F5 to activate the Administration Menu. 2. Select option 3, “Channel Configuration,” and press Enter. 3. Select the Power Stripʹs channel port, and edit the name of the Power Strip. The appropriate model type should already be selected in the Device column. 4. Press S to save the changes. ...
Page 132 Power Management 3. Highlight the connected Power Strip and press G to enter the “Outlet Configuration” Menu. The physical outlet number corresponds to the number in the “Ch. ID” column. 4. In the “Type” column, highlight an outlet and press Enter to configure the device type: PWR: This is the default association type and refers to devices not connected to the Paragon II system (a router or a monitor). CPU: Select this type for all devices connected to the Paragon II system (including “non‐server” devices such as Paragon switches). 5. Press to highlight the name field. Then press Enter to configure the name of a device associated with that outlet. If the type is set to PWR, users will be able to change the name of the device as desired. If the type is set to CPU, the OSUI will request you to save changes (“Y/N/ESC”), and then displays a “Select Powered Device” menu. This is an alphabetized list of all devices connected to the Paragon II system, allowing the user to indicate which device is powered by the newly configured outlet. Highlight the desired device and press Enter. 6. The selected device (if any) will be automatically associated with that power outlet. The outlet name will be the name of the selected server. Press S to save the configuration. 7. Press to scroll to the next page of the configuration menu for setting security groups for a power outlet. See Group Settings (Access Rights) (on page 102) for more information on setting access rights. This allows administrators to limit who is authorized to control power to various devices. The default setting for each group on that outlet is “‐ ‐“, which means no accessibility to any user other than the Admin user. Note, once a group ID setting is changed, it can never return to the original “‐ ‐“ state. ...
Page 133: Controlling Power To An Outlet
Chapter 4: Operation - Administrator Functions Controlling Power to an Outlet The addition of a Power Strip to the Paragon II system allows administrators to control the power to devices in two ways: Control Power from the Channel/Server Selection Menu Normal Paragon II operation involves browsing the list of servers in the OSUI and pressing Enter to switch to that server. By pressing F3 instead of Enter when a server is highlighted, Paragon II will check that server for Power Strip outlet associations: • If Paragon II does not detect any associations with that server, a message indicating ”No Outlets / Access Denied” appears, and the action is cancelled. • If the server has associated power outlets, but the user is not authorized to control those outlets, a ”No Outlets / Access Denied” message appears and the action is cancelled. • If Paragon II detects that this server is associated with at least one power outlet, it will switch to that server. The OSUI will remain onscreen, displaying a list of power outlets associated with the specific server. This allows users to see the server before power is cycled to it. Four choices are offered in this menu: Power Off (X), Power On (O), Recycle Power (R), and Select All (A). If the server is powered OFF, pressing O will power ON the outlet ...
Page 134 Power Management Control Power from the Outlet Selection Menu A connected Power Strip is treated as a tiered device. The Power Strip, therefore, has its own device menu consisting of “ports” for each power outlet with which power can be controlled on a per‐outlet basis. • Navigate the Paragon II OSUI Selection Menu, select the Raritan Power Strip and press Enter. You will now be at the “Outlet Selection” menu. • A list of outlets (up to 8 per page) will appear. Outlets in green are switched ON; outlets in black are switched OFF. • Press X, O, or R to turn off, turn on, or recycle power to the outlet respectively. Type yes to confirm turning off the power if you select X or R. Get Power Strip Unit Status from the Outlet Selection Menu At any time while navigating the “Outlet Selection” Menu, pressing F11 will provide a status screen showing certain parameters of the connected power strip. These parameters vary depending on the model of the power strip, and they may include: • Average power •...
Page 135: Paragon Ii Network Port
Chapter 4: Operation - Administrator Functions Paragon II Network Port Paragon II has a network port and is designed as a network‐aware device. This network port is used to communicate with Paragon Manager administrative software, packaged with the Paragon switch (see Paragon Manager User Guide for additional information; this user guide is available on the “User Manuals & Quick Setup Guides” CD, or on Raritanʹs Product Documentation webpage (http://www.raritan.com/support/productdocumentation)). Note: The Ethernet port on the Paragon II switch is hard coded (not configurable) and supports 10‐BaseT/Half duplex only. ...
Page 136: Chapter 5 Paragon Ii And P2Zcims/Z-Cims
Chapter 5 Paragon II and P2ZCIMs/Z-CIMs In This Chapter Introduction....................116 Paragon II and P2ZCIMs ................118 Paragon II and Z‐CIMs .................123 Introduction Many CIMs, including Paragon II Z‐CIMs (P2ZCIMs) and Z‐CIMs (UKVMSPD and UKVMSC), enable access and control of multiple servers from a Paragon user station, occupying only one channel port on your Paragon switch. P2ZCIMs or Z‐CIMs are set up in a chain‐like server‐to‐server arrangement, with each P2ZCIM or Z‐CIM connected to the keyboard, video, and mouse ports of each server and linked with standard Cat 5 UTP cables. Through this chained cabling, they transmit keyboard, video, and mouse signals to the system. You can access and control any server connected in the chain via the OSUI and new servers can be added at any time without interrupting server operation. Paragon II operates using P2ZCIMs and Z‐CIMs (UKVMSPD and UKVMSC). Although all these CIMs are installed the same way, certain CIMs will not function if used in the same chain as other CIMs. ...
Page 137: P2Zcims
Chapter 5: Paragon II and P2ZCIMs/Z-CIMs P2ZCIMs • For use with the Paragon II switch • Can be used on Paragon I unit whose hardware version is HW3 (running Paragon II code) • Support PS2 (P2ZCIM‐PS2), USB (P2ZCIM‐USB) and Sun (P2ZCIM‐SUN) interfaces • Support up to 42 units in any mixed arrangement on a Cat 5 chain • Span up to 1,000 feet (304 m.) from the user station to the last P2ZCIM on a Cat 5 chain • Cannot be mixed on a Cat 5 chain with Z‐CIM (UKVMSPD or UKVMSC) • P2ZCIM‐USB can be used for either Sun USB and PC USB (controlled by a toggle switch on the back of the unit) • “L” models (e.g., P2ZCIM‐PS2L) are available, which feature longer cables 36ʺ (91 cm) for use with cable management arms Note: The easiest way to determine if the hardware version of your Paragon I unit is HW3 is to check the number of its stacking ports on the rear side. If there is only one stacking port, the hardware version is HW3. Z-CIMs (UKVMSPD and UKVMSC) • For use with Paragon I and Paragon II switches • Support PS2 interface only ...
Page 138: Paragon Ii And P2Zcims
Paragon II and P2ZCIMs Paragon II and P2ZCIMs P2ZCIM installation requires that each server be assigned a channel name as it is added to the P2ZCIM chain. Server channels are organized alphanumerically by the assigned names or the default names of P2ZCIMs—their serial numbers, rather than in the order of their placement within the P2ZCIM chain. We recommend that users assign channel names before connecting all servers to eliminate any difficulty in locating the respective channel for each server. When naming or renaming a P2ZCIM, switch to that P2ZCIM to activate it, thereby ensuring that its new name is updated in the Paragon switchʹs database. Connecting P2ZCIMs as Tiers The following diagram shows the final setup when connecting P2ZCIMs as a tier. Up to 42 P2ZCIMs can be connected in one single chain. 1 Cat 5 cable I Input 2 P2ZCIM O Output 3 Server ...
Page 139 Chapter 5: Paragon II and P2ZCIMs/Z-CIMs 4 Paragon switch (the model shown in the illustration is P2‐UMT832M) 5 P2ZCIM terminator (required for the last P2ZCIM in the chain) 6 “The last” P2ZCIM in the chain All Paragon II components must be powered ON prior to P2ZCIM tier installation. All servers in the P2ZCIM chain must be powered OFF prior to installation. When following the installation and configuration instructions below, sort the Selection Menu by channel number, not by name. Display the Selection Menu by pressing the F2 key on your keyboard and change the sorting method by pressing the F12 key. To connect a P2ZCIM as a tier 1. Connect a Cat 5 UTP cable to the channel port on the Paragon II switch reserved for the P2ZCIM chain. 2. Connect the other end of this Cat 5 UTP cable to the UTP OUT (O) port on a P2ZCIM, which will be the first P2ZCIM in the chain. 3. Connect a server to the first P2ZCIM. a. Connect the 6‐pin mini‐DIN keyboard and mouse and HD15 ...
Page 140 Paragon II and P2ZCIMs b. Use the and keys to change device type to P2‐ZCIM and press Enter—the light blue highlight will return to yellow. Press S to save the change, or press Esc to exit without saving. 7. If a more descriptive name is desired: a. Hold the Shift key and press Tab to go back to the Name field, and then press Enter—the highlight will turn light blue. b. Edit the default name and press Enter—the highlight will turn green as you begin to type. Press S to save the change, or press Esc to exit without saving. 8. Press F2 to go to the Selection Menu, select the tiered P2ZCIM device, and press Enter to validate that the second‐tier P2ZCIM is properly configured. To name the server channel on the Tiered Selection menu of P2ZCIM 1. When the OSUI is onscreen, press F5 to go to the Administration Menu. 2. Select the Channel Configuration submenu, and press Enter. ...
Page 141 Chapter 5: Paragon II and P2ZCIMs/Z-CIMs To resize the P2ZCIM Chain The size limit for a P2ZCIM chain is 42 units. If you never resize the chain, it displays 42 channels (that is, 6 pages) no matter how many P2ZCIMs are actually added in the chain. After resizing, only the number of channels you specify will be shown on the OSUI screen. Resizing the P2ZCIM chain does not change the name of the chain. It changes only the size. Next time when you add new P2ZCIMs to the chain, remember to resize it again so the new P2ZCIMs can be displayed in the OSUI. 1. At a user‐station Login screen, type admin in the User Name field and press Enter. 2. Type raritan or your new password in the Password field and press Enter. 3. If the Selection Menu is not sorted by the channel number, press F12 to toggle the sorting. 4. Press the F5 key. 5. Select the Channel Configuration submenu and press Enter. 6. Use the and or the Page Up and Page Down keys to select the P2ZCIM chain you wish to resize. 7. Press Enter and type SetPZSize-NN (NN represents the two‐digit ...
Page 142 Paragon II and P2ZCIMs To refresh a P2ZCIM chain The Refresh command resets the Communication Addresses of each P2ZCIM by reassigning all Communication Addresses sequentially. All active P2ZCIM channels will be rearranged so they are placed together in the former part of the channel list. 1. At a user‐station Login screen, type admin in the User Name field and press Enter. 2. Type raritan or your new password in the Password field and press Enter. 3. If the Selection Menu is not sorted by the channel number, press F12 to toggle the sorting. 4. Press the F5 key. 5. Select the Channel Configuration submenu and press Enter. 6. Use the and or the Page Up and Page Down keys to select the P2ZCIM chain you wish to refresh. 7. Press Enter and type RefreshPZ. 8. Press Enter again. 9. Press S to refresh the chain. ...
Page 143: P2Zcim Led Status
Chapter 5: Paragon II and P2ZCIMs/Z-CIMs individual P2ZCIM units at least one P2ZCIM must be powered ON; in P2ZCIM chains from 21 to 42 P2ZCIM units, at least 15 P2ZCIMs must be powered ON. P2ZCIM LED Status The LED on each P2ZCIM indicates its operational state: • If the LED blinks rapidly: P2ZCIM does not have a confirmed Communication Address. • If the LED is primarily off and blinks on every two (2) seconds: P2ZCIM has a confirmed Communication Address but is not switched to that Address. • If the LED is on and blinks on/off rapidly when there is keyboard/mouse traffic: CIM has a confirmed Communication Address and is switched to that Address. Note: The P2ZCIM will blink from time to time even if there is no keyboard/mouse traffic; this demonstrates that the P2ZCIM is operating normally and not locked. • If the LED is blinking on and off but at a regulated, moderate speed (that is, every half second): that P2ZCIM is acting as Manager of the chain. Paragon II and Z-CIMs Z‐CIM installation requires that servers are assigned names when added to the Z‐CIM chain. The default name of any Z‐CIM is its serial number, which is not meaningful to you. In order to name the Z‐CIM, it must be connected to a server that is powered on and to the Paragon switch to get status and name assignment. ...
Page 144: Connecting Z-Cims As Tiers
Paragon II and Z-CIMs Connecting Z-CIMs as Tiers The following diagram shows setup guidelines for connecting Z‐Series Z4200U Z‐CIMs (UKVMSPD or UKVMSC). Up to 42 Z‐CIMs can be connected in one single chain. 1 Cat 5 cable I Input 2 Z‐CIM (UKVMSPD or UKVMSC) O Output 3 Server 4 Paragon switch (the model shown in the illustration is P2‐UMT832M) 5 Z‐CIM terminator (required for the last Z‐CIM in the chain) 6 “The last” Z‐CIM in the chain ...
Page 145 Chapter 5: Paragon II and P2ZCIMs/Z-CIMs All Paragon II components must be powered ON prior to Z‐CIM tier installation. All servers and components in the Z‐CIM chain must be powered OFF prior to installation. When following the installation and configuration instructions below, sort the Selection Menu by channel number, not by name. Display the menu by pressing the F2 key on your keyboard and change the sorting method by pressing the F12 key. To connect a Z-CIM as a tier 1. Connect a Cat 5 UTP cable to the channel port on the Paragon II switch reserved for the Z‐CIM chain. 2. Connect the other end of this Cat 5 UTP cable to the UTP OUT port on a Z‐CIM, which will be the first Z‐CIM in the chain. 3. Connect a server to the first Z‐CIM. a. Connect the 6‐pin mini‐DIN keyboard and mouse and HD15 video connectors on the CIM to server’s keyboard, mouse, and video ports. b. Place the CIM Terminator in the CIM’s UTP IN port. Power ON the server. To perform Z-CIM channel configuration 1.
Page 146 Paragon II and Z-CIMs a. Hold the Shift key and press Tab to go back to the Name field, and then press Enter—the highlight will turn light blue. b. Edit the default name and press Enter—the highlight will turn green as you begin to type. Press S to save the change, or press Esc to exit without saving. 8. Press F2 to go to the Selection Menu, select the tiered Z‐CIM device, and press Enter to validate that the second‐tier Z‐CIM is properly configured. To name the server channel on the Tiered Selection Menu of Z-CIM 1. When the OSUI is on screen, press F5 to go to the Administration Menu. 2. Select the Channel Configuration submenu, and press Enter. 3. Select the Z‐CIM device channel. 4. Press G to bring up a Channel Configuration submenu for the CIM chain. 5. Use the and keys to highlight the Name field of the server just ...
Page 147: Using A Ukvmspd Z-Cim With A Local Pc
Chapter 5: Paragon II and P2ZCIMs/Z-CIMs 5. Power ON the server. 6. (Optional) Connect a local user console to the UKVMSC Z‐CIM. 7. Name the newly added server by repeating the steps described in the previous section—To name the server channel on the Tiered Selection Menu of Z‐CIM. 8. Press F2 to return to the Selection Menu. Go to the Z‐CIM channel to verify both of the name change and the server operation are OK. Repeat the steps in the above sections for each server to be added to the chain. Name and test each server as it is added. Follow the steps below to add the rest of the Z‐CIM chain of servers. • Insert a new Z‐CIM in the chain • Name the server channel on the tiered Selection Menu of Z‐CIM Important: Please follow these guidelines to ensure that there is enough power to support all Z‐CIMs in a chain. For Paragon I UMT242, 442, 832 and 1664 with hardware III and Paragon II firmware, and Paragon II switches, in chains up to 20 individual Z‐CIM units at least one Z‐CIM must be powered ON; in Z‐CIMs chains from 21 to 42 Z‐CIM units, at least 15 Z‐CIMs must be powered ON. At least 75% of UKVMSPD Z‐CIMs in the chain must be powered ON in order for the chain to be recognized by the Paragon switch. Using a UKVMSPD Z-CIM with a Local PC To grant specific access to a local PC from a certain user station and to ...
Page 148 Paragon II and Z-CIMs 5. Plug the UKVMSPD HD15 strand into the HD15 VGA video port of the server you want to access. Plug the purple 6‐pin mini‐DIN keyboard strand into the server’s 6‐pin mini‐DIN keyboard port. Plug the light green 6‐pin mini‐DIN strand into the server’s 6‐pin mini‐DIN mouse port. 6. Plug in and power ON the server. If the UKVMSPD is installed and operating properly, the UKVMSPD green LED will start blinking (once per second when the UKVMSPD is idle, more quickly while data passes in either direction). Once this installation is finished, activate Local PC Mode on the user station: 1. Log in at the attached user station. 2. Press the hot key (default: Scroll Lock) twice rapidly to activate the OSUI. 3. Press F4 to activate the User Profile menu. 4. Use Tab or the and keys to move the highlight to the Local PC field. 5. Press Enter. The Local PC field will turn green. 6. Use the and to toggle the value of the field to “On.” 7. Press Enter. The highlight will turn yellow. 8. Press S to save the change. If you do not wish to save changes, press ...
Page 149 Chapter 5: Paragon II and P2ZCIMs/Z-CIMs Once Local PC Mode is turned on, you can access the dedicated local PC server from this user station by pressing the Home key twice rapidly while viewing the OSUI. The user station will immediately switch you to the local PC. To return to the Paragon system and its switched servers, activate the OSUI by pressing the hot key twice (default: Scroll Lock), and access any of the listed servers from the Selection Menu. ...
Page 150: Chapter 6 Managing Ibm Bladecenter Servers
Chapter 6 Managing IBM BladeCenter Servers Paragon II provides access to the blade servers installed in one IBM BladeCenter® chassis via a single CIM plugged into the chassisʹ Management Module (MM) or Advanced Management Module (AMM). The CIM specific to IBM BladeCenter is either P2CIM‐APS2‐B for PS/2 keyboard and mouse, or P2CIM‐AUSB‐B for USB keyboard and mouse. The following BladeCenter systems are supported: • BladeCenter E (also referred to as model 8677) With MM model 48P7055 With AMM model 25R5778 • BladeCenter H (also referred to as model 8852) With AMM model 25R5778 IBM has updated the BladeCenter frequently since its original release. For best results, please use P2CIM‐AUSB‐B firmware level 0A6 or later. Paragon treats one IBM BladeCenter chassis as one tiered device similar to the Z‐CIM chain. However, Paragon II does not detect and display the real‐time blade server status in the OSUI as it does to the Z‐CIM chain. You must issue a refresh command for the following scenarios: • When connecting the IBM BladeCenter to the Paragon system for the first time • When there are changes made to BladeCenterʹs hardware configuration, such as unplugging, plugging or swapping any blade server(s), or powering off any blade server(s) The refresh command updates the OSUI channel information of blade servers to reflect current blade server status. In This Chapter Refreshing Channel Status ................131 Renaming a BladeCenter Chassis ..............132 Renaming a Blade Server................133 ...
Page 151: Refreshing Channel Status
Chapter 6: Managing IBM BladeCenter Servers Refreshing Channel Status 1. Log in to the Paragon system as an administrator. Type admin in the User Name field, press Enter, and type the password (default: raritan, all lowercase) in the Password field. 2. Make sure the Selection Menu is sorted by the channel number. If not, press F12 to toggle the sorting. 3. Press F5 to enter the Administration Menu. 4. Select the Channel Configuration submenu, and press Enter. 5. Use the and or the Page Up and Page Down keys to select the channel port to which the IBM BladeCenter is connected, and press Enter. 6. Type RefreshBLD-I. Please note this is a case‐sensitive command. 7. Press Enter. 8. Press S to refresh the BladeCenter channel status. It takes 2 to 4 minutes to complete refreshing, depending on your blade serversʹ installation status. ...
Page 152: Renaming A Bladecenter Chassis
Renaming a BladeCenter Chassis 9. Press F2 to go to the Selection Menu and verify that blade server status has been updated. Green channels indicate that there is a blade server installed and it is powered on; black channels indicate that either there is no blade server installed or the installed blade server is powered off. If any user is accessing a blade server while the refresh command is issued by the administrator, two results are possible: • If the keyboard/mouse activity has been idle for more than 200ms, the user(s) will be disconnected and the refresh command is executed. • Otherwise, the refresh command is NOT executed and the message “BladeServer is occupied” will be displayed in the message bar. Renaming a BladeCenter Chassis By default, IBM BladeCenter is named “IBM‐Blade” in the Selection Menu of Paragon system. 1. When the OSUI is onscreen, press F5 to go to the Administration Menu. 2. Select the Channel Configuration submenu, and press Enter. ...
Page 153: Renaming A Blade Server
Chapter 6: Managing IBM BladeCenter Servers 3. Select the IBM BladeCenterʹs channel and press Enter. The highlight turns light blue. 4. Type the desired server name—the highlight will turn green as you begin to type. 5. Press Enter—the highlight will turn yellow. 6. Press S to save the new name. 7. Press F2 to verify the new name in the Selection Menu. Renaming a Blade Server By default, each of IBM BladeCenter server is named “IBM‐Blade01,” “IBM‐Blade02,” and so on. 1. When the OSUI is onscreen, press F5 to go to the Administration Menu. 2. Select the Channel Configuration submenu, and press Enter. 3. Select the IBM BladeCenterʹs channel. 4. Press G to bring up a Channel Configuration menu for the IBM BladeCenter servers. ...
Page 154 Renaming a Blade Server 5. Use the and keys to highlight the Name field of any server whose name you want to edit. 6. Press Enter—the highlight will turn light blue. 7. Type the desired server name—the highlight will turn green as you begin to type. 8. Press Enter—the highlight will turn yellow. 9. Repeat steps 5 through 8 if you want to edit other serversʹ names. 10. Press S to save the new name(s). 11. Press F2 to go to the Selection Menu and verify whether the server names are changed. ...
Page 155: Chapter 7 Configurations
Chapter 7 Configurations The aim of the Main Units (such as P2‐UMT1664“M”) and Stacking Units (such as P2‐UMT1664“S”) is to allow users to build the Paragon system to include additional channel ports and the tiers up to three levels, so that more users and channels can be configured to control more servers. The system does not need to be over‐redundant in accessibility, but administrators should consider the configurations illustrated in this chapter. In more complex stacked Paragon setups, there are important guidelines about legal and illegal device configurations that must be followed to ensure functionality. In This Chapter Principles of Re‐Connection .................135 Tiered Configurations ...................136 Stacked Configurations.................139 Non‐Standard Tiered Configurations ............143 Loop‐Back Configuration ................148 P2‐HubPac Configuration and Multiple Video .........149 Principles of Re-Connection When a change is made to a connected tiered device, we recommended that power to all devices is recycled, if possible. This includes the device where the connection is changed directly, as well as all devices below it in the system architecture. The sequence of power recycling should start from the HIGHEST tiered device and end with the Base Unit (first‐tier Paragon switch). For example, in a “Single Base” configuration (only one Paragon switch as the Base Unit), if a connection change is made at a device on the third tier, the sequence of power recycling should be as follows: • The third‐tier device with the changed connection •...
Page 156: Tiered Configurations
Tiered Configurations Standard Tiered Configurations Common Guidelines for Tiering Configuration • Only Paragon I with hardware version HW3 (running Paragon II code) or Paragon II Main Unit can serve as Base Units (first tier). • The version of Base Unit(s), both hardware and firmware, must always be later than or at least equal to the version of other tiered devices. • A maximum of three tiers, including the Base Unit, is permitted. • Devices that are not Paragon switches but come with two or more channel ports, such as Raritan MasterConsole, CompuSwitch, Z‐CIM, or P2ZCIM, are treated as tiered devices. These devices cannot act as Base Units in a Paragon II system and can be connected only to a Base Unit or to a second‐tier Paragon switch. Note: The easiest way to determine if the hardware version of your Paragon I unit is HW3 is to check the number of its stacking ports on the rear side. If there is only one stacking port, the hardware version is HW3. Guidelines for Single Base Configuration A single base configuration could be two‐tier or three‐tier configuration. It is composed of one Paragon Main Unit, serving as the Base Unit, and second‐tier or even third‐tier device(s). Initialization • After all devices have been connected, power on the devices from UPPER tier to lower tier. For example, power on the second‐tier ...
Page 157 Chapter 7: Configurations The operation is the same for tiered devices that are not Paragon switches. A Tiered devices that are not Paragon switches B Paragon switches (UMT‐x) C User stations Guidelines for Multiple Base Configuration A multiple base configuration could be two‐tier or three‐tier configuration. It is composed of more than one Paragon Main Unit, serving as Base Units, and second‐tier or even third‐tier devices. Initialization • After all devices have been connected, power on the devices from UPPER tier to lower tier. For example, power on the second‐tier device(s) first and then the Base Units in a two‐tier configuration. • After initialization, each tiered device has an updated database. Guidelines for changing connections of tiered devices: Example A: Relocating a third‐tier device with multiple second‐tier connections (refer to red line in the diagram): 1. Disconnect some or all of the user ports on an third‐tier unit (UMT‐3A) that connect to the channel ports of second‐tier units (UMT‐2A and UMT‐2C) and re‐connect the user ports to the channel ports of another second‐tier unit (UMT‐2B). ...
Page 158 Tiered Configurations 2. Recycle the power of all impacted devices. This is recommended to build a clean database for Paragon switches. Sequence of recycling power is from the HIGHEST tier (third tier) to the Base Unit. In our example: UMT‐3A UMT‐2A UMT‐2B UMT‐2C UMT‐ 1A UMT‐1B. Example B: Relocating a second‐tier device with multiple base connections (refer to blue line in the diagram): 1. Disconnect some or all of the user ports on a tiered device (UMT‐2C) that connect to the channel ports of a Base Unit (UMT‐1A) and re‐connect those user ports to another Base Unit (UMT‐1B). 2. Recycle the power of impacted devices. This is recommended to build a clean database for Paragon switches. Sequence of recycling power is from the HIGHEST tier (second tier) to the Base Unit. In our example: UMT‐2C UMT‐1A UMT‐1B. The operation is the same for tiered devices that are not Paragon switches. Red color Example A Blue color Example B ...
Page 159: Stacked Configurations
Chapter 7: Configurations Stacked Configurations Definition of Stacked Configuration: • The Paragon II Stacking Unit expands the number of available channel ports in a single switching unit. It does not add user ports. P2‐UMT1664S has four 68‐pin expansion ports. Two are input ports and two are output ports. P2‐UMT832S has only one 68‐pin expansion input port and one output port. • The Paragon II Main Unit comes with both of user ports and channel ports. It has a database to store information such as system configuration, user profiles, channel configuration, and so on. P2‐UMT1664M has two 68‐pin expansion ports, and P2‐UMT832M has one 68‐pin expansion port. These represent input ports. • One or more Paragon II Stacking Units connect to a Paragon II Main Unit through stacking cables in a daisy chain connection—that is, the expansion port of a P2‐UMT832M connects to the expansion output port of a P2‐UMT832S, and the expansion input port of this P2‐UMT832S connects to the expansion output port of another P2‐UMT832S to form a daisy chain. • The Main Unit can be a Base Unit or a second‐tier or third‐tier device. The Stacking Unit that connects to a Main Unit becomes an automatic extension of the Main Unit. System Constraints: • The Base Unit should be a P2‐UMT1664M / P2‐UMT832M Main Unit. • The Base Unitʹs hardware and firmware versions must always be the latest released version of Paragon II product in a closed configuration system. ...
Page 160: Standard Stacked Configurations
Stacked Configurations • Up to three P2‐UMT832S units (Stacking Units) can be connected to one P2‐UMT832M unit (Main Unit). • Only one P2‐UMT1664S unit (Stacking Unit) can be connected to one P2‐1664M unit (Main Unit). • A maximum of 128 channel ports (Main Unit + Stacking Units) is permitted. When a P2‐UMT1664M unit acts as the Main Unit, only one P2‐UMT1664S Stacking Unit can be in daisy chain with it. When a P2‐UMT832M unit acts as the Main Unit, up to three P2‐UMT832S Stacking Units can be in the daisy chain. • You cannot mix unlike configurations of Main Units and Stacking Units. For example, you cannot use a P2‐UMT832S Stacking Unit with a UMT1664 Main Unit and vice versa. • These cannot be used as Stacking Units: P2‐UMT1664M, P2‐UMT832M, UMT1664, UMT832 (Paragon I with hardware version HW3). Important: Never power off a Stacking Unit when it is still CONNECTED to a Main Unit. Doing so will cause the channel color display in the OSUI Selection Menu to become abnormal. To power off the Stacking Unit, you must disconnect it from the Main Unit first. See Important Note about Powering Off the Stacking Unit (on page 36) for additional information. Standard Stacked Configurations This section shows both of supported and unsupported connection configurations. In the diagrams of this section, two letters “I” and “O” represent the following meanings: I Input O Output Single Base with Stacking Example A: Non‐blocked System—P2‐UMT1664M ...
Page 161 Chapter 7: Configurations Example B: Non‐blocked System—P2‐UMT832M Standard configuration—any user can access any channel port in the system. Example C: P2‐UMT1664M—Stacked and Tiered Standard configuration—any user can access any channel port in the system. Example D: P2‐UMT832M—Stacked and Tiered Standard configuration—any user can access any channel port in the system. ...
Page 162 Stacked Configurations Example E: Illegal Configuration Illegal configurations are those that are not currently supported by Paragon II. Example F: Illegal Configuration Example G: Illegal Configuration Example H: Illegal Configuration ...
Page 163: Non-Standard Tiered Configurations
Chapter 7: Configurations Non-Standard Tiered Configurations Guidelines for Existing Firmware Versions Non‐Standard tiered configurations are those configurations supported by Paragon II, but require special procedure in order to function properly. These include: • Triangle Configuration • Single Diamond Configuration • Redundant Configuration Recovery: • After any re‐connection subsequent to the Non‐Standard tiered configuration, all Paragon switches should undergo a FUNC reset to clear the database. See ʺReset Unitʺ under Paragon II Front Panel Display and Controls (on page 16) for more information on clearing the database. This procedure should be performed starting from the third‐tier device down to the Base Unit. • Whenever a third‐tier Paragon switch is replaced, all of the second‐tier Paragon switches and Base Units should undergo a FUNC reset. • Whenever a second‐tier Paragon switch is replaced, all of the Base Units should undergo a FUNC reset. • Whenever a base‐tier Paragon switch (Base Unit) is replaced, only the new Paragon switch should undergo a FUNC reset. Triangle Configuration The following procedure must be followed to ensure this configuration ...
Page 164 Non-Standard Tiered Configurations Diamond Configurations Single diamond configuration: A user configured on the second tier and connected to UMT‐2A has access only to UMT‐3A, while a user connected to UMT‐2B can access both UMT‐3A and UMT‐3B. The Base Unit (UMT‐1) administrator has access to all Paragon switches in the single diamond configuration. The following procedure must be followed to ensure this configuration functions properly: After re‐connection, all Paragon switches should undergo a FUNC reset to clear the database. See ʺReset Unitʺ under Paragon II Front Panel Display and Controls (on page 16) for more information on clearing the database. This procedure should be performed starting from the third‐tier device down to the Base Unit. Execute the FUNC reset in the following order: UMT‐3A UMT‐2A UMT‐2B UMT‐1. ...
Page 165 Chapter 7: Configurations Double diamond configuration Officially, the Double Diamond configuration is NOT a Raritan‐approved solution if Stacking Units or P2‐HubPac is included in the configuration. Therefore, it is highly recommended to avoid this configuration especially when using Paragon II Stacking Units or P2‐HubPac. Redundant Configuration These configurations are simply more complex configurations, and might be used to ensure redundancy; every Base Unit is configured to another, in case of individual system failure. The procedure outlined below must be followed to ensure this configuration functions properly: After installation, all Paragon switches should undergo a FUNC reset to clear the database. See ʺReset Unitʺ under Paragon II Front Panel Display and Controls (on page 16) for more information on clearing the database. This procedure should be performed starting from the third‐tier device down to the Base Unit. Execute the FUNC reset in the following order: UMT‐3A UMT‐3B UMT‐2A UMT‐2B UMT‐1A UMT‐1B. Whenever a third‐tier Paragon switch is replaced, all of the second‐tier Paragon switches and Base Units should undergo a FUNC reset. Whenever a second‐tier Paragon switch is replaced, all of the Base Units should undergo a FUNC reset. ...
Page 166 Non-Standard Tiered Configurations Whenever a base‐tier Paragon switch (Base Unit) is replaced, only the new Paragon switch should undergo a FUNC reset. ...
Page 167 Chapter 7: Configurations In order to make a redundant configuration system operate more efficiently, the following connection scheme between tiers is recommended: • Assume there are two Paragon Base Units: UMT‐1A and UMT‐1B • Assume there are three second‐tier Paragon switches: UMT‐2A, UMT‐2B, and UMT‐2C • Channel connection of UMT‐1A Channel ports 3*N+1 (1, 4, 7….) connect to UMT‐2A user ports sequentially, starting from user port 1 Channel ports 3*N+2 (2, 5, 8….) connect to UMT‐2B user ports sequentially, starting from user port 1 Channel ports 3*N (3, 6, 9….) connect to UMT‐2C user ports sequentially, starting from user port 1 • Channel connection of UMT‐1B Channel ports 3*N+1 (1, 4, 7….) connect to UMT‐2A user ports sequentially, starting from the available user port. Channel ports 3*N+2 (2, 5, 8….) connect to UMT‐2B user ports sequentially, starting from the available user port. Channel ports 3*N (3, 6, 9….) connect to UMT‐2C user port sequentially, starting from the available user port. ...
Page 168: Loop-Back Configuration
Loop-Back Configuration Loop-Back Configuration This dead‐loop setup will cause server database conflict and should therefore never be used. ...
Page 169: P2-Hubpac Configuration And Multiple Video
Chapter 7: Configurations P2-HubPac Configuration and Multiple Video Read this section if performing the Multiple Video function in a Paragon II system in which the P2‐HubPac is installed. Configuration for Multiple Video In order to perform the Multiple Video function in a system involving the P2‐HubPac, each ʺswitch portʺ of the same five‐port cluster of the P2‐HubPac must be attached to a Paragon switch connected to a DIFFERENT Base Unit. In other words, the Paragon switches connected to the same cluster cannot share the same Paragon Base Unit. This diagram indicates the four switch ports on a five‐port cluster. The switch ports are marked as x‐1, x‐2, x‐3 and x‐4 respectively (x represents the cluster number). ...
Page 170 P2-HubPac Configuration and Multiple Video In the following illustrations, the Paragon Base Units are UMT‐1A, UMT‐1B, UMT‐1C and UMT‐1D. You can connect the HubPacʹs switch ports either to the Base Units or to the “Stacking Units” attached with these Base Units. The Multiple Video function works properly in such a configuration. ...
Page 171 Chapter 7: Configurations —OR— You may connect the switch ports to the tiered Paragon switches of different Base Units. The Multiple Video function remains workable in this configuration. ...
Page 172 P2-HubPac Configuration and Multiple Video The following diagram illustrates a P2‐HubPac configuration in which regular channel access will work properly but the Multiple Video function will fail. To use the Multiple Video feature properly, do not connect the P2‐HubPac to the Paragon Base Unit and its tiered Paragon switches. ...
Page 173: Chapter 8 Firmware Upgrade
General Update Procedure ................153 Failsafe Upgrade Feature................156 P2‐HubPac Upgrade Operation..............163 General Update Procedure Procedures for firmware upgrade of the Paragon II Main Unit, Stacking Unit, and user stations (P2‐UST, P2‐EUST or P2‐EUST/C) all include these major steps. STEP 1: Download the latest firmware and release notes STEP 2: Establish a connection between the device and the PC running Paragon Update STEP 3: (Optional) Verify the stacking‐related configuration STEP 4: Launch the Paragon Update utility STEP 1: Download the latest firmware and release notes 1. Use your browser to visit Raritanʹs Firmware Upgrades webpage (http://www.raritan.com/support/firmwareupgrades). 2. Click Paragon II to locate the latest firmware version for the device you want to upgrade. 3. Click that firmware. 4. Click START DOWNLOAD. 5. Click Save and specify the location to save the file. 6. After the download completes, unzip the downloaded file. The extracted files include the newest Paragon Update utility, .hex files, and so on. The .hex file is a firmware file. ...
Page 174 General Update Procedure 7. (Optional) For some versions, such as version 4.2, the associated release notes are not covered in the downloaded firmware file, so locate the release notes and download it by repeating the above steps 4 to 6. 8. Read the release notes for any necessary information. STEP 2: Establish a connection between the device and the PC running Paragon Update The device intended to upgrade must be connected to the PC that will run the Paragon Update utility. There are two types of connections depending on your device. • Network: If your device comes with a LAN port, such as Paragon II Main Unit, upgrade it by connecting it to the network and assigning an IP address to it. However, for Paragon II Stacking Unit, it must be upgraded by connecting to the Main Unit which is connected to the network. • RS‐232 Cable: For those devices without the network port, such as user stations, this is the only method to upgrade them. Connect the device to one of the serial ports of the PC that runs the Paragon Update utility via the RS‐232 cable. Note: One DB9 male‐to‐female serial (RS‐232) cable is shipped with the user station. It is a direct cable that can be used to upgrade the firmware with TXD, RXD and GND signals. ...
Page 175 Chapter 8: Firmware Upgrade STEP 3: (Optional) Verify the stacking-related configuration This step is necessary when any Stacking Unit is connected to the Main Unit and the firmware upgrade of Stacking Units is also desired. For regular firmware upgrade which does not involve the boot loader or failsafe feature, Paragon allows you to update the Main Unit and “ALL” Stacking Units that are connected to it in one single operation. Before upgrading the Stacking Units, ensure these requirements are met. • The Stacking Units are properly connected to the Main Unit and powered on. • The “Stacking Support” setting in the Main Unit corresponds to the number of connected Stacking Units—that is, if there are three Stacking Units connected to the Main Unit, set the setting to 3. See the “Stacking Support” section under Paragon II Front Panel Display and Controls (on page 16) for additional information. • The value of the “Set Stack ID” setting in every connected Stacking Unit is unique: 1 up to 3. See Installing the Paragon P2‐UMT832S Stacking Unit (on page 35) for additional information. Note: For “special” firmware upgrade involving the boot loader or failsafe feature, only one Stacking Unit is allowed to be connected to the Main Unit at one time. See the Stacking Units (on page 159) section of Failsafe Upgrade Feature (on page 156) for more information. STEP 4: Launch the Paragon Update utility Specify the device(s) to upgrade and the appropriate firmware in the ...
Page 176: Failsafe Upgrade Feature
Failsafe Upgrade Feature 5. Click Send To Paragon. 6. Click Yes. Then the utility starts to upgrade the selected device. If the device is a Main Unit, the Main Unit and every Stacking Unit (if any) connected to it are upgraded at one time. For more details of the Paragon Update utility, see Paragon Manager User Guide, which is available on the “User Manuals & Quick Setup Guides” CD or on Raritanʹs Product Documentation webpage (http://www.raritan.com/support/productdocumentation). Note: Usually the .hex file for updating the firmware of both the Main and Stacking Units is the one whose name is “P2‐xxx” (xxx represents the version) unless you are updating these units for obtaining failsafe upgrade feature or it is an update failure case for the Stacking Unit. If so, see later sections in this chapter for the appropriate .hex file. Failsafe Upgrade Feature In the past, whenever a firmware update failure occurred on the Paragon II Main Unit, Stacking Unit or a P2‐UST user station, a return to Raritan is required for function restoration. Now Raritan provides the FAILSAFE upgrade capability, which enables you to restore its function back to normal by yourself when any update failure occurs. The versions of firmware and/or boot loader required for different devices to support the failsafe upgrade feature...
Page 177: Main Units
STEP 3: Upgrade the firmware code Important: During the boot loader upgrade process, the Main Unitʹs settings are not accessible. Therefore, please note down your Main Unitʹs IP address before starting the boot loader upgrade. STEP 1: Remove all Stacking Units 1. Disconnect any Stacking Unit(s) from the Main Unit. 2. Set the Main Unitʹs stacking support to “0.” See the “Stacking Support” section under Paragon II Front Panel Display and Controls (on page 16) for additional information. 3. The Main Unit restarts itself. STEP 2: Upgrade the boot loader Although you may upgrade the Main Unit through TCP/IP, it is highly recommended to upgrade the boot loader by connecting the cross‐over network cable between the Main Unit and the PC with Paragon Update to avoid any potential risk. 1. Download the appropriate firmware version from Raritanʹs website. See STEP 1: Download the Latest Firmware and Release Notes under General Update Procedure (on page 153) for details. 2. Launch the Paragon Update utility: select “R‐P2BL‐0C4.hex” as the firmware update file, and click the “Send To Paragon” button. See Paragon Manager User Guide for detailed operation. 3. Wait until the upgrade process finishes. Important: Interrupting the boot‐loader upgrade process could result in permanent damage to the system. ...
Page 178 Failsafe Upgrade Feature 4. When the update completes, a message “Device Update Successful” appears on the PCʹs monitor. The Main Unitʹs LCD panel displays the following message, which indicates the boot loader is upgraded successfully. STEP 3: Upgrade the firmware code Follow the procedures described in General Update Procedure (on page 153) to upgrade the Main Unit with the latest firmware whose name is “P2‐xxx.hex” (xxx represents the version). To verify the firmware version Use the Function Menu on the Front Panel to check the firmware version. See Paragon II Front Panel Display and Controls (on page 16) for more information. To recover Main Units after upgrade failure When any upgrade failure takes place, you can simply return the function back to normal with the Main Unitʹs failsafe capability. 1. Check the Front Panel LCD display to see whether the Main Unit enters the boot loader mode as shown below: If not, press and hold and on the Front Panel of the Main Unit simultaneously, and power cycle the Main Unit at the same time. This ...
Page 179: Stacking Units
Chapter 8: Firmware Upgrade Stacking Units To update Stacking Units for Failsafe Upgrade feature If the boot loader version of your Stacking Unit is earlier than 0C5, it does not have the failsafe capability, and you must upgrade it if the failsafe feature is desired. The upgrade of the Stacking Unit for failsafe capability requires these requisites: • Keep only one Stacking Unit connected to the Main Unit at one time. • The Main Unit must be implemented with Paragon II 4.2 firmware or later as detailed below. Firmware compartment Version Boot loader 0C4 or later Firmware code 3E5 or later The major upgrade procedures may vary depending on the situation of your devices. For example, if the boot loader version of your Main Unit is already 0C4 and the firmware version is 3E5, you can skip STEP 1 below. STEP 1: Update the Main Unitʹs boot loader to 0C4 and firmware to 3E5 or later STEP 2: Keep only one Stacking Unit connected STEP 3: Update the Stacking Unitʹs Firmware ...
Page 180 Failsafe Upgrade Feature STEP 1: Update the Main Unit's boot loader to 0C4 and firmware to 3E5 or later There are two types of scenarios: • The boot loader version of the Main Unit is earlier than 0C4—you must upgrade its boot loader to 0C4 or later. See Updating Main Units for Failsafe Upgrade Feature in Main Units (on page 157) for details. • The boot loader version of the Main Unit is 0C4 or later, but its firmware code is earlier than 3E5—download the firmware of version 4.2 or later, and upgrade it by following the procedure described in General Update Procedure (on page 153). The firmware file to choose is P2‐xxx.hex (xxx represents the version). STEP 2: Keep only one Stacking Unit connected To upgrade the Stacking Unit for obtaining the failsafe capability, only one unit is allowed to connect to the Main Unit at one time. If there are ...
Page 181 Chapter 8: Firmware Upgrade Important: Do NOT interrupt the upgrade process. Otherwise it results in permanent damages. 3. Stacking Unit automatically restarts itself after the update completes. To verify the firmware version Use the Function Menu on the Front Panel to check the firmware version. See Paragon II Front Panel Display and Controls (on page 16) for more information. To recover Stacking Units after upgrade failure If a Stacking Unit encounters the update failure, with its failsafe capability, you can restore the Stacking Unitʹs function by yourself. 1. Make sure only one Stacking Unit (the one that encounters the update failure) is connected to the Main Unit. If not, see STEP 2 in the previous section ʺUpdating Stacking Units for Failsafe Upgrade Featureʺ for instructions. 2. Check the Front Panel LCD display on the Stacking Unit to see whether it enters the boot loader mode as shown below: If not, press and hold FUNC and ESC on the Front Panel of the Stacking Unit simultaneously, and power cycle the Stacking Unit at the same time. This forces it to enter the boot loader mode. 3. Follow the steps outlined in General Update Procedure (on page 153) to upgrade your Stacking Unit, but you must choose “R‐P2SBL‐0C5.hex” as the firmware file. ...
Page 182: User Stations
Failsafe Upgrade Feature User Stations The failsafe capability is a standard feature of P2‐EUST and P2‐EUST/C. P2‐UST with firmware version earlier than 1F9 does not have this feature. For an older P2‐UST, you can upgrade its firmware to get the failsafe feature. To update user stations for Failsafe Upgrade feature (P2-UST Only) The procedures are the same as those outlined in General Update Procedure (on page 153). Note that the filename for upgrading the P2‐UST user station for failsafe capability is “V5_1F9.hex” or later. To verify the firmware version At the upgraded user station: 1. Activate the Paragon OSUI by pressing the hot key (default: Scroll Lock) twice quickly. 2. Press F8 to display the user stationʹs version information. To recover user stations after upgrade failure As long as your user station has the failsafe capability, you can restore its ...
Page 183: P2-Hubpac Upgrade Operation
P2-HubPac Upgrade Operation In order to upgrade your P2‐HubPac, it must be running at version 0C6 or later. To upgrade it, you must obtain a USB‐to‐RS485 cable (model: P2‐IAPCIM) from Raritan. If you don’t have the cable, please contact Raritan Technical Support. A special USB‐to‐RS485 driver is also needed and can be obtained from Raritan Technical Support. Different from other Paragon II devices, the firmware upgrade of the HubPac requires the same upgrade operation to be performed 8 times on the same HubPac device. This is because the HubPac contains 8 five‐port clusters and each cluster needs to be upgraded one after another. The following diagram illustrates a five‐port cluster, where x indicates the cluster number. Firmware upgrade of the HubPac covers these major steps: STEP 1: Get the latest firmware, driver and release notes STEP 2: Connect one cluster of the HubPac to the PC STEP 3: Install the USB‐to‐RS485 driver on the PC STEP 4: Launch the Paragon Update utility (version 2.4.4 or later) STEP 5: Repeat STEP 2 and STEP 4 for the other clusters STEP 1: Get the latest firmware, driver and release notes 1. Visit Raritan’s Firmware Upgrades webpage (http://www.raritan.com/support/firmwareupgrades). 2. Locate and download P2‐HubPac’s firmware and associated release notes. The download procedure is similar to the procedure described in the section titled STEP 1: Download the Latest Firmware and Release Notes (see ʺGeneral Update Procedureʺ on page 153) earlier in this chapter. Therefore, you can refer to that section for details. ...
Page 184 P2-HubPac Upgrade Operation 3. Obtain the USB‐to‐RS485 driver from Raritan Technical Support. STEP 2: Connect one cluster of the HubPac to the PC Now you can connect the HubPac, through the USB‐to‐RS485 cable, to the PC that is used to upgrade the HubPac. 1. Connect the USB connector of the USB‐to‐RS485 cable to one USB port of the PC. 2. Connect one CAT5 UTP cable to the RS232 (RS485) connector of the USB‐to‐RS485 cable. ...
Page 185 Chapter 8: Firmware Upgrade 3. Connect the other end of the same CAT5 UTP cable to the server connection port of one cluster on the HubPac. The server connection port is the leftmost port on a cluster, and it is marked as x IN, where x is the cluster number. Note: Raritan strongly recommends that you disconnect all Paragon switches from the HubPac to avoid any improper transmission of signals from Paragon switches during the firmware upgrade. ...
Page 186 P2-HubPac Upgrade Operation STEP 3: Install the USB-to-RS485 driver on the PC The USB‐to‐RS485 cable connects the HubPac and the PC that is used to upgrade the HubPac. Prior to the upgrade, install the USB‐to‐RS485 driver obtained from Raritan Technical Support on the PC. This driver is supported in both of Windows XP and 2000. Driver installation The Windows operating system (Windows XP or 2000) automatically detects the connected USB‐to‐RS485 cable, and the Found New Hardware Wizard dialog appears. 1. Select ʺYes, this time onlyʺ and click Next. ...
Page 187 Chapter 8: Firmware Upgrade 2. Select ʺInstall from a list of specific location (Advanced)ʺ and click Next. 3. Select ʺSearch for the best driver in their locations.ʺ 4. Select ʺInclude this location in the searchʺ and click Browse to navigate to the location where the USB‐to‐RS485 driver files are stored. Ensure the other option ʺSearch removable media (floppy, CD ROM...)ʺ is NOT selected. ...
Page 188 P2-HubPac Upgrade Operation 5. Click Next. 6. If a Hardware Installation dialog appears, click Continue Anyway to continue the driver installation. 7. Click Finish to complete the driver installation. Checking the COM port number After connecting the USB‐to‐RS485 cable to the PC and installing the driver, the PC assigns a COM port to it. This port number is indispensable for the firmware upgrade. Therefore, follow the procedure below to retrieve the port information. 1. Choose Start > Control Panel > System. The System Properties dialog appears. 2. Click the Hardware tab. ...
Page 189 Chapter 8: Firmware Upgrade 3. Click Device Manager. The Device Manager window appears. 4. Click the plus (+) symbol beside Ports (COM & LPT) to expand the item. 5. Locate “USB to Serial Bridge (COMx),” where x is the COM port number that your PC assigns to the USB‐to‐RS485 cable. Write down the COM port number for later use. Note: If you cannot find “USB to‐Serial Bridge (COMx),” either the USB‐to‐RS485 driver has not been installed or the USB‐to‐RS485 driver installation was not successful. If this occurs, reinstall the USB‐to‐RS485 driver by following the procedure described in the previous section. ...
Page 190 P2-HubPac Upgrade Operation STEP 4: Launch the Paragon Update utility (version 2.4.4 or later) After the hardware connection is completed, you can execute the Paragon Update utility to upgrade the firmware. Note that Paragon Update version 2.4.4 or later supports this firmware upgrade. Earlier versions do not have this capability. Please use the latest version of the Paragon Upgrade utility which you downloaded along with the HubPac firmware to ensure the success of the upgrade. Prior to the firmware update with Paragon Update, ensure the P2‐HubPac is powered ON. 1. Double click “ParagonUpdate_xxx.exe” (xxx represents the version). The Paragon Update window appears. 2. Specify the device information of the connected HubPac. a. Type a name for the HubPac in the Name field. b. Select <Default Serial> in the IP adddress/Serial field. Type the COM port number that your PC assigns to the HubPac in the Port field. 3. Select the checkbox ( ) beside the HubPac device. 4. Click Load Hex File and navigate to select the appropriate firmware file. 5.
Page 191 Chapter 8: Firmware Upgrade Keep the Paragon Update window open if other clusters of the same HubPac are not upgraded yet. See the subsequent section for more information. For more details of the Paragon Update utility, see Paragon Manager User Guide. STEP 5: Repeat STEP 2 and STEP 4 for the other clusters Now you have upgraded one cluster of the HubPac by following the above procedure. To upgrade the other clusters, repeat the following procedure on each cluster: 1. Disconnect the Cat 5 cable attached with the USB‐to‐RS485 cable from the HubPac cluster on which the upgrade has finished. 2. Reconnect the Cat 5 cable to the server connection port of “another cluster” on the same HubPac, as described in STEP 2: Connect one cluster of the HubPac to the PC. 3. Click Send to Paragon in the Paragon Update window to upgrade the connected cluster. The procedure is the same as those described in STEP 4: Launch the Paragon Update utility (version 2.4.4 or later). Upon upgrading 8 clusters successfully, the P2‐HubPac firmware update is complete. ...
Page 192: Appendix A Specifications
Appendix A Specifications In This Chapter Specifications of Paragon II Components...........172 Cat 5 Cable Guidelines..................176 Specifications of Paragon II Components Paragon II Description Dimensions Weight Power switch P2‐UMT1664M 16 users x 64 17.32ʺ (W) x 11.41ʺ (D) x 3.5ʺ 12.52 lbs 100V/240V server ports, (H) 5.68 kg 50/60 Hz 0.6A expansion slot, 440mm (W) x 290mm (D) x stacking port, 89mm (H) network port P2‐UMT832M 8 users x 32 17.32ʺ (W) x 11.41ʺ (D) x 1.75ʺ 9.83 lbs 100V/240V server ports, ...
Page 193 Appendix A: Specifications Paragon II Description Dimensions Weight Power Stacking Unit P2‐UMT1664S 64 expansion 17.32ʺ (W) x 11.41ʺ (D) x 3.5ʺ 11.99 lbs 100V/240V server ports for (H) 5.44 kg 50/60 Hz 0.6A stacking with 440mm (W) x 290mm (D) x P2‐UMT1664M 89mm (H) P2‐UMT832S 32 expansion 17.32ʺ (W) x 11.41ʺ (D) x 8.99 lbs 100V/240V server ports for 1.75ʺ (H) 4.08 kg 50/60 Hz 0.6A stacking with 440mm (W) x 290mm (D) x P2‐UMT832M 44mm (H) unit ...
Page 194 Specifications of Paragon II Components Paragon II Description Dimensions Weight Power user station P2‐USTIP1 Remote digital 17.2” (W) x 11.46” (D) x 1.72” 8.05 lbs 115V/230V access point for (H) (3.65 kg) 50/60 Hz 0.3A one KVM/IP user 440mm (W) x 291mm (D) x 44 mm (H) P2‐USTIP2 Remote digital 17.2” (W) x 11.46” (D) x 1.72” 8.16 lbs 115V/230V access point for (H) (3.7 kg) 50/60 Hz 0.6A two KVM/IP 440mm (W) x 291mm (D) x users 44 mm (H) Paragon II CIMS...
Page 195 Appendix A: Specifications Paragon II CIMS Description Dimensions Weight P2CIM‐AUSB CIM for USB, 1.3” (W) x 3.0” (D) x 0.6” (H) 0.20 lb provides 32mm (W) x 77.4mm (D) x 15.6mm (H) 0.07 kg automatic skew compensation with P2‐EUST or P2‐EUST/C P2CIM‐AUSB‐C CIM for USB, 1.3” (W) x 3.0” (D) x 0.6” (H) 0.20 lb provides 32mm (W) x 77.4mm (D) x 15.6mm (H) 0.07 kg automatic skew compensation, and emulates a card reader when used with P2‐EUST/C P2CIM‐AUSB‐B CIM for IBM 1.3” (W) x 3.0” (D) x 0.6” (H) 0.20 lb BladeCenter with 32mm (W) x 77.4mm (D) x 15.6mm (H) 0.07 kg USB, provides ...
Page 196: Cat 5 Cable Guidelines
Cat 5 Cable Guidelines Paragon II CIMS Description Dimensions Weight P2CIM‐AUSBDUAL Doubles the 1.42” (W) x 3.39” (D) x 0.65” (H) 0.17 lb number of users 36mm (W) x 86mm (D) x 16.5mm (H) 0.08 kg that may access a specific PC or server, and provides automatic skew compensation with P2‐EUST or P2‐EUST/C Cat 5 Cable Guidelines Use only straight‐through‐pinned four‐pair (eight‐wire) Cat 5 unshielded twisted pair (UTP) cables, terminated with standard RJ45 plugs, for the Cat 5 cabling links in your Paragon system. If your existing Cat 5 site‐wiring system meets these requirements, feel free to send the signals through your siteʹs patch panels, existing wiring, and so on, but you should keep the number of patches and splices to a minimum to avoid degrading the video signals. Maximum end‐to‐end cabling distance from any server to any user station should not exceed 1000 feet (304 m). Please note that although users and servers can be located up to 1000 feet apart, for optimal video quality, limit cable length between the user ...
Page 197 Appendix A: Specifications Color Function Pair 5 White/Blue TX Pair 1 6 Green/White RX Pair 3 7 White/Brown TX Pair 4 8 Brown/White RX Pair 4 Component Color A Cat 5 cable W White B RJ45 connector G Green C Pin O Orange BL Blue BR ...
Page 198: Appendix B User Station Direct Mode
Appendix B User Station Direct Mode A Paragon user station set to Direct Mode can be directly connected to a Paragon CIM, either temporarily for emergency “crash cart” access or permanently for non‐switched extension purposes, without having to go through a Paragon Base Unit. To create a “Direct Mode” connection 1. If you have not already done so, follow the instructions in steps 5A and 5B of Installing a Paragon System with a Single Matrix Switch (on page 24) to attach the CIM to the server. 2. If you have not already done so, plug in and power on your server or computer. 3. Power off the user station. 4. Run Cat 5 cabling directly between the user station and the CIM. 5. Power on the user station. It should display a “DIRECT Mode: CIM connected” message on the screen. While the user station is in Direct Mode, if the Cat 5 cabling between the user station and the CIM becomes disconnected at any point for more than three to four seconds, the user station will exit Direct Mode. To re‐establish Direct Mode, repeat the above steps. A Server B CIM C Cat 5 cable ...
Page 199 Appendix B: User Station Direct Mode To return to normal operation from “Direct Mode” 1. Power OFF the user station. 2. Disconnect the opposite end of the Cat 5 cabling from the CIM. 3. Connect the opposite end of the Cat 5 cabling to a user port of a Paragon Base Unit. 4. Run other Cat 5 cabling from the channel port of a Paragon Base Unit to the CIM. 5. Power ON the user station. ...
Page 200: Appendix C Tiering And Compatibility
Appendix C Tiering and Compatibility In This Chapter Tiering Matrix ....................180 Compatibility Matrix..................182 Double Diamond Configuration..............184 Tiering Matrix BASE TIER UMT x HW2 UMT x HW3 UMT x HW3 P2‐UMT1664M/ with 3A3 with 3.2 832M/442/242 Firmware Firmware P2‐UMT1664M / 832M/442/242 P2‐UMT1664S/832S Stack Stack 1 UMT x HW3 with ...
Page 201 Appendix C: Tiering and Compatibility BASE TIER UMT x HW2 UMT x HW3 UMT x HW3 P2‐UMT1664M/ with 3A3 with 3.2 832M/442/242 Firmware Firmware AUATC IBMX‐330 HubPac P2‐Hubpac ...
Page 202: Compatibility Matrix
Compatibility Matrix Compatibility Matrix Paragon I Paragon II HW2/2Z HW3 (3A3 HW3 ( P2 HW4M or Feature/ Firmware) Firmware) above Component Y‐CIMs Yes Yes Yes Yes C, P, PD CIMs Yes Yes Yes Yes UKVMSPD Z‐CIMs Yes Yes Yes Yes P2ZCIMs No No Yes Yes P2‐EUST or No No ...
Page 203 Appendix C: Tiering and Compatibility Paragon I Paragon II HW2/2Z HW3 (3A3 HW3 ( P2 HW4M or Feature/ Firmware) Firmware) above Component Maximum Servers ‐ 1,800 1,800 1,800 10000 832 with optional memory card Maximum Servers ‐ 1,800 1,800 1,800 10000 442 with optional memory card Maximum Servers ‐ 1,800 1,800 1,800 1,800 242 ...
Page 204: Double Diamond Configuration
Double Diamond Configuration Double Diamond Configuration Officially, the Double Diamond configuration is NOT a Raritan‐approved solution if Stacking Units or P2‐HubPac is included in the configuration. Therefore, it is highly recommended to avoid this configuration especially when using Paragon II Stacking Units or P2‐HubPac. ...
Page 205: Appendix D Paragon Ii Rack Mount
Appendix D Paragon II Rack Mount Paragon II user stations and most matrix switches can be mounted in 1U (1.75ʺ, 4.4 cm) of vertical space in a standard 19ʺ equipment rack, except that P2‐UMT1664M switch shall be mounted in 2U (3.5ʺ, 8.9 cm) of space. To rackmount a Paragon switch, use the brackets and screws that came with the unit; to rackmount a user station, use Raritanʹs RUST‐LM304 rackmount kit. (If you lose or damage a switchʹs brackets, replace them with the RUMT‐1U‐LM304 kit for any 1U switch or RUMT‐2U‐LM304 for a P2‐UMT1664M.) You can mount a Paragon switch or user station facing the front of the rack or facing the rear. In This Chapter Forward Mount....................185 Rear Mount .....................186 Forward Mount The steps correspond to the numbers in the following diagrams. 1. Secure the cable‐support bar to the back end of the side brackets using two of the included screws. 2. Slide the user station or matrix switch between the side brackets, with its rear panel facing the cable‐support bar, until its front panel is flush with the “ears” of the side brackets. 3. Secure the user station or switch to the side brackets using the remaining included screws (three on each side). 4. Mount the entire assembly in your rack and secure the side bracketsʹ ears to the rackʹs front rails with your own screws, bolts, cage nuts, and so on. 5. When you attach cables to the connectors on the rear panel of the user ...
Page 206: Rear Mount
Rear Mount Front rackmount of a Paragon switch Front rackmount of a Paragon user station Rear Mount The steps correspond to the numbers in the following diagrams. 1. Secure the cable‐support bar to the front end of the side brackets, near the side bracketsʹ “ears,” using two of the included screws. 2. Slide the user station or matrix switch between the side brackets, with its rear panel facing the cable‐support bar, until its front panel is flush with the back edges of the side brackets. 3. Secure the user station or switch to the side brackets using the remaining included screws (three on each side). ...
Page 207 Appendix D: Paragon II Rack Mount 4. Mount the entire assembly in your rack and secure the side bracketsʹ ears to the rackʹs front rails with your own screws, bolts, cage nuts, and so on. 5. When you attach cables to the connectors on the rear panel of the user station or switch, drape them over the cable‐support bar. Rear rackmount of a Paragon switch Rear rackmount of a user station ...
Page 208: Appendix E Connecting Serial Devices To Paragon Ii System
Appendix E Connecting Serial Devices to Paragon II System In This Chapter Introduction to Serial CIMs ................188 Installing a Serial CIM...................189 Operating a Serial CIM .................191 Introduction to Serial CIMs To connect an ASCII serial device, LAN/WAN component or a server through a serial port (RS‐232) to the Paragon II system, use one of our serial CIMs. They are P2CIM‐SER, P2CIM‐SER‐EU and AUATC. These CIMs can emulate an ASCII terminal and convert the serial data from the ASCII device to VGA video (800x600x60) and PS/2 keyboard signals. This conversion allows users to access and operate any ASCII serial device connected to the Paragon II system. The table lists the port difference of the serial CIMs: Model Serial port Local port P2CIM‐SER P2CIM‐SER‐EU ...
Page 209: Installing A Serial Cim
Appendix E: Connecting Serial Devices to Paragon II System Installing a Serial CIM Take these steps to attach a serial CIM to the serial port of a serial device or server and to your Paragon II system. Installing P2CIM-SER or P2CIM-SER-EU The installation of P2CIM‐SER or P2CIM‐SER‐EU is quite easy. 1. Connect the CIM to a serial port on the serial device or server, using its serial DB9 connector. 2. Connect the CIM to the Paragon system using a standard Cat 5 UTP cable. 3. Connect the CIMʹs USB connector to a powered USB port, or to a separately available Raritan PWR‐SER‐4 power adapter, to obtain power. For additional information on the installation, see Paragon and Dominion KX Serial Device CIM User Guide. This user guide can be downloaded from Raritanʹs website by linking to the Paragon II section of the Product Documentation webpage (http://www.raritan.com/support/productdocumentation/paragon‐II/). and then clicking the Terminal Converter User Guide. Installing AUATC 1. Run an appropriate cable from AUATCʹs DB25 female DTE connector ...
Page 210 Installing a Serial CIM To set up a “local user station,” plug a PS/2 keyboard into AUATCʹs 6‐pin mini‐DIN connector, or a Sun keyboard into its 8‐pin mini‐DIN connector. Then plug a VGA monitor into AUATCʹs HD15 connector. Note: This local station will contend for keyboard control with the remote user stations attached to Paragon user stations based on a fixed one‐second activity timeout. As soon as there has been no keyboard activity from the local station for one second, a remote station can take keyboard control, and vice versa. 3. Plug in and turn on the device. If possible, set it to communicate at 9600 bps, 8 data bits, no parity, and 1 stop bit. (These donʹt have to be the permanent serial settings, but the device must be set this way to establish initial communication with AUATC; later you can configure both the device and AUATC to better settings. If the device canʹt be configured for these settings, youʹll need to temporarily attach a server or other device that can be.) 4. Plug AUATCʹs power supply into AUATC and a working AC outlet. If AUATC is installed and operating properly, AUATCʹs green LED will start blinking: once per second while the CIM is idle, more quickly while itʹs passing data in either direction. 5. Connect one end of a Cat 5 UTP cable to the RJ45 port on AUATC. Connect the other end of the cable to RJ45 channel port #1 on the back of one of your Paragon Base Units, or to the RJ45 port on the back of a user station if you want Direct Mode access (see User Station Direct Mode (on page 178) for additional information). ...
Page 211: Operating A Serial Cim
Appendix E: Connecting Serial Devices to Paragon II System Operating a Serial CIM P2CIM-SER or P2CIM-SER-EU These CIMs provide different communication modes for you to operate the ASCII serial device. • On Line—Communicating with an ASCII device. The terminal screen area displays the interactions with the ASCII device. • Help—Help screen displayed (Pressing Alt+F1 displays the Help screen.) • Set Up—Setup screen displayed. (Pressing Alt+F2 or Alt+F3 enters set‐up mode.) • Buffer Edit—Buffer displayed. (Pressing Alt+F4 enters buffer review/edit mode.) Raritan provides a detailed user guide about the operation and configuration of the two CIMs. Please see Paragon and Dominion KX Serial Device CIM User Guide for additional information. This user guide can be downloaded from Raritanʹs website (see Serial Device CIM User Guide ‐ http://www.raritan.com/_downloads/pdfs/products/P2CIM‐SER%20User %20Guide.pdf). ...
Page 212: Auatc
Operating a Serial CIM AUATC Screen Layout AUATC produces eight‐color video at 800 x 600 resolution, which can accommodate 32 lines of 80 text characters each. A typical ASCII terminal uses 24 lines, so AUATC uses the eight extra lines to provide system‐status and help information. These eight lines are divided so that four are at the top of the screen and four are at the bottom. 1 Cursor position and buffer page number 2 Communications status. The status can be one of the following: On Line—Communicating with an ASCII device. The terminal screen area displays the interactions with the ASCII device. Help—Help screen displayed (Pressing Alt+F1 displays the Help screen.) Set Up—Setup screen displayed. (Pressing Alt+F2 or Alt+F3 enters the set‐up mode.) Buffer Edit—Buffer displayed. (Pressing Alt+F4 enters the buffer review/edit mode.) 3 Firmware version 4 Terminal type and baud rate ...
Page 213 Appendix E: Connecting Serial Devices to Paragon II System 5 Access indicator. It indicates one of the following: LOC—Local port is active, either PS/2 keyboard or Sun keyboard RMT—Remote port (RJ45) is active. NO—No port is active. 6 Terminal screen area (24 lines x 80 characters) 7 Command keys that can be used with the screen currently displayed ...
Page 214 Operating a Serial CIM On Line Mode When you operate AUATC in On Line Mode, the main screen area displays your interactions with the ASCII device, as if it were the screen of an ASCII terminal. Simultaneously, the data stream being output by the device is stored in an eight‐page circular buffer, so you can not only access and operate the device, but you can also review its historical data as needed. Because the buffer is circular, it always retains the most recent eight pages of data from the device; the newest data will overwrite the oldest data. ...
Page 215 Appendix E: Connecting Serial Devices to Paragon II System Conveniently, you may program any of the PC keyboardʹs twelve function keys to trigger your most‐often‐used data‐stream commands. Pressing any key set this way causes Paragon II to send the corresponding command to the device. During the online session, you can also send any of the following key combinations (press and hold Ctrl or Alt, press and release the command key, and release Ctrl or Alt) to control your communication with the device or to access AUATCʹs help and setup screens: • Ctrl + Break (the Pause/Break key next to the Scroll Lock key): Resets both AUATC and the serial communication with the device. • Ctrl + S (not case‐sensitive): Sends a command to the device to temporarily stop it from sending any data; until the flow is allowed to resume, all output data will be queued by the device. • Ctrl + Q (not case‐sensitive): Sends a command to allow the device to resume sending data after being halted by the CTRL + S command. • Alt + F1: Displays the Help screen. • Alt + F2: Displays the Setup screen. • Alt + F3: Displays the Set Up Programmable Keys screen. • Alt + F4: Switch to Buffer Edit Mode. ...
Page 216 Operating a Serial CIM Help Mode Buffer Edit Mode AUATC stores the most recent eight pages of data from the attached ASCII device in a circular buffer. After switching the AUATC from On Line Mode to Buffer Edit Mode by pressing Alt + F4, you can review the contents of the buffer by moving the cursor with the arrow keys, Page Up , Page Down , Home, and End. You can also edit the data in the buffer with Insert, Delete, Backspace, and the other keys listed in the Help screen. ...
Page 217: Configuring Auatc
Appendix E: Connecting Serial Devices to Paragon II System Configuring AUATC Press Alt + F2 to activate the Setup Screen, where you can select your desired serial‐communication parameters (such as baud rate.) and local/remote output. The initial parameters will always start at their factory defaults, so make sure that the serial port or device to which AUATC is attached is temporarily configured for 9600 bps, 8 data bits, no parity, and 1 stop bit. (If the port or device cannot support all of these settings, you must temporarily attach one that can.) Also, if you want to perform initial configuration with a “local user station,” it must consist of a PS/2 keyboard and a VGA monitor. Available data‐rate (“Baud Rate”) settings are 2400, 4800, 9600, and 19,200 bps. You can select even, odd, or no (“None”) parity; 7 or 8 data bits; and 1 or 2 stop bits (but 7 data bits requires 2 stop bits). The terminal type is fixed at VT100. For local/remote connection, choose CAT 5&LOCAL if you connect the AUATC both to a local monitor via the VGA HD15 connector and to Raritanʹs Paragon switch via the Cat5 port (RJ45); choose LOCAL if the unit is connected to a local monitor only. ...
Page 218: Troubleshooting Auatc
Operating a Serial CIM To program any of your keyboardʹs twelve function keys with commands or data items you frequently have to send the device, activate the Set Up Programmable Keys screen by pressing Alt + F3. Once a string (with a maximum length of sixteen characters) has been assigned to a key, pressing that key while in On Line Mode will send the entire string to the device. Troubleshooting AUATC If you do not get a device prompt: 1. If AUATCʹs screen is displayed on your monitor with the top and bottom help windows, make sure that it indicates On Line status. If not, press Esc to return to On Line Mode. 2. Make sure that AUATC and the attached device are both receiving power. AUATCʹs power supply should be securely connected to both AUATC and a working outlet. Its LED (next to the 6‐pin mini‐DIN PS/2 mouse connector) should flicker quickly if data is being transmitted and blink once per second at other times. 3. Make sure that the cable between AUATC and the device is securely attached at both ends. This must be the null‐modem cable included with AUATC or one just like it. 4. Make sure that the serial‐communication settings of AUATC match those of the device. Press Alt + F2 to check AUATCʹs settings in its Setup Screen. If you do not get any video or the video is degraded or distorted: 1. Make sure that all of your cables are connected securely. ...
Page 219 Appendix E: Connecting Serial Devices to Paragon II System 2. Make sure that your monitor can handle 800 x 600 video resolution at a refresh rate of 60 Hz. 3. If you are at a remote user stationʹs monitor, make sure that you are not running Cat 5 cable too far end‐to‐end. The total length of Cat 5 cabling from the serial device to the monitor should not be greater than 1000 feet (304 m). ...
Page 220: Appendix F Extra Keyboard/Mouse Information And Settings
Appendix F Extra Keyboard/Mouse Information and Settings In This Chapter Emulating Sun Keys with a PS/2 Keyboard ..........200 Changing the Keyboard Layout Settings............201 Kensington Mouse Type Settings ..............206 Macintosh Key Mapping ................208 Emulating Sun Keys with a PS/2 Keyboard We recommend that you use a Sun keyboard and mouse at your user stations if there are any Sun servers in your Paragon system. If you must use a PS/2 keyboard to control a Sun server attached to your Paragon system, Paragon is able to perform some keyboard emulation. To emulate most of the special “extra” keys that are present on Sun keyboards but not on PS/2 keyboards, first press and hold either Scroll Lock or the combination of Ctrl and Alt; these function as permanent “Sun keystroke hot keys.” (If Scroll Lock is your OSUI hot key or previous‐channel hot key, you will want to use Ctrl + Alt.) Then press the corresponding character on the PS/2 keyboard: While pressing a character ...to generate this Sun hotkey, press this PS/2 keyboard keystroke: keyboard key...
Page 221: Changing The Keyboard Layout Settings
Appendix F: Extra Keyboard/Mouse Information and Settings While pressing a character ...to generate this Sun hotkey, press this PS/2 keyboard keystroke: keyboard key... * on the keypad Compose + on the keypad Vol + ‐ on the keypad Vol ‐ The one exception to this procedure is the Sun keyboardʹs Stop character. To generate Stop with a PS/2 keyboard, hold down the Pause/Break key and press the letter A. Changing the Keyboard Layout Settings Different language versions of keyboards are provided for use in different countries. For example, the layout of a French keyboard is different from that of a US English keyboard. The Paragon CIMs enable you to change the keyboardʹs layout setting to match your keyboard if ...
Page 222 Changing the Keyboard Layout Settings For P2CIM‐AUSB: For P2CIM‐AUSB‐B or P2ZCIM‐USB: A Frequently‐used keyboard layout codes B Current keyboard layout is US English (code 33) 4. Press the appropriate keyboard layout code (see the following table for codes). 5. Either press Esc to exit the setting mode or close the text editor. ...
Page 223: Sun Keyboard Layout Settings (P2Cim-Sun Or P2Cim-Asun)
Appendix F: Extra Keyboard/Mouse Information and Settings Generic Keyboard Layout Code Language Layout code Language Layout code Arabic Netherlands 01 18 Belgian 02 Norwegian 19 Canadian‐Bilingual 03 Persian 20 Canadian‐French 04 Poland 21 Czech Republic 05 Portuguese 22 Danish 06 Russia 23 ...
Page 224 Changing the Keyboard Layout Settings 3. Press Left Ctrl + Delete to enter the setting mode. A message similar to the following appears in the text editor. The text inside the red rectangle indicates the current keyboard layout is set to US5 Unix (code 22). 4. Press the appropriate keyboard layout code (see the table in the end of this section for codes). 5. When you see a “setup end” message similar to the following, the setting is changed successfully. 6. Either press Esc to exit the setting mode or close the text editor. Sun Keyboard Layout Code Country Layout code Country Layout code Canada Fr5 32 Netherland5 27 Canada Fr5 Tbits5 3F Norway5 28 Czech5 35 Poland5 ...
Page 225: Sun Keyboard Layout Settings (P2Zcim-Sun)
Appendix F: Extra Keyboard/Mouse Information and Settings Sun Keyboard Layout Settings (P2ZCIM-SUN) When you connect a Sun keyboard to the user station to access a Sun server which is attached with P2ZCIM‐SUN, you may need to change the Sun keyboardʹs layout setting. 1. Select the channel of the desired server in the Selection Menu, and press Enter. 2. Activate a text editor, such as Notepad, on the server. 3. Press Left Ctrl + NumLock to enter the setting mode. A message similar to the following appears in the text editor. The text inside the red rectangle indicates the current keyboard layout is set to US5 Unix (code 22). 4. Press the appropriate keyboard country code (see the above “Sun Keyboard Layout Code” table for codes). 5. Either press Esc to exit the setting mode or close the text editor. Switching between 101 and 102 keys (P2CIM-APS2) In some operating systems, the pipe key ( | ) on the 102‐key keyboard is not recognized and cannot be displayed on the screen. To make this key recognized, you should change the keyboard setting from 101‐key to ...
Page 226: Kensington Mouse Type Settings
Kensington Mouse Type Settings 3. Press Left Ctrl + Delete to enter the setting mode. The following message appears in the text editor, indicating that you can change the keyboard setting now. The text “-now keyboard type-101key” means the current keyboard layout is 101‐key version. 4. Press c to change the keyboard type. 5. (Optional) You can press Left Ctrl + Delete again to verify whether the current keyboard setting is 102‐key. If the message shows “now keyboard type-102key”in the text editor, the current setting is 102‐key keyboard. 6. Either press Esc to exit the setting mode or close the text editor. To reverse the keyboard type from 102 keys to 101 keys, simply repeat the above steps 1 through 4. Kensington Mouse Type Settings With P2CIM‐AUSB (with firmware version 0D0 or later) and the P2‐UST/P2‐EUST (or P2‐EUST/C) user station, you can use two types of multi‐button Kensington mouse: one is Expert Mouse, and the other is Turbo Mouse trackball. By default the CIM allows you to use a 3‐button wheel mouse, and you must change the mouse setting in order to use more buttons on the Kensington mouse. 1. Select the channel of the desired server in the Selection Menu, and press Enter. 2. Activate a text editor, such as Notepad, on the server. ...
Page 227 Appendix F: Extra Keyboard/Mouse Information and Settings 3. Press Left Ctrl + NumLock to enter the setting mode. A message similar to the following appears in the text editor. A Available mouse setting codes B Current mouse setting is set to standard 3‐button wheel mouse (code 0) 4. Type m1 to have the CIM support the use of 4‐8 button wheel mouse. 5. Either press Esc to exit the setting mode or close the text editor. 6. Press the hot key (default: Scroll Lock) twice quickly to trigger the OSUI Selection Menu and re‐select the same channel to make the new mouse setting effective. To reverse the mouse type from 4‐8 buttons to 3 buttons, simply repeat the above steps 1 through 3, and then type m0. ...
Page 228: Macintosh Key Mapping
Macintosh Key Mapping Macintosh Key Mapping If you use a Macintosh keyboard, you may want to know which keys are supported or recognized by Paragon II system. This is especially important when you want to use the Command Key combinations. Actually Paragon II system only recognizes regular PC keyboard and therefore all Macintosh keys are mapped with the PC keys based on each keyʹs position. For unique Macintosh keys, which regular PC keyboard does not have, such as F13 to F15, Paragon II system can neither recognize nor support them. Mapped PC Keys for Macintosh Keys Macintosh key Mapped PC key Command key Windows key Option Alt Shift Shift Control Control Tab Tab Left/Right/Up/Down Arrow Left/Right/Up/Down Arrow Caps Lock Caps Lock Escape Escape ...
Page 229: Appendix G Recommendation For Better Video Quality
Deployment Recommendations ..............209 Supported Resolutions on P2‐EUST and P2‐EUST/C .......210 Deployment Recommendations In the Paragon II system, video quality is usually affected by these factors: • Type of the user station: P2‐UST, P2‐EUST, or P2‐EUST/C • UTP cable length between the user station and the CIM (server) • UTP cable type: Belden or non‐Belden cable P2‐EUST and P2‐EUST/C have the function of automatic skew compensation when used with P2CIM‐APS2, P2CIM‐AUSB, P2CIM‐AUSB‐C or P2CIM‐ASUN, and thus provides better video quality than P2‐UST. Belden cable is proven to provide better video quality than non‐Belden cable in Raritanʹs lab. Therefore, our recommendation for good or even excellent video quality is as follows: With non-Belden cables Cable length (feet) Deployment 0 ~ 1000 P2‐EUST or P2‐EUST/C* With Belden cables Cable length (feet) Deployment ≤ 500 P2‐UST, P2‐EUST or P2‐EUST/C 501 ~ 1000 P2‐EUST or P2‐EUST/C* * For P2‐EUST or P2‐EUST/C to provide automatic skew compensation, ...
Page 230: Supported Resolutions On P2-Eust And P2-Eust/C
Supported Resolutions on P2-EUST and P2-EUST/C Supported Resolutions on P2-EUST and P2-EUST/C Cable length (feet) Resolution Video refresh rate (Hz) 0 ~ 700 Up to 1600x1200 60, 75, 85 0 ~ 1000 Up to 1280x1024 60, 75, 85 0 ~ 1000 Up to 1920x1440** 60 ** CRT monitor only ...
Page 231: Appendix H Other Components Working With Paragon
Appendix H Other Components Working with Paragon II In This Chapter Paragon Manager Overview ................211 PCCI Integration ....................212 Paragon Manager Overview Paragon Manager, Raritanʹs appliance management and configuration application, offers one coordinated graphical user interface that displays Device, User, Log, and Outlet information for your Paragon system. Paragon Manager can work with your Paragon II system, and allows you to manage various Paragon switches. This program is available on Raritanʹs website. Installing Paragon Manager To download Paragon Manager, please use the following steps. See Paragon Manager User Guide for additional information. This user guide is available on the “User Manuals & Quick Setup Guides” CD, or on Raritanʹs Product Documentation webpage (http://www.raritan.com/support/productdocumentation). 1. In your browser, navigate to Raritanʹs website (http://www.raritan.com). 2. Click Support in the top navigation bar. 3. Click Firmware Upgrades in the left navigation bar to expand it. 4. Click Paragon II to open its page. ...
Page 232: Pcci Integration
PCCI Integration When installation is complete, a shortcut to the application has been added to your Start menu. PCCI Integration In the PCCI (Paragon CommandCenter Integration) environment, Paragon II works within the P2SC setup, and we recommend you first read the Paragon II System Controller (P2SC) user manual for initial installation and configuration of your Paragon II System Controller unit. This document is available on the “User Manuals & Quick Setup Guides” CD included with your shipment, or on the Support section of your local Raritan website. In North or South America, do the following: 1. Visit Raritanʹs Product Documentation webpage (http://www.raritan.com/support/productdocumentation) with your browser. 2. Scroll down the page to the Paragon II System Controller heading. 3. Click on the User Guide link. Special Note: Paragon II Releases 4.2 and 4.3 are not compatible with the Paragon II System Controller. They are considered “standalone” releases and are not supported for installation in a Raritan PCCI environment. As of release 4.3.1, Paragon II returned to compatibility with P2SC. Existing Paragon II System Controller customers may upgrade their Paragon II components to 4.3.1 or higher to benefit from recently added features and maintenance fixes. Please see the Paragon II 4.3.1 release notes for minimum firmware levels. For information about the supported features in PCCI, download the document titled “Supported Paragon II Features in PCCI” from Raritan’s Product Documentation webpage (http://www.raritan.com/support/productdocumentation/paragon‐II/). ...
Page 233: Appendix I Troubleshooting
• Loose Cat 5 UTP cable. All computers have no video display. • Loose monitor connection. • The user station is connected and functioning properly if Num Lock key lights keyboardʹs Num Lock LED. Monitor video display Monitor type does not match video output designation from the for some connected server. computers is distorted. • Loose keyboard connection to the user station. Keyboard non‐functional, even • Loose Cat 5 UTP cable. though there is no • Keyboard broken. Hot‐swap with a new keyboard. keyboard error at power up. Cannot input to any computer. • Loose cable from the server to the CIM. Repeated “Keyboard ERROR” at computer • Loose Cat 5e UTP cable. power‐up. • Paragon II components may be out of order. Verify that the server recognizes a keyboard that is directly connected. Contact Raritan Technical support for assistance. See the last page for global contact information. ...
Page 234: Powering-On Sequence Of Multi-Tier Configuration
• Loose keyboard cable connection. Keyboard suddenly locks‐up when a • Voltage spike (increase) or brown out (decrease) in power particular computer is supply to connected Paragon II switch. Power off the Switch, selected, but operates wait for 20 seconds, and then power on the unit. Powering normally when other Switch from a UPS avoids variation in power supply to Switch. computers are selected. • Loose mouse cable from the server to the CIM Repeated “MOUSE INSTALLATION • Loose Cat 5 UTP cable. If an error occurs only with new servers FAILURE” at computer being added to the system, contact Raritan Technical Support for power‐up. assistance—mouse emulation firmware may need to be upgraded for compatibility with newer servers. See the last page for global contact information. • Loose cable from the server to the CIM. Mouse suddenly locks up when a particular • Loose Cat 5 UTP cable. computer is selected, • Paragon II components may be out of order. Verify that the but operates normally server works with a mouse directly connected. Contact Raritan when other computers Technical support for assistance. See the last page for global are selected. contact information. ...
Page 235: Paragon Ii Faqs Online
Appendix I: Troubleshooting For configurations where Paragon switches are added, replaced, or swapped (in order), we recommend: 1. Power ON the third tier (if a third tier exists). 2. Power ON the second tier. 3. Power ON the Paragon II base tier (first tier). 4. Perform a partial reset of the database on impacted switches. For example, if you swap the switches connected to the base tier, perform the partial reset on the base tier. If you swap the switches connected to the second tier, perform the partial reset from the second tier to the base tier. User stations can be powered ON and OFF at any time as needed. There is a five‐second ON/OFF down time in the matrix switch or Paragon II power cycle. Paragon II FAQs Online Frequently Asked Questions for Paragon II are now located online at Raritanʹs Frequently Asked Questions (FAQ) webpage (http://www.raritan.com/support/technicalfaq). ...
Page 236 Index Connecting CIMs to a Multi‐Channel Video Server • xiii, 70 Connecting P2ZCIMs as Tiers • 118 Associating a Device with a Power Outlet • xii, Connecting Serial Devices to Paragon II 111 System • 26, 188 AUATC • 192 Connecting Z‐CIMs as Tiers • 124 Authentication with a Smart Card • 74 Controlling Power to an Outlet • xii, 113 Autoscan and Autoskip • 110 Definition of the Previous and Next Basic Installation • ix, xvii, 12, 21, 79, 81 Channels • 59 Deployment Recommendations • 209 Double Diamond Configuration • 184 Case 1. Setting the Network Configuration • x, xviii Case 10. Upgrading the Firmware of User Emulating Sun Keys with a PS/2 Keyboard • Stations • xix 200 Case 2. Multiple Write Access to the Same Extra Keyboard/Mouse Information and Server • xi Settings • 4, 24, 67, 200 Case 3. Controlling a Deviceʹs Power • xi Case 4. Local Video Redirection (Forced Video) • xii Case 5. Using Multiple Video Ports • xiii Failsafe Upgrade Feature • 155, 156 Case 6. Restoring Settings to Factory Firmware Upgrade • 54, 59, 81, 153 Defaults • xiv Forward Mount • 185 Case 7. Using the Integrated Card Reader • xv Function Selection Screen • 17 Case 8. Creating Multiple Paths to the Same Server(s) • xvi ...
Page 237: Index
Index Paragon Essentials • x Naming Convention for Multiple Video • 70 Important Note about Powering Off the Network Settings • x, 108 Stacking Unit • 36, 140 Non‐Standard Tiered Configurations • 52, 143 Information Menu • 68 Normal Display • 16 Initial Administrative Verification • 14 Initial Configuration • 21 Installation • 12, 127 Operating a Serial CIM • 191 Installing a Cascaded Paragon System • 29, 50 Operating Forced Video Using OSUI • 92 Installing a HubPac • ix, 37 Operating Forced Video Using Paragon Installing a Paragon System with a Single Manager • 93 Matrix Switch • ix, 24, 30, 34, 42, 178 Operation ‐ Administrator Functions • 84 Installing a Serial CIM • 189 Operation ‐ User Functions • 41 Installing AUATC • 189 Operation Rules • 71 Installing P2CIM‐SER or P2CIM‐SER‐EU • 189 Other Components Working with Paragon II • Installing Paragon Manager • 211 211 Installing the P2CIM‐AUSB‐C Driver in Windows • ix, 74 Installing the Paragon P2‐UMT1664S Stacking P2CIM‐SER or P2CIM‐SER‐EU • 191 Unit • 13, 35, 160 P2‐HubPac Configuration and Multiple Installing the Paragon P2‐UMT832S Stacking Video • ix, 40, 149 Unit • 35, 155 ...
