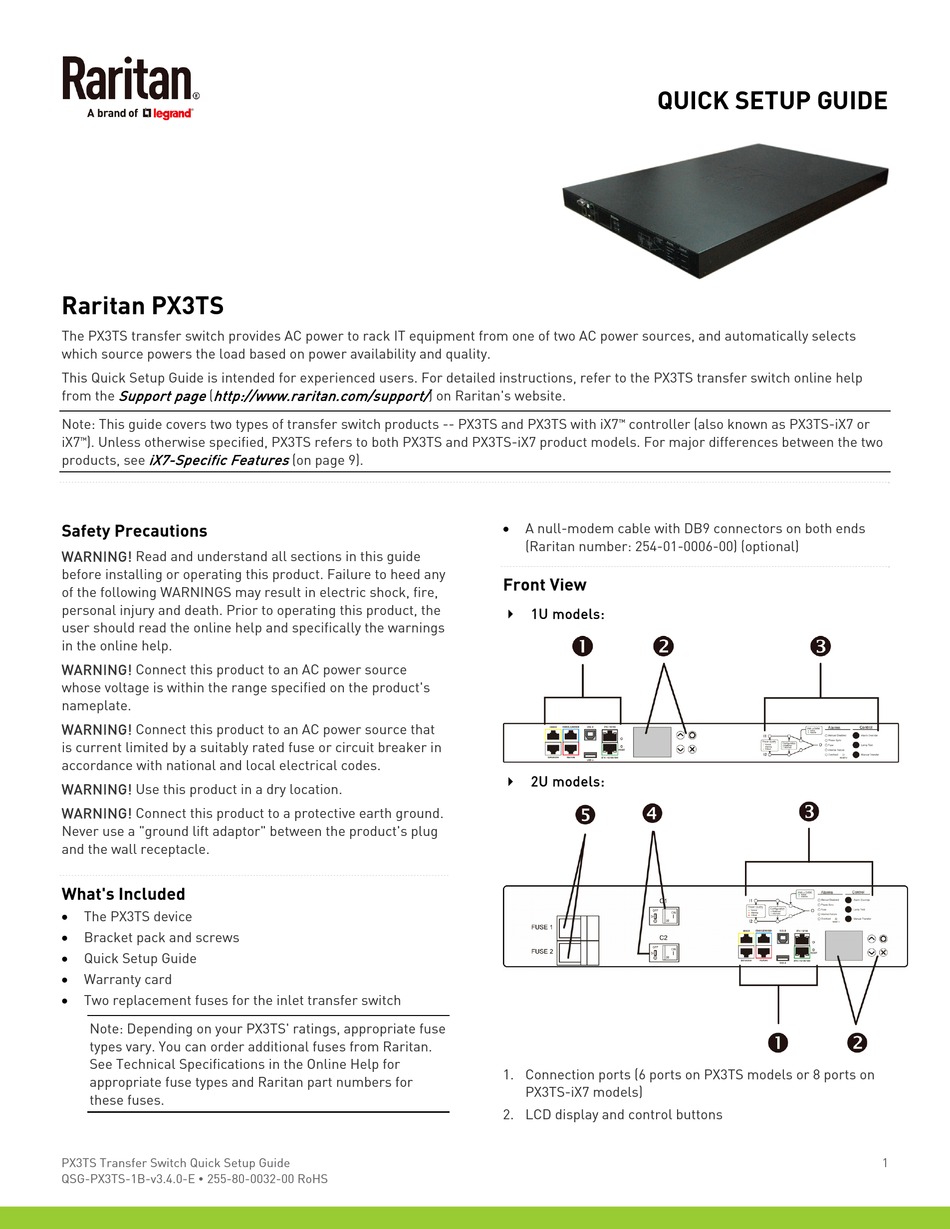

Raritan PX3TS
The PX3TS transfer switch provides AC power to rack IT equipment from one of two AC power sources, and automatically selects
which source powers the load based on power availability and quality.
This Quick Setup Guide is intended for experienced users. For detailed instructions, refer to the PX3TS transfer switch online help
from the
Support page
(
http://www.raritan.com/support/
Note: This guide covers two types of transfer switch products -- PX3TS and PX3TS with iX7
iX7
™
). Unless otherwise specified, PX3TS refers to both PX3TS and PX3TS-iX7 product models. For major differences between the two
iX7-Specific Features
products, see
Safety Precautions
WARNING! Read and understand all sections in this guide
before installing or operating this product. Failure to heed any
of the following WARNINGS may result in electric shock, fire,
personal injury and death. Prior to operating this product, the
user should read the online help and specifically the warnings
in the online help.
WARNING! Connect this product to an AC power source
whose voltage is within the range specified on the product's
nameplate.
WARNING! Connect this product to an AC power source that
is current limited by a suitably rated fuse or circuit breaker in
accordance with national and local electrical codes.
WARNING! Use this product in a dry location.
WARNING! Connect this product to a protective earth ground.
Never use a "ground lift adaptor" between the product's plug
and the wall receptacle.
QS Rule
What's Included
The PX3TS device
Bracket pack and screws

Quick Setup Guide

Warranty card
Two replacement fuses for the inlet transfer switch
Note: Depending on your PX3TS' ratings, appropriate fuse
types vary. You can order additional fuses from Raritan.
See Technical Specifications in the Online Help for
appropriate fuse types and Raritan part numbers for
these fuses.
PX3TS Transfer Switch Quick Setup Guide
QSG-PX3TS-1B-v3.4.0-E  255-80-0032-00 RoHS
) on Raritan's website.
(on page 9).
QUICK SETUP GUIDE
™
controller (also known as PX3TS-iX7 or
A null-modem cable with DB9 connectors on both ends
(Raritan number: 254-01-0006-00) (optional)
QS Rule
Front View
 1U models:
 2U models:
1. Connection ports (6 ports on PX3TS models or 8 ports on
PX3TS-iX7 models)
2. LCD display and control buttons
1
