Raritan PARAGON II Quick Manual

MAIN SWITCHING UNIT
(P2-UMT1664M, P2-UMT832M, P2-UMT442,
P2-UMT242) AND STACKING UNIT (P2-UMT1664S, P2-UMT832S)
1 2 3
USER STATION (P2-UST)
4
5

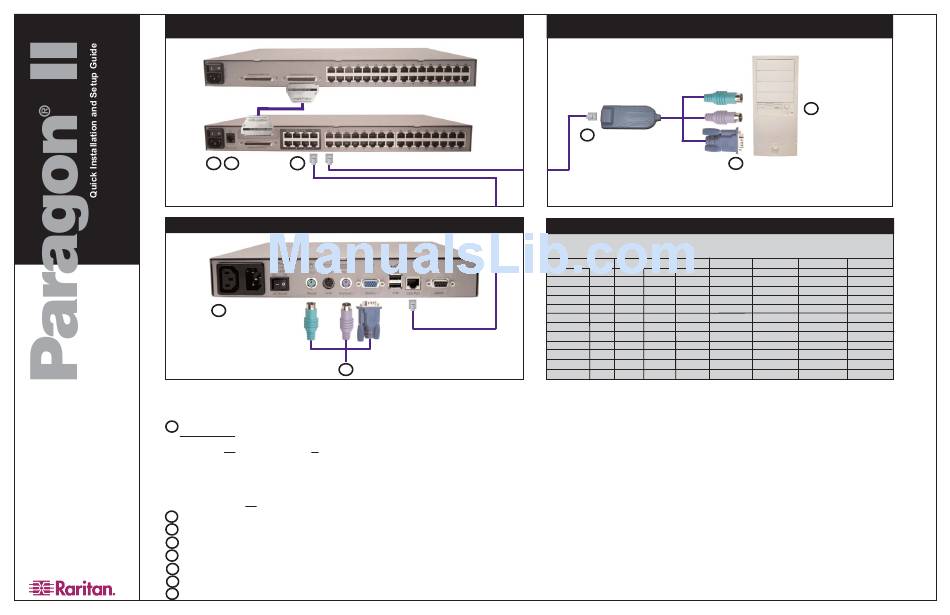

Physical Connections
I I M M P P O O R R T T A A N N T T : All computers and Paragon II components must be powered OFF prior to installation.
Connect power cord to the Main Switching Unit.
1
O O p p t t i i o o n n a a l l S S t t a a c c k k i i n n g g S S u u p p p p o o r r t t : :
- - Connect power cord to a Stacking Unit.
- Connect one end of a stacking cable to the "Expansion Port Out" on the back of the Stacking Unit. Connect the other end of the cable to the "Expansion Port" on the
Main Switching Unit. N N o o t t e e : : If installing the P2-UMT1664M, use two stacking cables. Connect one stacking cable to the P2-UMT1664S "Out A" port and connect the
other end to "Expansion Port In" on the P2-UMT1664M. Connect the other stacking cable to the P2-UMT1664S "Out B" port and connect the other end to the remain-
ing "Expansion Port In" on the P2-UMT1664M.
- Power ON all switching units.
- On the front panel LCD of the Main Switching Unit:
= Press the F F U U N N C C button and use the [↑ ↑ ] and [↓ ↓ ] keys to select "Stacking Support." Press the E E N N T T button.
= Select the total number of Stacking Units desired (0-3). Press the E E N N T T button.
- On the front panel LCD of the Stacking Unit:
= Press the F F U U N N C C button and use the [↑ ↑ ] and [↓ ↓ ] keys to select "Set Stack ID." Press the E E N N T T button.
= Assign the Stacking Unit ID using the [↑ ↑ ] and [↓ ↓ ] keys. E E a a c c h h S S t t a a c c k k i i n n g g U U n n i i t t M M U U S S T T H H A A V V E E A A U U N N I I Q Q U U E E I I D D ( ( 1 1 - - 3 3 ) ) ! !
= Press the E E N N T T button. N N o o t t e e : : Sequential order is not necessary.
2
Power ON the Main Switching Unit.
Connect one end of a Category 5e UTP cable to User Port #1 on the back of the Main Switching Unit. Connect the other end of the cable
3
to the "Cat5 Port" on the back of the User Station (P2-UST)
4
Connect a power cord to the User Station. Power ON the User Station.
5 Connect a PS/2 keyboard, mouse, and VGA monitor to the User Station. Power ON the monitor.
Connect one end of a Category 5e UTP cable to Channel Port #1 on the back of the Main Switching Unit (or Stacking Unit, if attached).
6
Connect the other end of the cable to the RJ45 port on a Computer Interface Module (P2-CIM).
7
Connect the P2-CIM to server's keyboard, video, and mouse ports.
8 Power ON server.
COMPUTER INTERFACE MODULE (CIM)
6
MULTI-PLATFORM CIM TABLE
Part PS/2 SUN USB Serial Video
P2CIM-PS2 X HD15
UKVMC X HD15
UKVMP2 X HD15
UKVMP-x330 X HD15
UKVMC-x330 X HD15
UKVMSPD X HD15
P2CIM-SUN X HD15
P2CIM-SUSB X X HD15
USKVMPA X 13W3
USKVMC X 13W3/HD15
P2CIM-USB X HD15
AUPUSBC X HD15
AUATC X
Administrative Setup
1. A Login Menu is displayed on the VGA monitor attached to the User Station. In the user name field type
"a a d d m m i i n n " (all lowercase). Press the [E E n n t t e e r r ] key. In the password field type "r r a a r r i i t t a a n n " (all lowercase). Press the
[E E n n t t e e r r ] key.
2. The monitor displays an On-Screen User Interface (OSUI) Selection Menu with the connected server
displayed in green.
3. Use the [↑ ↑ ] or [↓ ↓ ] keys to highlight the green channel and press the [E E n n t t e e r r ] key.
4. Normal computer access and operation indicates a successful connection.
I I M M P P O O R R T T A A N N T T : A video gain adjustment is available to "focus" the video image (especially when using LCD flat
panel monitors). Activate the OSUI by pressing the [S S c c r r o o l l l l L L o o c c k k ] key twice rapidly. Use the numeric key pad [+ + ]
and [- - ] keys to adjust the video image until it appears "in focus."
Please consult the Paragon II User Manual for more information on Paragon II installation, setup, and operation.
8
7
Local Ports Firmware Power Control
Upgradeable
X
X
X
X
X
X
X
X
X
Rev. B January 2004 255-30-6010
