Defining groups
80
5

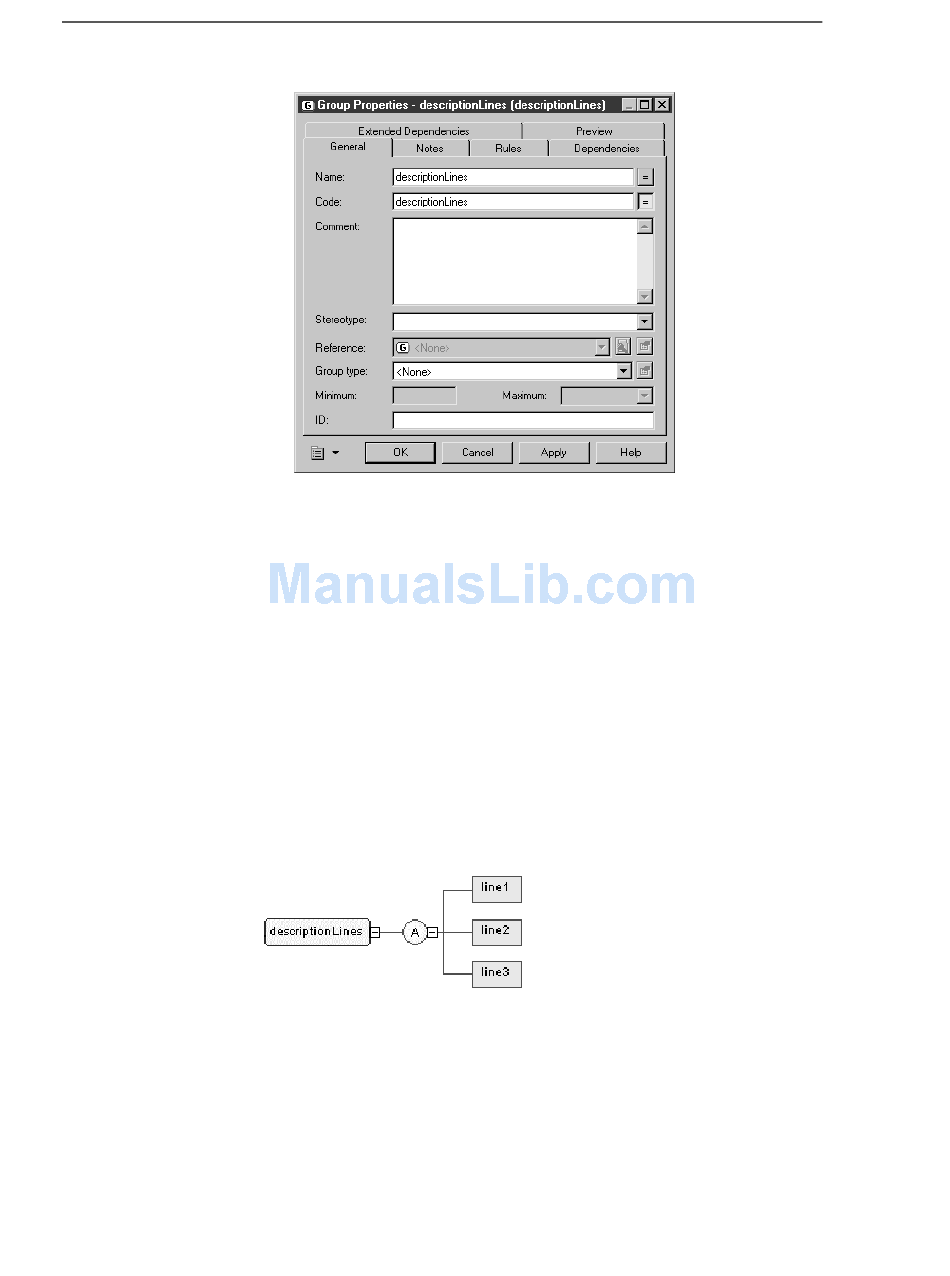

Type a name and a code for the group.
6
Click OK.
7
Select a group particle tool in the palette (Sequence, Choice or All).
8
Click the group symbol in the diagram.
The group particle symbol appears attached to the group symbol.
9
Select the Element tool in the palette.
10 Click the group particle symbol in the diagram for each child element
you want to create.
The child element symbols appear attached to the group particle symbol.
11 Double-click a child element symbol to display its property sheet.
12 Type a name and a code for the child element.
13 Repeat steps 11 and 12 for each child element.
14 Click OK.
