Mapping XML Model objects to PDM objects

Mapping elements
XSM User's Guide
You can map elements or complex types and their corresponding attributes to
PDM objects.
The following table shows all the allowed mappings between XML Model
objects and PDM objects:
XML Model object
Element
Element attribute
Complex type
Complex type attribute
In this section, we will talk about tables but the functionalities also apply to
views, columns and/or view columns.
You can map elements to PDM objects.
Once the tables are identified and mapped with the elements, you can define
mappings between columns and attributes.
But columns can also be mapped to elements. Mapping a column either to an
attribute or an element depends on the schema presentation:

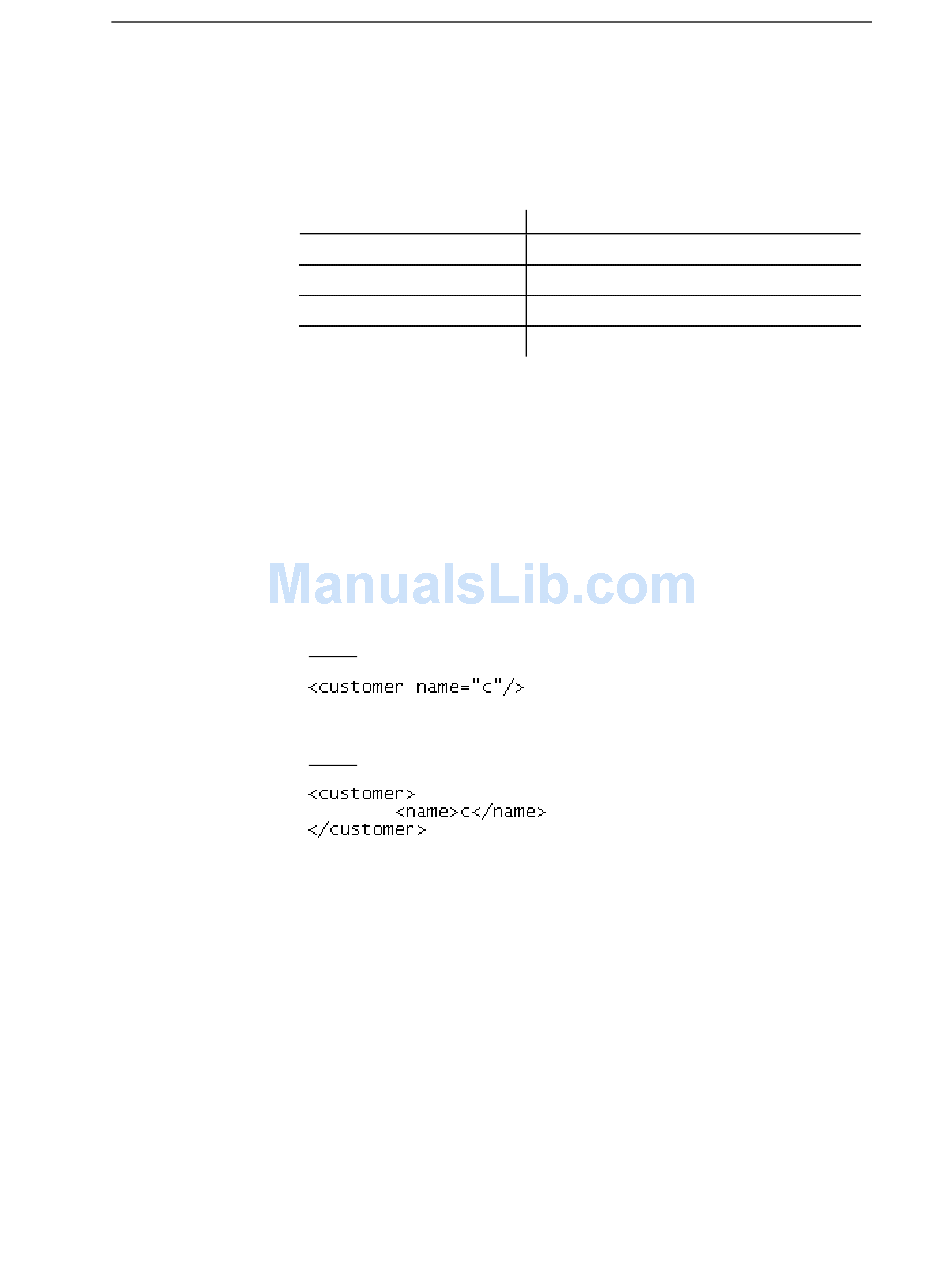

Case 1:
A column should be mapped to the name attribute.
Case 2:
A column should be mapped to the name element.
You have to use the Mapping page of an element property sheet to define
element mappings.
Chapter 3 Working with an XML model
PDM object
Table, view, column, view column
Column, view column
Abstract data type
Abstract data type attribute
169
