Generating an annotated schema for Oracle 9i2
236

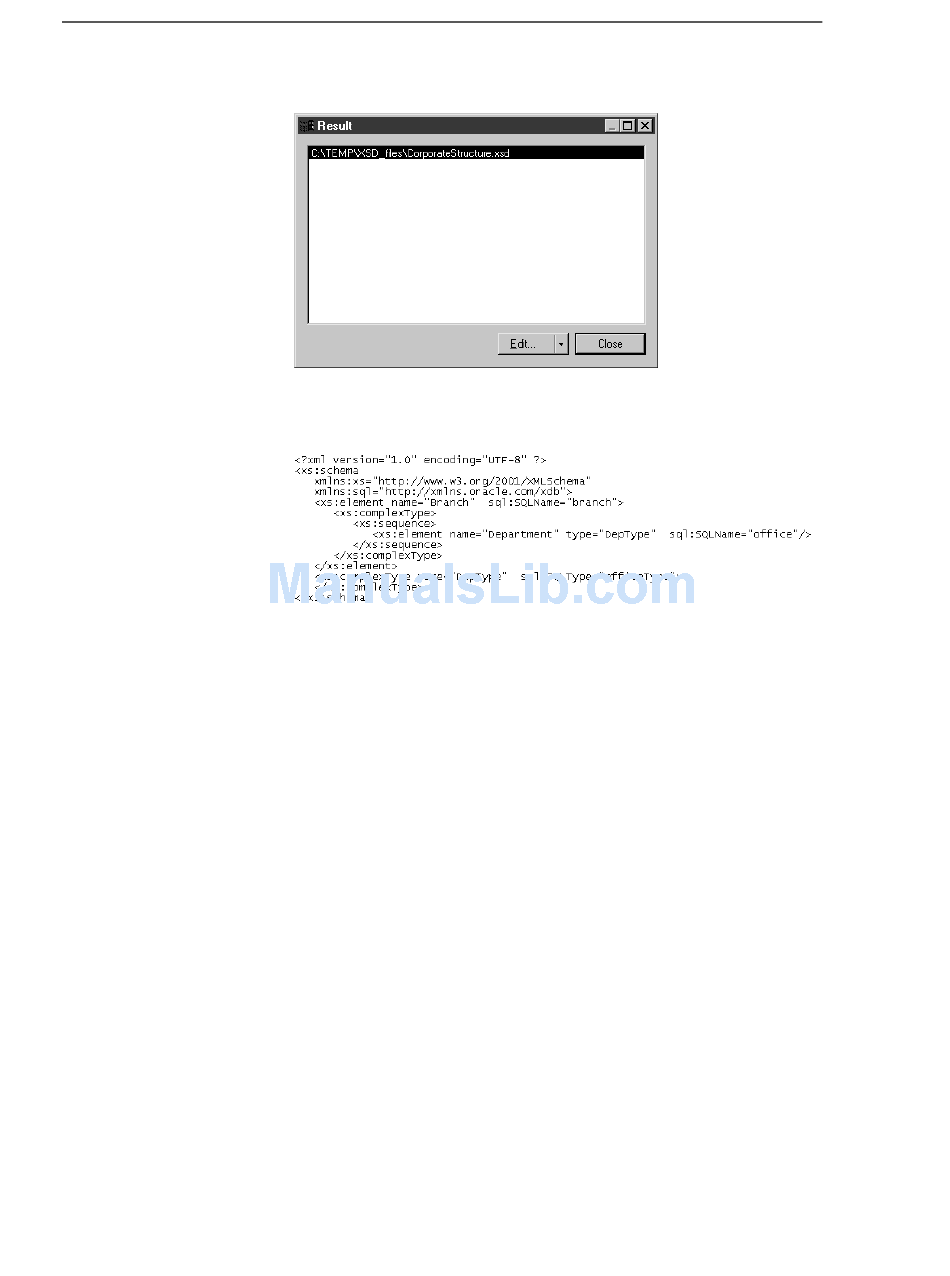

The Result dialog box appears with the path of the generated schema
file.
20 Click Edit.
The annotated schema appears in the editor window.
Note the Oracle namespace (with the sql prefix) and annotations for
tables (sql:SQLName) and ADTs (sql:SQLType)
21 Click Close in the Result dialog box.
