Defining elements
From the palette
56
7
Click OK.

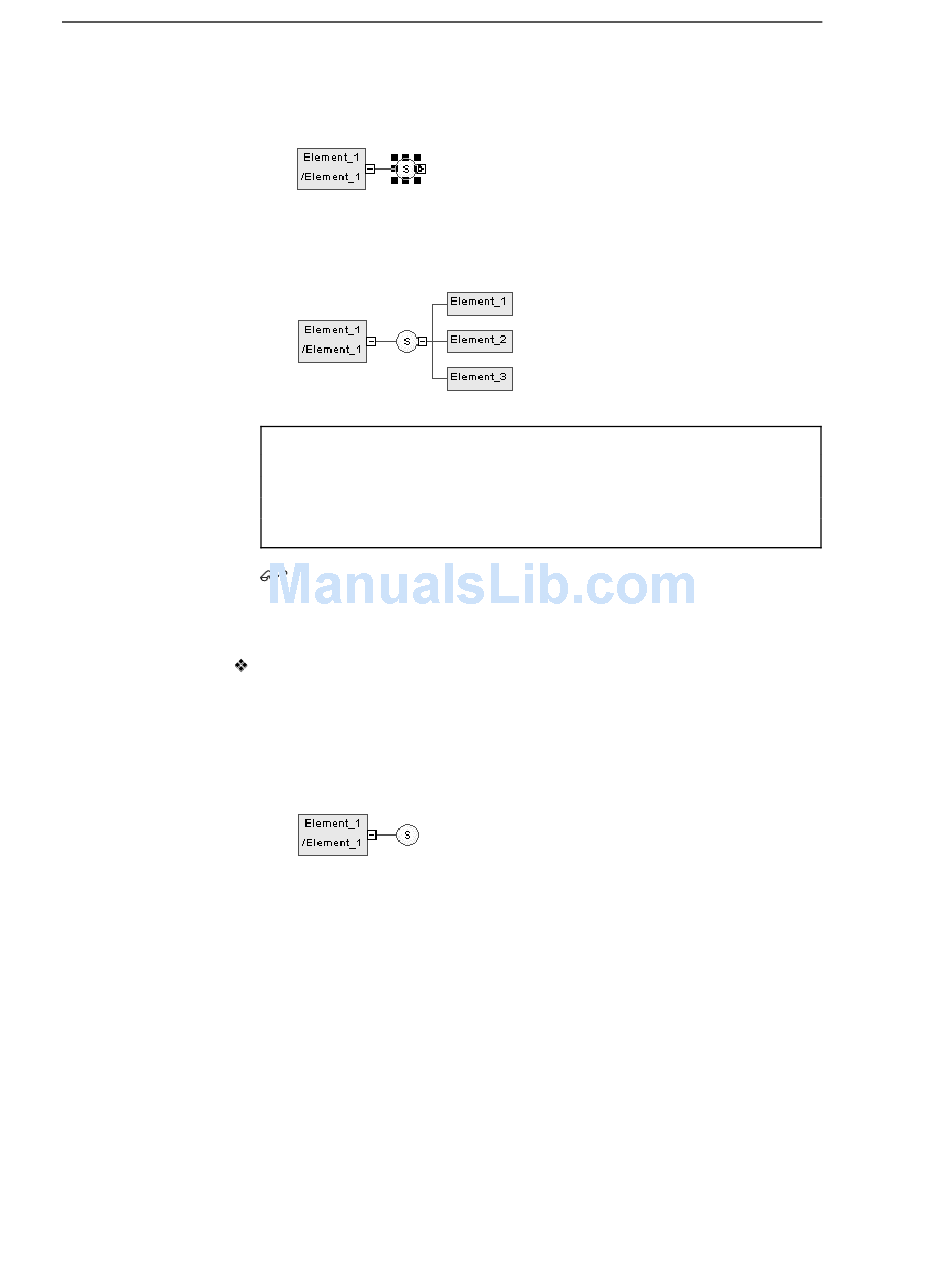

The group particle symbol appears selected, with an Expand tab on its
right side.
8
Click an empty space in the diagram, to deselect the group particle
symbol, and click the Expand tab to reveal the child element symbols
and their link.
Name and code uniqueness
To respect the name and code uniqueness within a namespace, child
elements are defined within an internal namespace which is their parent
element. Therefore, there cannot be a conflict between a parent and a child
name.
For more information on the namespace concept, see section Managing
the namespace in models, in chapter Managing Models of the General
Features Guide.
To create a group particle from the palette:
1
Select a group particle tool in the palette.
2
Click the element symbol in the diagram.
The group particle symbol appears in the diagram, linked to the element
symbol.
3
Click the Element tool in the palette.
4
Click the group particle symbol in the diagram for each child element
you need.
PowerDesigner
