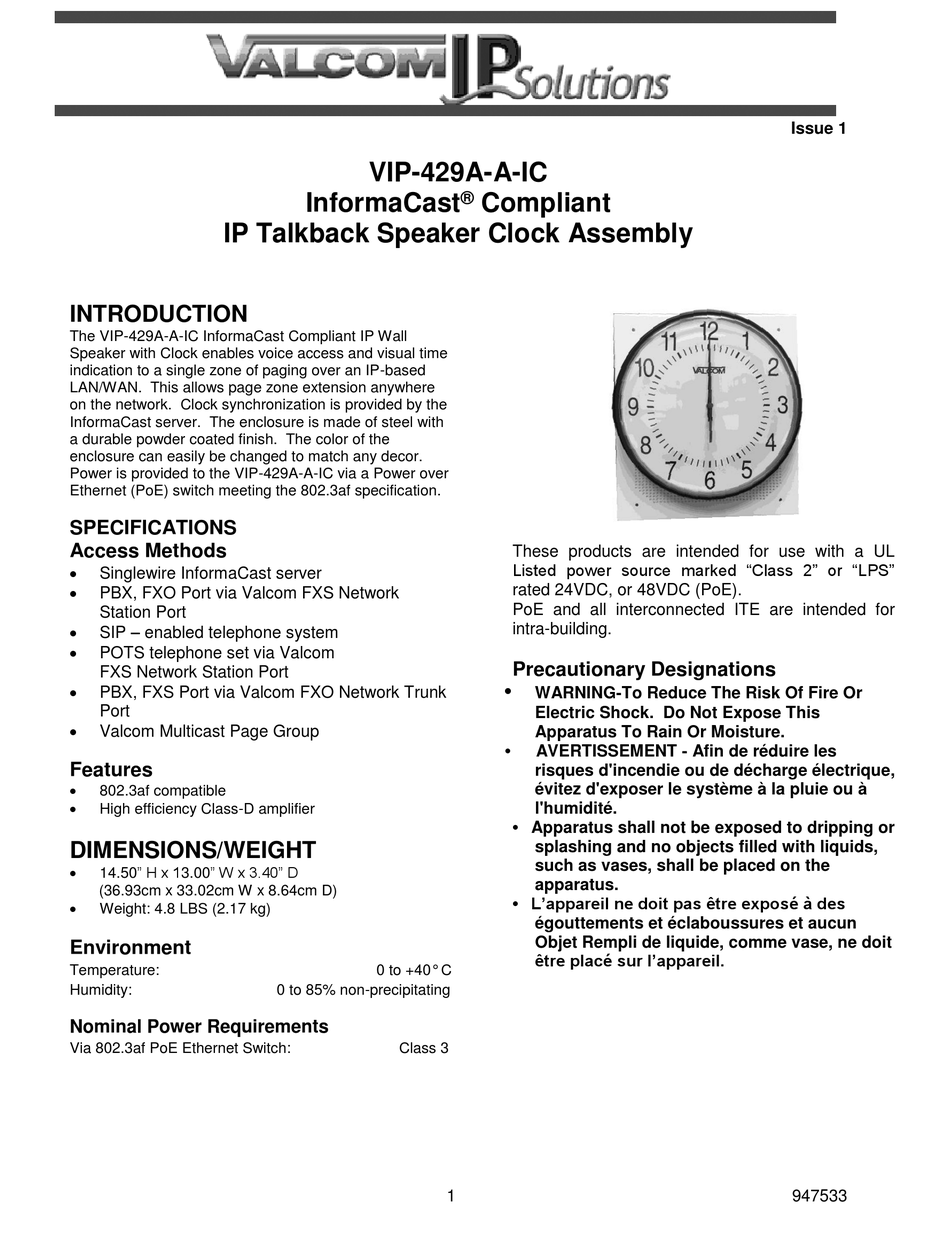

Valcom VIP-429A-A-IC Assembly

IP Talkback Speaker Clock Assembly
INTRODUCTION
The VIP-429A-A-IC InformaCast Compliant IP Wall
Speaker with Clock enables voice access and visual time
indication to a single zone of paging over an IP-based
LAN/WAN. This allows page zone extension anywhere
on the network. Clock synchronization is provided by the
InformaCast server. The enclosure is made of steel with
a durable powder coated finish. The color of the
enclosure can easily be changed to match any decor.
Power is provided to the VIP-429A-A-IC via a Power over
Ethernet (PoE) switch meeting the 802.3af specification.
SPECIFICATIONS
Access Methods

Singlewire InformaCast server

PBX, FXO Port via Valcom FXS Network
Station Port

SIP – enabled telephone system

POTS telephone set via Valcom
FXS Network Station Port

PBX, FXS Port via Valcom FXO Network Trunk
Port

Valcom Multicast Page Group
Features

802.3af compatible

High efficiency Class-D amplifier
DIMENSIONS/WEIGHT

14.50" H x 13.00" W x 3.40" D
(36.93cm x 33.02cm W x 8.64cm D)

Weight: 4.8 LBS (2.17 kg)
Environment
Temperature:
Humidity:
Nominal Power Requirements
Via 802.3af PoE Ethernet Switch:
VIP-429A-A-IC
InformaCast
0 to +40° C
0 to 85% non-precipitating
Class 3
1
®
Compliant
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designations
•
WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
•
AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge électrique,
évitez d'exposer le système à la pluie ou à
l'humidité.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases, shall be placed on the
apparatus.
• L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne doit
être placé sur l'appareil.
Issue 1
947533
