Valcom VIP-A12A Quick Start Manual

IP PoE Surface Mount Analog Clocks
INTRODUCTION
The VIP-A12A 12 inch Round Analog and VIP-A16A
16 inch Round Analog Clocks enable time indication,
synchronization, and correction over an IP-based
LAN/WAN. This allows locating a clock display
anywhere on the network. Clock synchronization can
be programmed to sync with any NTP (Network Time
Protocol) server. The enclosure is made of steel with a
durable powder coated finish. The color of the
enclosure can easily be changed to match any décor.
Power is provided to the VIP-A12A and
VIP-A16A via a Power over Ethernet (PoE) switch
meeting the 802.3af specification.
SPECIFICATIONS
Features

RJ-45 network connection

Low-profile/semi-flush smooth surface metal case

Shatterproof, polycarbonate crystal

802.3af compatible

High Efficiency
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
.

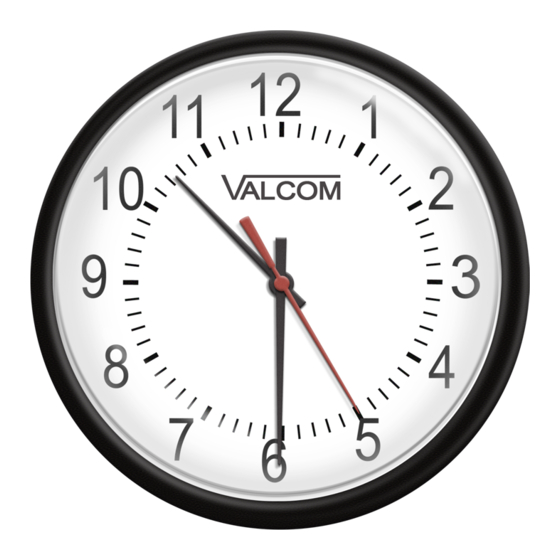

VIP-A12A, 12" Round
VIP-A16A, 16" Round
1
DIMENSIONS/WEIGHT

VIP-A12A – 12.81" diameter x 1.20" depth
Weight: 3.70 LBS

VIP-A16A – 16.81" diameter x 1.60" depth
Weight: 5.35 LBS
Nominal Power Requirements
4.5W via 802.3af PoE
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
one's own expense.
Issue 4
0 to +45° C
947765
