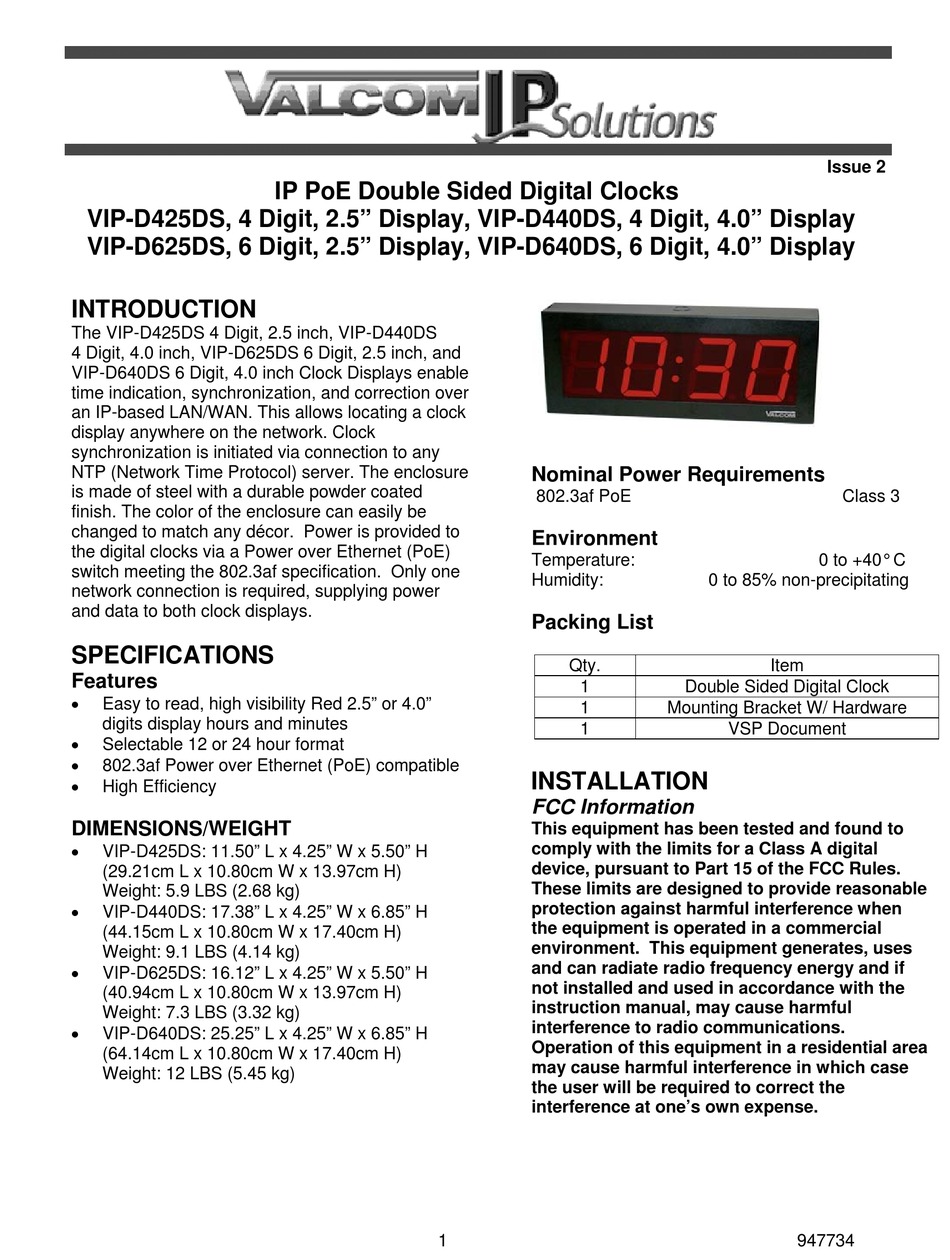

Valcom VIP-D425DS User Manual

VIP-D425DS, 4 Digit, 2.5" Display, VIP-D440DS, 4 Digit, 4.0" Display
VIP-D625DS, 6 Digit, 2.5" Display, VIP-D640DS, 6 Digit, 4.0" Display
INTRODUCTION

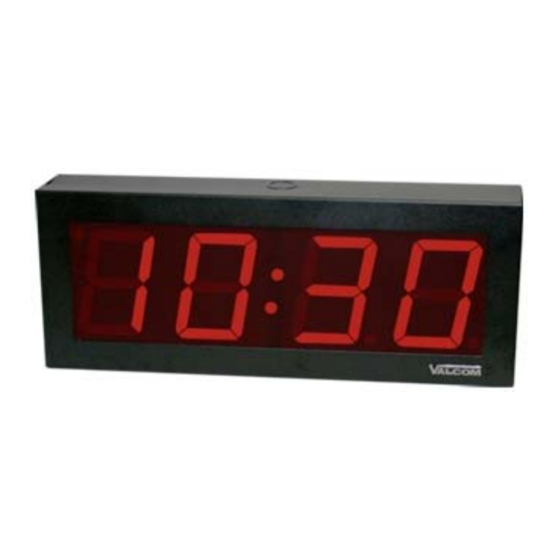

The VIP-D425DS 4 Digit, 2.5 inch, VIP-D440DS
4 Digit, 4.0 inch, VIP-D625DS 6 Digit, 2.5 inch, and
VIP-D640DS 6 Digit, 4.0 inch Clock Displays enable
time indication, synchronization, and correction over
an IP-based LAN/WAN. This allows locating a clock
display anywhere on the network. Clock
synchronization is initiated via connection to any
NTP (Network Time Protocol) server. The enclosure
is made of steel with a durable powder coated
finish. The color of the enclosure can easily be
changed to match any décor. Power is provided to
the digital clocks via a Power over Ethernet (PoE)
switch meeting the 802.3af specification. Only one
network connection is required, supplying power
and data to both clock displays.

SPECIFICATIONS

Features

Easy to read, high visibility Red 2.5" or 4.0"
digits display hours and minutes

Selectable 12 or 24 hour format

802.3af Power over Ethernet (PoE) compatible

High Efficiency
DIMENSIONS/WEIGHT

VIP-D425DS: 11.50" L x 4.25" W x 5.50" H
(29.21cm L x 10.80cm W x 13.97cm H)
Weight: 5.9 LBS (2.68 kg)

VIP-D440DS: 17.38" L x 4.25" W x 6.85" H
(44.15cm L x 10.80cm W x 17.40cm H)
Weight: 9.1 LBS (4.14 kg)

VIP-D625DS: 16.12" L x 4.25" W x 5.50" H
(40.94cm L x 10.80cm W x 13.97cm H)
Weight: 7.3 LBS (3.32 kg)

VIP-D640DS: 25.25" L x 4.25" W x 6.85" H
(64.14cm L x 10.80cm W x 17.40cm H)
Weight: 12 LBS (5.45 kg)
IP PoE Double Sided Digital Clocks
1
Nominal Power Requirements
802.3af PoE
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Packing List
Qty.
1 Double Sided Digital Clock
1 Mounting Bracket W/ Hardware
1
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at one's own expense.
Issue 2
Class 3
0 to +40° C
Item
VSP Document
947734
