- Page 1 CSC500K Key Operated Woodturning Chuck Set Axminster Reference No: CSC500K w w w. a x m i n s t e r. c o . u k...
-
Page 2: Table Of Contents
Warranty... Thank you for purchasing one of Axminster’s growing family of woodworking products. The CSC500K Chuck Set is engineered and manufactured to the highest quality standards. You will find this product an essential accessory to your workshop. This product is warranted against defects in material and workmanship for a period of one years for all components. -
Page 3: Safety Instructions For Chuck Systems

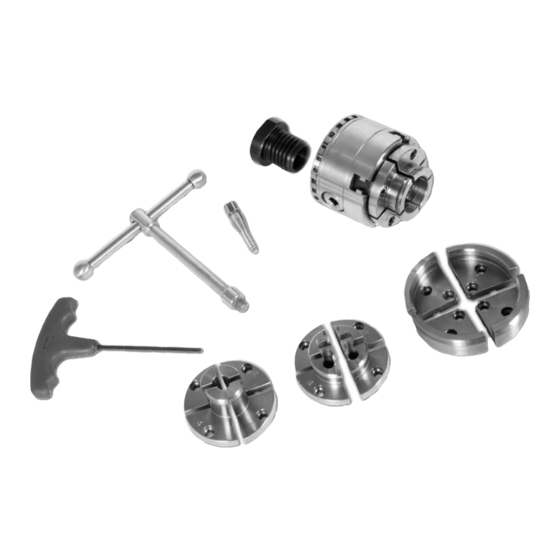

11. Keep clean and lubricate with a light coat of oil. What’s in the Box... Model Number: (210307) CSC500K A CSC500K 65mm Barracuda chuck (pre-threaded for 1" x 8tpi) B 1 Set (4 pieces) gripper jaws (shipped pre-mounted to chuck) C 1. Hex wrench D 1 Tightening Key... -
Page 4: What's In The Box
What’s in the Box... www.axminster.co.uk... -
Page 5: Chuck System Description
Chuck System Description... A. Main body: designed to hold all jaws as an assembly. B. Carrier: to which the top jaws are each attached with one or two hex screws. ( the jaws has a tongue which must mate with grooves) C.Jaws: attached to the carrier, used for gripping the wood piece to be turned. -
Page 6: Jaw Capacity Chart
1. Wipe the inside of the threads and the outside of the adaptor to insure both surfaces are clean. 2. Use the furnished 3/4" x l6tpi adaptor if necessary. 3. Hold the chuck in your hand, screw and tighten the adaptor into the bottom threaded portion of the chuck. Chuck Adaptor www.axminster.co.uk... -
Page 7: Mounting The Chuck To Your Lathe
Mounting the Chuck to Your Lathe... Screw the completed assembly onto your lathe. The chuck should go on effortlessly with no binding. Screw the chuck all the way until the adapto r face contacts the shoulder of the lathe spindle. Lock the spindle, slightly unscrew the chuck and give it a firm spin. This will snap the chuck firmly in place. - Page 8 Axminster Reference No: CSC500K Axminster Devon EX13 5PH UK FREEPHONE 0800 371822 www.axminster.co.uk...
