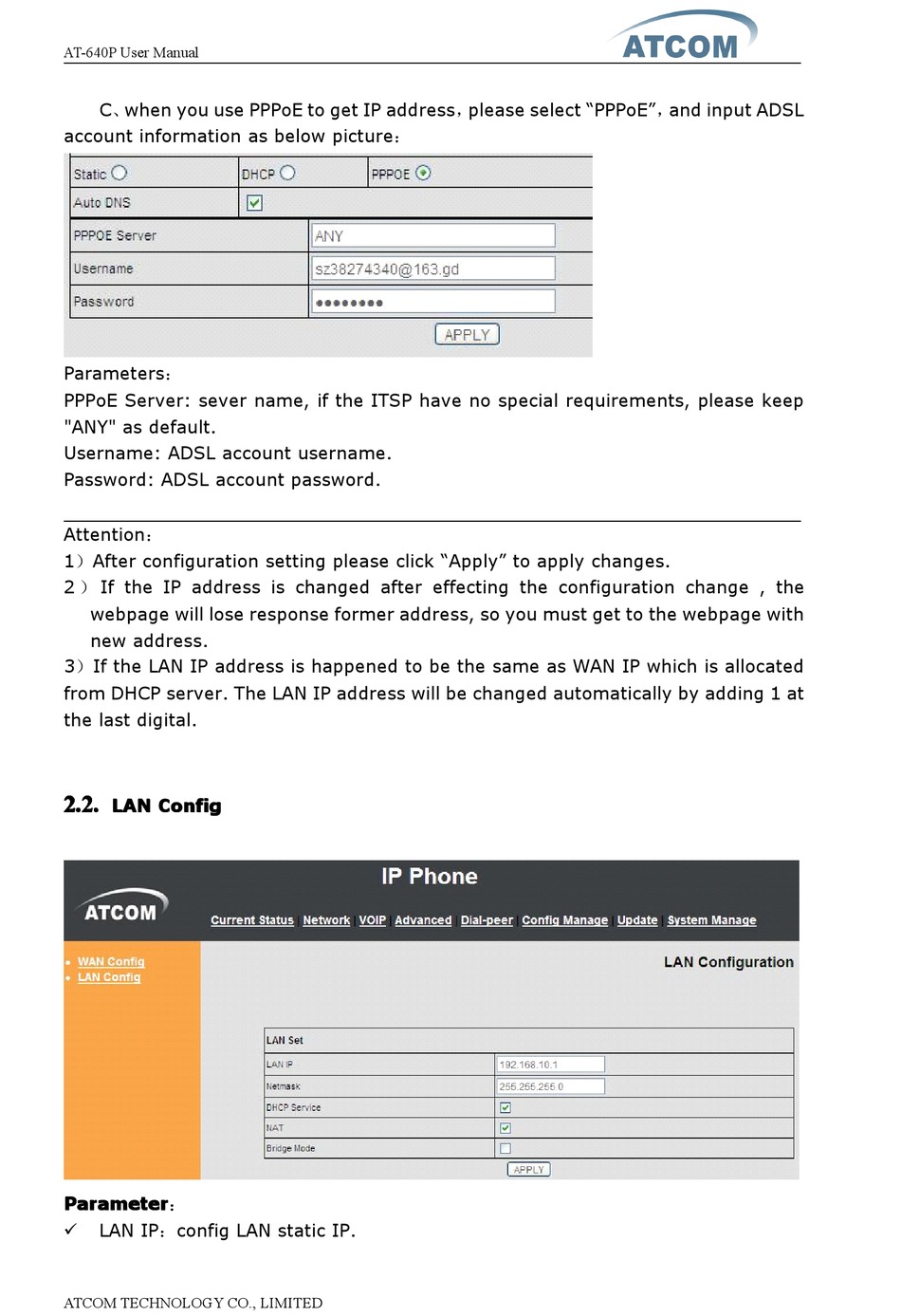

Lan Config - ATCOM AT-640P User Manual

AT-640P User Manual
C、 when you use PPPoE to get IP address， please select "PPPoE"， and input ADSL
account information as below picture：
Parameters：
PPPoE Server: sever name, if the ITSP have no special requirements, please keep
"ANY" as default.
Username: ADSL account username.
Password: ADSL account password.
Attention：
1）After configuration setting please click "Apply" to apply changes.
2 ） If the IP address is changed after effecting the configuration change , the
webpage will lose response former address, so you must get to the webpage with
new address.
3）If the LAN IP address is happened to be the same as WAN IP which is allocated
from DHCP server. The LAN IP address will be changed automatically by adding 1 at
the last digital.
2.2. 2.2.
2.2. 2.2.
LAN LAN Config Config
LAN

LAN Config

Config
Parameter Parameter
Parameter Parameter：
LAN IP：config LAN static IP.
�
ATCOM TECHNOLOGY CO., LIMITED
