AT-640P User Manual
4.11.
4.11.
4.11.
4.11.

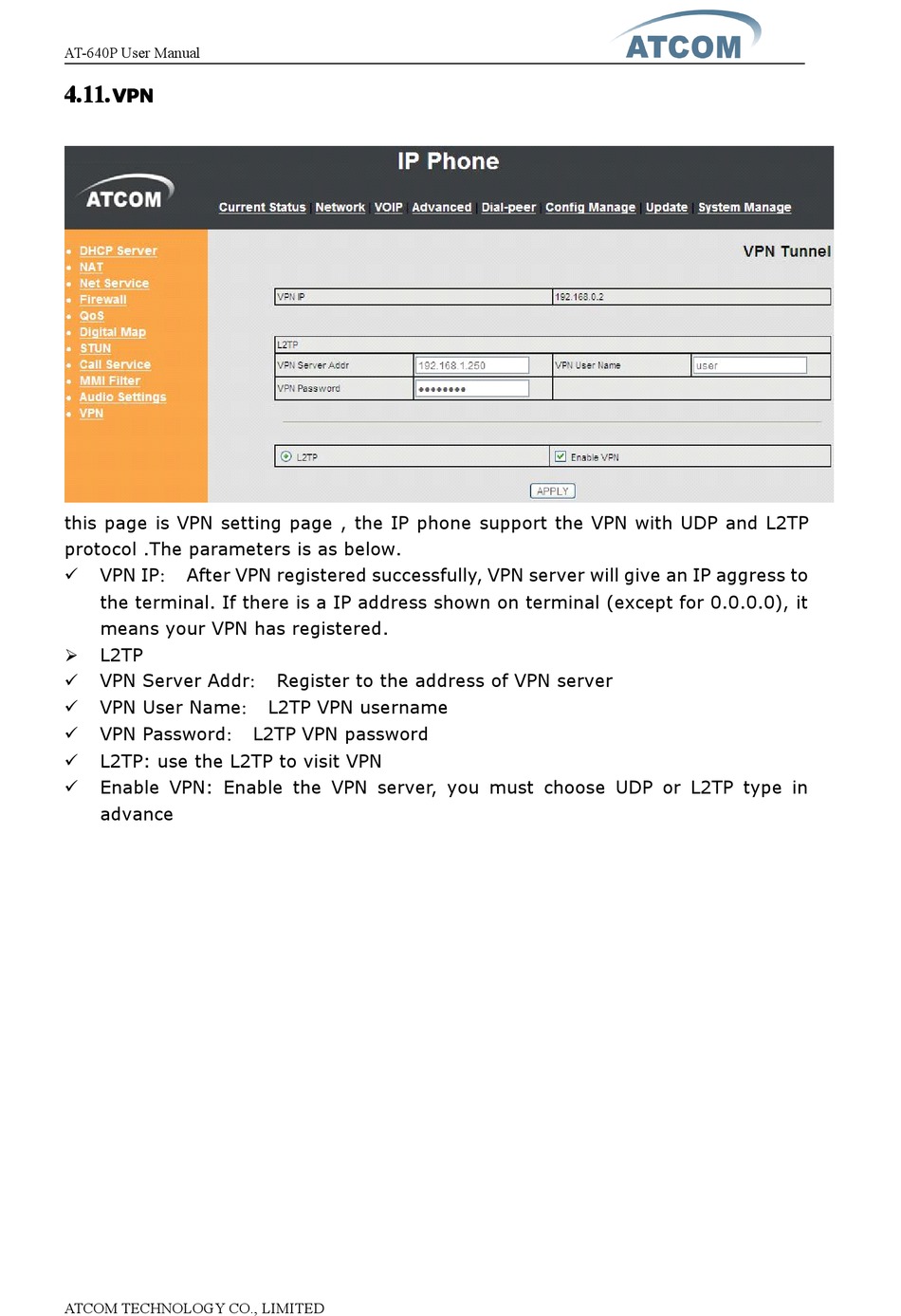

VPN
VPN
VPN
VPN
this page is VPN setting page , the IP phone support the VPN with UDP and L2TP
protocol .The parameters is as below.
VPN IP： After VPN registered successfully, VPN server will give an IP aggress to
�
the terminal. If there is a IP address shown on terminal (except for 0.0.0.0), it
means your VPN has registered.
�
L2TP
�
VPN Server Addr： Register to the address of VPN server
�
VPN User Name： L2TP VPN username
VPN Password： L2TP VPN password
�
�
L2TP: use the L2TP to visit VPN
�
Enable VPN: Enable the VPN server, you must choose UDP or L2TP type in
advance
ATCOM TECHNOLOGY CO., LIMITED
