AT-610 User Manual
3rd 3rd 3rd、 3rd Keypad Keypad Keypad Keypad of
Description:
Number
1
3、5、7
ATCOM TECHNOLOGY CO., LIMITED
of IP of of IP IP IP Phone Phone Phone Phone

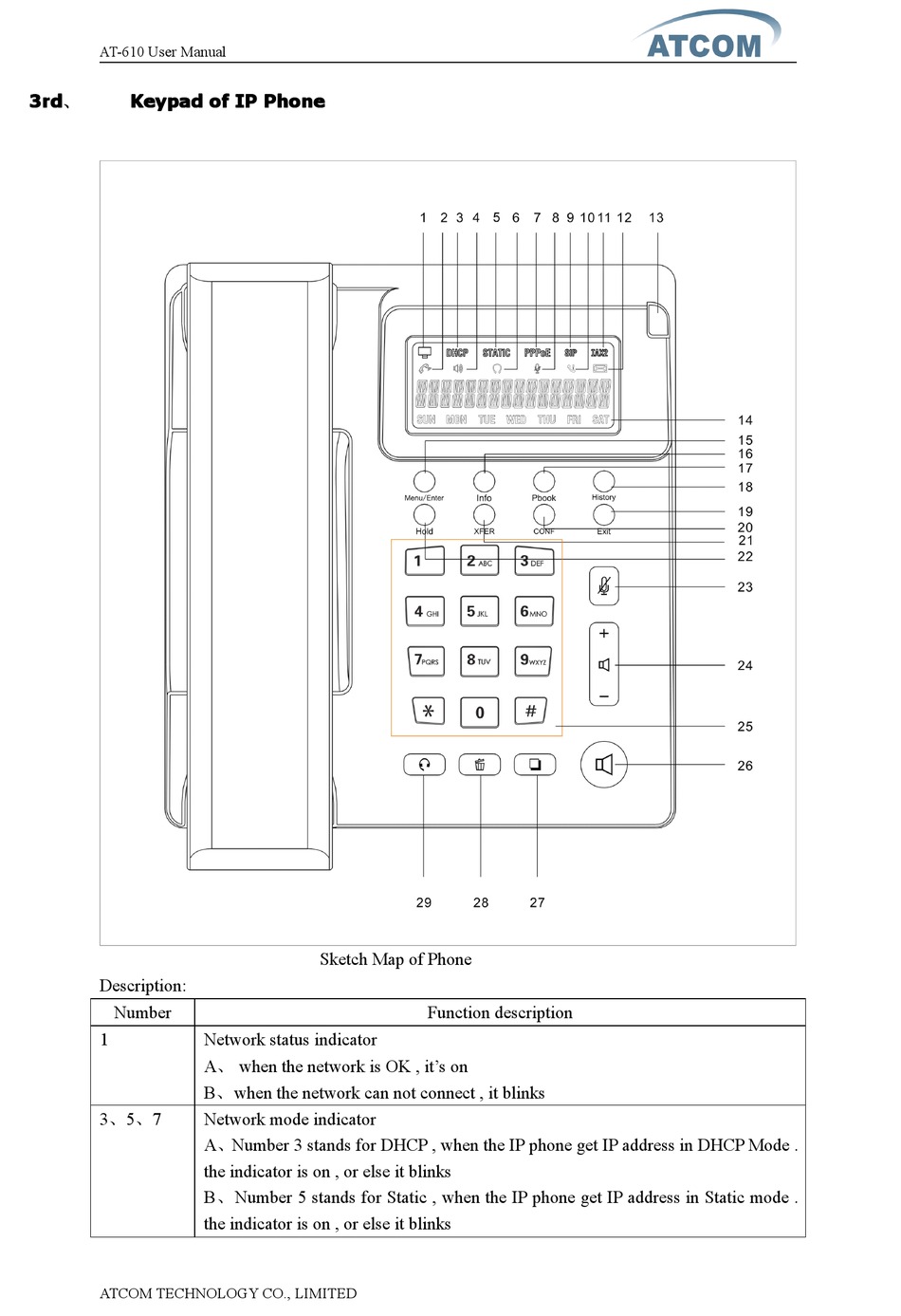

Sketch Map of Phone
Network status indicator
A、 when the network is OK , it's on
B、when the network can not connect , it blinks
Network mode indicator
A、Number 3 stands for DHCP , when the IP phone get IP address in DHCP Mode .
the indicator is on , or else it blinks
B、Number 5 stands for Static , when the IP phone get IP address in Static mode .
the indicator is on , or else it blinks
Function description
