Washer-Extractors
NOTA: El manual en
español aparece después
del manual en inglés.

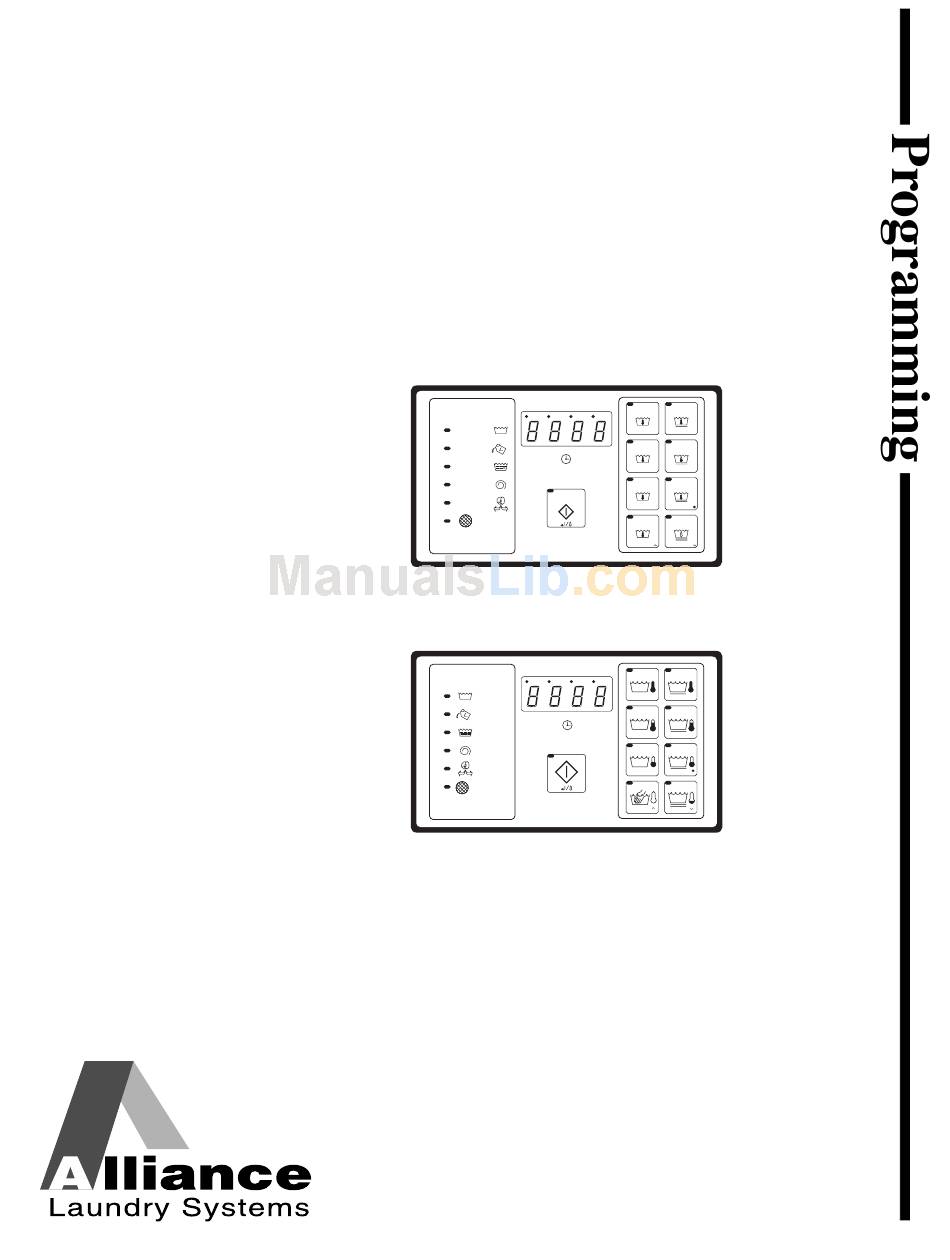

UW Pocket Hardmount
B-Series Microcomputer
Models UW35B2 and UW60B2
WASH
ADD
BLEACH
RINSE
SPIN
DOOR
DOMESTIC MODELS
INTERNATIONAL MODELS
www.comlaundry.com
2 Speed
NORMAL
PERM PRESS
HOT
HOT
LIGHT SOIL
TM
VISA
HOT
WARM
HEAVY SOIL
UNIFORMS
ST ART
HOT
HOT
STAINED
DELICATE
HOT
COLD
95C
95C
60C
60C
40C
40C
30C
PHM1392C
PHM1
Part No. F232168R2
November 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UW35B2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems UW35B2

Summary of Contents for Alliance Laundry Systems UW35B2

  • Page 1 Washer-Extractors NOTA: El manual en español aparece después del manual en inglés. UW Pocket Hardmount B-Series Microcomputer Models UW35B2 and UW60B2 WASH BLEACH RINSE SPIN ST ART DOOR DOMESTIC MODELS INTERNATIONAL MODELS www.comlaundry.com 2 Speed NORMAL PERM PRESS LIGHT SOIL...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. F232168 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information... Important Safety Instructions ...
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168...

  • Page 5: Safety Information

    IMPORTANT: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Safety Information Important Safety Instructions To reduce the risk of fire, electric shock,...
  • Page 6 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 19. Replace worn power cords and/or loose plugs. 20. Be sure water connections have a shut-off valve and that fill hose connections are tight.

  • Page 7: Entering Program Mode

    1. Turn on the main power source (circuit breaker or cut-off switch on wall). 2. Display will show Firmware ID code (i.e., “o2UC” and “ouUC” etc...). 3. Record Firmware ID Code for future reference. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Programming...

  • Page 8: Setup Mode (For Models With Firmware Id Code "O2Hc", "O2Uc", "Ouhc" And "Ouuc")

    (∧) or (∨) key. Press START key to © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT return to Program Mode. Refer to “Programming Cycle Segments” section for additional information.

  • Page 9: Setup Mode (For Earlier Models)

    Bleach [Supply 2]). Change selection by pressing (∧) or (∨) keypad. 8. Press START keypad. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 NOTE: If “EFIL” or “ESUP” does NOT display, the extra fill capability is NOT present. If either message does display, change the selection by pressing the (∧...

  • Page 10: Programming Cycle Segments

    START Keypad CLEAN FILTER Indicator LED (Active only for C80 models) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT After entering Program Mode, display will show a temperature. Press the (∧) key to enter Cycle Programming Mode. The display will reference cycles by number.

  • Page 11: Options For Each Segment

    ††† Extra Fill (“EFIL”) possible only if configured for “EFIL” in Setup Mode. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Setting Options for Cycle Steps (Press START key to advance to next row selection, ∧...
  • Page 12 ††† Extra Fill (“EFIL”) possible only if configured for “EFIL” in Setup Mode. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 1 (Continued) Setting Options for Cycle Steps (Press START key to advance to next row selection, ∧...
  • Page 13 3 seconds reverse, 12 seconds off, and repeat. ††† Extra Fill (“EFIL”) possible only if configured for “EFIL” in Setup Mode. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Table 1 (Continued) Setting Options for Cycle Steps (Press START key to advance to next row selection, ∧...
  • Page 14 ††† Extra Fill (“EFIL”) possible only if configured for “EFIL” in Setup Mode. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 1 (Continued) Setting Options for Cycle Steps (Press START key to advance to next row selection, ∧...

  • Page 15: To Edit An Entire Wash Cycle Formula

    NOTE: Extra Fill (“EFIL”) possible only if configured for “EFIL” in Setup Mode. If configured, a third fill valve can be controlled. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Display shows “LO”, “ or high water level, respectively. Press the (∧) or (∨) key to alter the selection, or the START key to continue.

  • Page 16: Rinse 1 - Rinse 4

    (USH2, USH3, USH4 or after USH4, the “rIN1” segment). Refer to Rinse 1 – Rinse 4 section. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Rinse 1 – Rinse 4 NOTE: Programming a time other than “00” for...
  • Page 17 After temperature setting, control will skip to “drAI”/“nodr” or Spin Time, depending on version. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 If display shows “drAI”/“nodr” during segment programming, a drain step option can be selected.

  • Page 18: Abnormal Conditions

    If machine does not empty, display continues flashing “Erdn”. The drain error counter increases by one. Refer to Cycle and Error Count. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Temperature Probe Sensor Problem If display shows “tSFL”, “-19c”, or “00F”, the machine has a temperature sensor failure.

  • Page 19: Rapid Advance (For Models With Firmware Id Code "O2Hc", "O2Uc", "Ouhc" And "Ouuc")

    The next step after the spin begins. Cycle remaining is recalculated as the total remaining time after the drain and spin steps. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Spin Step Advance the cycle by pressing (∧) keypad to skip the...

  • Page 20: Permanent Diagnostic Test Cycle

    Display shows ‘SUP4’ (keypad RINSE LED on) Pause 5 seconds, then Forward Display shows ‘For’ wash speed – 60 seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Control Test Outputs: Motor OFF, Drain closed, hot fill on, cold fill on (∧)
  • Page 21 Spin (low spin speed “HI 1” for variable-speed) Highest spin (“HI 2” – variable-speed ONLY) NA – Not Applicable © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Table 2 (Continued) Outputs: Motor operates wash speed reverse; drain closed Outputs: Drain closed for first part of step (less than 20 seconds), then drain off.

  • Page 22: Cycle Charts For Domestic Opl Models Built After April 2005 (Displays P-F5)

    Wash 3 (WASH indicator) Time for agitation Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Light Heavy Stained Soil Soil CY01 CY02...
  • Page 23 Time for agitation (min) Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Table 3 (Continued) Light Heavy Stained Soil...
  • Page 24 Time for agitation Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) minutes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 3 (Continued) Light Heavy Stained Soil Soil Warm...

  • Page 25: Cycle Charts For Domestic Opl Models Built Prior To April 2005 (Displays P-F1)

    Wash 3 (WASH indicator) Time for agitation Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Light Heavy Stained Soil Soil CY01...
  • Page 26 Time for agitation (min) Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 4 (Continued) Light Heavy Stained Soil Soil...
  • Page 27 Time for agitation Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) minutes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Table 4 (Continued) Light Heavy Stained Soil Soil...

  • Page 28: Cycle Charts For International Opl

    Wash 3 (WASH indicator) Time for agitation Fill valves (temperature) Fill water level Supply Heat (if enabled) Drain Spin (only if ‘drain’) seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Normal Normal Normal Gentle 95°C 60°C 40°C...
  • Page 29 Rinse 2 (RINSE indicator) Time for agitation Fill valves (temperature) Fill water level Supply Heat Drain Spin (only if ‘drain’) seconds © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232168 Table 5 (Continued) Normal Normal Gentle 95°C 60°C 40°C...
  • Page 30 (Fills, drains each average ~ 1 minute, rounded to nearest minute) (*) (*) Heat time not included. Exact times may differ slightly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 5 (Continued) Normal Normal Gentle 60°C...
