Where is Pin1
When connecting IDE cables, bear in mind to
aim the red side of IDE cables at the first pin
of the socket where there's an arrow mark on
the motherboard. If you are still not sure,
please refer to your motherboard manual.

3.5 Install CPU

3.5.1 Install CPU On Socket 478

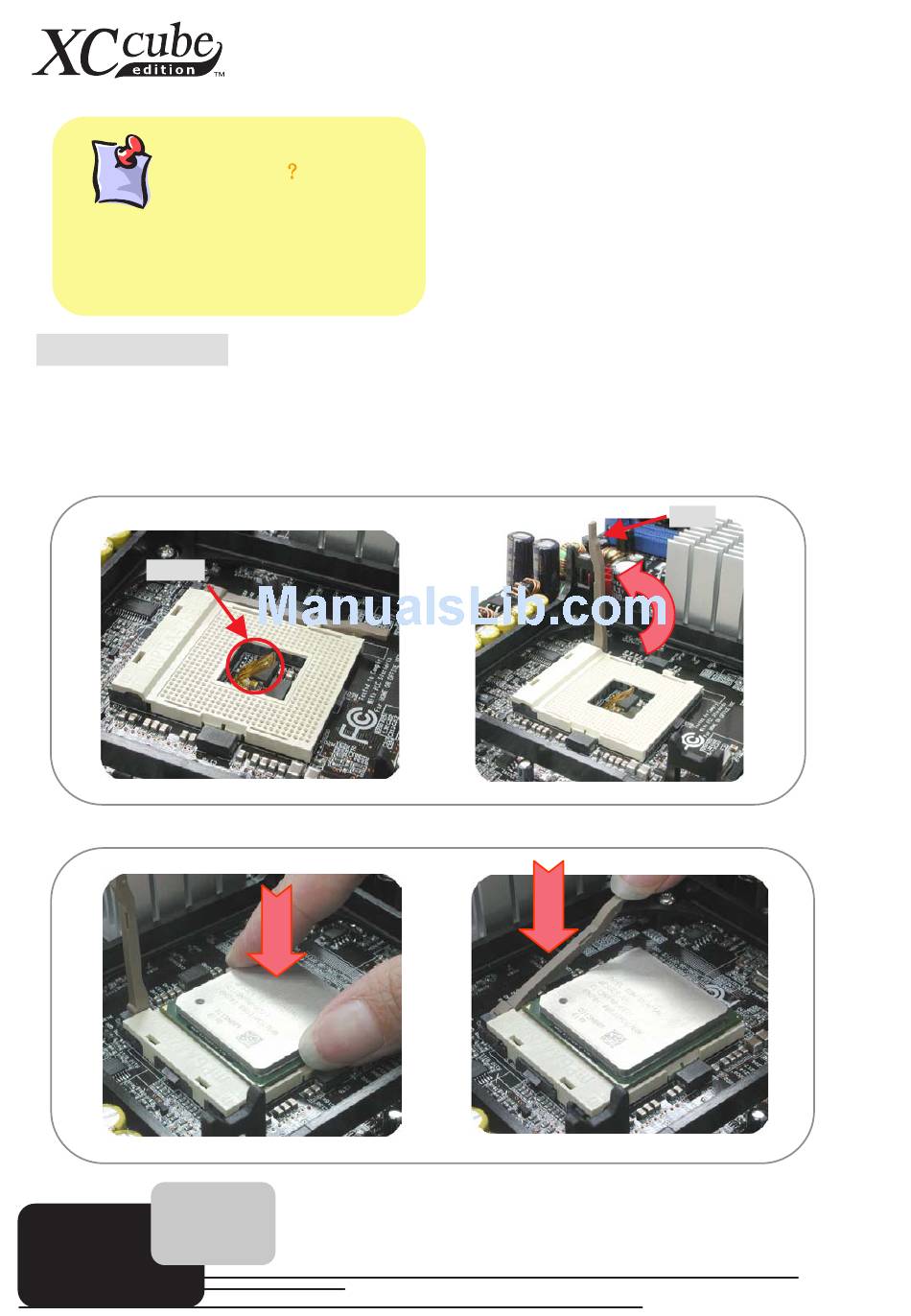

1. Erect sensor up a bit (it might have been folded while shipped in with Cooler on top of it). After
that, erect CPU socket lever up.
Sensor
2. Install CPU onto CPU socket. Press the lever back to CPU socket.
14
Lever
