AT-4016TR
AT-4016F
AT-TS95TR
Ethernet Switch
with ATM Access
AT-S7
AT-S9
Release 2.0
Operations Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-4016TR and is the answer not in the manual?

Questions and answers

Related Manuals for Allied Telesis AT-4016TR

Summary of Contents for Allied Telesis AT-4016TR

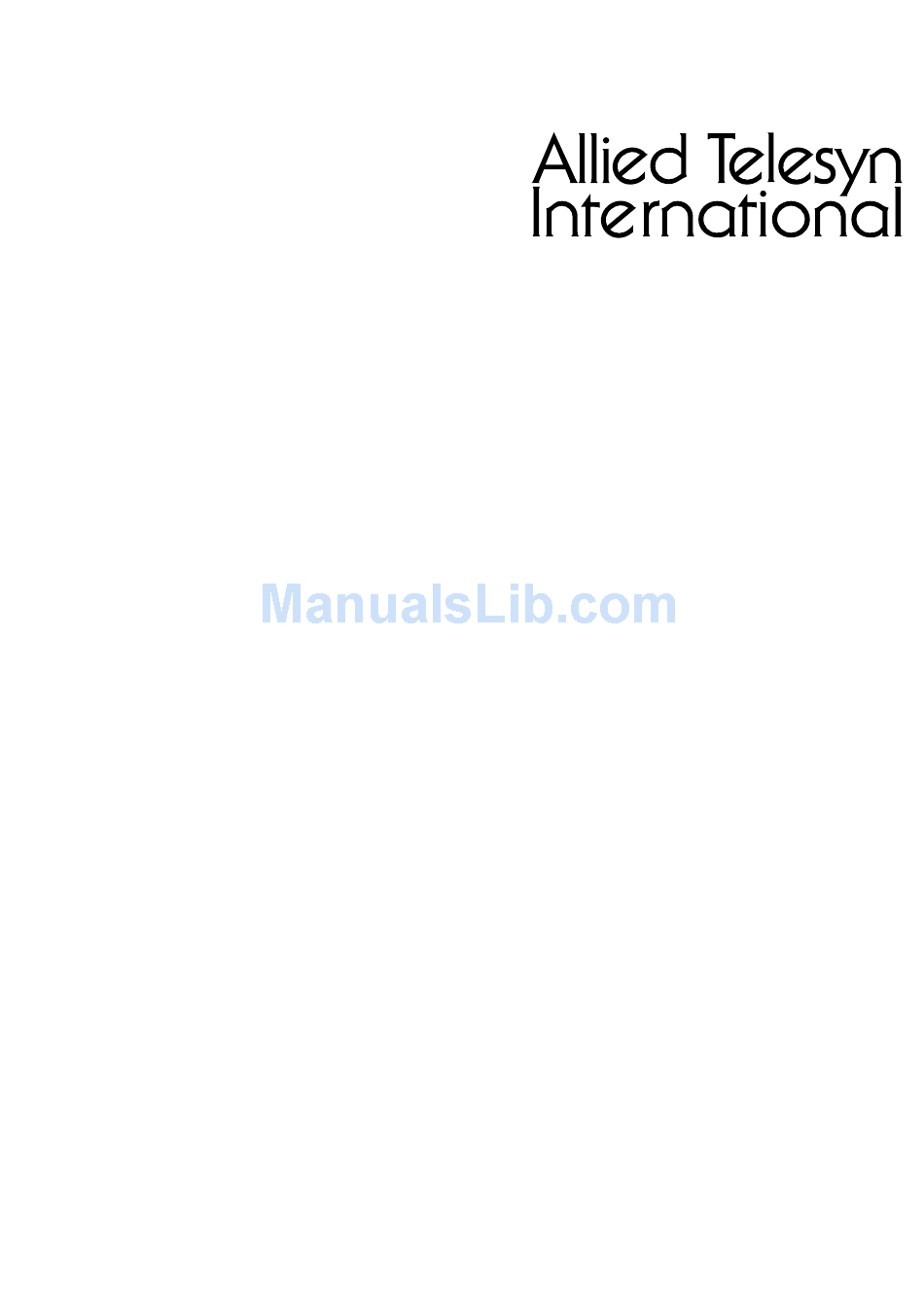

  • Page 1 AT-4016TR AT-4016F AT-TS95TR Ethernet Switch with ATM Access AT-S7 AT-S9 Release 2.0 Operations Manual...
  • Page 2 Copyright 1996 Allied Telesyn International Corporation All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International Corporation. Allied Telesyn International Corporation reserves the right to make changes in specifications and other information contained in this document without prior written notice.

  • Page 3: Table Of Contents

    Table of Contents Preface ................vii Background .
  • Page 4 Table of Contents Chapter 2 Getting Started ..............9 Getting Started —...
  • Page 5 AT-S7/AT-S9 Operations Manual Error Statistics ............... 67 Options .

  • Page 7: Preface

    Background This document represents a discussion of the software operating systems of Allied Telesyn International’s (ATI’s) AT-4016TR (or AT-4016F) Ethernet Switch With ATM Access which uses the optional AT-S7 PCMCIA Firmware Card (Version 2.0) and the AT-TS95TR TurboStack Switch With ATM Access and Management which uses the optional AT-S9 Firmware Cassette (Version 2.0).

  • Page 8: Assumptions

    Menu selections/menu titles appear in Courier bold typeface and prove direct access through the menus. For example, from the System Administration submenu, enter the letters AT for ATM Parameters to access submenu information. AT-4016TR > AT AT-TS95TR > AT viii...

  • Page 9: Related Documentation

    AT-S7/AT-S9 Operations Manual NOTE A note provides additional information about, or possible consequence of, a specific action you can perform. Related Documentation You may find the following networking reference material helpful: Internetworking with TCP/IP: Principles, Protocols, and Architecture (2nd edition), Volumes I and II, Douglas Comer, Prentice Hall © 1991. Interconnections, Bridges and Routers, Radia Perlman, Addison Wesley ©...

  • Page 10: Contacting Ati Technical Support

    Preface Contacting ATI Technical Support Problems? Questions can be directed to ATI’s Technical Support staff by: Telephone Bulletin board services Electronic mail via the Internet CompuServe forum When you contact Technical Support, you should have the following information available: Firmware Revision number Complete description of the problem including any observed errors Complete configuration information Serial number of your ATI Switch...

  • Page 11: Ftp Server

    AT-S7/AT-S9 Operations Manual FTP Server Allied Telesyn provides access to an anonymous FTP Server for driver and Readme files on our adapter cards and managed products. The server can be accessed through your Internet connection as follows (note — use lower case letters): Address gateway.centre.com [lowercase letters]...

  • Page 13: Product Description

    Product Description Overview Welcome to Allied Telesyn International! Allied Telesyn’s AT-4016TR Ethernet Switch With ATM Access , AT-4016F Ethernet Switch With ATM Access and AT-TS95TR TurboStack Switch With ATM Access and Management are all Ethernet-to-Ethernet and Ethernet- to-ATM switches. All support 10 Mbps of dedicated bandwidth on 16 (AT-4016) or 8 (AT-TS95TR) IEEE 802.3 Ethernet ports.

  • Page 14: Features

    Emulated LAN support (up to 64 ELANs) user defined either by port or MAC address Software upgrading and downloading using TFTP or the optional PCMCIA Firmware Card (AT-S7 — Version 2.0) for the AT-4016TR as well as the AT-4016F/SC and the AT-4016F/ST Software upgrading and downloading using TFTP or the optional Firmware Cassette (AT-S9 —...
  • Page 15 AT-S7/AT-S9 Operations Manual Figure 1 shows the front panel of an AT-4016TR. It is presented as a review of the positioning of the relevant ports. Ethernet Switch with ATM Access LINK RECEIVE COLLISION MDI-X LOOP-IN PRESENT RESET LOOP-OUT FAIL ONLINE...

  • Page 16: Standards Compliance

    Product Description Figure 4 shows the rear panel of an AT-TS95TR. Firmware Cassette Port Backplane Figure 4: AT-TS95TR Rear Panel Standards Compliance The following Management Information Base (MIB) protocols are supported by ATI’s Management Software. An expanded discussion of selected MIB support is provided in Appendix B.

  • Page 17: Permanent Virtual Circuits

    AT-S7/AT-S9 Operations Manual Permanent Virtual If connections are established manually through either network management or remote communications, the channels are called Permanent Virtual Circuits Circuits (PVCs). PVCs are implemented through either a management program termed Omega or a remote management station. With this release, each switch must have a PVC connection between itself and every other switch.

  • Page 18: Ethernet Switching

    Product Description Ethernet Switching There are two popular methods to forward information: store-and-forward and cut-through. Although your switch employs store-and-forward as the default, you can also choose cut-through. Store-and-forward Store-and-forward means that your switch stores the entire packet and then forwards it.
  • Page 19 AT-S7/AT-S9 Operations Manual If a packet’s MAC address is not already stored in the Bridge Address Table, the switch adds the learned address, the associated port number and a timer value that indicates the age of the dynamic Bridge Address Table entry. Consequently, the switch knows the address and associated port number the next time it sees that address.
  • Page 20 Product Description...

  • Page 21: Getting Started

    Chapter 2 Getting Started A completely functional ATM network requires the successful integration of several disparate units: An AT-4016TR or AT-4016F Ethernet-to-ATM switch, or An AT-TS95TR Ethernet-to-ATM switch ATI’s Omega management software An optional ATM-to-ATM Switch Getting started involves the following sequence: 1.

  • Page 22: Getting Started - Omega

    Getting Started Getting Started — Omega Your switch can operate either stand-alone when the backbone port is not connected to an ATM network — or as an Ethernet switch/ATM Emulated LAN when the backbone port is connected to an ATM network and functioning.
  • Page 23 AT-S7/AT-S9 Operations Manual The Main Menu of the AT-4016F switch is shown below. The AT-TS95TR Main Menu would be identical except for the header. NOTE The use of the Port, Frame, and Error statistics submenus are specifically associated with Ethernet functionality and discussed in Chapter 4, System Administration. Since they are not used to actually configure an ELAN, they will not be presented here.

  • Page 24: System Administration Menu

    Getting Started The parameter changes noted below require the system to be reset before they are recognized. Ethernet Parameters ATM Parameters Store and Forward Sonet Cut-Through Collision is Indicated on Amber Internal clocking LED Transmit is Indicated on Amber External (loop) clocking LED Unassigned cells idle cells System Administration Menu Connect the serial port of your terminal or PC to the RS232 console port...

  • Page 25: System Name

    AT-S7/AT-S9 Operations Manual System Name From the System Administration submenu, enter the letter System name to access the following submenu. This menu can be used to enter or change the name of your switch. You may enter a new name, up to 20 characters in length, or press RETURN keep the existing symbolic name.

  • Page 26: Password, Timeout

    Getting Started Password, To assign or change the password or timeout value, return to the System Administration submenu and enter the letter P for the Timeout Password, timeout submenu: Password. Password protection restricts unauthorized access to Omega management. This is a very different type of password protection than “Download Password”...
  • Page 27 AT-S7/AT-S9 Operations Manual option will automatically end the session if there is no activity timeout for the length of time specified (in minutes). That is, if a password timeout value is entered the activity monitor will only run until the timeout time is reached.

  • Page 28: Ip Parameters Menu

    Getting Started IP Parameters From the Main menu, enter the letter to reaccess the System administration submenu: Menu Enter the letter for IP parameters to access the following submenu:...
  • Page 29 AT-S7/AT-S9 Operations Manual A complete discussion of the parameters on this screen is contained in Chapter 3, Ethernet Administration, and will not, therefore, be presented here. On the other hand, the following two parameters are required to initiate a remote network or to download software to switches which have a password initiated.

  • Page 30: Getting Started - Atm

    Getting Started Getting Started — ATM As stated earlier, this release provides Ethernet to ATM connectivity through ATM Permanent Virtual Circuits (PVCs). This means that each switch must have a PVC link between itself and any other switch. Figure 6 shows a typical ATM PVC network topology.

  • Page 31: Atm Parameters Menu

    AT-S7/AT-S9 Operations Manual ATM Parameters Menu Access the Main menu from Omega management. As previously stated, Omega’s Main menu enables you to access the submenus that are needed to configure your Ethernet and ATM network. Select the System Administration submenu by entering the letter from the Main Menu.

  • Page 32: Sonet/Sdh

    Getting Started From the System Administration submenu enter the letters AT for ATM parameters to access the following submenu: This submenu enables you to determine the values that regulate your ATM network. The top part of the display shows the current values. The following variables can be configured: Sonet/SDH Two options are available for the Fiber Optic ATM interface: Synchronous...

  • Page 33: Atm Address

    AT-S7/AT-S9 Operations Manual ATM Address ATM addresses are used as a means to identify devices and to communicate between them. This software release allows non-standard ATM addresses. This means that an ATM address may consist of any user-determined arbitrary numerical designation.

  • Page 34: Lan Emulation Menu

    Getting Started The VPI screen is shown below and is accessed, of course, from the System Administration submenu. To use the LAN emulation capabilities of ATM, you establish logical identities for LANs, paths, channels, and MAC-addressed nodes on your network(s). Virtual Path Identifier.

  • Page 35: Emulated Lan Definitions Submenu

    AT-S7/AT-S9 Operations Manual Choose from the Main Menu. LAN Emulation NOTE You should plan which devices should be included in an ELAN since, as you may recall, there is no communication between ELANs without ATM routing. Emulated LAN option provides you with a list of ELAN names Emulated LAN definitions that you have defined.

  • Page 36: Port To Elan Configuration Submenu At-S7

    The Port to ELAN Configuration option enables you view the ELAN name and type of port configuration associated with each port on your switch. This screen displays each of the sixteen (16) actual AT-4016TR UTP or AT-4016F Fiber Optic ports as well as the logically defined management port...
  • Page 37 AT-S7/AT-S9 Operations Manual By default, all devices on a port are in the same ELAN, but you can override membership assignments for individual devices on a port. See “MAC Address to ELAN Configuration Submenu” on page 28. NOTE Ensure that the management workstation remains on the same ELAN as the management client port, Port 17.
  • Page 38 Getting Started Select a port by typing its number listed on the left of the screen. Port 1 was selected in this example. On the ELAN configuration screen for the selected port, you can change the method the switch uses to assign ELAN membership to network devices. Choose either for “MAC address determines ELAN;...

  • Page 39: Port To Elan Configuration Submenu At-S9

    AT-S7/AT-S9 Operations Manual Port to ELAN Configuration Submenu AT-S9 The Port to ELAN Configuration option enables you view the ELAN name and type of port configuration associated with each port on your switch. This screen displays each of the eight (8) actual AT-TS95TR UTP ports as well as the logically defined management port.

  • Page 40: Mac Address To Elan Configuration Submenu

    Getting Started Select a port by typing its number listed on the left of the screen. Port 9 was selected in this example. On the ELAN configuration screen for the selected port, you can change the method the switch uses to assign ELAN membership to network devices. Choose either M for “MAC address determines ELAN;...
  • Page 41 AT-S7/AT-S9 Operations Manual To assign ELAN membership to an individual device: Enter to select the submenu. MAC address to ELAN Configuration 2. The final screen would look similar to the following. The difference would only consist of at least 128 possible MAC addresses:...
  • Page 42 Getting Started Select a row in the table by typing its number listed on the left of the screen. Enter to select and type in the MAC address for the device MAC address you wish to assign to an ELAN and press <RETURN>...

  • Page 43: Pvc Definitions Submenu

    AT-S7/AT-S9 Operations Manual 4. Enter to select the type in the number of the ELAN you Emulated LAN, wish to assign the device to and press <RETURN> PVC Definitions Submenu menu shows the current configuration of the PVC definitions Permanent Virtual Connections (PVCs). To Configure a PVC You can add or modify PVC configurations by overwriting the entries in the table.
  • Page 44 Getting Started If you need multiple ELANs, or do not use the default ELAN, you must define an ELAN name and associate it with a number. To define your ELAN, access the Emulated LAN Definition option within the Main Menu. Choose the number and the name you wish to use. Decide which ports (or MAC addresses) will be assigned to which ELANs.
  • Page 45 AT-S7/AT-S9 Operations Manual NOTE It is best to record each configuration option. This will prevent mistakes when you configure other device. 2. Select a PVC by typing its number listed on the left of the screen. The configuration screen for the selected PVC shows the options you must specify in order to set up a PVC.
  • Page 46 Getting Started VCI. If you choose , the system displays the current value. You can enter a new number to change the VCI for that particular PVC. NOTE While you can use Virtual Circuit Identifiers (VCIs) between 1 and 1,024, VCIs between 1 and 31 have been reserved for ATM management cell purposes and are not available for use.
  • Page 47 AT-S7/AT-S9 Operations Manual ATM Address. The ATM address entered here is the one for the remote system (on the far end of this PVC). It must be unique within this AT-4016. ELAN ID. If you choose from the PVC Configuration Menu, you can ELAN ID specify or change which Emulated LAN is associated with the PVC.

  • Page 48: Status And Statistical Menus

    Getting Started Status And Statistical Menus Status and statistical menus are accessible from the Main menu. NOTE The use of the Port, Frame, and Error statistics submenus are specifically associated with Ethernet functionality and discussed in Chapter 3, System Administration. Since they are not used to actually configure an ELAN, they will not be presented here.

  • Page 49: Cell Statistics Menu

    AT-S7/AT-S9 Operations Manual Cell Statistics Menu The Cell Statistics menu enables you to view ATM cell transmit and receive statistics as well as Loss of Frame and Sync events. Fields in this menu cannot be configured. From the Main menu, access the Cell statistics submenu.

  • Page 50: Virtual Circuit Information

    Getting Started Virtual Circuit Information The Virtual Circuit Information (VCI) submenu enables you to view VCI statistics for each active VCI. VCI is the 16-bit number in an ATM cell header which identifies the specific virtual channel on which the cell is traversing on the current physical circuit.
  • Page 51 AT-S7/AT-S9 Operations Manual This menu displays statistics for the VCI you specified. Again, Fields in this menu cannot be configured. This VCI Statistics menu provides the following information: Received AAL5 Frames - The total number of AAL5 frames received by this switch from the specified VCI Received Frame Errors - The total number of frame errors received by this switch from the specified VCI...

  • Page 52: Mac Address Table

    Getting Started MAC Address Table Selecting the MAC Address Table menu displays all of the MAC addresses discovered by management software on the network. From this screen you can determine all of the MAC addresses that are available, as well as the port or VCI, status, age, VLAN number and name for each MAC address.

  • Page 53: Ethernet Administration

    Chapter 3 Ethernet Administration Accessing Omega To start a session with the management agent, either: 1. Press the <RETURN> key twice on a PC connected to the RS232 port, or 2. If your switch has been assigned an IP address, use Telnet to access the management agent.

  • Page 54: Password, Timeout

    Ethernet Administration Some of the submenus cannot fit on a single screen. In this case follow the instructions on the screen to obtain more information or to go to the next page. Password, To assign or change the password or timeout value, return to the System Administration submenu and enter the letter P for the Timeout Password, timeout submenu:...

  • Page 55: Tcp/Ip

    AT-S7/AT-S9 Operations Manual Press for the Timeout screen. <RETURN> The default, “0”, disables the timeout function. TCP/IP You must choose a protocol for your network: Is it to be a TCP/IP or a nonTCP/IP network? If you have many geographically dispersed subnetworks, each connected to its own department concentrator, you may want to manage these multiple switches remotely in a central-site configuration.

  • Page 56: To Configure A Tcp/Ip Address

    Ethernet Administration To Configure a You can configure the IP Address of the switch by connecting to the serial port of the switch and bringing up Omega or by using a BootP server. The TCP/IP Address local installation of an IP address requires either a DOS terminal or a Terminal Emulator Program and a serial cable.

  • Page 57: Port Status

    AT-S7/AT-S9 Operations Manual Port Status The Main menu of Omega is shown below. Choose Port Status by entering the letter P. The system will then display the AT-4016 screen shown below. Note that the AT-TS95TR screen would only have eight (8) ports.
  • Page 58 Ethernet Administration This screen shows the status and configuration of each Ethernet port. At the top of the screen, you see the system name (if any). Each port is identified by number and name (if any). The columns provide the following information: Port.

  • Page 59: Port Configuration

    AT-S7/AT-S9 Operations Manual Received BPDUs will be submitted for transmission. They will also be processed as required by the STP algorithm. indicates a port that is NOT PARTICIPATING in frame relay. Nor Disabled is it participating in the operation of the STP algorithm and protocol. Received frames are discarded.
  • Page 60 Ethernet Administration Change port name. The option Change port name allows you to specify a new symbolic name for the port or change an existing one. If selected, the following screen appears: You can enter a new name for the port, up to 20 characters in length, or press to keep the existing name (if any).

  • Page 61: System Name

    AT-S7/AT-S9 Operations Manual System Name First, choose the System Administration submenu by entering the letter from the Main Menu.
  • Page 62 Ethernet Administration Table 3, Omega Menu Map summarizes the functions that are available under the System Administration menu. Table 3: Omega Menu Map System Administration System name Password, timeout IP parameters Ip address SUbnet mask GAteway address Manager address Download Password GEt community string SEt community string Trap community string...
  • Page 63 AT-S7/AT-S9 Operations Manual First, choose the System Administration submenu by entering the letter from the Main Menu. Next, enter the letter for System name to access the following submenu. This menu can be used to enter or change the name of your switch.

  • Page 64: Ethernet Parameters

    Ethernet Administration You may enter a new name, up to 20 characters in length, or press RETURN keep the existing symbolic name. To delete an existing name, enter one or more space characters (blanks) and then press RETURN Ethernet Parameters The AT-4016 as well as the AT-TS95TR, offer the choice of store-and-forward (the default) or cut-through switching strategies.

  • Page 65: Terminal Configuration

    AT-S7/AT-S9 Operations Manual Terminal Configuration Choose the System Administration submenu. Enter the letter T for Terminal Configuration to access the following submenu: Presently configured (or default) options are highlighted with an arrowhead (“ ”). > Changes to the configured terminal characteristics (terminal type and half/full duplex) take effect immediately.
  • Page 66 Ethernet Administration Custom Terminal Configuration— Custom terminal definition... enables the same full-screen display characteristics as the option, but ANSI with a non-ANSI terminal. If you select the option, you are led Custom terminal definition... through three screens to specify the control or escape sequences used by the terminal.
  • Page 67 AT-S7/AT-S9 Operations Manual Under Custom Terminal Configuration... the first sequence to be configured is HOME THE CURSOR This is followed by the ERASE THE ENTIRE SCREEN...
  • Page 68 Ethernet Administration Finally, you enter the ERASE TO END-OF-LINE Data Rate—Return to the Terminal Configuration screen and select . The screen consists of selectable baud rates. Data rate (baud” rate)... If you select (the default), you will have to Automatic baud rate detection press twice to begin future management agent sessions.

  • Page 69: Update Software In Another System

    AT-S7/AT-S9 Operations Manual Update Software In Another System There are two prerequisites before you can update software to another system: 1. Software cannot be upgraded if either an AT-S7 PCMCIA card or an AT-S9 Firmware Cassette is installed in the remote device, and 2.

  • Page 70: Broadcast Updated Software To All Systems

    Ethernet Administration Broadcast Updated Software To All Systems Choose the System Administration submenu. Enter the letter B for Broadcast updated software to all systems to access the following submenu. Note that just the bottom of the scrolled screen is shown: A message is broadcast to all other Allied Telesyn switches informing them that software is to be downloaded if they are not already running the current software release (the software running on the switch from which you issued...

  • Page 71: Activity Monitor

    AT-S7/AT-S9 Operations Manual Activity Monitor This option is used for troubleshooting purposes as well to show if downloaded software is completed. When directed to a file, technical support engineers will be able to retrieve this information and, subsequently, use it towards the determination and resolution of failures.

  • Page 72: Diagnostics

    Ethernet Administration Diagnostics enables you to run a limited set of diagnostic tests on currently Diagnostics selected groups. The results for each test will indicate either Good Failed Choose the System Administration submenu. Enter the letter D for Diagnostics to access the following submenu: A T - S 7 2.

  • Page 73: Connect To A Remote System

    AT-S7/AT-S9 Operations Manual Connect to a Remote System Select System Administration from the Main Menu. Next, select Connect to he following screen will be shown: a remote system. T For IP Networks. Enter the IP address of the target switch, switch name, or MAC address.

  • Page 74: Reset And Restart The System

    Ethernet Administration Reset and Restart the System Choose the System Administration submenu. Enter the letter R for Reset and restart the system to access the following submenu. This screen is used to verify changes in ATM parameters as well as Ethernet parameters.

  • Page 75: Frame Statistics

    AT-S7/AT-S9 Operations Manual Frame Statistics When you select from the Main menu, the following Frame statistics screen appears: Options Statistics Counters. Options A through K will display a graph for a particular statistics counter. See Single Counter Graph below. System Overview. This option (L) displays the System Overview Graph - Frames (see below).

  • Page 76: Single Counter Graph

    Ethernet Administration Single Counter If you select one of the individual Statistics Database counters from the Frame statistics submenu (options A through K), the following display Graph appears: The selected statistics counter (Received Frames Filtered in this example) is graphed on a port-by-port basis. Each port’s counter value is shown to the left of the graph, and the graph itself provides a visual comparison of each port.

  • Page 77: System Overview

    AT-S7/AT-S9 Operations Manual System Overview If you select the System overview option ( from the Frame statistics submenu, the following display appears: All of the system-wide statistics counters are graphed. Each counter value is shown to the left of the graph while the graph itself provides a visual picture of system-wide network activity.

  • Page 78: Individual Port Graph - Frames

    Ethernet Administration To select a port, you enter the port number, followed by . A graph RETURN similar to the following Individual Port Graph - Frames will then appear. Individual Port If you select a port number from the Individual Port Statistics, the following display appears.

  • Page 79: Error Statistics

    AT-S7/AT-S9 Operations Manual Error Statistics When you select from the Main menu, the following Error statistics menu appears: Options Statistics Counters. Options A through P will display a graph for a particular statistics counter. See Single Counter Graph above. System Overview. This option (Q) displays the System Overview Graph - Errors (see below).

  • Page 80: System Overview

    Ethernet Administration System Overview If you select the System overview option (O)from the Error Statistics Menu, the following display appears: All of the system-wide statistics counters are graphed. Each counter value is shown to the left of the graph, and the graph itself provides a visual picture of system-wide network activity.

  • Page 81: Cell Statistics

    AT-S7/AT-S9 Operations Manual This display is identical to the System Overview Graph - Errors, but reflects only the statistics for the selected port. All of the selected port’s statistics counters are graphed. Each counter value is shown to the left of the graph, and the graph itself provides a visual picture of the port’s network activity.

  • Page 83: Software

    Chapter 4 Software To Obtain New or Upgraded Software There are several ways to obtain new or upgraded software: PCMCIA — through Allied Telesyn’s optional AT-S7 PCMCIA card EPROM Cassette — through Allied Telesyn’s optional AT-S9 Firmware Cassette FTP Server TFTP —...

  • Page 84: Pcmcia

    The PCMCIA card is a read-only interface used for restoring or updating software. If a PCMCIA card is installed before a reset or power-up sequence, the AT-4016TR boots from the PCMCIA card. Otherwise, it boots from internal Flash RAM. To update software through the PCMCIA port: Insert the PCMCIA card into the PCMCIA port.

  • Page 85: Firmware Cassette

    AT-S7/AT-S9 Operations Manual Firmware Cassette Firmware Cassette Port Figure 8: AT-S9 Firmware Cassette Port Firmware Cassette Port. AT-TS95TR agent software is easy to upgrade through the Firmware Cassette port (see Figure 8). The Firmware Cassette is a read-only interface used for restoring or updating software.

  • Page 86: Ftp Server

    Software NOTE Your system must be reset before any software modifications will be recognized. This can be accomplished by disrupting power to the switch. FTP Server Allied Telesyn has Internet access to an FTP Server in Bothell, WA., for driver and Readme files on our adapter cards and managed products. The server can be accessed through your Internet connection as follows (note —...

  • Page 87: Tftp

    Appendix A TFTP Background Software can be downloaded using the Trivial File Transfer Protocol (TFTP) and ATI’s image file. ATI’s switches support the use of TFTP in ASCII mode to both upload configuration parameters to a host and/or download configuration parameters to a switch. What this means is straightforward: you can save configuration data from many switches to a single host.

  • Page 88: Tftp To Cib Configuration Data Requirements

    TFTP TFTP To CIB Configuration Data Requirements The following information lists the configuration field and the required character string that precedes the user configuration value that has been chosen. Each configuration field data text string entry must be separated from the previous and the following by new line character sequence, i.e., carriage return (0x0D hex) or carriage return/linefeed (0x0D 0x0A hex) character combination.

  • Page 89: Get

    Not all configuration fields apply to all products. This file includes configuration data for AT-S7 (4016 with PVC’s), AT-S6 (3690), AT-S9 (TS95) with PVC’s and AT-S13(4016 with SVC’s). Exceptions are noted. To obtain a current image for an AT-4016TR/AT-4016F or AT-TS95TR respectively, enter either: tftp get image.s7 123.0.0.5 ATS7 octet tftp get image.s9 123.0.0.5 ATS9 octet...

  • Page 90: General System Configuration

    TFTP When you use TFTP, the file name for the switch must be the same as the downloaded password. For example, if you had changed the default download password to ALLIED, and the configuration file on your PC was NEWCONF, your TFTP command line might look like the following: TFTP PUT NEWCONF 135.24.35.122 ALLIED ASCII General System Configuration Description...
  • Page 91 AT-S7/AT-S9 Operations Manual Terminal Clear Screen Control Character Sequence: CLR SCREEN SEQ = “XXXXXXXXXXXXXXXXXXXX” Allowable configuration data: A maximum of twenty (20) ASCII characters Default Value: NULL STRING Terminal Clear Line Control Character Sequence: CLR LINE SEQ = “XXXXXXXXXXXXXXXXXXXX” Allowable configuration data: A maximum of twenty (20) ASCII characters Default Value: NULL STRING...
  • Page 92 TFTP SNMP Get String: GET STRING = “XXXXXXXXXXXXXXXXXXXX” Allowable configuration data: A maximum of twenty (20) ASCII characters Default Value: “public” SNMP Set String: SET STRING = “XXXXXXXXXXXXXXXXXXXX” Allowable configuration data: A maximum of twenty (20) ASCII characters Default Value: “private”...

  • Page 93: Atm Configuration

    AT-S7/AT-S9 Operations Manual System Name: SYSTEM NAME = “XXXXXXXX..XXXXXXXX” Allowable configuration data: A maximum of twenty (20) ASCII characters Default Value: NULL STRING Port Name: PORT NAME = 1 “XXXXXXXX..XXXXXXXX” PORT NAME = 2 “XXXXXXXX..XXXXXXXX” PORT NAME = 16 “XXXXXXXX..XXXXXXXX” Allowable configuration data: A maximum of twenty (20) ASCII character name NOT INCLUDING the port number...

  • Page 94: Ethernet Configuration

    TFTP System ATM Framing ATM FRAMING = SONET Allowable configuration data: SONET, SDH Default Value: SONET Exceptions: For ATM systems only System ATM Clocking ATM CLOCKING = INTERNAL Allowable configuration data: INTERNAL, EXTERNAL Default Value: INTERNAL Exceptions: For ATM systems only System ATM Transmitter Idle ATM TRANSMITTER IDLE = IDLE CELLS Allowable configuration data:...

  • Page 95: Spanning Tree Configuration

    AT-S7/AT-S9 Operations Manual Spanning Tree Configuration Description FIELD IDENTIFIER and VALUEs Spanning Tree Bridge Priority: ST BRIDGE_PRIORITY [1] = 65535 ([Bridge number] = value) ST BRIDGE_PRIORITY [2] = 65535 ST_BRIDGE PRIORITY [64] = 65535 Allowable configuration data: A numeric value ranging from 0 - 65535 Default Value: 65535 Bridge Age Time:...
  • Page 96 TFTP ST FWD DELAY [64] = 15 Allowable configuration data: A numeric value ranging from 4 - 30 Default Value: Bridge ATM State: ST ATM STATE [1] = DISABLED ([Bridge number] = value) ST ATM STATE [2] = DISABLED ST ATM ADMIN STATE [64] = DISABLED Allowable configuration data: DISABLED, ENABLED Default Value:...
  • Page 97 AT-S7/AT-S9 Operations Manual ST PORT ELAN [16] = 1 Allowable configuration data: A numeric value ranging from 1 - 64 Default Value: Spanning Tree Port Cost: ST PORT COST [1] = 100 ([Port number] = Value) ST PORT COST [2] = 100 ST PORT COST [15] = 100 ST PORT COST [16] = 100 Allowable configuration data:...

  • Page 98: Elan/Vlan Definition

    TFTP ELAN/VLAN Definition Description FIELD IDENTIFIER and VALUEs Elan Name: ELAN NAME [1] = “XXXXXXX..XXXXXXXX” ELAN NAME [2] = “XXXXXXX..XXXXXXXX” ELAN NAME [64] = “XXXXXXX..XXXXXXXX” Allowable configuration data: A maximum of thirty-two (32) ASCII characters Exceptions: For PVC systems and ATS6 only Port to ELAN Configuration: PORT ELAN ID [1] = 1 ([Port number] = Elan number)
  • Page 99 AT-S7/AT-S9 Operations Manual PVC Administration State: PVC ADMIN STATE [1] = DISABLED PVC ADMIN STATE [2] = DISABLED PVC ADMIN STATE [128] = DISABLED Allowable configuration data: DISABLED, ENABLED Default Value: DISABLED Exceptions: For PVC systems only PVC VCI: PVC VCI [1] = 100 ([PVC Number] = Value) PVC VCI [2] = 101 PVC VCI [128] = 101 Allowable configuration data:...

  • Page 101: Glossary

    Appendix B Glossary 10BASE-T—IEEE 802.3 UTP Ethernet. Low-cost Level 3 or better UTP wiring affords 100 meters (328 ft.) of point-to-point link segments. UTP uses RJ45 connectors and sometimes 50-pin AMP connectors to a patch panel and runs at 10 MHz. ADDRESS RESOLUTION PROTOCOL (ARP)—The procedures and messages in any communications protocol which resolve local addresses to those of the network.
  • Page 102 Glossary CROSSOVER—Wiring used when connecting a 10BASE-T MAU to another 10BASE-T MAU or a 10BASE-T hub to another 10BASE-T hub. For example, one 10BASE-T MAU has the TD pair on the same pins as another 10BASE-T MAU. If pins were wired straight, there would be two transmitters on one pair and no receiver.
  • Page 103 AT-S7/AT-S9 Operations Manual LAN EMULATION CLIENT (LEC)—ATM Forum-defined specifications in support of LAN-to-LAN connectivity, called LAN Emulation. LEC defines that set of functions implemented in a LAN DTE to interface with an ATM network in support of LAN Emulation. LAN EMULATION SERVER (LES)—LES defines that set of functions implemented in an ATM network in support of LAN-to-LAN connection establishment.
  • Page 104 Glossary NETWORK SERVICES ACCESS POINT (NSAP)—OSI generic standard for a network address consisting of 20 octets. ATM has specified E.164 for public network addressing and the NSAP address structure for private network addresses. PATCH PANEL—A 10BASE-T patch panel may be used between a punch-down block and UTP workstation.
  • Page 105 AT-S7/AT-S9 Operations Manual STAND-ALONE—Repeater operating as a hub on its own; i.e., not a module among other modules in a department concentrator chassis. A type of wiring connection where the pins of one STRAIGHT-THROUGH— connector connect to the same pins of another connector. For example, pin 1 of one connector connects to pin 1 of another connector.
  • Page 106 Glossary USER-TO-NETWORK INTERFACE (UNI)—The interface between an end device and a public or private ATM switch. VIRTUAL CIRCUIT (VC)—A connection between end users that has defined end points and route but does not have bandwidth dedicated to it. Bandwidth is allocated on demand by the network as users have traffic to transmit.
