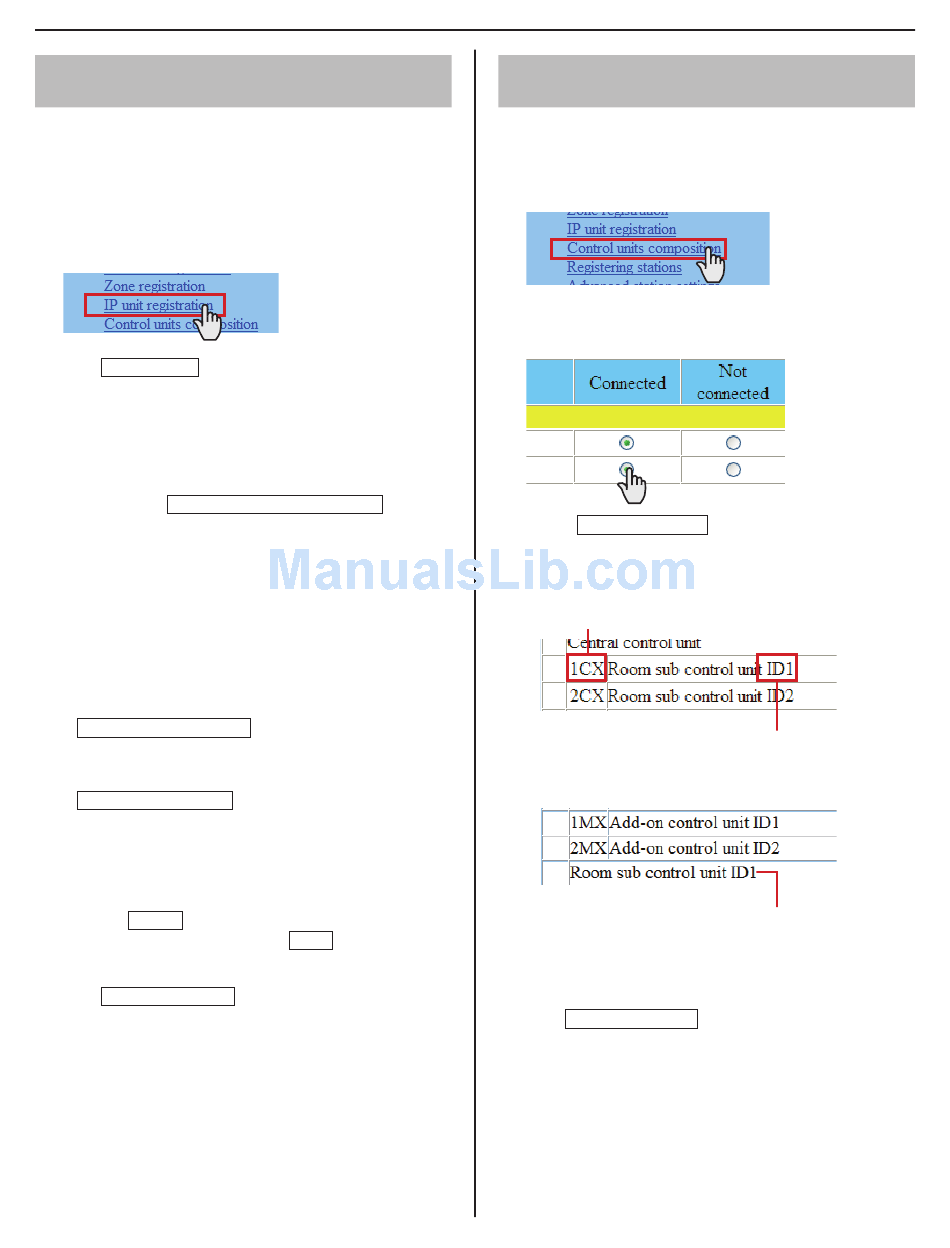

Registering IP units [System setting – IP
unit registration]
Register IP units by selecting from the connected ones to the
system.
To register a PC master station, fi rst install the application
*
(IS-SOFT) to a PC, then connect the PC to the network and
then start IS-SOFT.
1
Click IP unit registration in the table of contents.
2
IP unit search
Click .
All the IP units connected to the system are displayed in
the [Search result] on the lower side of the window.
If IP units are not displayed, repeat this step until
*
displayed.
3 Check the boxes for the IP units you want to register,
Add to the imported IP units list
and then click
The checked IP units are registered and displayed in
[Imported IP units list] on the upper side of the window.
4
Enter data or change settings for the registered IP
units as needed.
* For "Port number", the sequential numbers are
automatically assigned as needed. (You can also enter
port numbers manually.)
Do not use port numbers that overlap those of other
*
devices connected to the same network.
• Port number auto-setting
Click this to assign sequential port numbers
automatically.
• Port forwarding setting
Click this and you can confi rm the port forwarding
settings to be made on the router in another window.
If [UPnP] is set to OFF at
*
Common], make the port forwarding setting on the
router with the set contents in this window manually.
Reload on this window to update the current
Click
*
port forward setting, and click Close to close this
window.
5
Click
Temporarily stored
results temporarily.
If you wish to cancel the setting results you have made,
*
click a title in the table of contents or "Refresh" in the
web browser menu.
NOTE:
A PC master station must be also registered as an IP unit. First
install the application (IS-SOFT) to a PC, then connect the PC to the
network and then register it.
22
.
:
:
[Network setting:
to save the current setting
Registering control units [System setting
– Control units composition]
Register all the control units (other than IP control units)
connected to the system.
1 Click Control units composition in the table of
contents.
2 Click to check the radio button under "Connected" for
the unit you will register.
Connection check to confi rm the connected units.
Click
*
Connected: yellowish green
Not connected: gray
Shows a port no. of the central control unit to connect with
a room sub control unit or add-on control unit.
Shows the ID setting of the room sub control unit or add-
on control unit set by the ID setting switches. (Refer to the
"
INSTALLATION MANUAL
about setting the ID setting switches.)
Shows a room sub control unit connected to an IP control
unit directly, so the port no. is not displayed. If you use
a room sub control unit connected that way, set this to
"Connected".
3
Click
Temporarily stored
results temporarily.
If you wish to cancel the setting results you have made,
*
click a title in the table of contents or "Refresh" in the
web browser menu.
"
for the local system for details
to save the current setting
