IS SERIES
Commercial & Security Video Intercom system
INSTALLATION MANUAL
Thank you for selecting Aiphone for your communication and security needs. Please read this manual carefully before installation,
and keep it in a safe place for future reference.
Also read the SETTING MANUAL and OPERATION MANUAL on the bundled CD-ROM.
When the installation is completed, confi gure the system by following the SETTING MANUAL. Otherwise, the system will be non-
functional.
IMPORTANT
Do not install the system until you have completely understood the system and this manual.
•
•
The system must be installed and wired by a qualifi ed technician well-versed in network construction.
Please note that the illustrations in this manual may differ from the actual ones.
834168 C P0811JZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Aiphone IS SERIES

Summary of Contents for Aiphone IS SERIES

  • Page 1 Commercial & Security Video Intercom system INSTALLATION MANUAL Thank you for selecting Aiphone for your communication and security needs. Please read this manual carefully before installation, and keep it in a safe place for future reference. Also read the SETTING MANUAL and OPERATION MANUAL on the bundled CD-ROM.

  • Page 2: Table Of Contents

    CONTENTS PRECAUTIONS ........ 3 ■ Specifi cations ........16 WARNING ........3 ■ Connections ........17 CAUTION ........3 Color monitor master station (IS-MV) ..........18 GENERAL PRECAUTIONS ....3 ■ Accessories ........18 Notes on using this system ..4 ■ Mounting ..........18 Notices ..........4 ■...

  • Page 3: Precautions

    5. For power supply, use Aiphone power supply model or model at all. This is not considered a unit malfunction. specifi ed for use with system. If non-specifi ed product is used, 13.

  • Page 4: Notes On Using This System

    • This manual was created by Aiphone Co., Ltd., all rights reserved. Notes on using this system Copying a part of or this entire manual without prior permission from Aiphone Co., Ltd. is strictly forbidden. • • The ID/Password to access the web server for setting the system Please note that images depicted in this manual may differ from the actual images.

  • Page 5: System Confi Guration Examples

    System confi guration examples ■ Standard (IP) system The following is an example of standard (IP) system for controlling security and communication for facilities. • A site must be confi gured with an IP-based system. • A standard (IP) system can consist of local systems and IP units. •...

  • Page 6: Connections

    CONNECTIONS System connection diagram The following is an example of standard (IP) system connection diagram. Refer to page 9 to 26 for details about each unit connection. To Internet/WAN Broadband router PBX / Telephone Switch (Hub) IS-IPC IS-PU-UL IS-PU-S Local system IS-MV (Max.
  • Page 7 : IS system product : IP unit Telephone network LAN (IP network) Switch (Hub) Switch (Hub) Switch (Hub) Switch (Hub) PBX / Telephone IS-IPMV IS-IPC* IS-IPDV /IS-IPDVF IS-PU-UL Local system IS-PU-S PC master station PS-2420/D/UL/S* (IS-SOFT) IS-RCU (Max. 1) PS-2420/D/UL/S* PA amplifi...

  • Page 8: Cables

    Cables Cables and connectors are not included with the products. Refer to page 9 to 26 for details about each unit connection. Notes on cables • Unless otherwise noted, never use individual • Odd number cables, such as conductors, twisted pair cable or coaxial cable. three conductor wire, cannot be used.

  • Page 9: Unit Details

    UNIT DETAILS Control unit common information The information on this page is common to Central control unit (IS-CCU), Add-on control unit (IS-SCU), Room sub control unit (IS- RCU) and IP control unit (IS-IPC). ■ Accessories Mounting bracket × 2 Installation manual (a booklet) ×...

  • Page 10: Central Control Unit (Is-Ccu)

    Central control unit ( IS-CCU ) ■ Part names CONTACT INPUT terminals CHIME INPUT terminals CONTACT OUTPUT terminals External chime source volume 1 and 2 Adjust the volume of the input source (for chime) connected to the PA (Paging) OUTPUT terminals CHIME INPUT B1 and B2 terminals respectively.

  • Page 11: Connections

    ■ Connections Chime input (50mVrms, 600Ω) PA output Contact output PC for setting External sound (Electric door strike, strobe light, etc.) (50mVrms, 600Ω) Contact input the system source such as Monitor 1, Monitor 2, PA amplifi er Sensor, etc. CD player, etc. Recorder 1 Recorder 2 connector...

  • Page 12: Add-On Control Unit (Is-Scu)

    Add-on control unit ( IS-SCU ) ■ Part names CONTACT OUTPUT terminals PA (Paging) OUTPUT terminals POWER switch Turns the power ON ( ) or OFF ( ). POWER LED (green) Lights up when the power is ON. POWER terminals MASTER STATION ports STATUS LED (green) Blinks when this unit is initialized or an error *...

  • Page 13: Connections

    ■ Connections Contact output (Electric door strike, strobe light, etc.) PA output (50mVrms, 600Ω) Monitor 1, Monitor 2, PA amplifi er Recorder 1 Recorder 2 connector connector φ0.65-1.2mm φ0.65-1.2mm φ0.65-1.2mm (22-16 AWG) (22-16 AWG) (22-16 AWG) Coax Coax transformer 15m (50') 15m (50') 15m (50') NTSC...

  • Page 14: Room Sub Control Unit (Is-Rcu)

    Room sub control unit ( IS-RCU ) ■ Part names CONTACT OUTPUT terminals PA (Paging) OUTPUT terminals POWER switch Turns the power ON ( ) or OFF ( ). POWER LED (green) Lights up when the power is ON. POWER terminals AUDIO DOOR/SUB STATION ports STATUS LED (green) Central control unit (IS-CCU) /...

  • Page 15: Connections

    ■ Connections Contact output (Electric door strike, strobe light, etc.) PA output (50mVrms, 600Ω) PA amplifi er φ0.65-1.2mm φ0.65-1.2mm φ0.65-1.2mm NP: Non-polarized transformer (22-16 AWG) (22-16 AWG) (22-16 AWG) P: Polarized 15m (50') ID setting switch PA OUTPUT (600Ω) CONTACT OUTPUT (AC/DC24V 0.5A) IS-CCU/ IS-IPC AUDIO DOOR/SUB STATION...

  • Page 16: Ip Control Unit (Is-Ipc)

    IP control unit ( IS-IPC ) This unit is needed to connect a local system to a standard (IP) system. ■ Part names CO port (Telephone) LAN port POWER switch Turns the power ON ( ) or OFF ( ). POWER LED (green) Lights up when the power is ON.

  • Page 17: Connections

    ■ Connections PBX/Telephone Switch (Hub) (North America only) 10BASE-T 100BASE-TX 100m (330') ETHERNET TELEPHONE IS-CCU IS-RCU DC48V IS-CCU IS-RCU P: Polarized φ0.8-1.2mm (20-16 AWG) CAT5e/6 (x3) (non-shielded) 15m (50') 10m (33') CAT5e/6 (x2) (non-shielded) 10m (33') CX1/IP1 CX2/IP2 Central control unit Power supply unit Room sub control unit (IS-CCU) *1...

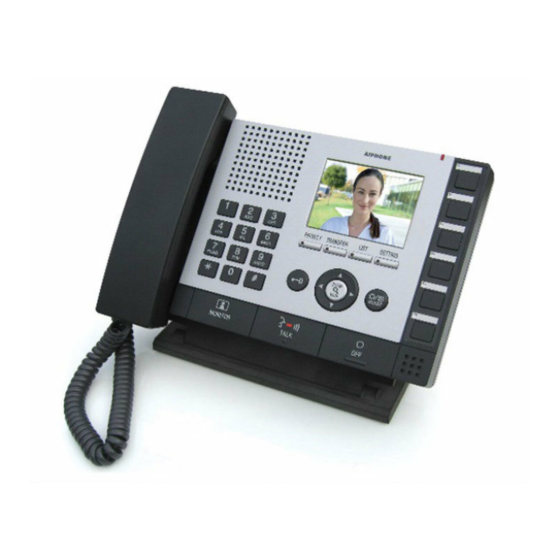

  • Page 18: Color Monitor Master Station (Is-Mv)

    Color monitor master station (IS-MV) For the part names and their functions, see the OPERATION MANUAL. ■ Accessories Mounting bracket × 1 Name card × 1 Desktop stand × 1 Screw (15mm (5/8"), for wall-mounting) × 4 Tie-wrap × 1 Screw (25mm (1"), for gang box) ×...

  • Page 19: Connections

    When mounting on a desktop stand Set up the desktop Mount the unit on the stand. mounting bracket. Set up the desktop stand on Fasten the mounting a level surface etc. so that it bracket to the desktop is stabilized. Fix the desktop stand.

  • Page 20: Vandal-Resistant Video Door Station (Is-Dv, Is-Dvf), Vandal-Resistant Audio Door Station (Is-Ss)

    Vandal-resistant video door station (IS-DV, IS-DVF), Vandal-resistant audio door station (IS-SS) ■ Accessories Screw (for wall-mounting) × 4 (IS-DV only) Special screwdriver × 1 Anchor × 4 (IS-DV only) Back box × 1 (IS-DVF and IS-SS only) Transparent name plate × 2 (IS-DV and IS-DVF only) China RoHS paper ×...

  • Page 21: Mounting

    ■ Mounting IS-DV (surface-mount) Fasten the unit to the NOTE mounting surface. Loosen the screw Make room for threading a screw. Use board anchors or concrete with the special Screw mounting plugs as needed. Unit center screwdriver, and hole x 4 remove the front Anchor x 4 panel.

  • Page 22: Connections (Is-Dv And Is-Dvf)

    ■ Connections (IS-DV and IS-DVF) CAT5e/6 Electric door strike (non-shielded) (Select one port.) 300m (980') Central control unit (IS-CCU) φ0.65-1.2mm CAT5e/6 (22-16 AWG) (non-shielded) 10m (33') 300m (980') (Select one port.) Add-on control unit AC transformer (IS-SCU) φ0.65-1.2mm (22-16 AWG) 10m (33') φ0.65-1.2mm (22-16 AWG)

  • Page 23: Connections (Is-Ss)

    ■ Connections (IS-SS) CAT5e/6 Electric door strike (non-shielded) 300m (980') (Select one port.) Central control unit (IS-CCU) φ0.65-1.2mm CAT5e/6 (22-16 AWG) (non-shielded) 10m (33') 300m (980') (Select one port.) Add-on control unit AC transformer (IS-SCU) φ0.65-1.2mm (22-16 AWG) 10m (33') CAT5e/6 (non-shielded) φ0.65-1.2mm...

  • Page 24: Room Sub Station (Is-Rs)

    Room sub station (IS-RS) ■ Accessories Mounting bracket × 1 Screw (for gang box) × 2 Screw (for wall-mounting) × 2 China RoHS paper × 1 Tie-wrap × 1 ■ Mounting <Back wiring> CAT5e/6 cable 1-gang box The unit Mount the unit on the mounting Fasten the mounting Option wires...

  • Page 25: Connections

    ■ Connections Contact output (Electric door strike, Contact input External speaker strobe light, etc.) (Sensor, etc.) (more than 8Ω 3W) φ0.65-1.2mm φ0.65-1.2mm φ0.65-1.2mm (22-16 AWG) (22-16 AWG) (22-16 AWG) 15m (50') 15m (50') 15m (50') CAT5e/6 (non-shielded) (Select one port.) 150m (490') Central control unit (IS-CCU)

  • Page 26: Power Supply Unit (Is-Pu-Ul And Is-Pu-S)

    Rack for the power supply unit (IS-RACK) The IS-RACK is available. Consult an authorized Aiphone dealer for details. ■ AC cord requirements • Type: Must comply with requirements set out by the Safety Approval/Certifi cation Organization in each country of use.

  • Page 27: Technical Data And Precautions

    TECHNICAL DATA AND PRECAUTIONS Technical data • Operating temperature: Control unit (IS-CCU, IS-SCU, IS-RCU, IS-IPC), 0 - 40°C (+32°F - +104°F) Master station (IS-MV), Room sub station (IS-RS), Power supply unit (IS-PU-UL, IS-PU-S) Door station (IS-DV, IS-DVF, IS-SS) -10 - 60°C (+14°F - +140°F) •...

  • Page 28: Warranty

    WARRANTY Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of two years after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall disclose to be defective and under warranty.
