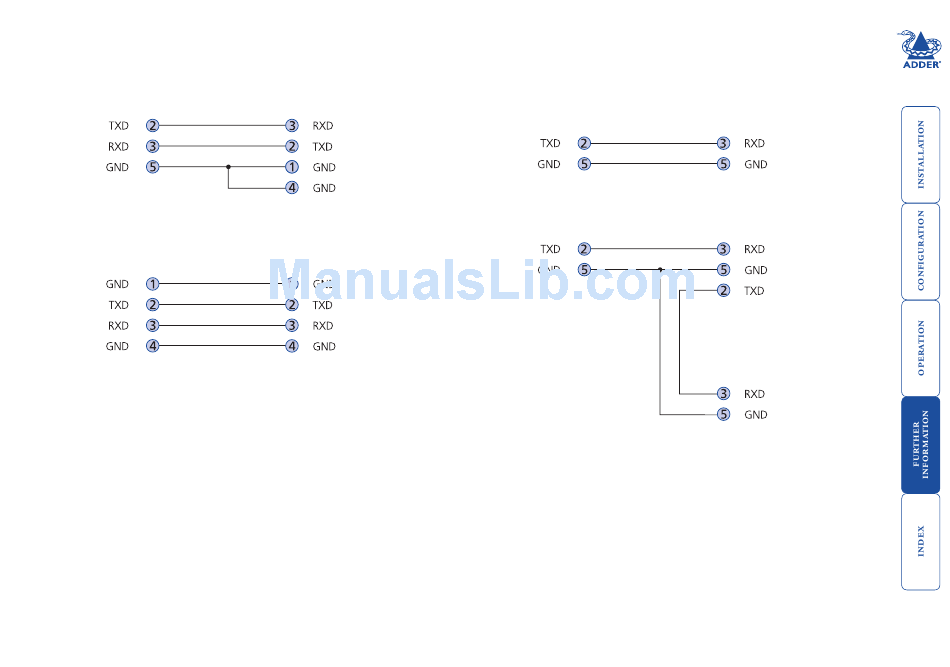

Appendix 8 – Cable and connector specifications

AdderView CATxIP 5000 to power switch cable

9pin D-type female

Power switch to power switch daisy chain cable

4pin RJ9

Multi-head synchronisation cable

4pin RJ9
4pin RJ9
MASTER end
9pin D-type female 9pin D-type female
MASTER end
9pin D-type female 9pin D-type female
9pin D-type male
SLAVE end
Use this cable when two
AdderView CATxIP 5000
devices are being synchronised.
SLAVE1 end
Use this cable when three
AdderView CATxIP 5000
devices are being synchronised.
SLAVE2 end
