Computer system (via CAM)

Each computer system is connected to the
AdderView CATxIP 5000 unit via a Computer
Access Module (CAM) and standard category 5,
5e or 6 cabling. CAMs are available in various
formats to suit differing computer system types
and their particular connector styles.
Each KVM CAM uses Adder Keep Alive
technology to ensure that the keyboard and
mouse inputs to the computer remain active,
even when the particular channel is not selected. This action ensures that there
are no connection delays or problems as the port is selected.

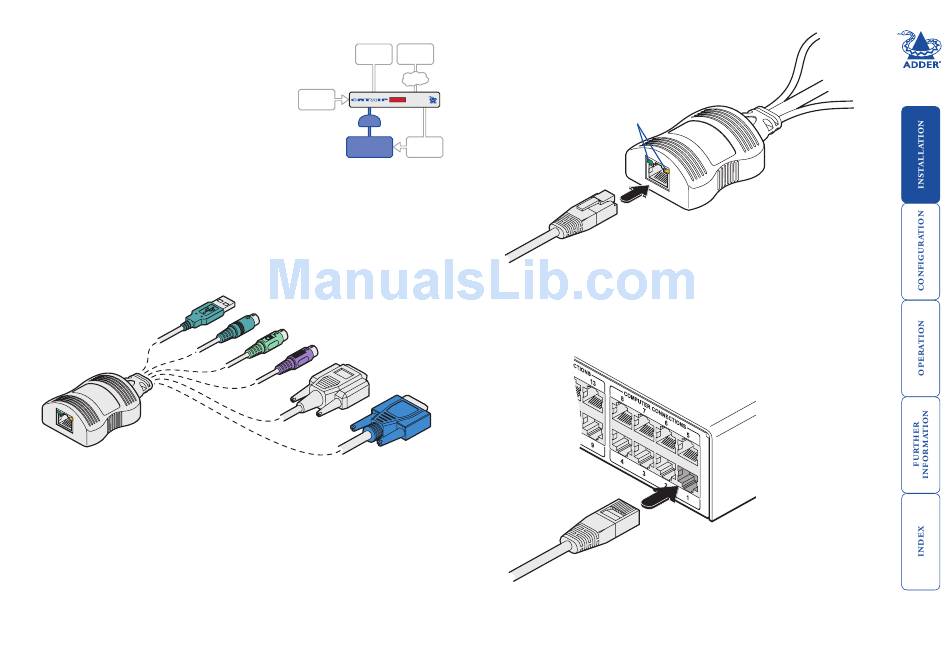

To connect a computer system
1 Ensure that power is disconnected from the AdderView CATxIP 5000 unit
and the system to be connected.
2 Locate the required CAM (there are four types available) and attach its
connectors to the relevant sockets on the computer system.
A range of different
connector combinations
are made available
across the four CAM
formats
3 Lay a suitable length of category 5, 5e or 6 cabling between the computer
system and the AdderView CATxIP 5000 unit. The maximum length of the
cable is 10 m (32 feet).
LOCAL GLOBAL
USER USERS
IP
POWER
IN
CAM
COMPUTER POWER
SYSTEM SWITCH
USB keyboard/mouse
Sun keyboard/mouse
PS/2-style mouse
PS/2-style keyboard
RS-232 Serial
(Console CAM)
4 Attach the connector of the cable
run to the socket of the CAM.
Green indicator - power present
Yellow indicator - signal activity
Category 5, 5e or 6
cable to AdderView
CATxIP 5000
5 At the other end of the cable run, attach the cable connector to one of the
sockets labelled
COMPUTER CONNECTIONS
CATxIP 5000 unit.
Video
Category 5, 5e or 6
cable from CAM
Computer
Access
Module
Note: CAMs derive power from the
AdderView CATxIP 5000 unit
on the rear panel of the AdderView
Note: Each CAM is
specifically shaped so
that it can be secured
using a cable tie around
AdderView CATxIP
its middle. In this way,
5000 rear panel
two CAMs can also be
neatly joined together,
back-to-back.
